Victron 24V 1600VA EasySolar 24/1600/40-16 Inverter/Charger/MPPT 100/50

The product is easy to install, with a minimum of wiring


Front view of Victron EasySolar inverter charger with integrated MPPT and AC distributionKey features: Integrated 24V 1600VA inverter and 40A battery charger, Built-in MPPT 100/50 solar charge controller, AC distribution panel with RCD and four circuit breakers, High 3000W peak power for motor-driven loads, Durable blue aluminium IP21 enclosure.Left perspective of Victron EasySolar blue aluminium enclosureRight perspective of Victron EasySolar blue aluminium enclosureBottom connection panel of Victron EasySolar showing battery, PV and AC terminalsHighlights:Battery Cables: Heavy-duty 1.5 metre pre-installed battery connection cables,PV Connectors: Three sets of MC4 PV-ST01 connectors for solar array input,AC Sockets: G-ST18i connectors for secure 230V AC output distribution,Grounding Stud: Chassis earth grounding point for system safety.System wiring diagram for Victron EasySolar with solar panels, battery and AC loadsTechnical wiring diagram illustrating the all-in-one connectivity of the EasySolar, showing connections for solar panel arrays, a 24V battery bank, AC input, and four distinct AC outputs.Technical specifications table for Victron EasySolar 24/1600/40Full specification table for the EasySolar 24/1600/40 model, detailing the 94% maximum inverter efficiency, 50A MPPT solar controller, and operational temperature range of -20 to +50°C.

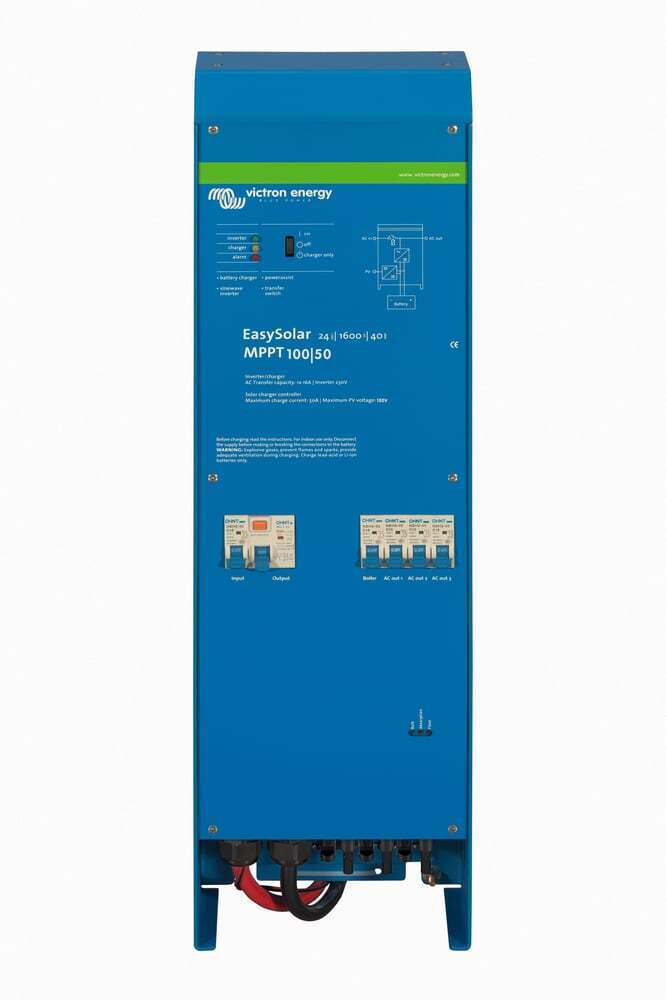

Front view of Victron EasySolar inverter charger with integrated MPPT and AC distribution

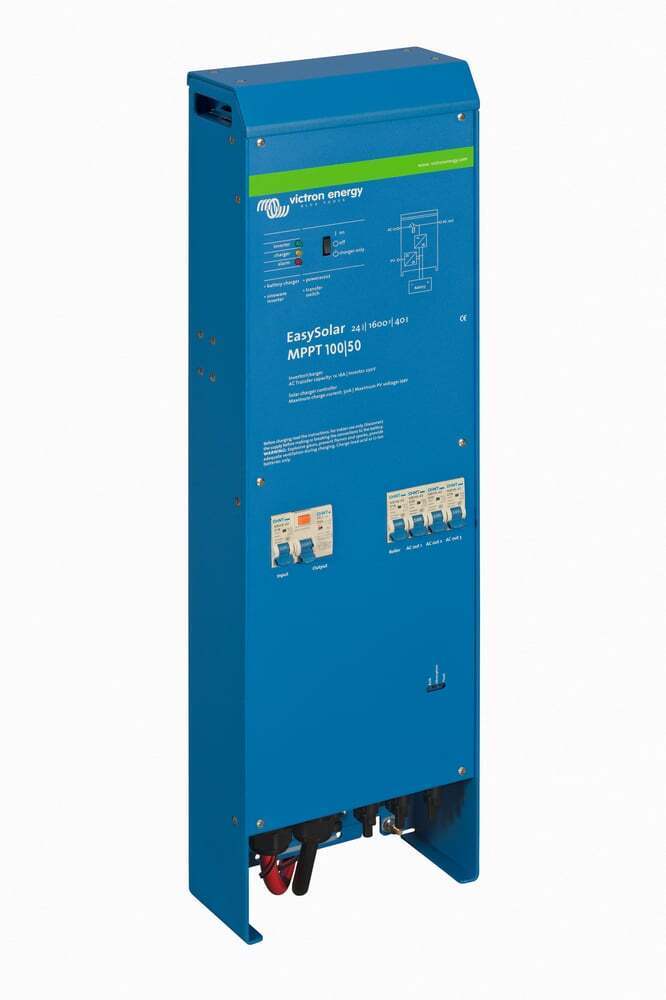

Left perspective of Victron EasySolar blue aluminium enclosure

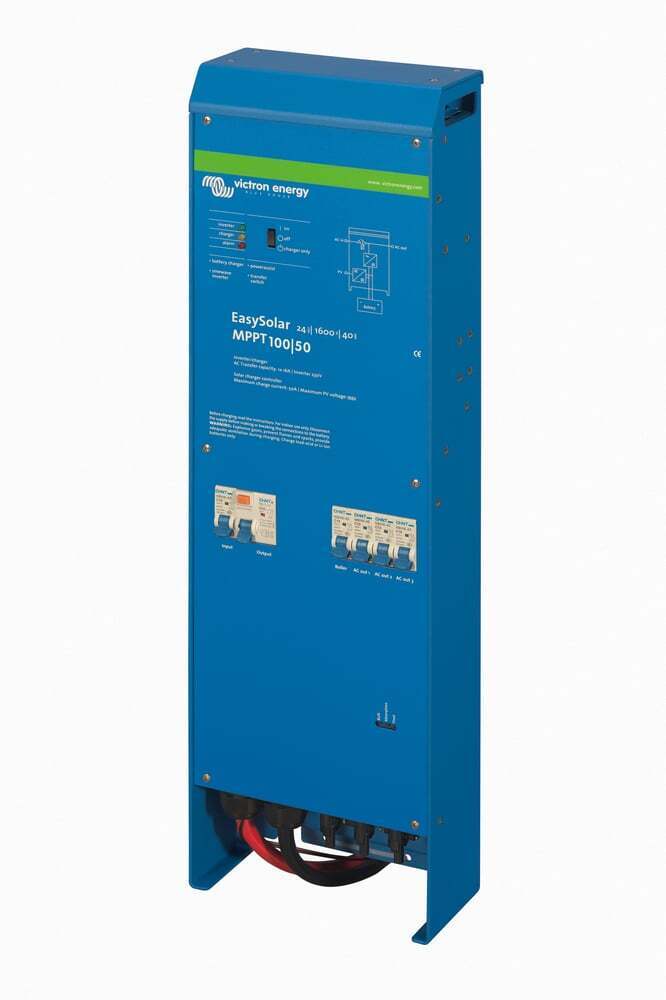

Right perspective of Victron EasySolar blue aluminium enclosure

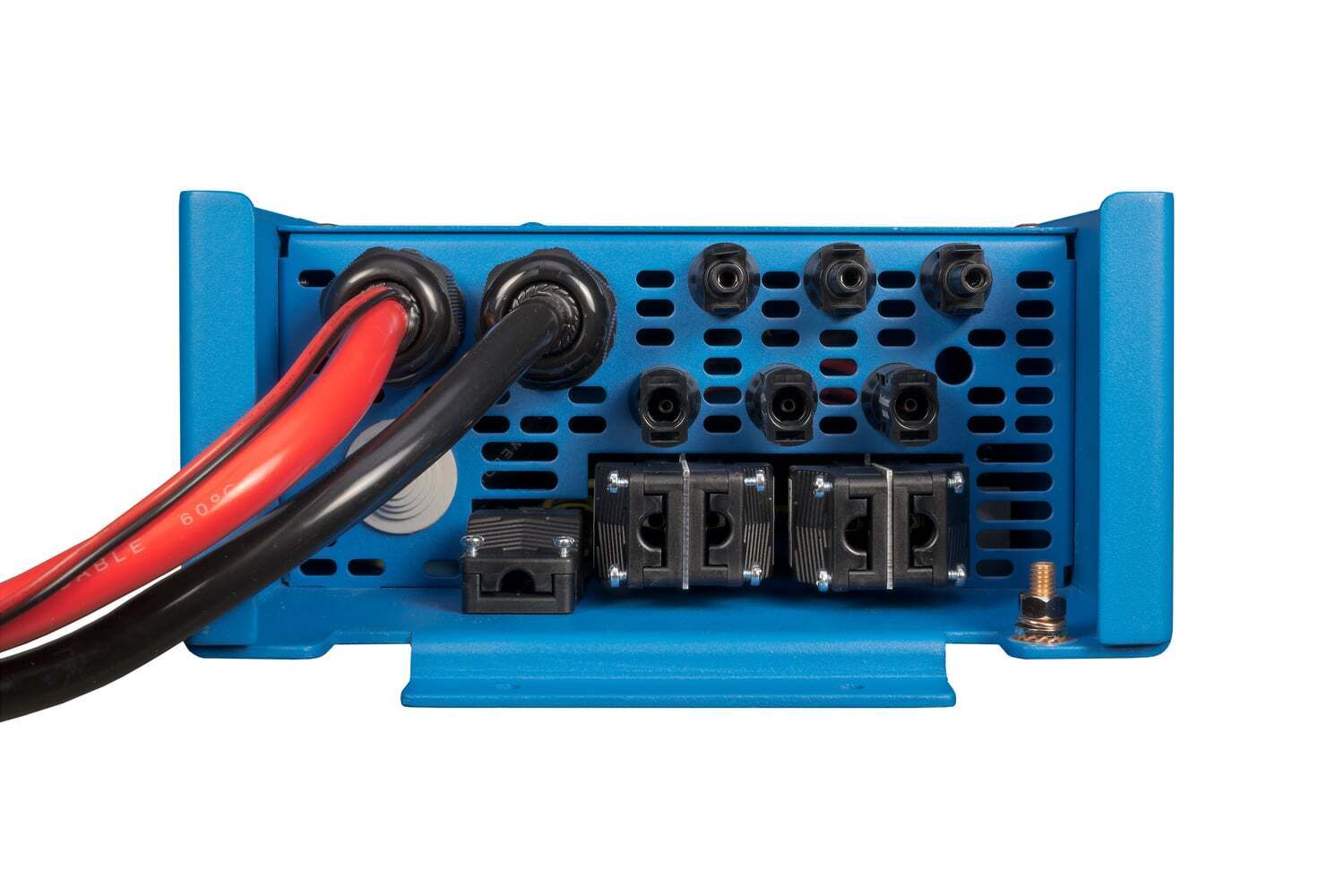

Bottom connection panel of Victron EasySolar showing battery, PV and AC terminals

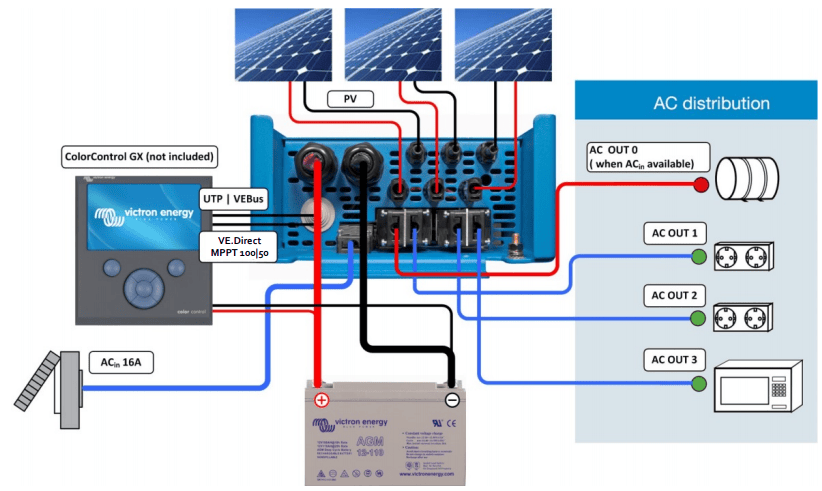

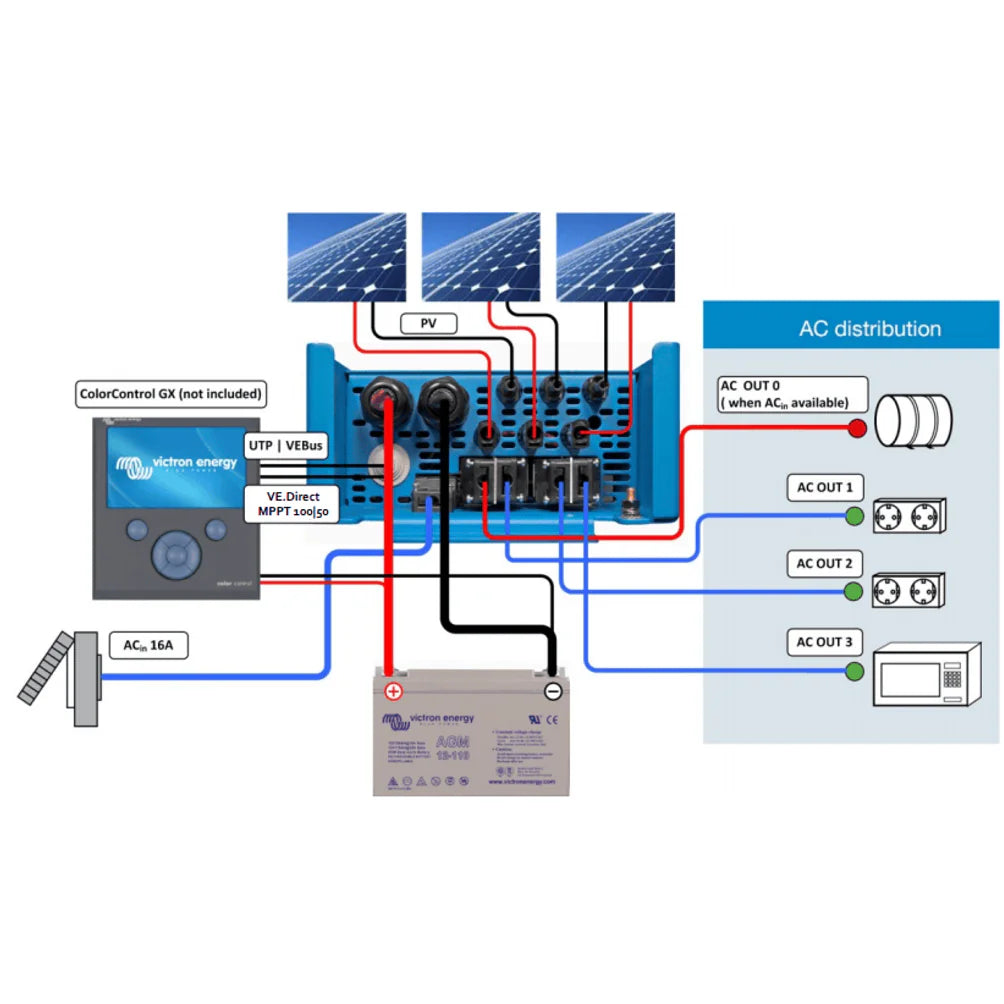

System wiring diagram for Victron EasySolar with solar panels, battery and AC loads

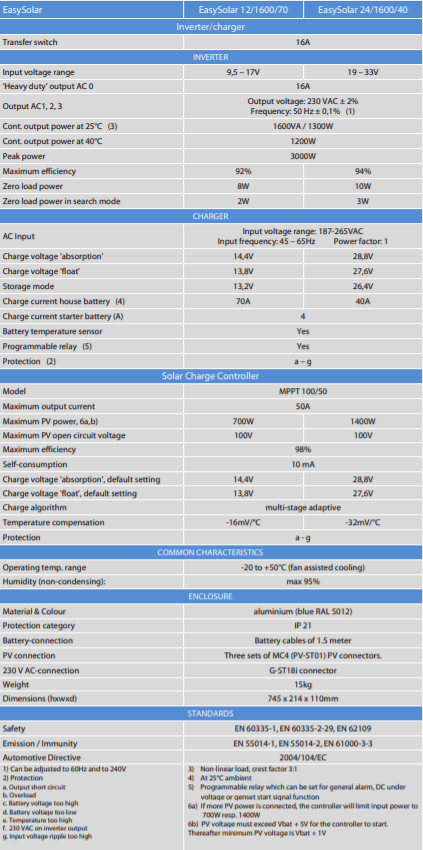

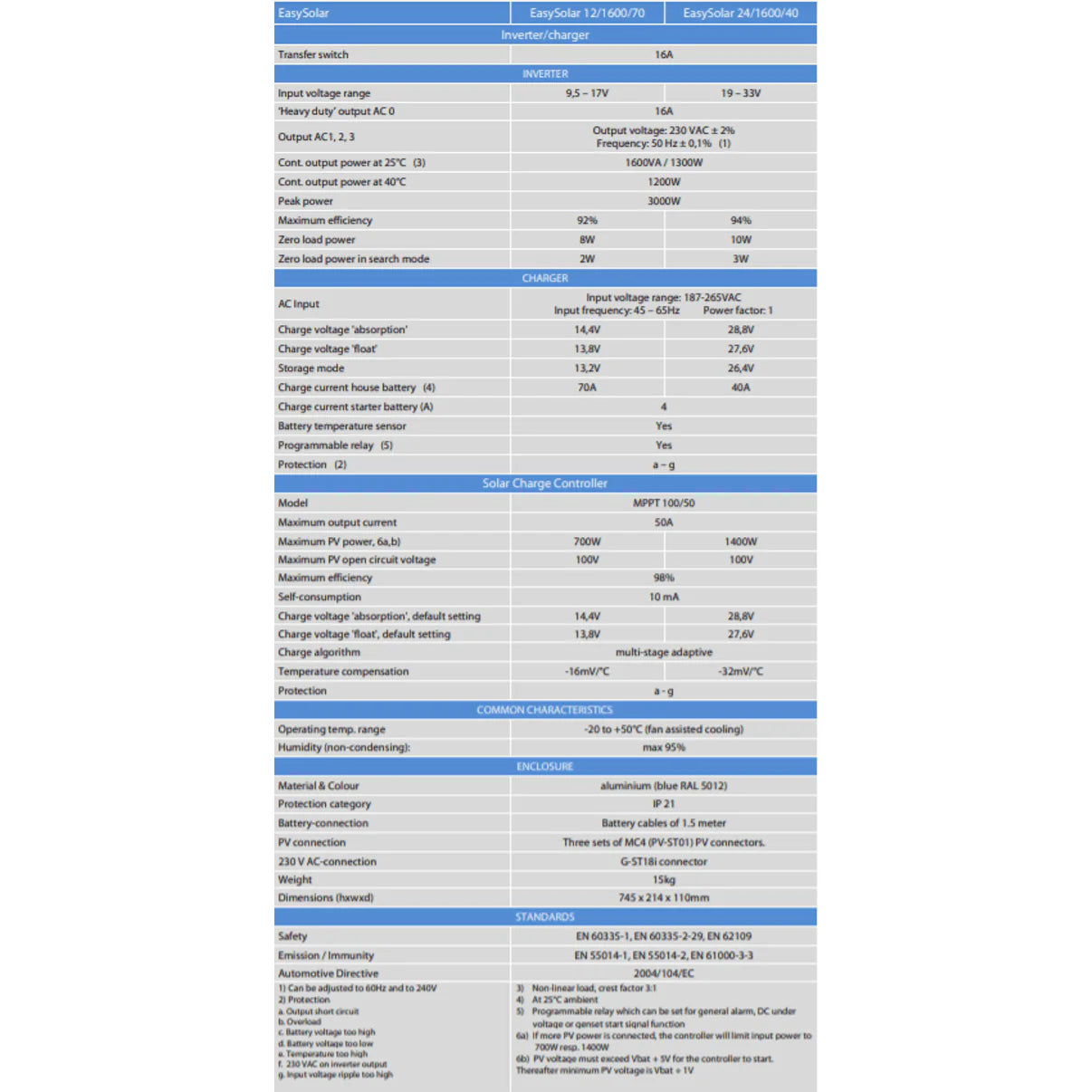

Technical specifications table for Victron EasySolar 24/1600/40
Regular price $2,014.77
$2,014.10
/
Availability: In Stock at Victron Warehouse Allow up to 5 days before dispatch
View all products from Victron
Guaranteed Safe and Secure Checkout
American Express Apple Pay Google Pay MastercardPayPalShop Pay Union PayVisa

0
Front view of Victron EasySolar inverter charger with integrated MPPT and AC distribution

Victron 24V 1600VA EasySolar 24/1600/40-16 Inverter/Charger/MPPT 100/50

DESCRIPTION

Victron EasySolar 24/1600/40-16: The Complete Solar Power Solution for Simple Bus Systems

Unlock the full potential of solar energy with the Victron 24V 1600VA EasySolar 24/1600/40-16, a streamlined all-in-one solar power system. This integrated solution combines a Blue Solar MPPT 100/50 charge controller, a MultiPlus Compact inverter/charger, and a sophisticated AC distribution setup within a single enclosure. It is ideally suited for simple bus systems, offering a simplified installation process with minimal wiring.

Blue Solar MPPT: Optimal Solar Harvesting

Featuring the advanced Blue Solar MPPT 100/50, the EasySolar allows for the connection of up to three strings of PV panels via MC4 (PV-ST01) connectors. This setup is designed to maximize solar collection efficiency and enhance the overall performance of your solar array.

MultiPlus Compact Inverter/Charger: Dual Charging Convenience

The MultiPlus Compact inverter/charger, available in 12/1600/70 or 24/1600/40 configurations, shares DC battery cables with the MPPT charge controller, streamlining the power flow. Charge your batteries with solar energy or, when needed, switch to AC power from the utility grid or a generator, providing continuous power support without interruption.

Integrated AC Distribution System

The EasySolar's AC distribution panel includes an RCD (30 mA/16 A) and four AC outlets, each protected by two 10A and two 16A circuit breakers. With one of the 16A outlets designed to be AC input-controlled, it ensures smart power management, activating only when external AC power is supplied.

Innovative PowerAssist Technology

The proprietary PowerAssist technology from Victron prevents overload of the utility or generator supply by seamlessly integrating extra inverter power on-demand. This feature is particularly beneficial in simple bus systems where power requirements can fluctuate.

Flexible Solar Application Software

Tailor your EasySolar unit to fit your specific needs with a range of software programs (Assistants) provided by Victron. These applications allow for easy configuration of the system for various grid-interactive or stand-alone operations, making it highly adaptable to different simple bus system requirements.

The Victron EasySolar 24/1600/40-16 represents a leap forward in solar power management, offering a compact, powerful, and intelligent solution perfect for small-scale or mobile installations, such as those found in simple bus systems. Install with ease and manage your solar energy more efficiently with this comprehensive and user-friendly power solution.

SPECIFICATIONS

Specifications

EasySolar EasySolar 12/1600/70 EasySolar 24/1600/40
Inverter/charger
Transfer switch 16A 16A
Inverter
Input voltage range 9.5 – 17V 19 – 33V
‘Heavy duty’ output AC 0 16A 16A
Output AC1, 2, 3 Output voltage: 230 VAC ±2% Output voltage: 230 VAC ±2%
  Frequency: 50 Hz ± 0.1% (1) Frequency: 50 Hz ± 0.1% (1)
Cont. output power at 25°C 1600VA / 1300W 1600VA / 1300W
Cont. output power at 40°C 1200W 1200W
Peak power 3000W 3000W
Maximum efficiency 92% 94%
Zero load power 8W 10W
Zero load power in search mode 2W 3W
Charger
  Input voltage range: 187-265VAC Input voltage range: 187-265VAC
AC Input Input frequency: 45 – 65Hz Power factor: 1 Input frequency: 45 – 65Hz Power factor: 1
Charge voltage 'absorption' 14.4V 28.8V
Charge voltage 'float' 13.8V 27.6V
Storage mode 13.2V 26.4V
Charge current house battery (4) 70A 40A
Charge current starter battery (A) 4 4
Battery temperature sensor Yes Yes
Programmable relay (5) Yes Yes
Protection a – g a – g
Solar Charge Controller Solar Charge Controller
Model MPPT 100/50 MPPT 100/50
Maximum output current 50A 50A
Maximum PV power, 6a,b) 700W 1400W
Maximum PV open circuit voltage 100V 100V
Maximum efficiency 98% 98%
Self-consumption 10 mA 10 mA
Charge voltage 'absorption', default setting 14.4V 28.8V
Charge voltage 'float', default setting 13.8V 27.6V
Charge algorithm multi-stage adaptive multi-stage adaptive
Temperature compensation -16mV/°C -32mV/°C
Protection a - g a - g
COMMON CHARACTERISTICS COMMON CHARACTERISTICS
Operating temp. range -20 to +50°C (fan assisted cooling) -20 to +50°C (fan assisted cooling)
Humidity (non-condensing): max 95% max 95%
ENCLOSURE
Material & Colour aluminium (blue RAL 5012) aluminium (blue RAL 5012)
Protection category IP 21 IP 21
Battery-connection Battery cables of 1.5 meter Battery cables of 1.5 meter
PV connection Three sets of MC4 (PV-ST01) PV connectors. Three sets of MC4 (PV-ST01) PV connectors.
230 V AC-connection G-ST18i connector G-ST18i connector
Weight 15kg 15kg
Dimensions (hxwxd) 745 x 214 x 110mm 745 x 214 x 110mm
STANDARDS
Safety EN 60335-1, EN 60335-2-29, EN 62109 EN 60335-1, EN 60335-2-29, EN 62109
Emission / Immunity EN 55014-1, EN 55014-2, EN 61000-3-3 EN 55014-1, EN 55014-2, EN 61000-3-3
Automotive Directive 2004/104/EC 2004/104/EC
  1. Can be adjusted to 60Hz and to 240V
  2. Protection a. Output short circuit b. Overload c. Battery voltage too high d. Battery voltage too low e. Temperature too high f. 230 VAC on inverter output g. Input voltage ripple too high
  3. Non-linear load, crest factor 3:1
  4. At 25°C ambient
  5. Programmable relay which can be set for general alarm, DC under voltage or genset start signal function 6a) If more PV power is connected, the controller will limit input power to 700W resp. 1400W 6b) PV voltage must exceed Vbat + 5V for the controller to start. Thereafter minimum PV voltage is Vbat + 1V




SKU: Vic-CEP241621010
Barcode: 8719076021605
Model #: CEP241621010
MPN: CEP241621010
