Victron 12V 1600VA Phoenix Smart Inverter 12/1600


Front view of blue Victron Phoenix Smart Inverter 12/1600 with status LEDsKey features: 1600VA continuous power output at 25 degrees Celsius, Integrated Bluetooth for wireless remote monitoring, ECO mode reduces zero-load power consumption to 0.6W, Durable IP21 rated steel enclosure in blue and black, High peak power of 3000W for starting demanding loads.Side perspective of the Victron Phoenix Smart Inverter 12/1600 showing steel enclosureAngled view of the Victron 12V 1600VA smart inverter in blue and blackConnection panel of Victron inverter with AC output terminals and DC battery studsHighlights:AC Output Terminals: Secure screw terminals for 230V AC output connection,Positive Battery Stud: Heavy-duty M8 bolt for positive DC battery connection,Negative Battery Stud: Heavy-duty M8 bolt for negative DC battery connection,Programmable Relay: Adjustable relay for alarms or genset start-stop control,Remote On-Off Port: Connection for remote system control and automation,VE.Direct Port: Communication port for system integration and accessories.VictronConnect mobile app interface monitoring load and battery voltage for Phoenix inverterIntegrated Bluetooth communication allows real-time monitoring of load percentage, AC output voltage, and battery state through the VictronConnect mobile application.Technical specifications table for Victron Phoenix Smart Inverter rangeDimensional line drawing of Victron Phoenix Smart Inverter 12/1600 showing measurementsSystem diagram showing Victron inverter connected to battery, solar, and AC loads

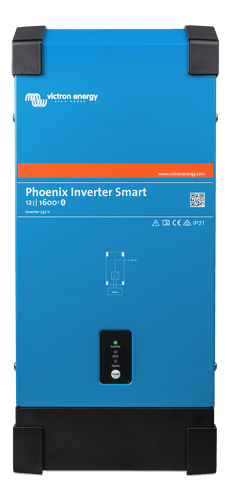

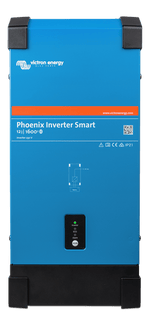

Front view of blue Victron Phoenix Smart Inverter 12/1600 with status LEDs

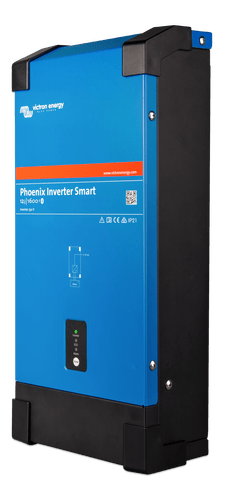

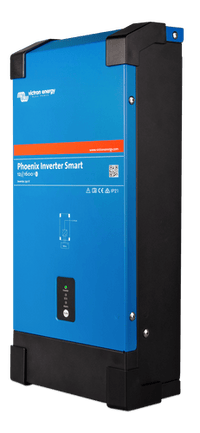

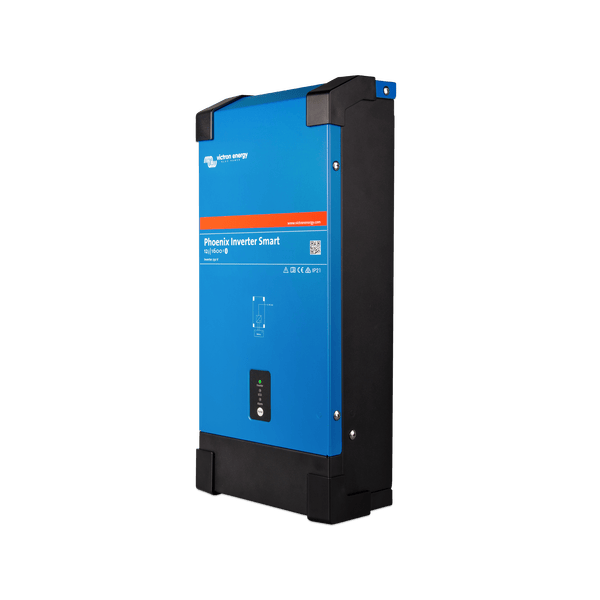

Side perspective of the Victron Phoenix Smart Inverter 12/1600 showing steel enclosure

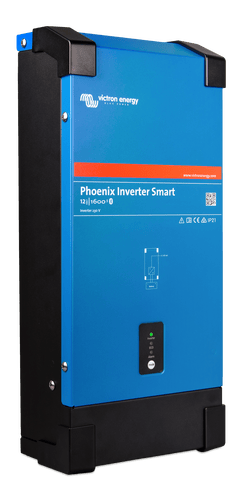

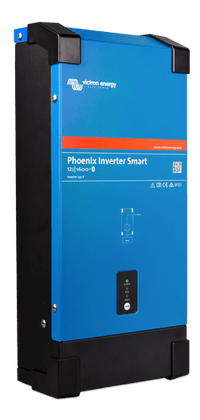

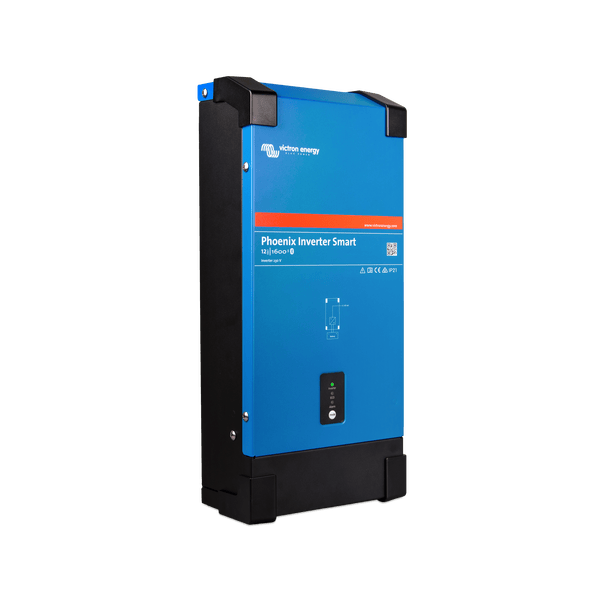

Angled view of the Victron 12V 1600VA smart inverter in blue and black

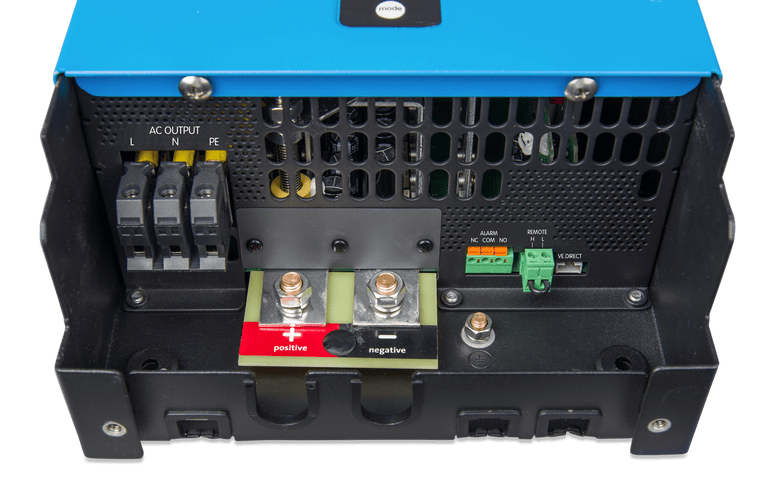

Connection panel of Victron inverter with AC output terminals and DC battery studs

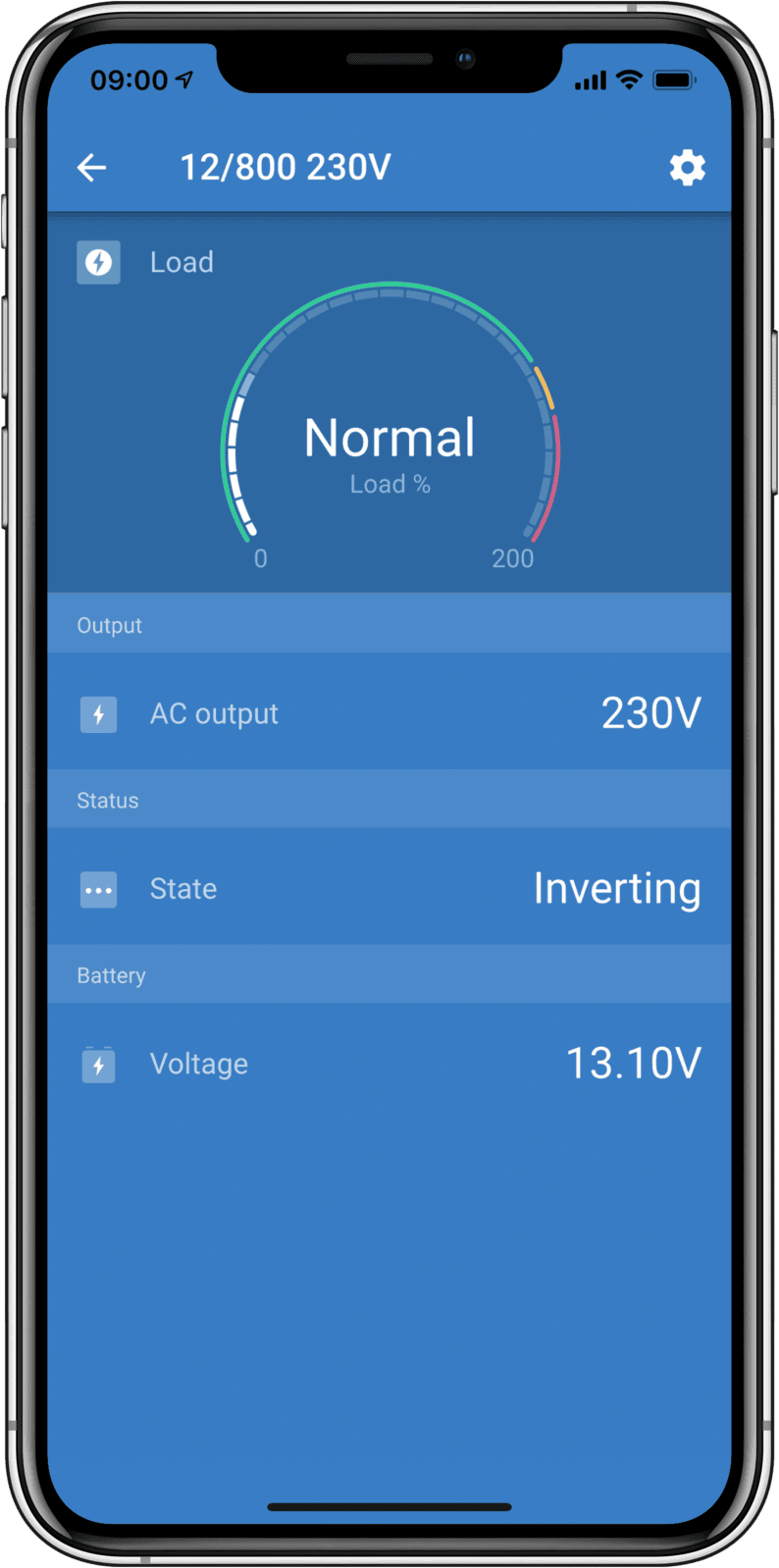

VictronConnect mobile app interface monitoring load and battery voltage for Phoenix inverter

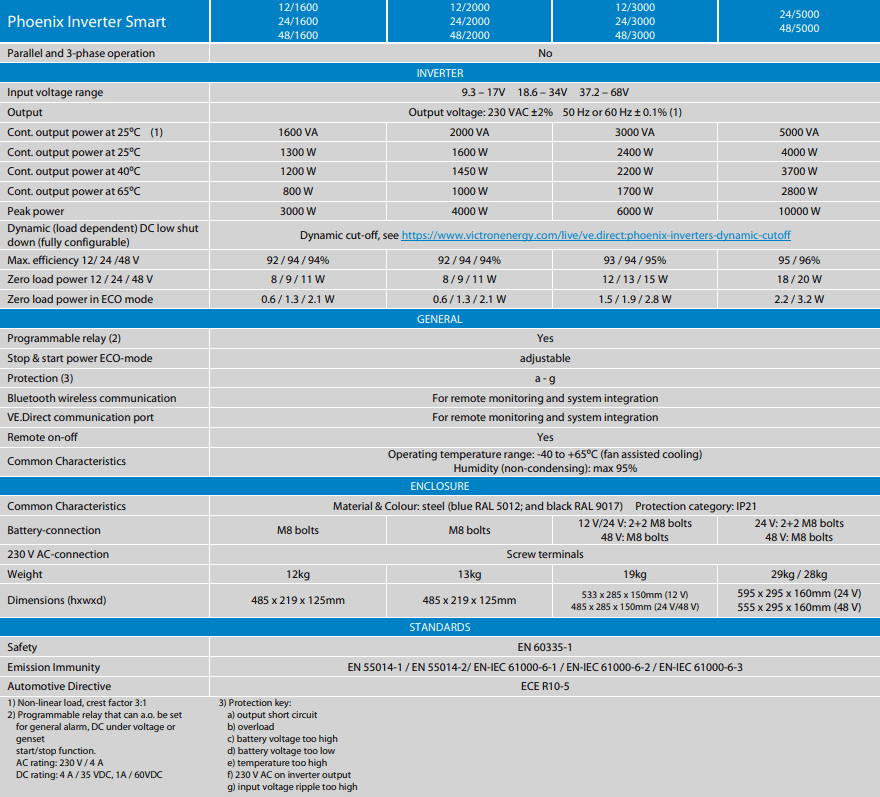

Technical specifications table for Victron Phoenix Smart Inverter range

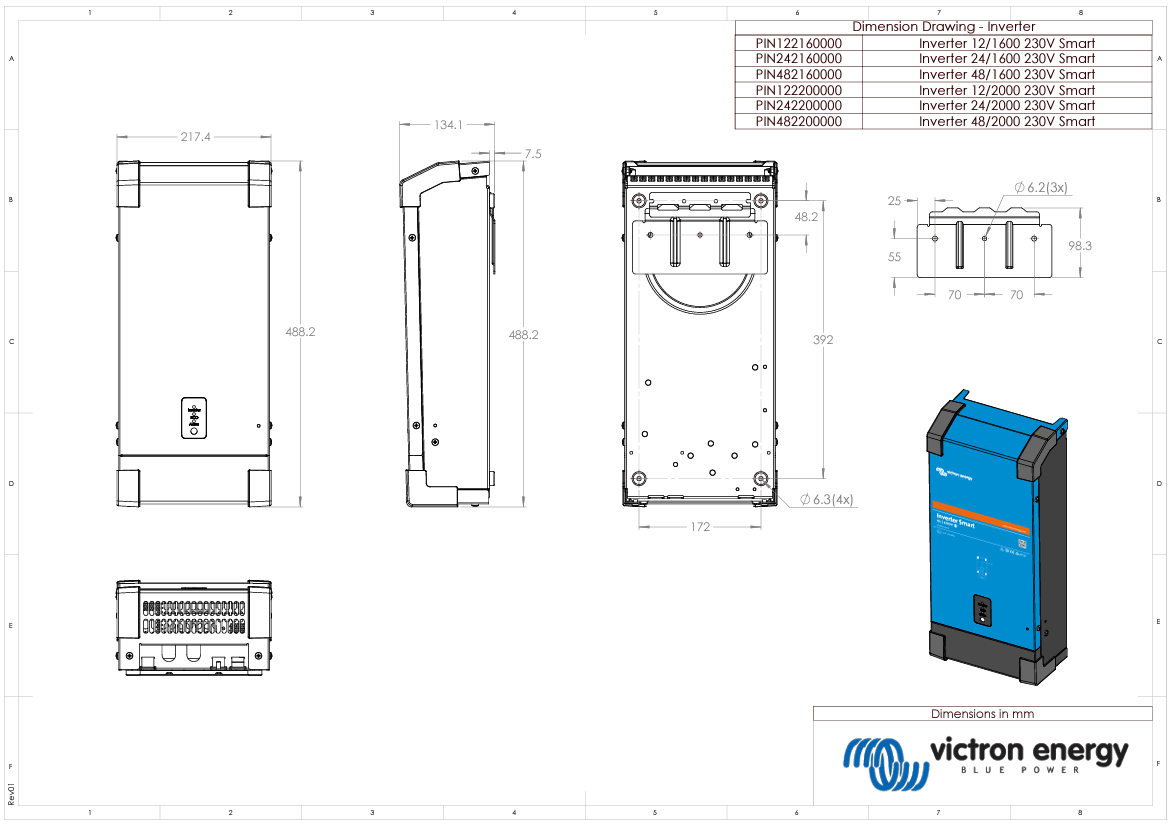

Dimensional line drawing of Victron Phoenix Smart Inverter 12/1600 showing measurements

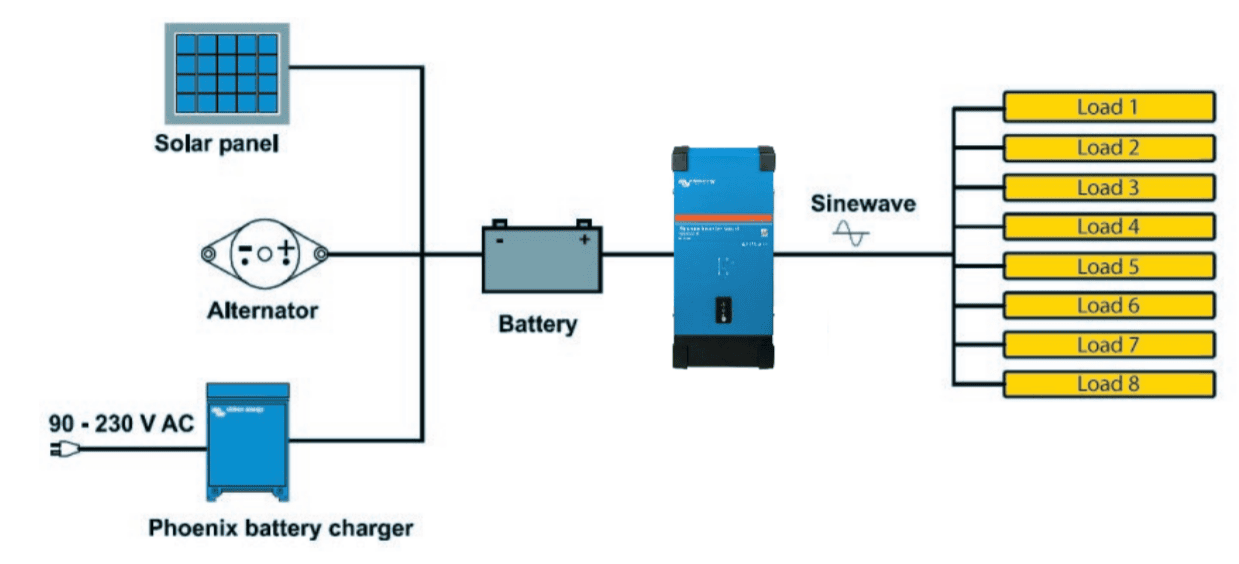

System diagram showing Victron inverter connected to battery, solar, and AC loads
Regular price $920.00
$1,014.20
/
Availability: In Stock
View all products from Victron
Guaranteed Safe and Secure Checkout
American Express Apple Pay Google Pay MastercardPayPalShop Pay Union PayVisa

1

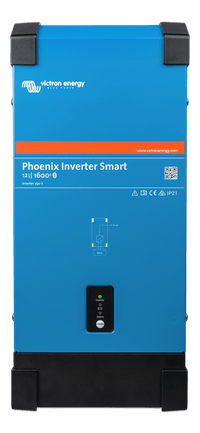

Front view of blue Victron Phoenix Smart Inverter 12/1600 with status LEDs

Victron 12V 1600VA Phoenix Smart Inverter 12/1600

DESCRIPTION

Victron 12V 1600VA Phoenix Smart Inverter 12/1600: Robust and Intelligent Power Conversion for Diverse Applications

Experience the pinnacle of power conversion technology with the Victron 12V 1600VA Phoenix Smart Inverter. Designed for unmatched reliability and efficiency, this state-of-the-art smart inverter is the ideal choice for a plethora of applications including advanced solar energy systems, robust mobile applications, reliable emergency backup power, and specialized 4x4 canopy power systems.

Key Features:

  • Bluetooth Integration: Effortlessly configure and monitor your inverter remotely using a tablet or smartphone. This innovative connectivity feature ensures full control of your power system from any location.
  • Advanced Protection: Equipped with features such as low battery voltage alarms, dynamic cut-off levels, and comprehensive overload protection, it guarantees safety across various environmental conditions.
  • Customizable Output: Delivers an adaptable output voltage range of 210 – 245 V and selectable frequency options of 50 Hz or 60 Hz, making it versatile for diverse power requirements.
  • ECO Mode: Promotes energy efficiency by intelligently switching to standby when the load decreases, thereby conserving power without compromising on performance.
  • High Start-Up Power: Excellently suited to start heavy-duty loads, including power converters for LED lamps, halogen lamps, or various electric tools, making it ideal for intensive applications.
  • Remote Operation: Features a remote on/off switch functionality for enhanced operational convenience and control flexibility.
  • LED Diagnosis and VE.Direct Communication Port: Offers straightforward diagnostics and enables connection to a computer for sophisticated configuration and detailed monitoring.

Proven Durability and Reliability

Boasting a full bridge plus toroidal transformer topology, the Victron Phoenix Smart Inverter's design has been rigorously tested and proven over many years. This inverter is resilient against short circuits and is capable of operating flawlessly under high ambient temperatures.

Ideal for Diverse Settings: This versatile smart inverter is perfect for various settings including RVs, marine vessels, sophisticated solar energy systems, and particularly efficient in high-end 4x4 canopy power systems for off-road enthusiasts.

Optimize Your Power System

The Victron Phoenix Smart Inverter is a crucial component for those seeking to build a reliable, efficient, and adaptable power system. Its cutting-edge features and proven performance make it an invaluable asset for ensuring your energy needs are met with precision and durability, whether you're powering a remote solar setup, managing a 4x4 canopy power system, or ensuring steady power in marine applications.

SPECIFICATIONS

Specifications

Phoenix Smart Inverter 12/1600
Parallel and 3-phase operation No
Inverter
Input voltage range 9.3 – 17 V
Output Output voltage: 230 VAC ±2% 50 Hz or 60 Hz ± 0.1 % (1)
Cont. output power at 25 ºC (1) 1600 VA
Cont. output power at 25 ºC 1300 W
Cont. output power at 40 ºC 1200 W
Cont. output power at 65 ºC 800 W
Peak power 3000 W
Dynamic (load dependent) DC low shut down (fully configurable) Dynamic cut-off
Max. efficiency 92 %
Zero load power 8 W
Zero load power in ECO mode 0.6 W
General
Programmable relay (2) Yes
Stop & start power ECO-mode adjustable
Protection (3) a - g
Bluetooth wireless communication For remote monitoring and system integration
VE.Direct communication port For remote monitoring and system integration
Remote on-off Yes
Common Characteristics Operating temperature range: -40 to +65 ºC (fan assisted cooling) Humidity (non-condensing): max 95 %
Enclosure
Common Characteristics Material & Colour: steel (blue RAL 5012; and black RAL 9017) Protection category: IP21
Battery-connection M8 bolts
230 VAC-connection Screw terminals
Weight 12 kg
Dimensions (hxwxd) 485 x 219 x 125 mm
Standards
Safety EN 60335-1
Emission Immunity EN 55014-1 / EN 55014-2/ EN-IEC 61000-6-1 / EN-IEC 61000-6-2 / EN-IEC 61000-6-3
Automotive Directive ECE R10-5
  1. Non-linear Load, Crest Factor 3:1

  2. Programmable Relay:

    • Can be set for:
      • General alarm
      • DC under voltage
      • Genset start/stop function
    • AC Rating: 230 V / 4 A
    • DC Rating: 4 A / 35 VDC, 1 A / 60 VDC
  3. Protection Key:

    • a) Output short circuit
    • b) Overload
    • c) Battery voltage too high
    • d) Battery voltage too low
    • e) Temperature too high
    • f) 230 VAC on inverter output
    • g) Input voltage ripple too high

SKU: VIC-PIN122161000
Barcode: 8719076057505
Model #: PIN122161000
MPN: PIN122161000
