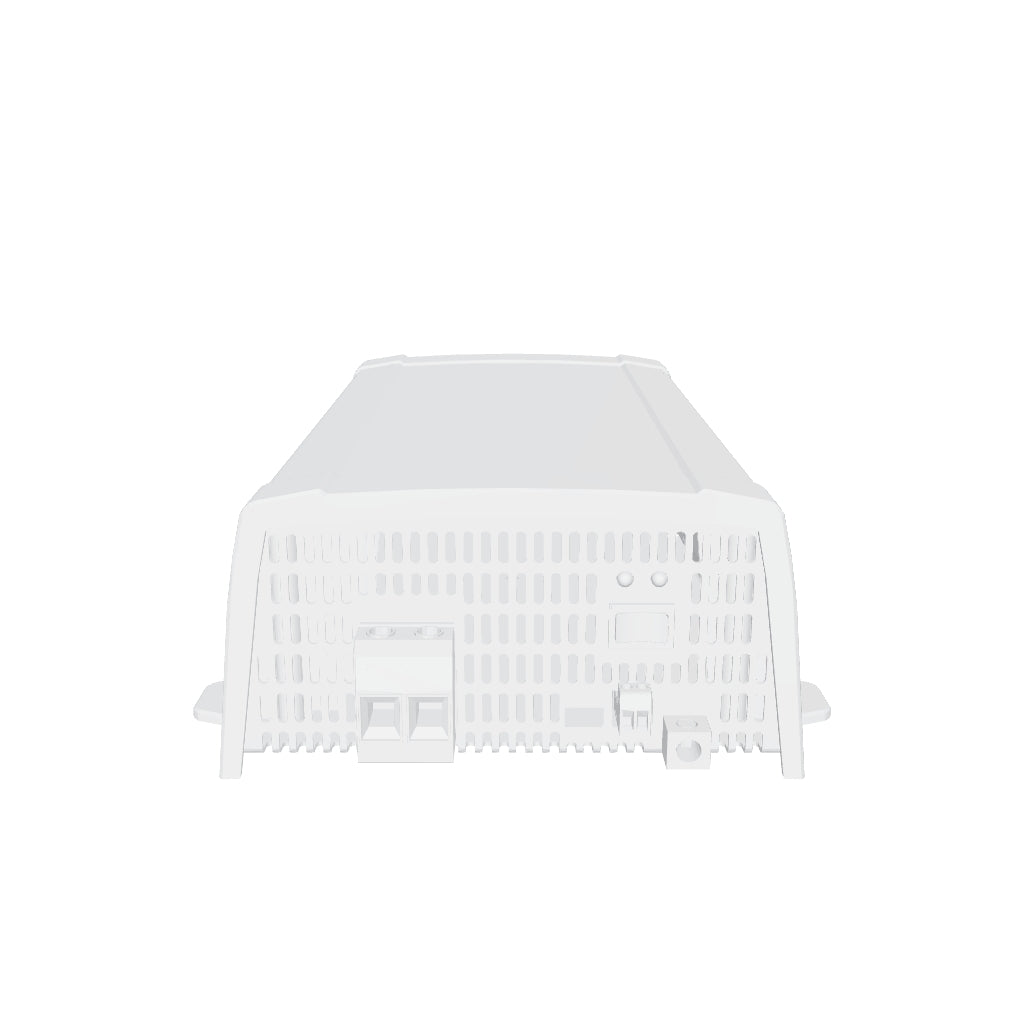

Victron 12V 800VA Phoenix Inverter 12/800 VE.Direct AU/NZ
Victron 12V 800VA Phoenix Inverter 12/800 VE.Direct AU/NZ

DESCRIPTION

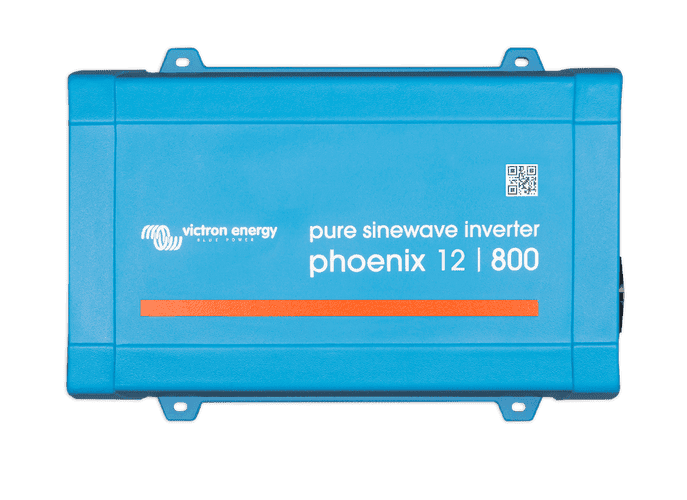

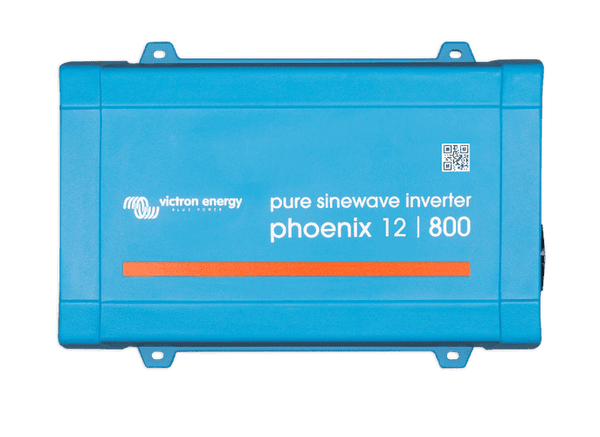

Power Up with the Victron 12V 800VA Phoenix Inverter 12/800 VE.Direct AU/NZ
Transform your travel and outdoor experiences with the Victron 12V 800VA Phoenix Inverter. Designed to convert 12V 'leisure' or 'house' batteries into 230V AC, this inverter is perfect for powering your domestic appliances on the go. Whether it's for your RV, boat, or remote cabin, the Phoenix Inverter ensures you have the power you need.
Proven Durability and Safety
With a full bridge and toroidal transformer topology, the Victron Phoenix Inverter is built to last. It's safeguarded against short circuits and overheating, ensuring reliability even under demanding conditions.
High Start-Up Power
Effortlessly power up challenging loads, including power converters for LED lamps, halogen lamps, or electric tools, thanks to its high start-up capacity.
Intelligent ECO Mode
In ECO mode, the inverter conserves energy by entering standby when loads are minimal and reactivating as needed. Customize the sensitivity and duration of this feature to suit your usage.
Simple Remote Operation
Activate and deactivate the inverter remotely with an easy-to-install remote on/off switch.
LED Diagnostic System
Quickly understand your inverter's status with the intuitive LED diagnosis system. For more details, refer to the user manual.
Easy Installation

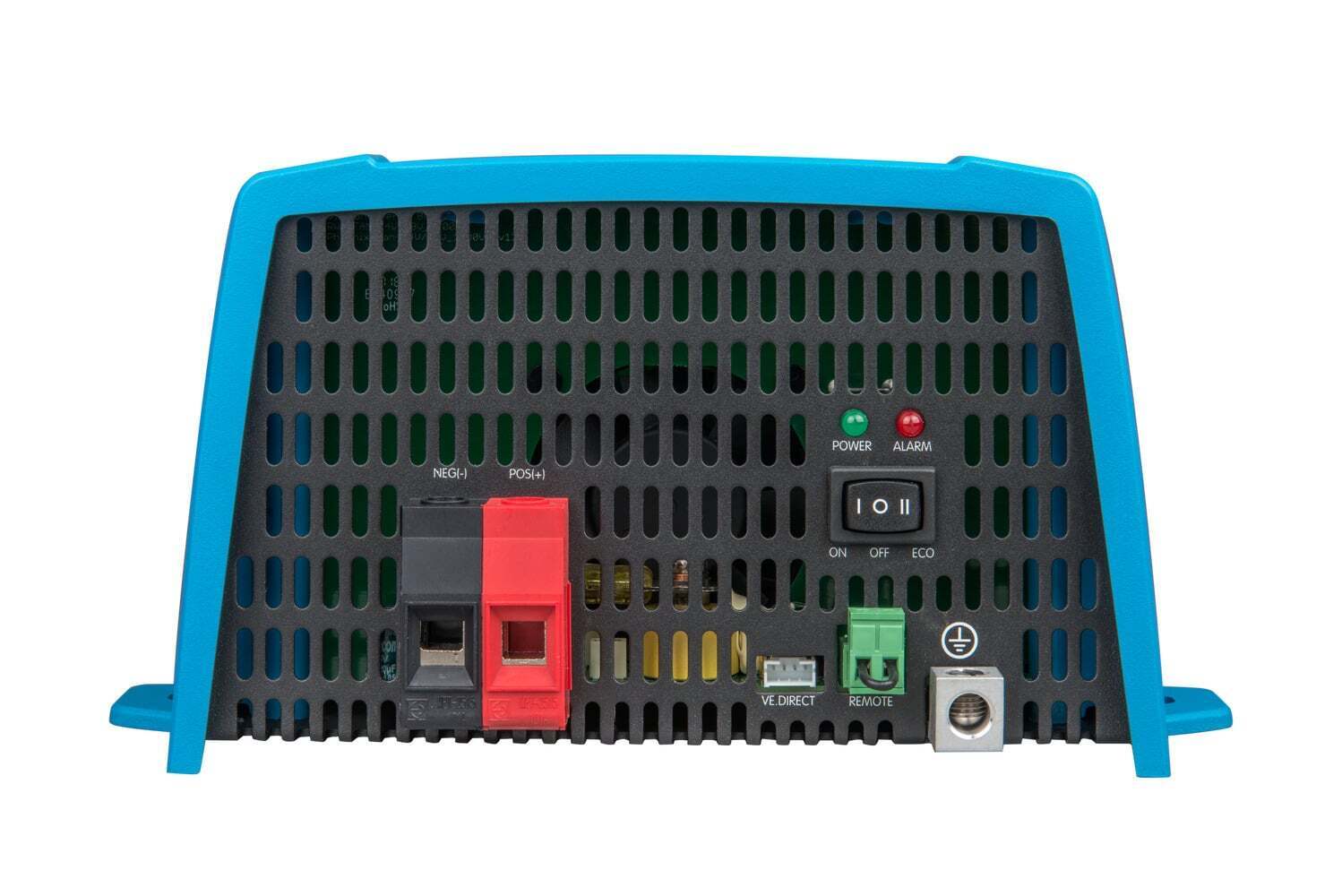

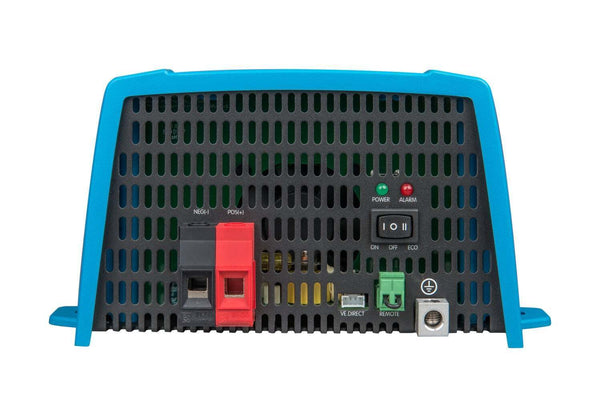

Connect to your DC power source effortlessly with screw terminals – no specialized tools required.
Advanced VE.Direct Communication Port
Stay connected and in control with the VE.Direct communication port. This innovative feature allows seamless integration with:
- Computers (using an optional VE.Direct to USB interface cable)
- Apple and Android smartphones, tablets, and other devices (requires an optional VE.Direct Bluetooth Smart dongle)
Fully Customizable for Your Needs
Tailor the Phoenix Inverter to meet your specific power requirements. It offers full configurability when used with a VE.Direct to USB Interface Cable or VE.Direct Bluetooth Smart Dongle with features such as:
- Adjustable low battery voltage alarm
- Customizable cut-off and restart levels
- Dynamic cut-off for load-dependent power management
- Output voltage range between 210 - 245V
- Selectable frequency of 50 Hz or 60 Hz
Real-Time Monitoring when used with a VE.Direct to USB Interface Cable or VE.Direct Bluetooth Smart Dongle
Keep track of your power usage with real-time monitoring of input and output voltage, load percentage, and alarms.
Ready to Empower Your Adventures?
Discover the freedom of reliable, off-grid power with the Victron Phoenix Inverter. Perfect for RV enthusiasts, boaters, and off-grid living.
SPECIFICATIONS

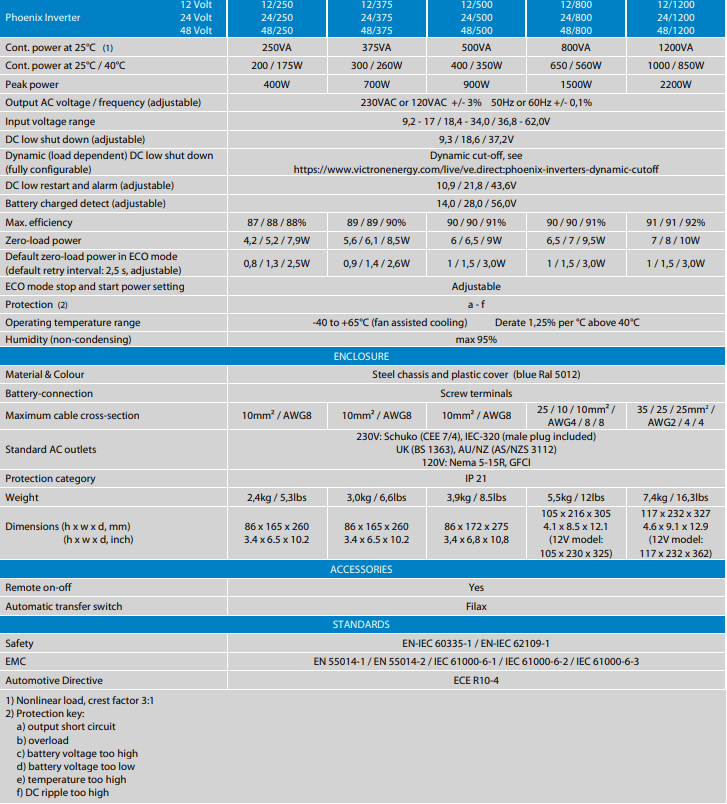

Specifications
| Phoenix Inverter VE.Direct AU/NZ 230V | 12/800 |
| Cont. power at 25°C (1) | 800VA |
| Cont. power at 25°C / 40°C | 650 / 560W |
| Peak power | 1500W |
| Output AC voltage / frequency (adjustable) | 230VAC +/- 3% 50Hz +/- 0.1% |
| Input voltage range | 9.2 - 17V |
| DC low shut down (adjustable) | 9.3V |
| Dynamic (load dependent) DC low shut down | Dynamic cut-off (fully configurable with optional Bluetooth Dongle) |
| DC low restart and alarm (adjustable) | 10.9V |
| Battery charged detect (adjustable) | 14.0V |
| Max. efficiency | 90% |
| Zero-load power | 6.5W |
| Default zero-load power in ECO mode (default retry interval: 2.5 s, adjustable) | 1W |
| ECO mode stop and start power setting | Adjustable |
| Protection (2) | a - f |
| Operating temperature range | -40 to +65°C (fan assisted cooling) Derate 1.25% per °C above 40°C |
| Humidity (non-condensing) | max 95% |
| Enclosure | |
| Material & Colour | Steel chassis and plastic cover (blue Ral 5012) |
| Battery-connection | Screw terminals |
| Maximum cable cross-section | 25mm² / AWG4 |

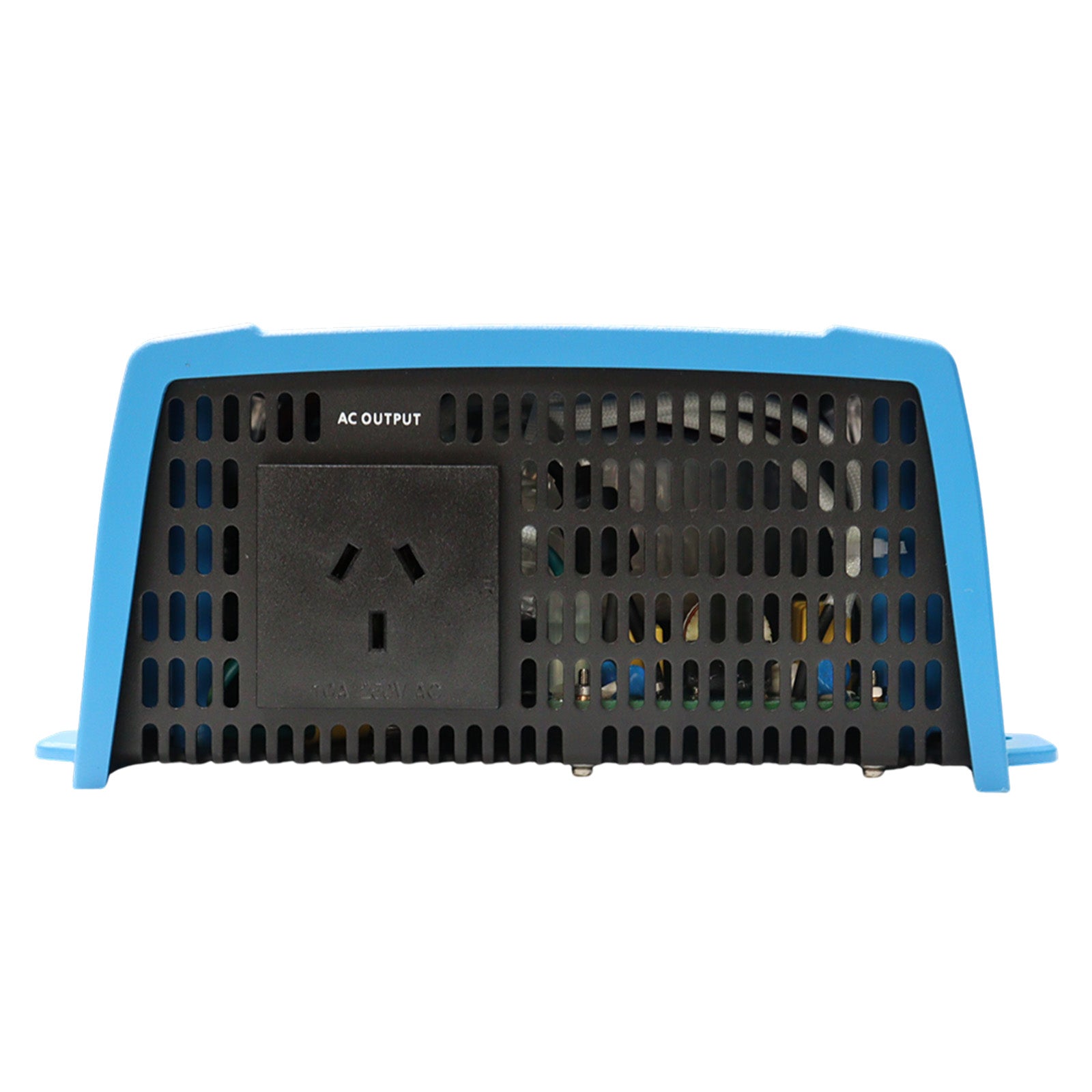

| Standard AC outlets | 230V AU/NZ (AS/NZS 3112) |
| Protection category | IP 21 |
| Weight | 5.5kg / 12lbs |

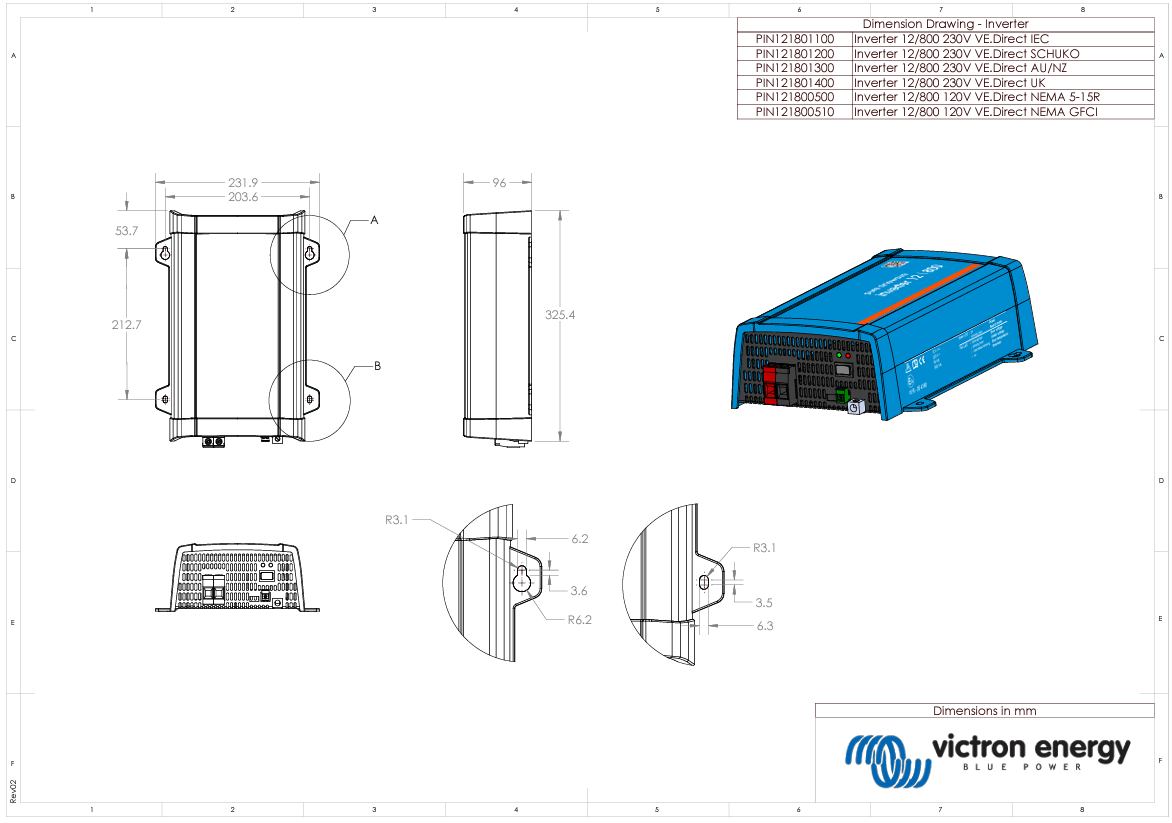

| Dimensions (h x w x d, mm) | 105 x 230 x 325 |
| Remote on-off | Yes |
| Standards | |
| Safety | EN-IEC 60335-1 / EN-IEC 62109-1 / UL 458 (3) |
| EMC | EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3 |
| Automotive Directive | ECE R10-4 |
1) Nonlinear load, crest factor 3:1
2) Protection key:
a) output short circuit
b) overload
c) battery voltage too high
d) battery voltage too low
e) temperature too high
f) DC ripple too high
3) UL 458 only for inverters with GFCI output socket
| SKU: | Vic-PIN121801300 |
| Barcode: | 8719076055051 |
| Model #: | PIN121801300 |
| MPN: | PIN121801300 |
