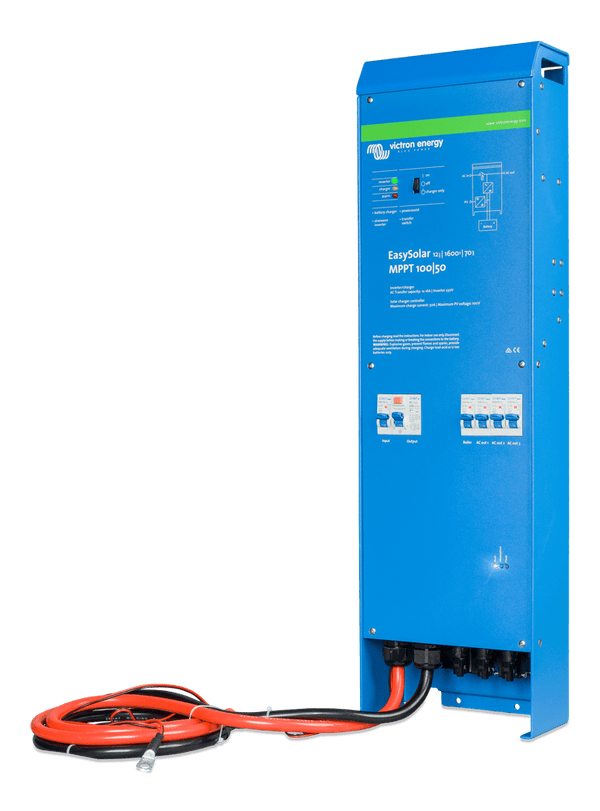

Victron 12V 1600VA EasySolar 12/1600/70-16 Inverter/Charger/MPPT 100/50
Victron 12V 1600VA EasySolar 12/1600/70-16 Inverter/Charger/MPPT 100/50

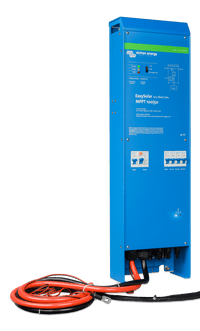

The product is easy to install, with a minimum of wiring

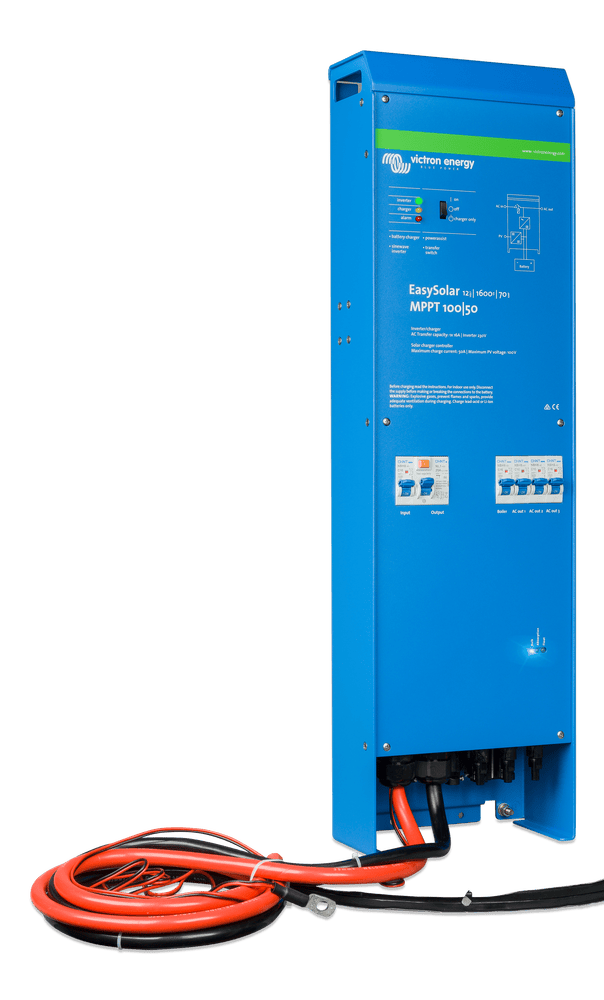

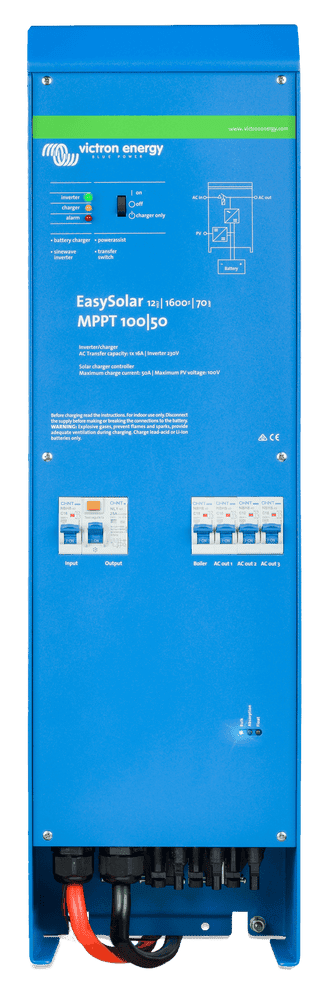

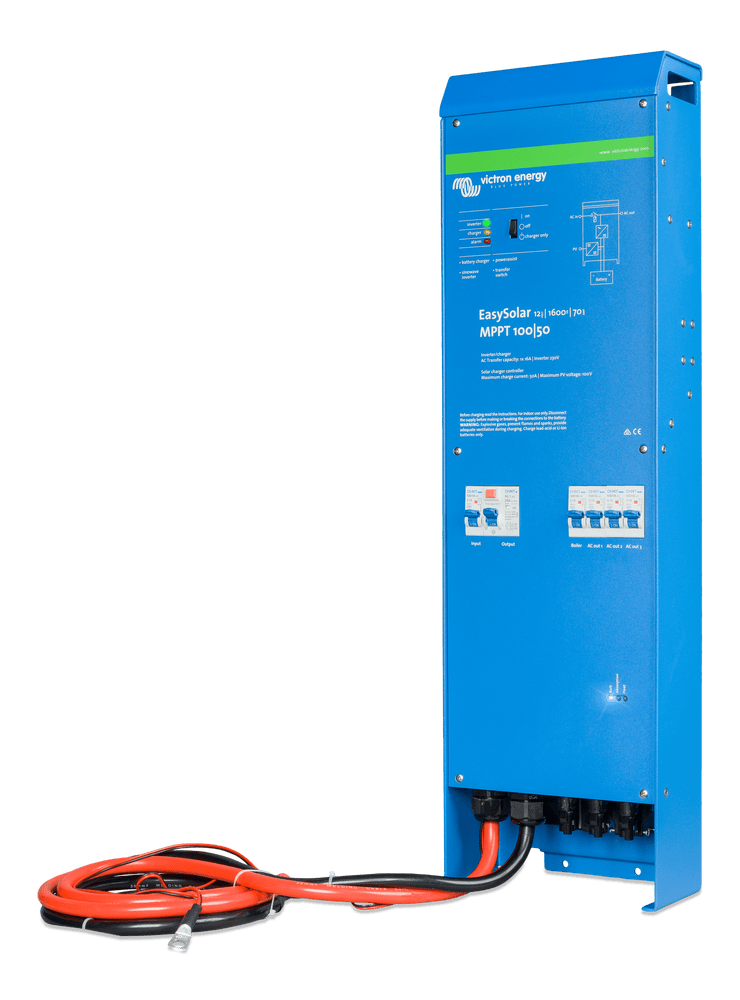

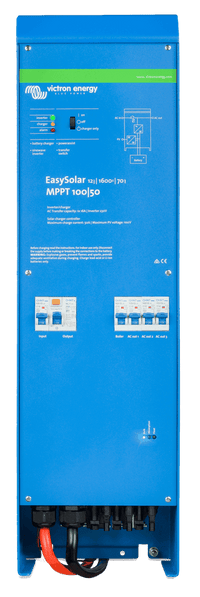

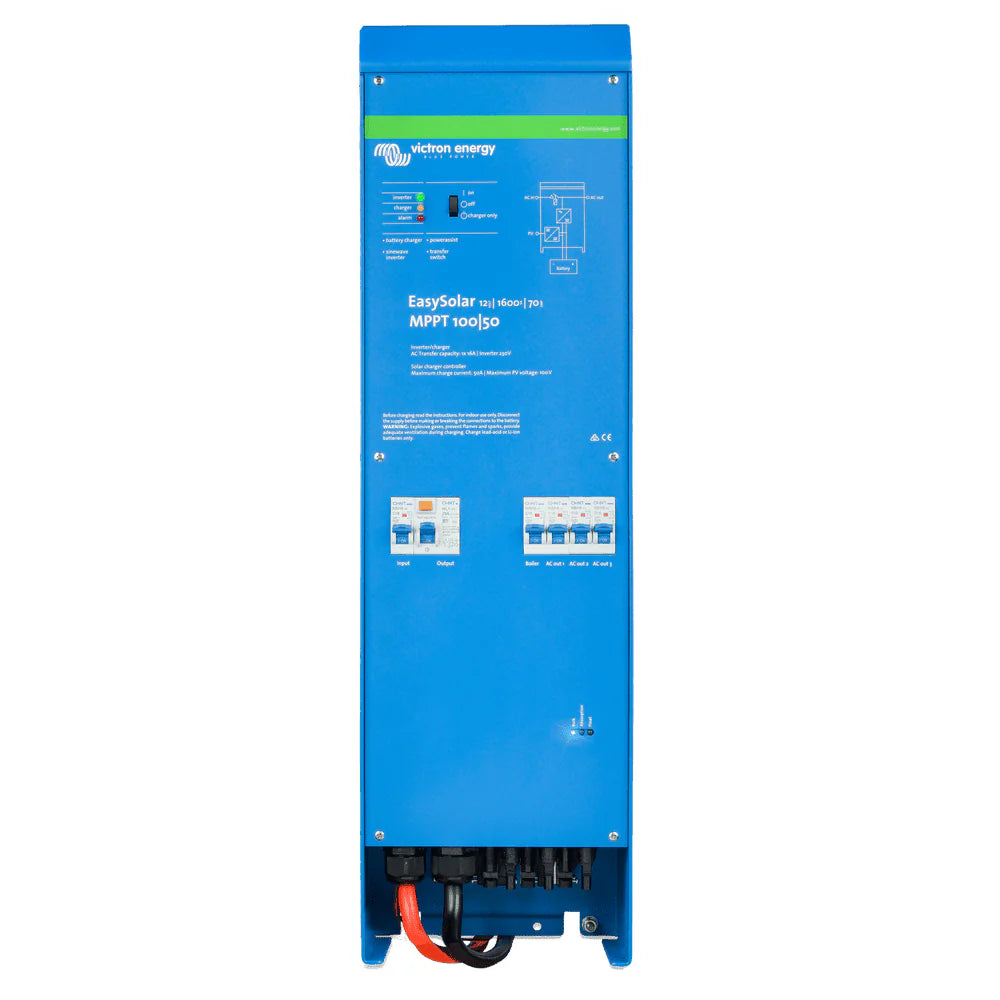

Highlights:System Status LEDs: LED indicators for inverter, charger and alarm status,Main Power Switch: Three-way rocker switch for On, Off and Charger Only modes,Input and Output Breakers: AC input and output RCD protection breakers,AC Distribution Breakers: Four separate circuit breakers for AC load distribution,Charge Status LEDs: Indicators for bulk, absorption and float charging stages,DC Battery Cables: Pre-wired heavy duty red and black battery connection cables.
Key features: All-in-one solar power solution including inverter, charger and MPPT, Integrated AC distribution with RCD and four circuit breakers, Robust aluminium enclosure in RAL 5012 blue, Pre-wired with 1.5 metre heavy-duty battery cables.

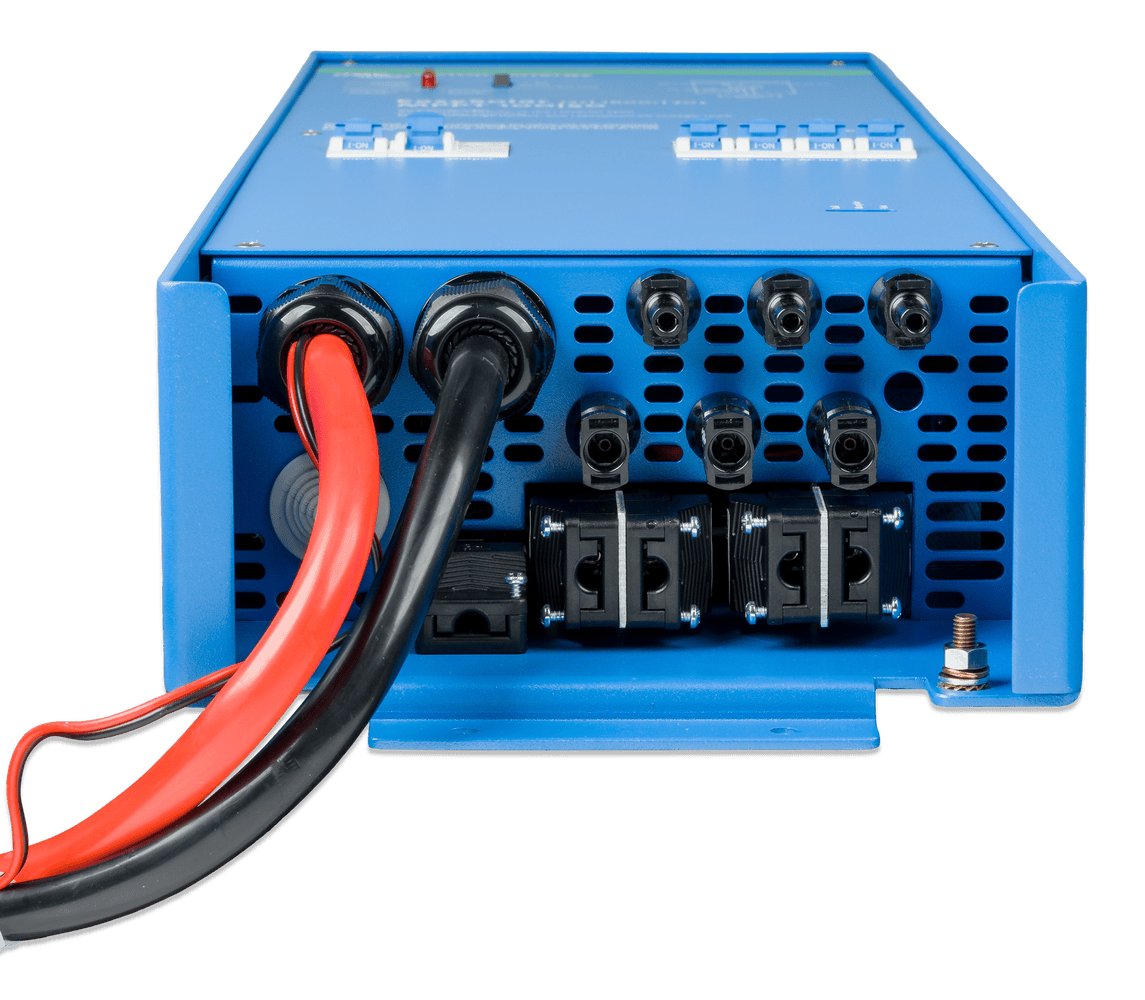

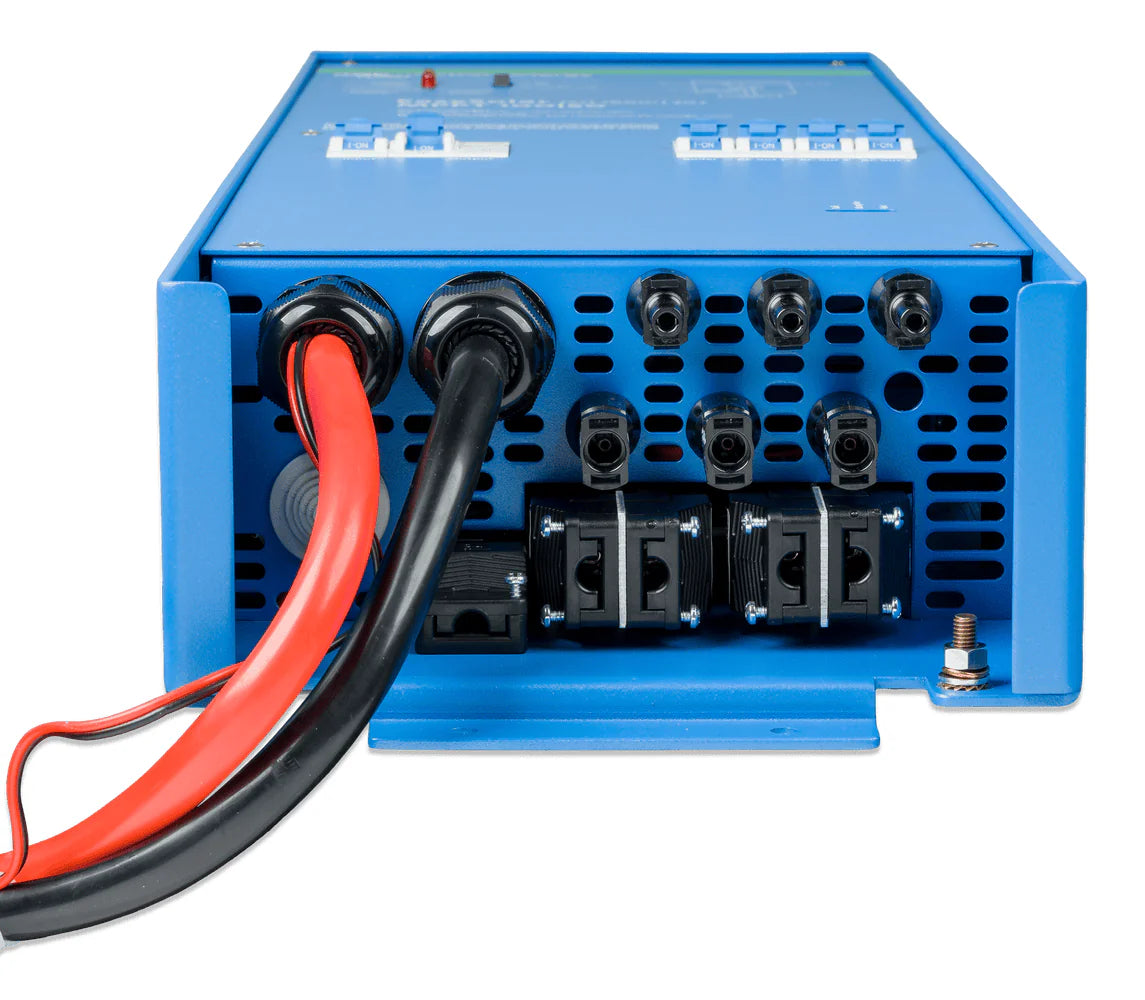

The bottom interface panel provides secure connection points for the three sets of MC4 PV connectors, DC battery cables, and internal AC wiring terminals.

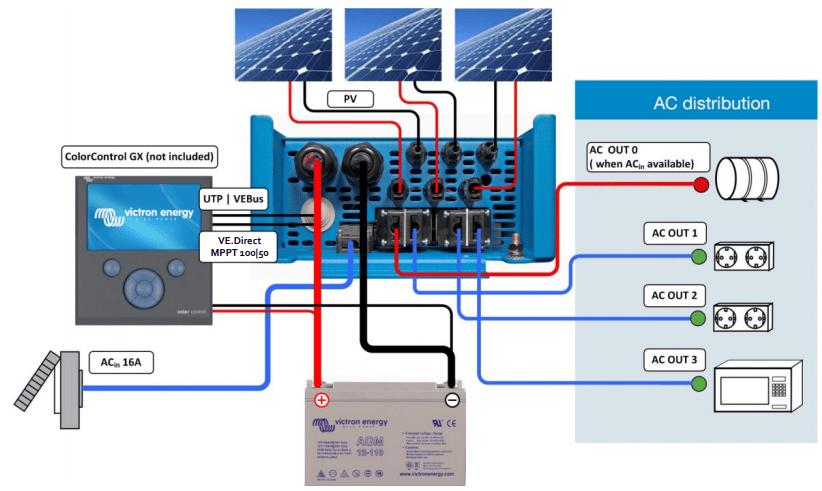

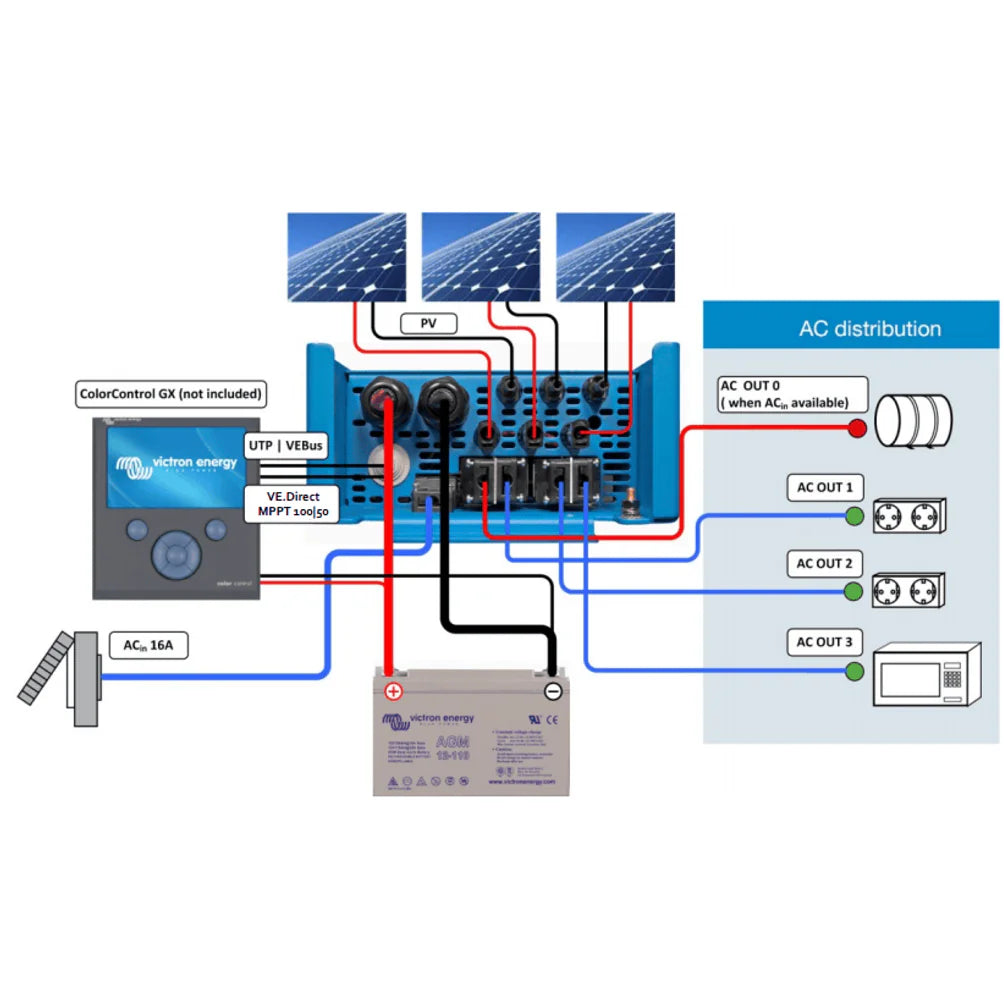

Comprehensive system schematic detailing the integration of the EasySolar unit with PV arrays, a 12V battery bank, and managed AC distribution circuits.
Key features: 1600VA continuous inverter output power, Integrated MPPT 100/50 solar charge controller, 70A high-current battery charger, IP21 protection rating for indoor installation.
DESCRIPTION
Optimize Your Solar Experience with the Victron EasySolar 12/1600/70-16 Inverter/Charger/MPPT
Introducing the Victron 12V 1600VA EasySolar 12/1600/70-16, a comprehensive all-in-one solar power solution that integrates a MPPT solar charge controller, an inverter/charger, and AC distribution into a single, streamlined enclosure. Designed for effortless installation with minimal wiring, this system is perfect for those seeking an efficient and reliable solar power setup.
Advanced Blue Solar MPPT Technology
The EasySolar features the Blue Solar MPPT 100/50 solar charge controller, capable of connecting up to three strings of PV panels via MC4 (PV-ST01) connectors. This maximizes solar energy harvest from multiple panels, ensuring that your system operates at peak efficiency.
Compact and Efficient MultiPlus Inverter/Charger
At the core of the EasySolar is the MultiPlus Compact inverter/charger, which works in concert with the Blue Solar MPPT to utilize both solar and AC power for battery charging. This dual-charging capability ensures your batteries stay powered, whether you're drawing from the sun's energy, the utility grid, or a generator.
Streamlined AC Distribution
The built-in AC distribution panel includes an RCD (30 mA/16 A) and four AC outlets safeguarded by two 10A and two 16A circuit breakers. With one of the 16A outputs designed to activate only when AC is present, it provides intelligent power management across your devices.
PowerAssist for Enhanced Power Supply Protection
Victron's unique PowerAssist technology safeguards against overloading the utility or generator supply by supplementing with additional inverter power as necessary, offering an extra layer of security and operational efficiency.
Customizable Solar Application Software
The EasySolar comes equipped with various software programs (Assistants) that allow for tailored configuration, catering to both grid-interactive and stand-alone solar applications, ensuring versatility for any solar power need.
Ideal for Mobile Applications
With its compact size and ease of use, the Victron EasySolar 12/1600/70-16 is especially suited for RVs and caravans. It provides a robust, user-friendly system that delivers reliable solar power for your mobile lifestyle.
Elevate your green energy capabilities with the Victron EasySolar Inverter/Charger/MPPT, the perfect solution for harnessing solar power with convenience and confidence. Whether you're on the move or setting up a sustainable home power system, the EasySolar is your key to efficient and dependable solar energy management.
SPECIFICATIONS

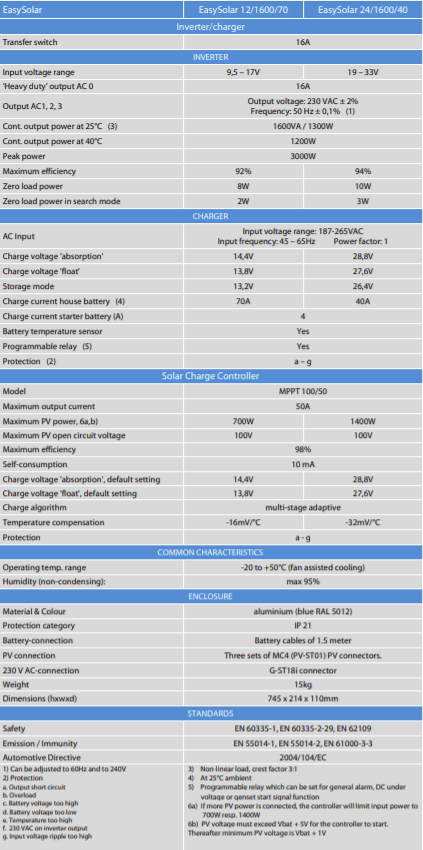

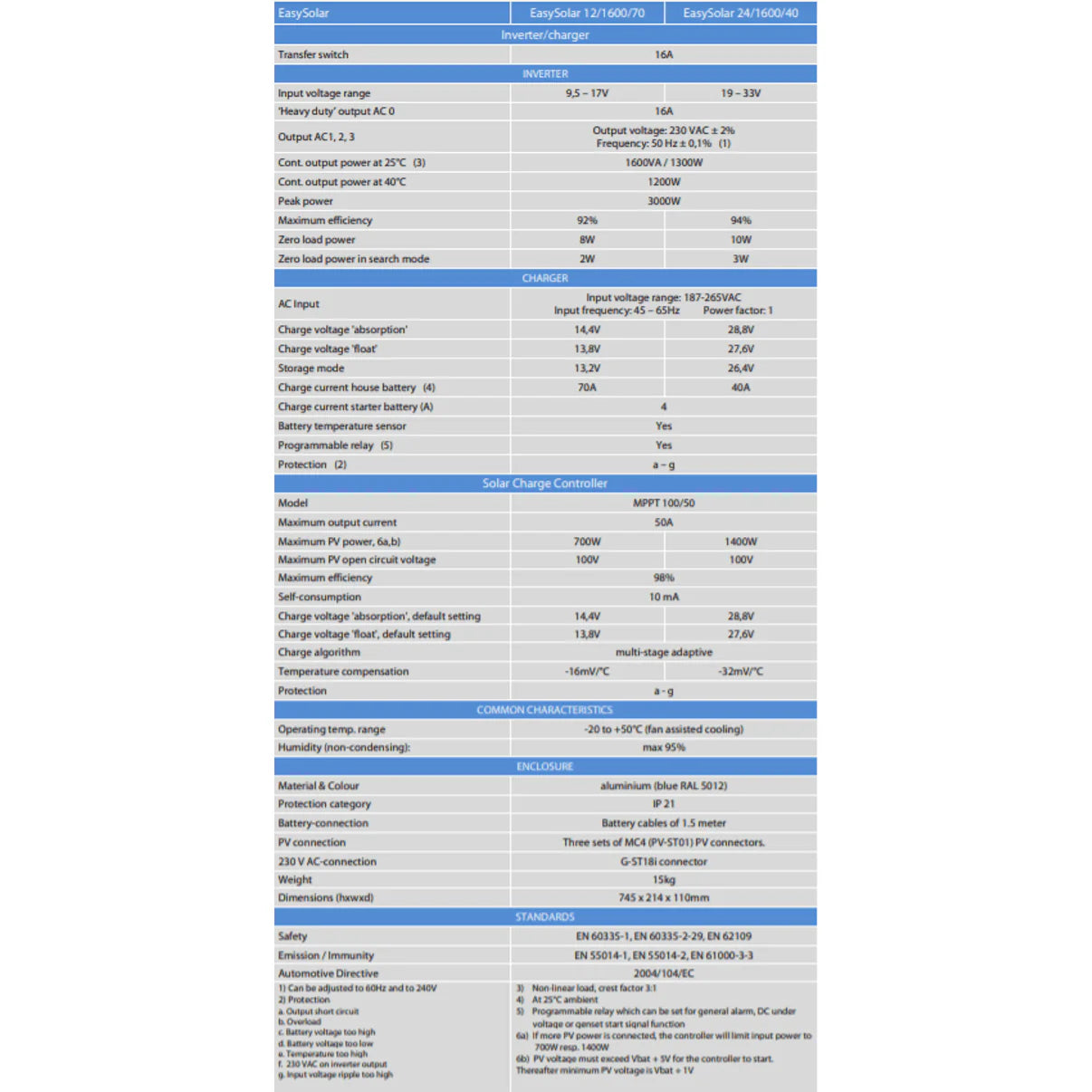

Specifications
| EasySolar | EasySolar 12/1600/70 | EasySolar 24/1600/40 |
| Inverter/charger | ||
| Transfer switch | 16A | 16A |
| Inverter | ||
| Input voltage range | 9.5 – 17V | 19 – 33V |
| ‘Heavy duty’ output AC 0 | 16A | 16A |
| Output AC1, 2, 3 | Output voltage: 230 VAC ±2% | Output voltage: 230 VAC ±2% |
| Frequency: 50 Hz ± 0.1% (1) | Frequency: 50 Hz ± 0.1% (1) | |
| Cont. output power at 25°C | 1600VA / 1300W | 1600VA / 1300W |
| Cont. output power at 40°C | 1200W | 1200W |
| Peak power | 3000W | 3000W |
| Maximum efficiency | 92% | 94% |
| Zero load power | 8W | 10W |
| Zero load power in search mode | 2W | 3W |
| Charger | ||
| Input voltage range: 187-265VAC | Input voltage range: 187-265VAC | |
| AC Input | Input frequency: 45 – 65Hz Power factor: 1 | Input frequency: 45 – 65Hz Power factor: 1 |
| Charge voltage 'absorption' | 14.4V | 28.8V |
| Charge voltage 'float' | 13.8V | 27.6V |
| Storage mode | 13.2V | 26.4V |
| Charge current house battery (4) | 70A | 40A |
| Charge current starter battery (A) | 4 | 4 |
| Battery temperature sensor | Yes | Yes |
| Programmable relay (5) | Yes | Yes |
| Protection | a – g | a – g |
| Solar Charge Controller | Solar Charge Controller | |
| Model | MPPT 100/50 | MPPT 100/50 |
| Maximum output current | 50A | 50A |
| Maximum PV power, 6a,b) | 700W | 1400W |
| Maximum PV open circuit voltage | 100V | 100V |
| Maximum efficiency | 98% | 98% |
| Self-consumption | 10 mA | 10 mA |
| Charge voltage 'absorption', default setting | 14.4V | 28.8V |
| Charge voltage 'float', default setting | 13.8V | 27.6V |
| Charge algorithm | multi-stage adaptive | multi-stage adaptive |
| Temperature compensation | -16mV/°C | -32mV/°C |
| Protection | a - g | a - g |
| COMMON CHARACTERISTICS | COMMON CHARACTERISTICS | |
| Operating temp. range | -20 to +50°C (fan assisted cooling) | -20 to +50°C (fan assisted cooling) |
| Humidity (non-condensing): | max 95% | max 95% |
| ENCLOSURE | ||
| Material & Colour | aluminium (blue RAL 5012) | aluminium (blue RAL 5012) |
| Protection category | IP 21 | IP 21 |
| Battery-connection | Battery cables of 1.5 meter | Battery cables of 1.5 meter |
| PV connection | Three sets of MC4 (PV-ST01) PV connectors. | Three sets of MC4 (PV-ST01) PV connectors. |
| 230 V AC-connection | G-ST18i connector | G-ST18i connector |
| Weight | 15kg | 15kg |
| Dimensions (hxwxd) | 745 x 214 x 110mm | 745 x 214 x 110mm |
| STANDARDS | ||
| Safety | EN 60335-1, EN 60335-2-29, EN 62109 | EN 60335-1, EN 60335-2-29, EN 62109 |
| Emission / Immunity | EN 55014-1, EN 55014-2, EN 61000-3-3 | EN 55014-1, EN 55014-2, EN 61000-3-3 |
| Automotive Directive | 2004/104/EC | 2004/104/EC |
- Can be adjusted to 60Hz and to 240V
- Protection a. Output short circuit b. Overload c. Battery voltage too high d. Battery voltage too low e. Temperature too high f. 230 VAC on inverter output g. Input voltage ripple too high
- Non-linear load, crest factor 3:1
- At 25°C ambient
- Programmable relay which can be set for general alarm, DC under voltage or genset start signal function 6a) If more PV power is connected, the controller will limit input power to 700W resp. 1400W 6b) PV voltage must exceed Vbat + 5V for the controller to start. Thereafter minimum PV voltage is Vbat + 1V
| SKU: | Vic-CEP122161000 |
| Barcode: | 8719076065012 |
| Model #: | CEP121621000 |
| MPN: | CEP121621000 |
