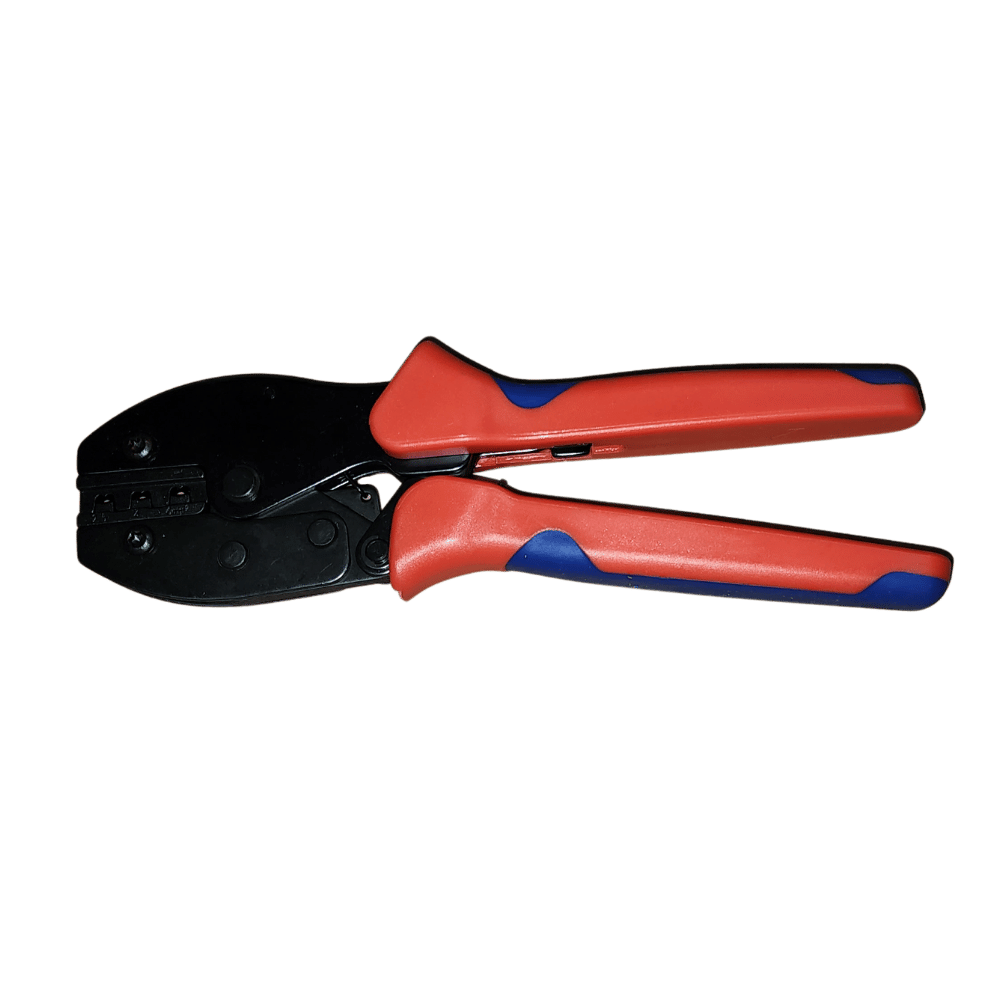

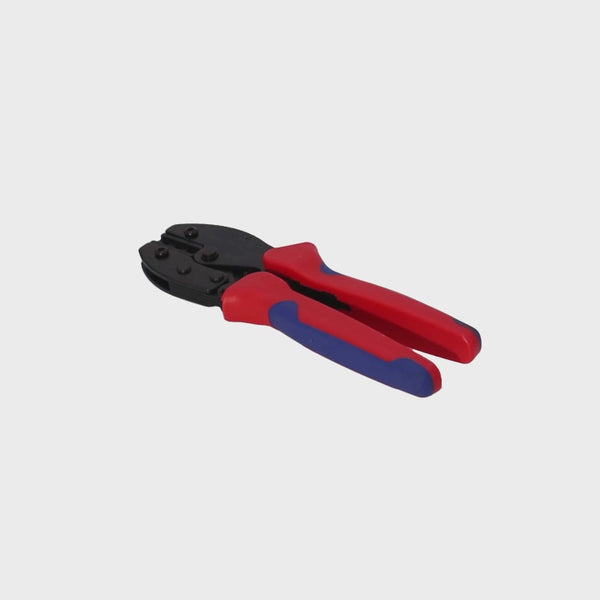

Exotronic Solar Connector Crimper / Crimping Tool

Professional Exotronic MC4 Solar Crimping Tool

• Certified - ISO9001:2008
• Ergonomic ABS handle.
• Precise and compact crimp every time.
• Crimps MC4 Male and Female contacts (2.5mm2/4mm2/6mm2).
• The tool will ratchet until adequate crimping force has been applied to the connection.

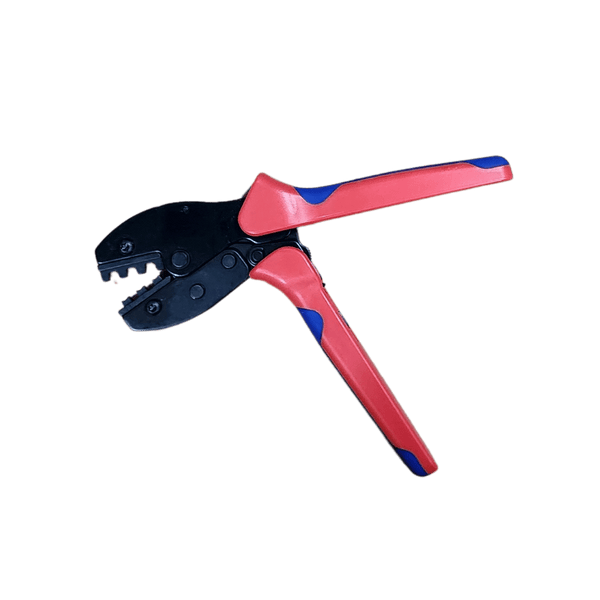

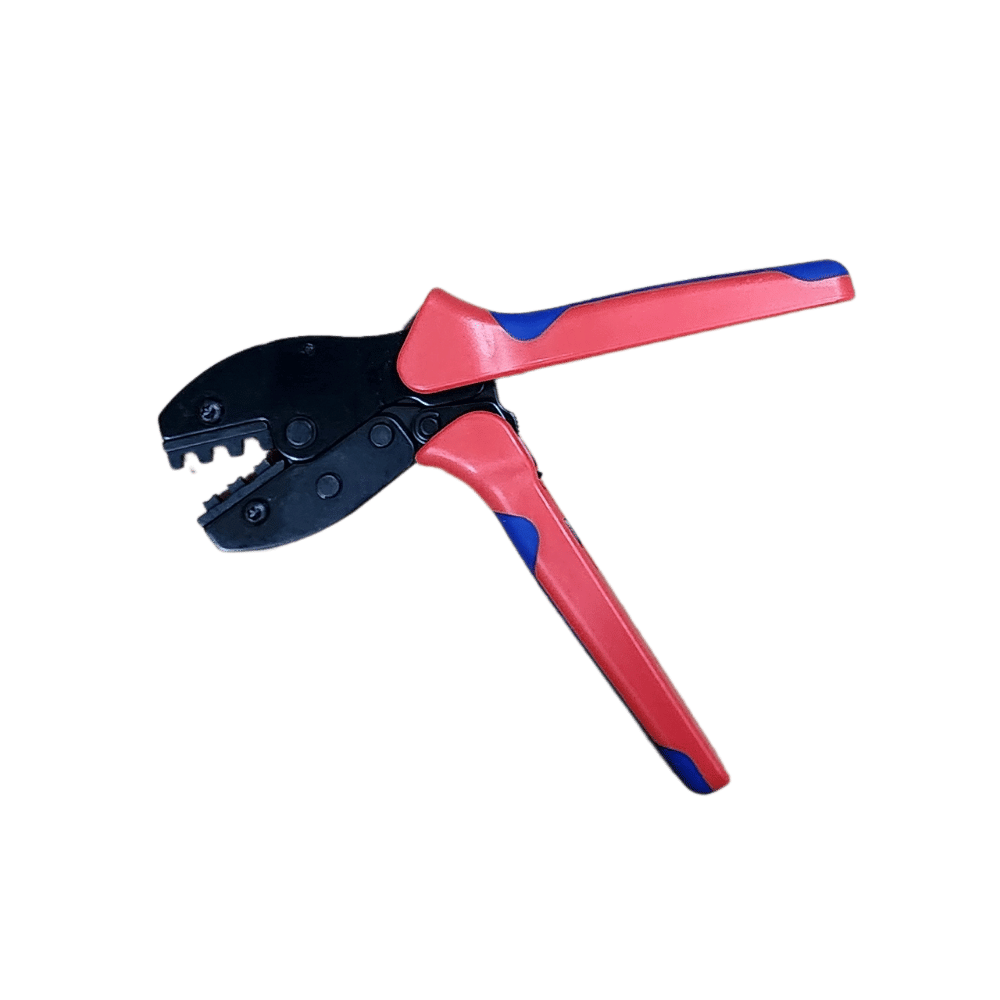

• The tool features a jaw release override for the instance of incorrect wire placement or a defective terminal.

To perform the crimp:

1. Strip the cable to expose the cores

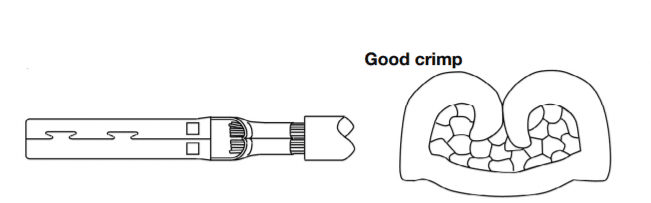

2. Crimp each core to the male/female MC4 connectors (as per image 3)
3. Push the connector into the housing until you hear a "click"
4. Verify the connector does not easily pull out of the housing
5. Tighten the housing gland until hand tight plus a quarter turn
