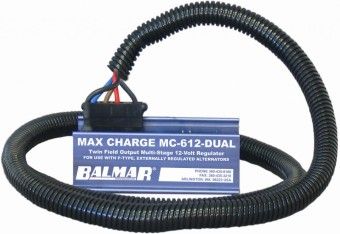

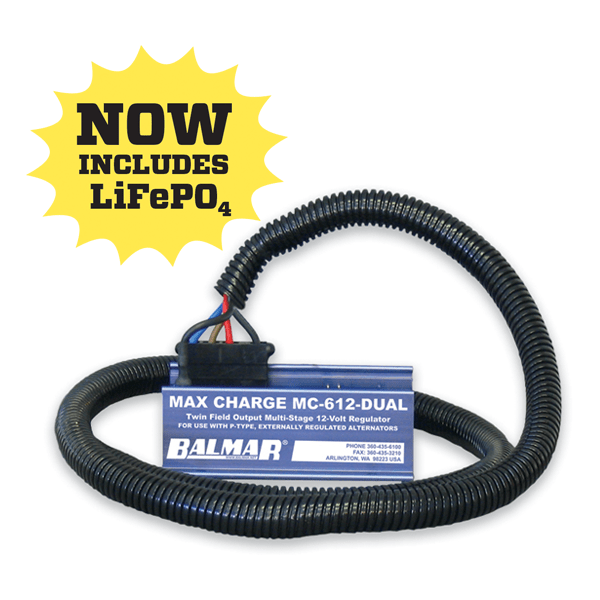

Balmar 12V MC-612-DUAL Dual Alternator Multi-Stage Regulator with Harnesses

Synchronised Dual-Alternator Regulation for High-Output 12V Battery Banks

Managing high-capacity house battery banks in marine and off-grid applications often requires more charging amperage than a single alternator can safely deliver. The Balmar 12V MC-612-DUAL is purpose-built for single-engine installations using two alternators to charge a shared 12V battery bank. By coordinating the field excitation of both charging sources simultaneously, this external multi-stage regulator helps avoid the voltage conflicts, uneven load sharing, and premature component failure that typically occur when pairing independent regulators on a single battery bank.

Unlike standard factory voltage regulators that apply a fixed voltage and rapidly taper charging current, the MC-612-DUAL employs advanced multi-stage charging logic. This ensures your deep-cycle batteries receive optimal bulk, absorption, and float charge stages, reducing engine run times and maximising battery lifespan across demanding marine and mobile electrical systems.

Engineered for Seamless Twin-Alternator Integration

Installing twin alternators on a single engine presents unique wiring and control challenges. The MC-612-DUAL simplifies this architecture by providing dedicated, separate connection sets for both alternators right on the regulator board. This includes two field-output connectors, two power-input connectors, and two system-ground connections, allowing both charging sources to be controlled from a single unified processor.

This version comes complete with the required wiring harnesses, streamlining the installation process for marine electricians and system builders. By regulating both alternators from a single voltage-sensing point, the system ensures balanced field output so neither alternator is overworked while charging the primary house bank.

Key Features and System Benefits

• Twin-Alternator Synchronisation: Designed specifically for single-engine 12V setups where two alternators feed a unified battery bank.
• Dedicated Dual Connections: Features twin field-output, power-input, and ground terminals to accept two separate wiring harnesses directly.
• Complete with Harnesses: Supplied with the necessary wiring harnesses for straightforward integration into your engine bay and charging circuit.
• Six Selectable Battery Profiles: Pre-programmed multi-stage charging curves tailored for LiFePO4 (Lithium), AGM, Spiral-Wound AGM, Gel, Deep-Cycle Flooded, and Standard Flooded batteries.
• Equipment Protection Mode: Includes a universal default program designed for vessels using voltage-sensitive halogen equipment.
• Reduced Risk of Overcharging: Replaces basic single-stage regulation with intelligent multi-stage control to protect expensive battery investments from overcharging or chronic undercharging.

Tailored Charging for Modern Battery Chemistries

Every battery chemistry requires a specific voltage curve to reach 100% state of charge safely. The Balmar MC-612-DUAL eliminates guesswork with six user-selectable programs. Whether you are upgrading a cruising yacht to a high-density 12V LiFePO4 lithium battery bank or maintaining heavy-duty AGM and Gel batteries, the regulator adjusts bulk and absorption parameters to suit the exact chemistry in use.

For vessels running voltage-sensitive halogen equipment, the built-in universal default program is designed for that equipment.

Ideal Applications

The MC-612-DUAL suits high-demand 12V DC systems where engine space or belt load limits the size of a single large-frame alternator and twin smaller-frame alternators are fitted:

• Cruising yachts and sailboats with single auxiliary engines and large house banks
• Commercial marine vessels requiring high-amperage 12V charging
• Custom off-grid expedition vehicles and specialist mobile command units with dual-alternator engine brackets

Upgrade Your Marine Charging Architecture

Equip your single-engine twin-alternator setup with the Balmar 12V MC-612-DUAL regulator and harnesses to achieve balanced, multi-stage charging performance for your primary battery bank.
