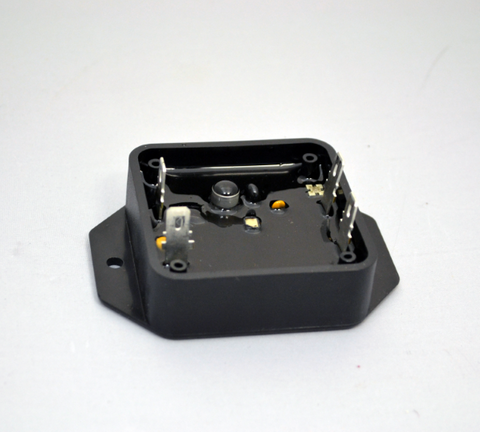

Balmar Tachometer Signal Stabilizer

Precision Alternator AC Stator Output Conditioning for Accurate Engine RPM

Upgrading a marine or off-grid vehicle charging system with a high-output alternator often introduces a common technical challenge: inaccurate tachometer readings. The Balmar Tachometer Signal Stabilizer is designed to resolve this issue by adjusting the alternator's AC/stator output signal to a pulse that is compatible with most electric tachometers.

When an aftermarket alternator is installed, differences in internal pole counts or drive pulley ratios compared to the original equipment manufacturer (OEM) unit can cause the tachometer to misinterpret the frequency of the stator signal. In a Balmar installation, the alternator's stator output is wired to the regulator's "Stator In" terminal and the regulator's "Tach Out" feeds the Signal Stabilizer, which then drives the tachometer. The stabiliser also needs a switched ignition power supply and a ground connection.

Why Install a Dedicated Signal Conditioner?

Relying on an uncalibrated or unstable tachometer reading introduces significant operational risks, particularly in marine propulsion and heavy-duty auxiliary engine applications. An inaccurate gauge makes it difficult to set proper cruising speeds, monitor fuel efficiency, or avoid dangerous engine over-revving conditions. It can also lead to unnecessary diagnostic troubleshooting for phantom engine or transmission slip issues that are simply gauge errors.

The Balmar B-15-TSS adjusts the AC signal to a pulse your tachometer can read. Once installed, a potentiometer at the centre of the circuit board lets you fine-tune the signal until the tachometer display matches the actual engine RPM, measured with a photo or laser tachometer.

Key Features and Technical Benefits

• Signal Adjustment: Adjusts the alternator AC/stator output signal to a pulse compatible with most electric tachometers.
• Precision RPM Calibration: Features an adjustable output that allows you to align the dashboard gauge reading directly with true mechanical engine speed.
• Broad Compatibility: Bridges the gap between high-output aftermarket alternators and existing electric tachometers without requiring costly gauge replacements.
• Simple Wiring: Connects between the regulator's tach output and the tachometer, with switched ignition power and ground connections.
• Protected Mounting: Install in a location protected from excessive heat, moisture and vibration, near the voltage regulator or behind the tachometer.

Ideal Applications for Electrical System Upgrades

This unit is an essential component when retrofitting high-amperage charging systems where the stator pole count or pulley ratio has changed from the factory baseline. It is suited to:

• Marine Propulsion Engines: Ensuring accurate helm instrumentation after installing high-output Balmar or similar marine alternators on inboard diesel and petrol engines.
• Commercial and Recreational Vehicles: Maintaining factory dashboard functionality in 4WDs, RVs, and specialist service trucks fitted with secondary or upgraded charging systems.

Restore Accuracy to Your Instrumentation

Do not compromise on engine monitoring after upgrading your charging capability. Integrate the Balmar Tachometer Signal Stabilizer into your alternator wiring harness to match your tachometer reading to actual engine RPM.
