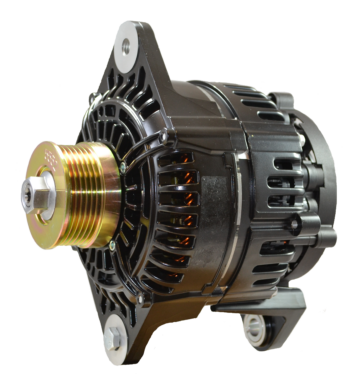

Balmar 24V 190A 97XD Series Alternator, 4in Saddle Mount, K6 Pulley, Case Ground

High-Output 24V Charging for Marine and Commercial Applications

Designed for large diesel applications with extensive house battery loads, the 97XD Series 24V 190A Alternator delivers substantial charging power from an Extra-Large Case designed for extended-duty operation. When operating large battery banks or running high-draw auxiliary equipment, standard factory alternators often struggle to keep up, leading to thermal overload and premature component failure. Upgrading to a dedicated high-output alternator ensures your electrical system maintains optimal charge states, even at low engine RPMs.

Engineered with a heavy-duty 4in (approx. 101.6mm) J-180-style dual-foot saddle mount, this unit provides exceptional mechanical stability and vibration resistance in harsh operating environments. It comes equipped with a K6 6-groove serpentine pulley for reliable belt engagement and uses a case ground configuration, making it suitable for systems that ground directly through the engine block or chassis.

Key Features & Technical Advantages

• High-Output 24V Charging: Rated at 190A to rapidly replenish large-capacity lead-acid or lithium battery banks.
• 4in (approx. 101.6mm) J-180-Style Saddle Mount: Provides superior mechanical stability and resists heavy engine vibration, reducing the risk of mounting bracket fatigue.
• K6 Serpentine Pulley Included: Ready for 6-groove serpentine belt systems, minimising belt slip under heavy electrical loads.
• Case Ground Configuration: Simplifies wiring in negative-ground chassis systems by utilising the alternator housing as the negative return path.
• External Regulation Required: Designed to be used with a Balmar multi-stage regulator (sold separately).

Why Upgrade to the 97XD Series?

Standard automotive or OEM alternators are typically designed for intermittent loads and limited duty cycles. When pushed to continuously charge large house battery banks, run heavy-duty winches, or power high-draw DC-to-AC inverters, standard units can quickly overheat. The 97XD Series is designed for extended-duty operation and uses braided-stator technology to deliver strong output at low RPM.

By upgrading to an extended-duty 24V alternator, you significantly reduce the risk of voltage drop, thermal shutdowns, and premature battery degradation caused by chronic undercharging. The included K6 (6-groove) pulley ensures efficient power transfer from the engine, though you should always verify belt compatibility and pulley alignment with your specific engine drive setup before installation.

Versatile Applications for Heavy-Duty 24V Systems

Because this unit uses a case ground (negative ground) design, it suits electrical systems that use the engine block as the negative return path. However, for marine applications where an isolated ground is required to prevent galvanic corrosion, an isolated-ground alternator should be used instead. This case-ground 97XD Series alternator is ideal for:

• Large diesel engines servicing extensive 24V house battery loads
• Auxiliary charging systems for large 24V lithium (LiFePO4) or AGM battery banks (an external multi-stage regulator is required, sold separately)

Upgrade Your 24V Charging System Today

Ensure your heavy-duty electrical system has the reliable charging capacity it needs to perform in demanding conditions. Add the 97XD Series 24V 190A Alternator to your setup today and experience dependable, high-amperage power generation for your large diesel application.
