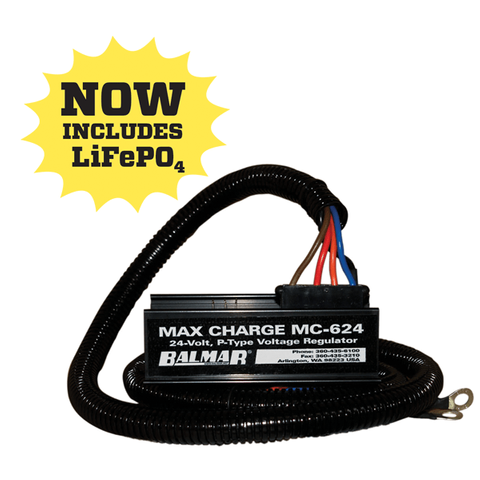

Balmar 24V MC-624 Multi-Stage Alternator Regulator with Harness

Advanced Balmar 24V Alternator Voltage Control for Marine and Off-Grid Battery Banks

High-output alternators are a critical foundation for rapid energy replenishment, yet they rely entirely on accurate regulation to perform safely and effectively. The Balmar MC-624-H Multi-Stage 24V Regulator is engineered to provide precise voltage control for Balmar high-output 24V alternators, as well as other externally regulated P-type alternators. Without intelligent multi-stage regulation, charging a large auxiliary battery bank directly from an alternator can be an inefficient process or a primary cause of premature battery degradation.

Included with a dedicated wiring harness for streamlined installation, this external regulator bridges the gap between high-amperage mechanical power generation and delicate battery chemistry requirements. Whether outfitting a commercial marine vessel, a long-range cruising yacht, or a heavy-duty 24V off-grid vehicle, the MC-624-H ensures your alternator delivers optimal charge profiles tailored to your specific energy storage setup.

Why Upgrade From Standard Alternator Regulation?

Factory-installed, single-stage internal regulators are typically designed only to maintain engine starter batteries, operating on a fixed voltage curve that fails to properly charge deep-cycle house banks. Relying on basic regulation often leads to chronic undercharging, sulphation in lead-acid cells, or dangerous overvoltage conditions in advanced lithium systems.

The Balmar MC-624-H solves these issues by actively managing the charging phases through intelligent multi-stage algorithms. By constantly monitoring system parameters, it maximises charge acceptance during the bulk phase to reduce engine run-time, transitions smoothly to absorption to safely top off the cells, and drops to a precise float voltage to prevent overcharging and thermal runaway.

Key Features and Capabilities

• User-Selectable Chemistry Profiles: Features pre-configured charging programs tailored for specific battery chemistries, eliminating guesswork during setup.
• P-Type Alternator Compatibility: Designed specifically to control Balmar 24V high-output alternators and compatible externally regulated P-type alternators.
• Included Wiring Harness: Supplied with the necessary wiring harness (indicated by the 'H' designation) to simplify electrical integration and ensure secure connections.
• Universal and Halogen Programs: Includes a universal default program that is safe for most battery types, plus a program designed for vessels using voltage-sensitive halogen equipment.
• Comprehensive System Protection: Helps reduce the risk of early battery failure and excessive gassing; with optional MC-TS-A and MC-TS-B temperature sensors (sold separately) it can reduce or stop charging if the alternator or batteries overheat.

Tailored Multi-Stage Programs for Modern Battery Chemistries

Every battery technology requires a distinct charging curve to achieve full capacity and maintain its rated cycle life. The MC-624-H features user-selectable presets that adjust bulk, absorption, and float parameters for a wide array of energy storage mediums:

• LiFePO4 (Lithium Iron Phosphate): A dedicated LiFePO4 program. Balmar strongly recommends an MC-TS-A alternator temperature sensor (sold separately) when charging LiFePO4 banks.
• AGM and Spiral Wound AGM: Provides the precise absorption voltages needed for low-internal-resistance absorbent glass mat batteries without drying out the recombinant cells.
• Gel Cell: Utilises carefully restricted voltage thresholds to prevent gas pockets from forming within the gelled electrolyte, which can permanently damage capacity.
• Deep Cycle and Standard Flooded: Optimises charge acceptance and electrolyte mixing for traditional wet-cell lead-acid banks used in heavy-duty cycling applications.

Built for Demanding Marine and Mobile Applications

In marine and remote mobile environments, power generation must coexist with sensitive onboard instrumentation. For vessels operating older or voltage-sensitive halogen equipment and navigation electronics, aggressive charging voltages can cause bulb blowouts or system faults. The MC-624-H addresses this with a dedicated program for vessels using voltage-sensitive halogen equipment.

Optimise Your 24V Charging System

Protect your battery investment and unlock the full potential of your high-output alternator. Add the Balmar MC-624-H 24V Multi-Stage Regulator with Harness to your system specification today for reliable, chemistry-specific power management on the water or off the grid.
