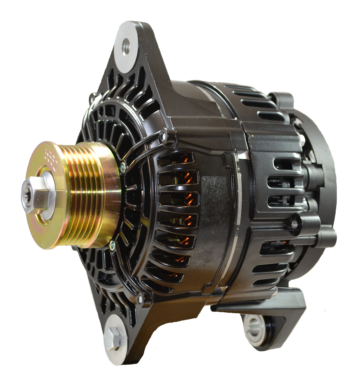

Balmar 24V 120A 97XD Series Alternator, 4in Saddle Mount, K6 Pulley, Isolated Ground

High-Output 24V 120A Heavy-Duty Power Generation

The 97XD Series 24V 120A Alternator is engineered for demanding marine, commercial, and off-grid mobile power applications where standard automotive charging systems struggle to keep up. Delivering a substantial 120A output at 24V, this unit is designed to service extensive house battery loads, including lithium (LiFePO4), AGM and gel banks when paired with a Balmar multi-stage regulator. The 97XD Series uses braided-stator technology to deliver strong power at low RPM. Unlike standard units that quickly overheat under continuous load, the 97XD Series is built to sustain elevated power demands over extended operating periods, making it a strong upgrade for vessels and expedition vehicles operating in tough Australian conditions.

Isolated Ground Architecture for Corrosion and System Protection

A critical feature of this model is its Isolated Ground (IsoGrd) design. Standard alternators use the outer metal casing as the negative return path through the engine block. In marine environments or complex commercial vehicles, passing high electrical currents through the engine block and hull can accelerate galvanic corrosion, damage sensitive onboard electronics, and create ground loops. By providing a dedicated, isolated negative terminal, this alternator keeps the charging circuit completely separate from the engine chassis. This significantly reduces the risk of stray current corrosion in steel or aluminium hulls and ensures a clean, stable electrical environment for modern engine management systems and navigation equipment.

Precision Mounting and Heavy-Duty Drive

Designed for secure integration into heavy-duty engine bays, this alternator features a robust 4in (Approx. 101.6mm) saddle mount configuration. The dual-foot J-180-style saddle design, typical for Caterpillar, Cummins, Detroit Diesel and John Deere engines, distributes mechanical stress across the mounting bracket. Power transfer is handled by a factory-installed K6 serpentine pulley (6-groove), which provides superior belt grip compared to traditional single V-belts. This multi-rib design reduces belt slippage, lowers heat generation, and prevents premature belt wear when the alternator is placing a heavy mechanical load on the engine during bulk charging phases.

• High-Amperage 24V Output: Delivers up to 120A to rapidly replenish large house and auxiliary battery banks.
• Isolated Ground (IsoGrd) Design: Prevents stray current corrosion in marine hulls and protects sensitive vehicle electronics via a dedicated ground return.
• 4in (Approx. 101.6mm) Saddle Mount: Provides rigid, vibration-resistant mechanical mounting suitable for heavy diesel and marine engines.
• K6 Serpentine Pulley: Ensures efficient torque transfer and minimal belt slip under high electrical loads.
• Extended Duty Design: Balmar designs the 97XD Series for heavy duty cycle applications and extended duty operation, using braided-stator technology for strong output at low RPM.
• External Regulation Required: Designed for use with a Balmar multi-stage regulator.

Ideal Applications

Whether you are refitting a commercial fishing vessel, upgrading a bluewater cruising yacht, or building an overland expedition truck, the 97XD Series offers the reliability required for remote operations. External regulation is required, so pair it with a Balmar multi-stage regulator.

• Marine auxiliary and house battery charging on yachts, workboats and cruisers
• Large diesel applications such as Caterpillar, Cummins, MTU and John Deere engines servicing extensive house battery loads
• 24V overland expedition vehicles and motorhomes with a 4in J-180-style alternator mount

Upgrade Your Engine Charging System

Ensure your vessel or heavy vehicle has the dependable charging capacity required for extended off-grid operation. Order the 97XD Series 24V 120A Alternator today to integrate professional-grade power generation into your 24V electrical system.
