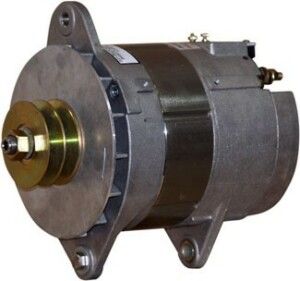

Balmar 24V 190A 97EHD Series Alternator, 4in Saddle Mount, Dual V Pulley, Isolated Ground

High-Output 24V Charging for Marine and Commercial Applications

The 97EHD Series 24V 190A Alternator is engineered for demanding commercial and marine environments where consistent, high-amperage charging is critical. Designed for extended duty operation with large battery banks and heavy electrical loads, this extra-large case unit provides a substantial upgrade over standard OEM alternators. Whether you are operating a commercial vessel or outfitting an off-grid expedition vehicle, this alternator delivers the sustained energy output required to keep essential onboard systems operational.

Isolated Ground Architecture for Corrosion Prevention

A core feature of this unit is its Isolated Ground (IsoGrd) configuration. Unlike standard case-grounded alternators that use the engine block as a return path, an isolated ground alternator utilises a dedicated negative terminal. This completely separates the charging circuit from the engine block, hull or vehicle chassis.

In marine applications—particularly on aluminium, steel, or composite vessels—stray electrical currents can rapidly accelerate galvanic corrosion, leading to severe structural damage. By providing a dedicated return path directly to the battery bank or main busbar, the isolated ground design significantly reduces the risk of stray current corrosion and electrical interference with sensitive navigation and communication electronics.

Engineered for Mechanical Stability and High Loads

High-output alternators place substantial mechanical resistance on drive belts and mounting brackets. To mitigate belt slip, premature wear, and vibration, this 97EHD Series unit incorporates robust physical mounting and drive features:

• 190A at 24V Output: Delivers substantial power to rapidly replenish large deep-cycle or lithium house battery banks and run high-draw DC appliances.
• 4-Inch (Approx. 101.6mm) J-180-Style Saddle Mount: Dual-foot mount typical for Caterpillar, Cummins, Detroit Diesel and John Deere engines, providing a wide, stable attachment footprint that distributes mechanical stress evenly across the mounting bracket, reducing vibration in rough seas or rugged terrain.
• Deep Dual Vee Pulley: Distributes the physical load across two drive belts, minimising belt slippage and heat generation during high-amperage charging phases.
• Isolated Ground (IsoGrd) Design: Protects marine hulls and vehicle chassis from stray current and galvanic corrosion while ensuring a clean electrical return path.
• Extended Duty 97EHD Series: Balmar designs the 97EHD Series for heavy duty cycle applications and extended duty operation.
• External Regulation Required: Designed for use with a Balmar multi-stage regulator.

Reducing the Risks of Under-Sized Charging Systems

Relying on standard-duty alternators to charge large 24V auxiliary battery systems often leads to overheating, voltage drop, and premature component failure. The extra-large case 97EHD Series is designed for heavy duty cycle applications and extended duty operation. The dual vee pulley spreads the drive load across two belts, while the 4-inch (approx. 101.6mm) saddle mount keeps the unit aligned under heavy load.

Ideal Applications

• Commercial marine vessels, cruisers, and workboats requiring isolated ground electrical systems
• Large diesel applications such as Caterpillar, Cummins, MTU and John Deere engines servicing extensive house battery loads
• Large-scale 24V lithium (LiFePO4) or AGM auxiliary battery bank charging

Upgrade Your 24V Charging System

Ensure your vessel or heavy-duty vehicle has the dependable power generation it needs for demanding operations. Integrate the 97EHD Series 24V 190A Isolated Ground Alternator into your electrical system today for stable, high-amperage charging performance.
