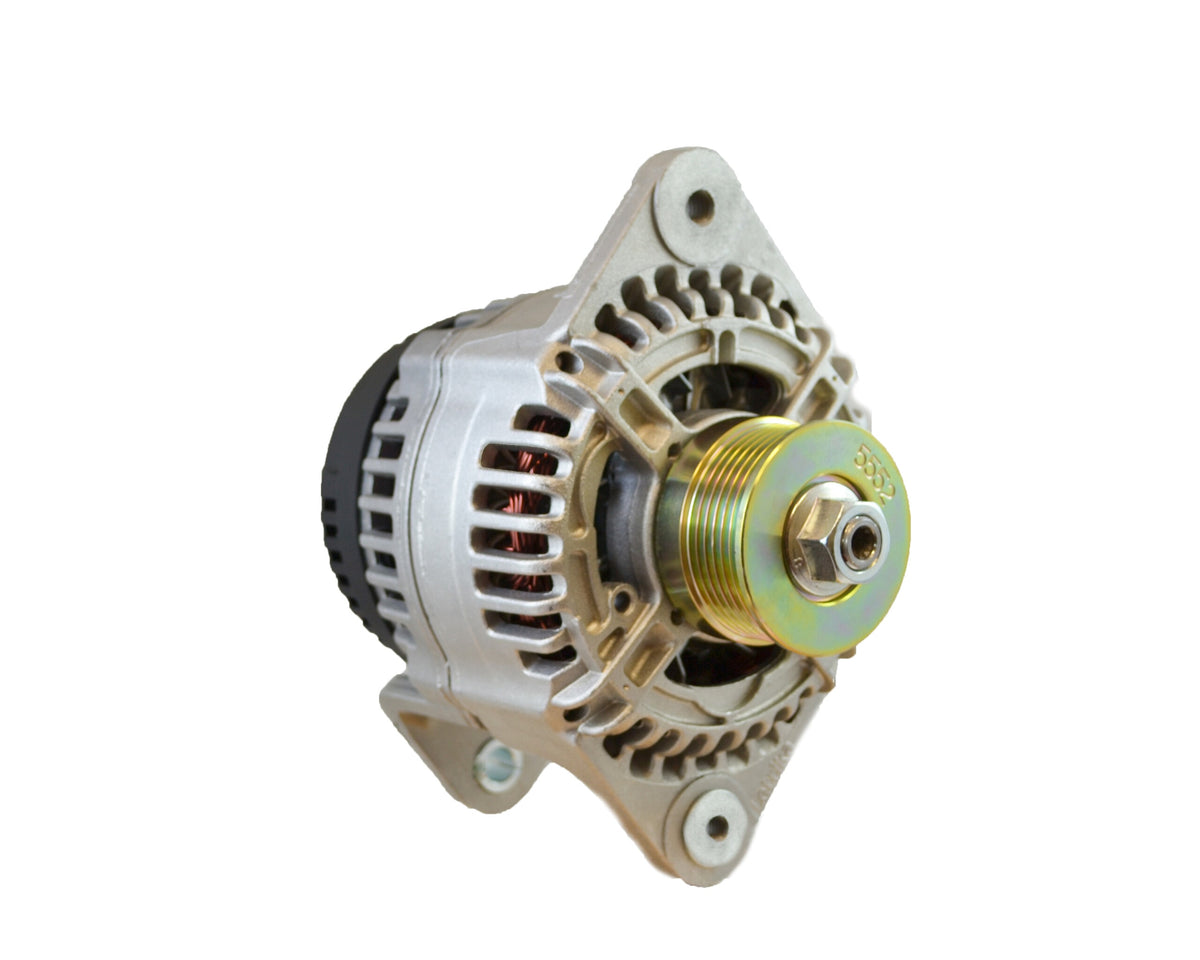

Balmar 48V 60A 96 Series Alternator, 4in Saddle Mount, K6 Pulley, Isolated Ground

High-Output 48V Power Generation for Marine and Off-Grid Systems

Upgrading to a 48V electrical architecture significantly improves system efficiency by reducing current draw, minimising voltage drop, and allowing for smaller cable gauges across your installation. The Balmar 96 Series 48V 60A Alternator is purpose-built to support 48V auxiliary battery banks in marine vessels and off-grid applications. Delivering 60A at 48V (2.9kW of charging power), this large-frame unit provides rapid, dependable energy replenishment directly from your engine.

Standard automotive alternators are not built to charge large deep-cycle lithium (LiFePO4) or AGM battery banks. Balmar classes the 96 Series as a mid-duty cycle, large frame alternator, with a low 1,325 RPM cut-in speed for the 60A model so it makes more power at lower RPM.

Key Technical Features and Benefits

• 48V 60A Output: Delivers 2.9kW of charging power to replenish 48V house battery banks during engine run times.
• 4-Inch (Approx. 101.6mm) Dual Foot Saddle Mount: J-180-style dual-foot mount for engines with a 4in saddle bracket.
• Isolated Ground (IsoGrd) Architecture: Features dedicated positive and negative terminals entirely isolated from the alternator casing, preventing stray current corrosion in metal-hulled vessels and protecting sensitive onboard electronics.
• K6 Serpentine Pulley: Equipped with a 2.7in diameter 6-rib serpentine pulley for maximum belt contact area, reducing belt slippage under heavy mechanical loads.
• External Regulation: Designed for use with the Balmar MC-620 multi-stage regulator, which offers lithium (LiFePO4) and other battery profiles and needs a 12V supply (up to 20A).

Precision Mounting and Belt Drive

Mechanical reliability is critical when generating high-wattage DC power. This alternator uses a 4-inch (approx. 101.6mm) J-180-style dual foot saddle mount configuration, ensuring secure alignment and distributing mechanical stress evenly across the mounting bracket. To transfer the torque required to generate 60A at 48V with minimal belt slip, the unit comes fitted with a K6 multi-groove serpentine pulley.

Isolated Ground Protection for Marine and Mobile Use

In marine environments and complex mobile installations, using the engine block or chassis as a return path can introduce significant risks, including galvanic corrosion, electrolysis, and electrical interference. The Isolated Ground (IsoGrd) design of this 96 Series alternator completely separates the internal electrical circuit from the outer aluminium housing. By requiring a dedicated negative return cable directly to the main system busbar, it safeguards aluminium or steel hulls and ensures clean power delivery for sensitive navigation and communication equipment.

Upgrade Your 48V Charging System

Equip your vessel or off-grid vehicle with a dedicated 48V charging solution for high-capacity battery banks. Order the Balmar 96 Series 48V 60A Alternator today to secure reliable, high-output engine charging for your electrical system.
