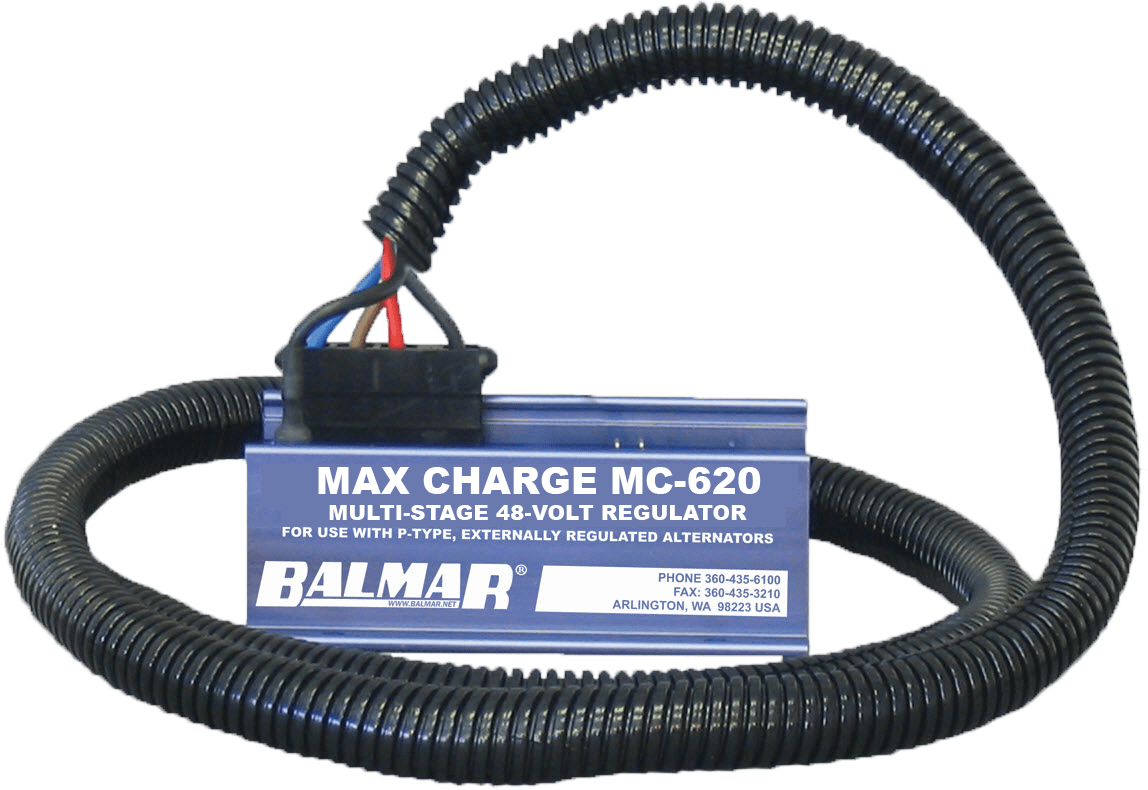

Balmar 48V MC-620 Multi-Stage Alternator Regulator with Harness

Balmar MC-620 Multi-Stage 48V Alternator Regulator with Harness

Precision Voltage Regulation for High-Output 48V Alternators

High-output alternators are a critical component of any advanced marine, off-grid, or mobile power system, yet their performance is heavily reliant on intelligent voltage control. Without precise voltage regulation, charging large battery banks becomes an inefficient, slow process that can severely compromise battery health. The Balmar MC-620 Multi-Stage 48V Regulator (SKU: B-MC-620-H) is engineered to deliver exact voltage control specifically tailored for high-output 48V alternator systems, protecting your energy storage investment and optimising charge times.

Unlike standard factory regulators that apply a rudimentary single-stage charge, the Balmar MC-620-H utilises advanced multi-stage charging profiles. This ensures that deep-cycle battery banks receive the exact voltage required across bulk, absorption, and float stages, significantly reducing the risk of premature battery failure caused by chronic undercharging or thermal runaway from overcharging.

Engineered Exclusively for Balmar 96-Series Alternators

This regulator is designed for exclusive use with Balmar 96-Series 48V alternators: the 60A 96-48-60-K6 and the 100A 96-48-100-K8. Supplied complete with a dedicated wiring harness, it streamlines the integration of high-capacity 48V charging into your vessel or custom off-grid vehicle.

• Multi-stage smart regulation optimises charging efficiency and extends battery lifespan
• Designed for 48V battery systems utilising Balmar 96-Series high-output alternators
• Includes wiring harness for straightforward, reliable installation
• Mitigates battery damage by preventing overcharging and sulphation

Critical Installation and Voltage Requirements

When integrating the Balmar MC-620 regulator into a 48V architecture, strict adherence to wiring specifications is required to prevent equipment damage. Although the unit regulates a 48V alternator, the regulator itself is powered through a 12V connection to its field input.

Important: This unit requires a 12V connection to the field input to power the regulator; it cannot be powered from a 48V source. Do not apply 48V to the regulator. Refer to Balmar's MC-620 and 96-Series installation instructions for the 12V connection.

Why Upgrade to Dedicated Multi-Stage Regulation?

Standard automotive or basic marine regulators are rarely equipped to handle the thermal and electrical demands of charging large 48V house battery banks. By upgrading to the Balmar MC-620-H, system builders and marine electricians gain reliable control over high-amperage charging cycles. This reduces engine run-time, saves fuel, and ensures your battery bank reaches full state of charge safely and consistently.

Upgrade Your 48V Charging System

Ensure your high-output 48V alternator operates at peak efficiency while safeguarding your battery bank. Order the Balmar MC-620 Multi-Stage 48V Regulator with Harness today to complete your professional marine or off-grid power installation.
