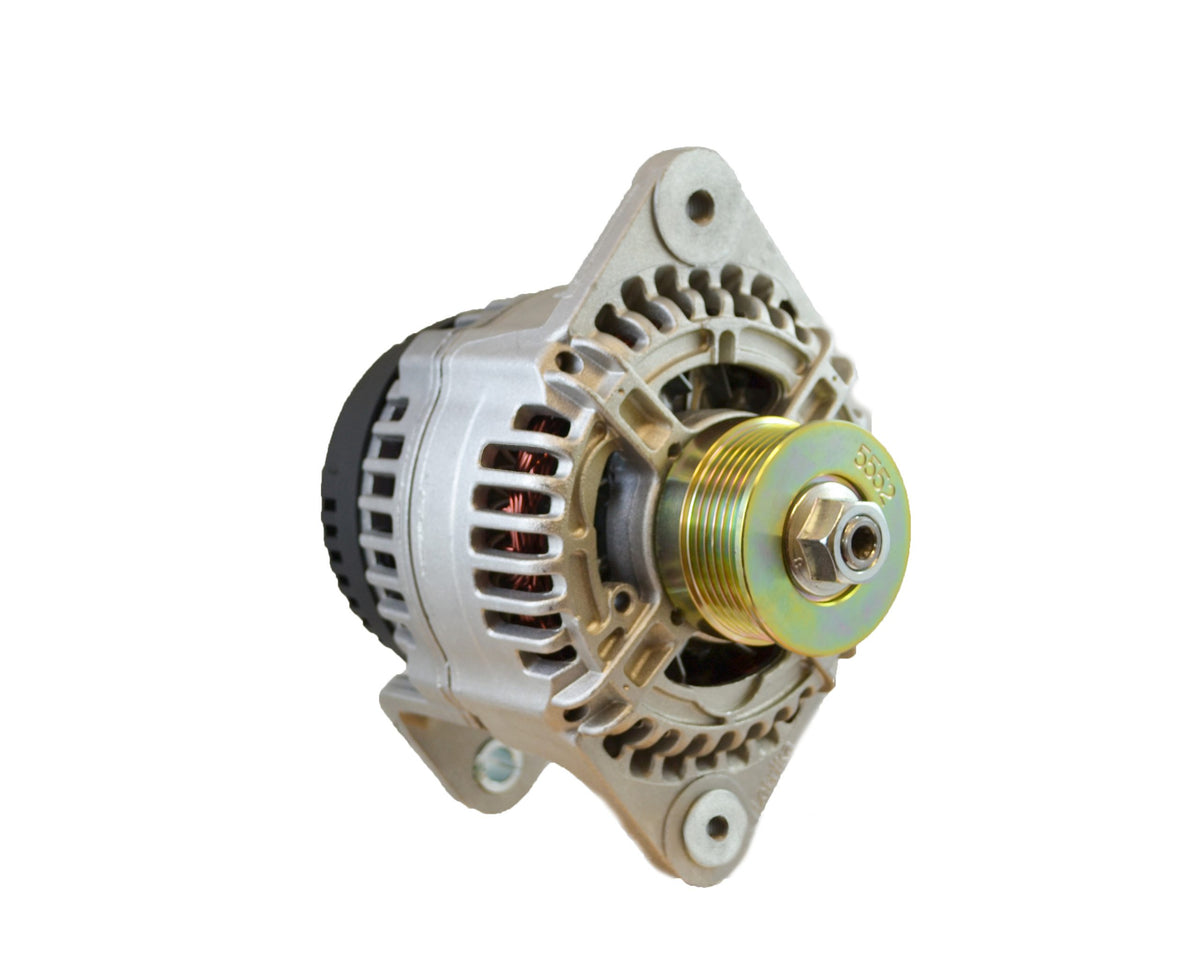

Balmar 48V 60A 96 Series Alternator, 4in Saddle Mount, K6 Pulley, Case Ground

High-Output 48V Power Generation for Marine and Off-Grid Systems

Upgrading to a 48V electrical architecture significantly improves system efficiency by reducing current draw and minimising cable sizing requirements. The Balmar 96 Series 60A 48V Alternator is specifically engineered to support high-capacity 48V battery banks in marine and mobile applications. Delivering a robust 60A output at 48V (2.9kW of charging power), this unit rapidly replenishes large energy storage systems during engine operation.

Standard automotive alternators are typically designed for intermittent loads, not for charging large deep-cycle house battery banks. Balmar classes the 96 Series as a mid-duty cycle, large frame alternator, with a low 1,325 RPM cut-in speed for the 60A model so it makes more power at lower RPM. It is designed for use with the Balmar MC-620 multi-stage regulator, which needs a 12V supply (up to 20A).

Precision Mounting and Serpentine Drive Integration

Mechanical compatibility is critical when upgrading engine room charging hardware. This model features a 4-inch (approx. 101.6mm) dual-foot saddle mount, which Balmar calls a J-180-style mount. This robust Dual Foot design distributes mechanical stress evenly across the engine bracket, minimising vibration and alignment issues.

To handle the increased mechanical load of generating 60A at 48V, the alternator comes equipped with a K6 serpentine pulley (2.7in diameter). Multi-groove serpentine belts provide superior grip surface area compared to traditional V-belts, significantly reducing belt slippage, glazing, and wear under heavy charging loads. The unit also utilises a case ground (negative ground) return path, simplifying wiring integration on standard negative-ground engines.

Key Features and Technical Advantages

• High-Efficiency 48V Output: Delivers 60A at 48V to rapidly charge large lithium (LiFePO4) or AGM battery banks while reducing system amperage and heat dissipation.
• 4-Inch (Approx. 101.6mm) Saddle Mount: J-180-style dual-foot configuration for engines with a 4in saddle bracket.
• K6 Serpentine Pulley: 6-groove serpentine pulley maximises belt contact area to reduce slippage under high torque demands.
• Case Ground Architecture: Utilises the alternator chassis as the negative return path for straightforward integration into standard grounded engine blocks.
• Large Frame, Mid-Duty Cycle: Balmar classes the 96 Series as a mid-duty cycle, large frame alternator.

Ideal Applications

Whether you are fitting out a bluewater cruising vessel or an off-grid expedition vehicle, reliable engine-driven generation is an essential backup to solar and shore power. This 48V alternator is well suited for:

• Marine house battery charging systems
• 48V lithium battery bank upgrades in large RVs, motorhomes, and overland trucks
• Mobile workspaces requiring high-output auxiliary power
• Hybrid marine and off-grid power generation setups

Upgrade Your 48V Charging Capability

Ensure your high-capacity battery bank receives dependable, high-amperage charging whenever your engine is running. Add the 96 Series 60A 48V Alternator to your system configuration today for professional-grade power generation.
