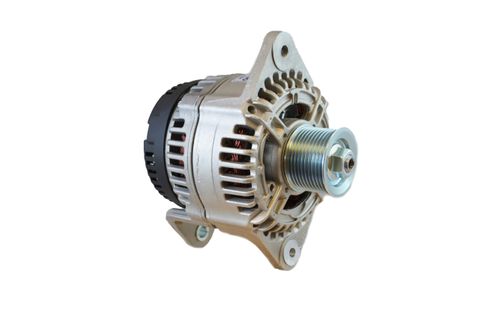

Balmar 48V 100A 96 Series Alternator, 4in Saddle Mount, K8 Pulley, Case Ground

High-Output 48V 100A Alternator for Marine and Off-Grid Charging

Engineered to meet the demands of large-capacity battery banks, this 96 Series 48V 100A alternator delivers substantial DC power directly from your propulsion or auxiliary engine. As mobile, off-grid, and marine electrical systems increasingly transition to high-voltage architectures for improved thermal efficiency, having a dedicated 48V charging source eliminates the inefficiencies and failure points associated with step-up voltage converters. Delivering up to 100A at 48V, this unit provides the high-wattage output required to rapidly replenish large lithium or deep-cycle house banks during engine run times.

Precision Mounting and Serpentine Drive Integration

Generating up to 4.8kW of charging power requires a secure, vibration-resistant mechanical interface and a robust belt drive system. This alternator features a standard 4-inch (approx. 101.6mm) J-180-style dual-foot saddle mount, distributing mechanical load evenly across the engine bracket to reduce the risk of alignment shift or bracket fatigue under heavy vibration. The unit comes equipped with an 8-groove serpentine pulley (K8), providing the surface contact area necessary to drive a high-torque 48V rotor while minimising belt slippage, glazing and premature wear.

• High-Efficiency 48V Output: Delivers up to 100A of native 48V charging current, ideal for rapidly recharging large lithium (LiFePO4) and AGM battery banks when paired with the Balmar MC-620 regulator.
• Robust 4-Inch Saddle Mount: Features a 4-inch (approx. 101.6mm) dual-foot saddle configuration for rigid, stable attachment to engines with a 4in J-180-style bracket.
• K8 Serpentine Pulley: Fitted with an 8-rib serpentine pulley to handle the increased mechanical load of 48V power generation while minimising belt slip.
• Case Grounded Architecture: Simplifies negative return wiring in standard chassis-ground or negative-ground engine configurations.
• Large Frame, Mid-Duty Cycle: Balmar classes the 96 Series as a mid-duty cycle, large frame alternator, with a low 2,200 RPM cut-in speed for the 100A model.
• External Regulation: Designed for use with the Balmar MC-620 multi-stage regulator (sold separately), which needs a 12V supply (up to 20A).

Why Upgrade from Standard Automotive Alternators?

Standard factory alternators are designed for intermittent loads and low-amperage 12V starter battery maintenance. They are not built to charge a large 48V house bank. The large-frame 96 Series alternator is Balmar's dedicated 48V alternator, with low cut-in speeds that make more power at lower RPM and limit the need for complex pulley schemes or over-throttling the engine at idle.

Understanding Case Grounding

This model utilises a case ground (negative ground) configuration, meaning the alternator housing itself acts as the negative electrical return path through the engine block. This simplifies installation in standard negative-ground setups by reducing the need for a dedicated heavy-gauge negative return cable directly from the alternator casing, provided the engine block is properly bonded to the main system ground. Always verify whether your specific vessel or vehicle requires an isolated ground or case ground system prior to installation.

Ideal Applications

• Cruising Vessels: Charging 48V house banks that run inverter loads, DC air conditioning and cooking.
• Expedition Vehicles & Motorhomes: High-output engine-driven power generation for off-grid RVs and mobile workspaces.
• Off-Grid Power Systems: Custom DC power generation setups requiring belt-driven 48V charging.

Upgrade Your 48V Charging System

Ensure your high-voltage battery bank receives dependable, high-amperage charging whenever your engine is running. Confirm your engine bracket spacing and belt profile, and integrate the 96 Series 48V 100A alternator into your power system today.
