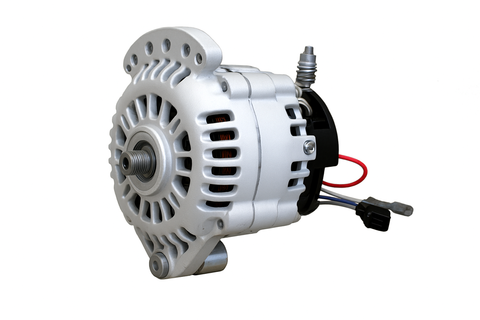

Balmar 12V 120A 621 Series Alternator, Single Foot Mount, Isolated Ground (No Pulley)

High-Output 12V 120A 621 Series Alternator for Marine and Mobile Power

Engineered to meet the electrical loads of modern vessels and off-grid setups, this 621 Series 12V 120A alternator provides reliable, high-output power generation. Unlike standard automotive units designed only for intermittent starting battery top-ups, this high-output alternator is built to recharge deep-cycle house battery banks. Balmar designs its 6-Series alternators for recreational applications and describes them as ideal for modest charging upgrades.

With a substantial 120A output at 12V, it significantly reduces engine run times required for battery charging, saving fuel and minimising engine wear. Whether you are upgrading a marine auxiliary engine or outfitting a specialised mobile workspace, this unit delivers the charging performance your house battery bank needs.

Isolated Ground Architecture for Enhanced Safety

A critical feature of this 621 Series alternator is its Isolated Ground (IsoGrd) design. Standard alternators use the metal casing as the negative return path through the engine block. In marine environments—particularly on aluminium, steel, or timber vessels—ground return through the engine and hull can lead to severe stray current corrosion and galvanic damage.

By isolating the negative terminal from the alternator chassis, this unit ensures that all return current travels safely back to the battery bank via dedicated cabling. This architecture drastically reduces the risk of electrolysis in marine applications and protects sensitive onboard electronics from ground loop interference.

Key Features and Benefits

• High-Output 120A Capacity: Delivers rapid, dependable charging for large 12V deep-cycle AGM, Gel, or Lithium (LiFePO4) battery banks when paired with appropriate regulation.
• Isolated Ground (IsoGrd) Design: Prevents stray current corrosion and galvanic damage by isolating the electrical ground from the engine block and chassis.
• Single Foot Mounting: Suits 1in (Approx. 25.4mm) Motorola-style or 2in (Approx. 50.8mm) Delco-style single foot (SingleFT) brackets. Balmar lists the 1in Motorola-style mount as typical for Westerbeke, Lehman, Hino and Pathfinder engines, and the 2in Delco-style mount as typical for Volvo Penta, John Deere, Perkins, Mercruiser and other GM-based engines.
• Customisable Drive Setup: Supplied without a pulley (suits 17mm bore pulleys), allowing you to match the exact belt profile and ratio required for your specific engine configuration.
• Dual Fan Cooling: Compact, small-case 6-Series design with dual fan cooling and a high airflow frame.

Pulley Compatibility and Exclusions

Please note that this alternator is supplied without a pulley to accommodate varying engine belt configurations. To complete your installation, select the appropriate pulley for your drive belt system from the compatible options below (each featuring a 17mm bore):

• B-61-0020: Dual V Pulley, 2.7in (Approx. 68.6mm) x 1/2in (Approx. 12.7mm) Deep V, 17mm Bore
• B-61-0070: K-6 Serpentine 6-Rib Pulley, 2.45in (Approx. 62.2mm), 17mm Bore
• B-1310: K-8 Serpentine 8-Rib Pulley, 2.4in (Approx. 61mm), 17mm Bore, Short (STD)

Ideal Applications

Upgrading to a dedicated high-output, isolated ground alternator helps solve the common problem of chronic battery undercharging. It suits:

• Marine Vessels: Yachts and cruisers requiring isolated ground systems to help prevent hull and propeller corrosion.
• RVs and Expedition Vehicles: Rapidly replenishing auxiliary battery banks during transit.

Upgrade Your Charging System

Ensure your vessel or vehicle has the dependable charging capacity it needs for extended off-grid operation. Select your compatible 17mm bore pulley and add the 621 Series 12V 120A Alternator to your system today for reliable, isolated-ground power generation.
