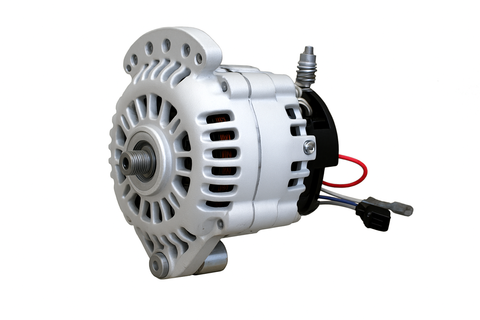

Balmar 12V 100A 621 Series Alternator, Single Foot Mount, Isolated Ground (No Pulley)

High-Output 12V 100A Alternator for Marine and Mobile Power Systems

Upgrading your auxiliary charging system is essential when supporting demanding house battery banks in marine vessels, motorhomes, and off-grid service vehicles. The 621 Series 100A 12V Alternator (B-621-100-SP) is engineered to deliver consistent, high-amperage power where standard automotive alternators often struggle. Designed with a compact small-case footprint, this unit provides a substantial boost in charging performance without requiring extensive modifications to your existing engine bay.

Why Upgrade to a High-Output 621 Series Alternator?

Standard factory alternators are typically designed to maintain a starter battery and run basic vehicle electronics, rather than rapidly recharging deep-cycle lithium, AGM, or gel battery banks. Operating a standard unit at full capacity for extended periods often leads to excessive heat build-up, voltage drop, and premature component failure. The 621 Series 100A alternator is part of Balmar's top-selling 6-Series, with dual fan cooling and a high airflow frame. Balmar designs its 6-Series alternators for recreational applications and describes them as ideal for modest charging upgrades. Its Smart Ready internal regulator may be sufficient where battery loads are relatively small and the engine runs frequently. For larger deep-cycle battery banks, or where the engine runs less often (as on most sailing vessels), pair it with a Balmar ARS-5 or Max Charge multi-stage regulator.

Isolated Ground Design for Enhanced Safety

A critical feature of this alternator is its Isolated Ground (IsoGrd) configuration. Unlike standard case-grounded alternators that use the engine block as the negative return path, an isolated ground alternator features a dedicated negative terminal. This completely isolates the alternator's electrical circuit from the engine chassis and hull.

For marine applications—particularly on aluminium, steel, or composite vessels—this design significantly reduces the risk of stray current corrosion and galvanic damage to underwater metals. It also helps prevent electrical interference with sensitive navigation, communication, and engine management electronics.

Precision Mounting and Customisable Pulley Options

This model features a Single Foot (SingleFT) spindle mount for 1in (Approx. 25.4mm) or 2in (Approx. 50.8mm) single-foot brackets. Balmar lists the 1in Motorola-style mount as typical for Westerbeke, Lehman, Hino and Pathfinder engines, and the 2in Delco-style mount as typical for Volvo Penta, John Deere, Perkins, Mercruiser and other GM-based engines. To offer maximum flexibility across different engine belt configurations, this alternator is supplied without a pulley. This allows installers to select the exact pulley profile required to match their engine's existing drive belt system, preventing belt slippage and premature wear.

Compatible Pulley Choices (Sold Separately)

To complete your installation, pair the B-621-100-SP with one of the following compatible 17mm bore pulleys:

• B-61-0010: Pulley, Single V, 2.7in x 1/2in (Approx. 68.6mm x 12.7mm) DeepV, 17mm Bore
• B-61-0020: Pulley, Dual V, 2.7in x 1/2in (Approx. 68.6mm x 12.7mm) DeepV, 17mm Bore
• B-61-0070: Pulley, K-6, 2.45in (Approx. 62.2mm) Serpentine 6-Rib, 17mm Bore
• B-1310: Pulley, K-8, 2.4in (Approx. 61mm) Serpentine 8-Rib, 17mm Bore, Short (STD)

Key Features and Benefits

• 100A at 12V Output: Delivers rapid charging capabilities for auxiliary and house battery banks.
• Isolated Ground Terminal: Helps protect marine hulls and vehicle chassis from stray current and galvanic corrosion.
• Single Foot 1in or 2in Mount: Suits 1in Motorola-style and 2in Delco-style single-foot brackets.
• Customisable Drive Setup: Supplied bare (without pulley) to accommodate Single V, Dual V, 6-Rib, or 8-Rib serpentine belt systems.
• Dual Fan Cooling: Compact, small-case 6-Series design with dual fan cooling and a high airflow frame.

Build a Dependable Charging System

Whether you are refitting a cruising yacht or building a custom off-grid power system, the 621 Series 100A 12V Alternator provides the electrical foundation you need. Select your required 17mm bore pulley from our range and upgrade your engine's charging capability today.
