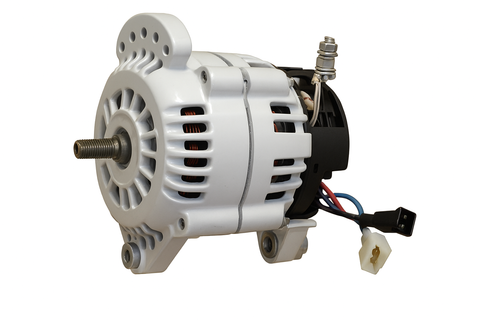

Balmar 24V 70A 60 Series Alternator, 3.15in Saddle Mount, Isolated Ground (No Pulley)

High-Output 24V 70A Isolated Ground Alternator for Marine and Off-Grid Power

Engineered for High-Output Charging and Corrosion Prevention

The 60 Series 24V 70A Alternator is a compact, high-output charging upgrade from Balmar's 6-Series. Balmar designs its 6-Series alternators for recreational applications and describes them as ideal for modest charging upgrades. Delivering a 70A charge rate at 24V, this unit helps replenish auxiliary battery banks during engine operation. For 24V applications, Balmar specifies a Max Charge multi-stage regulator.

The Advantage of an Isolated Ground Architecture

One of the critical engineering features of this alternator is its Isolated Ground (IsoGrd) design. In standard alternators, the casing acts as the negative return path through the engine block. However, in marine vessels with steel or aluminium hulls, using the engine block or chassis as a return path can introduce stray currents. This accelerates galvanic corrosion and can cause severe damage to underwater metals, engine components, and sensitive onboard electronics.

By featuring a dedicated isolated negative terminal, this 24V isolated ground alternator keeps the DC charging circuit completely separate from the engine block. This significantly reduces the risk of electrolysis and electrical interference, protecting your vessel or vehicle investment over the long term.

3.15in Hitachi-Style Dual-Foot Saddle Mount

This unit uses a dual-foot saddle mount configuration with a 3.15in (Approx. 80mm) mounting footprint. Balmar calls this the Hitachi-style mount, typical for Yanmar, Westerbeke, Lehman and Perkins-Sabre engines. It is not the 4in J-180-style mount, so check your engine bracket before ordering.

Key Features and Benefits

• High-Output 24V 70A Rating: Delivers substantial charging current to quickly replenish depleted 24V auxiliary and starting battery banks.
• Isolated Ground (IsoGrd) Protection: Helps prevent stray current corrosion and electrolysis in marine hulls.
• 3.15in (Approx. 80mm) Saddle Mount: Hitachi-style dual-foot mount, typical for Yanmar, Westerbeke, Lehman and Perkins-Sabre engines.
• Customisable Drive Interface: Supplied without a pulley to suit 17mm bore pulleys, allowing exact matching to your engine's specific belt profile and drive ratio.
• Dual Fan Cooling: Compact, small-case 6-Series design with dual fan cooling and a high airflow frame.

Important Exclusion: Pulley Sold Separately

Please note that this alternator is supplied with no pulley included. Because marine engines use varying belt configurations, supplying the unit bare allows you to select the exact pulley required for your drive system without paying for redundant hardware. The alternator suits 17mm bore pulleys, including the following options:

• B-61-0020: Pulley, Dual V 2.7in (Approx. 68.6mm) x 1/2in (Approx. 12.7mm) DeepV, 17mm Bore
• B-61-0070: Pulley, K-6 2.45in (Approx. 62.2mm) Serpentine 6-Rib, 17mm Bore
• B-1310: Pulley, K-8 2.4in (Approx. 61mm) Serpentine 8-Rib, 17mm Bore, Short (STD)

Upgrade Your 24V Charging System

Whether you are refitting a cruising vessel or upgrading an off-grid expedition truck, the 60 Series 24V 70A Alternator delivers isolated-ground charging in a compact package. Select your compatible 17mm bore pulley and order your 60 Series alternator today to secure dependable 24V charging performance.
