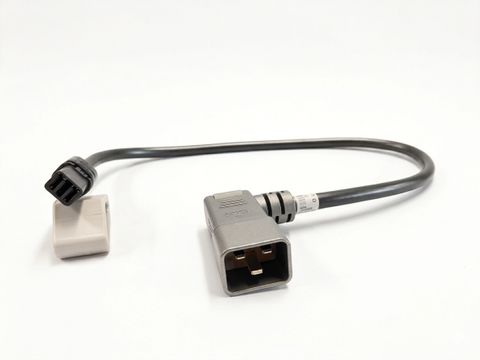

CMS C3.1 to IEC C20 Inverter Output Cable 600mm 90° 2.5mm

AS/NZS 3001.2:2022 Compliant Inverter Output Lead for Mobile Power Systems

Designing a compliant and reliable 230V AC electrical system in a caravan, motorhome, or off-grid canopy requires components that meet strict Australian standards. The CMS Electracom C3.1 to IEC C20 Inverter Output Cable provides a secure, plug-and-play bridge between your inverter's IEC outlet and a modular CMS C3.1 electrical distribution system. Engineered with a heavy-duty 2.5mm² cross-sectional core and rated up to 16A, this 600mm assembly removes the need for custom hardwiring at the inverter interface while maintaining full regulatory compliance.

Engineered for Tight Clearances and High-Vibration Environments

Space inside modern RV electrical cabinets and 4WD canopies is often heavily restricted. Standard straight-profile IEC plugs require substantial clearance behind or beside the inverter chassis, frequently resulting in sharp cable bends that place mechanical strain on the internal copper conductors and the inverter's socket. This lead addresses that challenge directly with a purpose-built 90° right-angle IEC C20 male plug. By routing the cable flush along the body of the inverter, it minimises the required installation depth and significantly reduces physical strain on the connection point during off-road travel.

On the opposing end, the standard C3.1 female connector integrates directly into CMS Electracom's modular wiring architecture, complete with a removable protective dust cap to keep the terminal contacts clean during rough-in and routing prior to final commissioning.

Full Compliance with AS/NZS 3001.2:2022

Recent updates to the AS/NZS 3001.2:2022 Electrical Installations (Connectable Electrical Installations and Supply Arrangements) standard mandate rigorous requirements for transportable structures. Utilizing uncertified leads or undersized wiring in high-load 230V AC inverter circuits introduces serious thermal risks and can void insurance or fail compliance inspections. This CMS Electracom assembly is manufactured with 2.5mm² conductors specifically specified to satisfy AS/NZS 3001.2:2022 requirements for inverter output connections. Rated for a maximum current of 16A (*Note typical de-rating factors apply), it ensures safe current delivery from high-output inverters to your main switchboard or RCD distribution unit.

Key Features and Technical Advantages

• AS/NZS 3001.2:2022 Compliant: Constructed with heavy-duty 2.5mm² cable to meet modern Australian and New Zealand regulatory standards for connectable vehicles and transportable structures.
• Space-Saving 90° IEC C20 Plug: Right-angle male connector reduces protrusion from the inverter housing, preventing cable pinching and terminal stress in compact enclosures.
• 16A Current Rating: Matched to the thermal and electrical limits of standard IEC C20 inverter outlets for dependable AC power transfer.
• Modular C3.1 Integration: Connects seamlessly with CMS Electracom C3.1 series interconnects, RCD modules, and double-pole outlet networks.
• 600mm Point-to-Point Length: Ideal for close-proximity installations where the inverter is mounted adjacent to the AC distribution board, eliminating excess cable clutter.
• Terminal Protection: Supplied with a removable dust cap on the C3.1 connector to prevent debris ingress during installation.

Ideal Applications

This pre-terminated inverter output assembly is suited for trade installers, OEM caravan manufacturers, and system builders working on:

• Caravans, camper trailers, and motorhomes requiring certified 230V AC inverter integration
• Commercial service vehicles and mobile workspaces utilizing high-capacity inverters
• Compact 4WD canopy power systems where cabinet depth restricts standard straight IEC plugs
• Modular off-grid power boards built around the CMS Electracom C3.1 architecture

Streamline Your Inverter Installation

Eliminate the guesswork and compliance risks of custom AC wiring. Add the CMS Electracom C3.1 to IEC C20 90° Inverter Output Cable to your system build for a tidy, compliant, and durable 230V AC connection.
