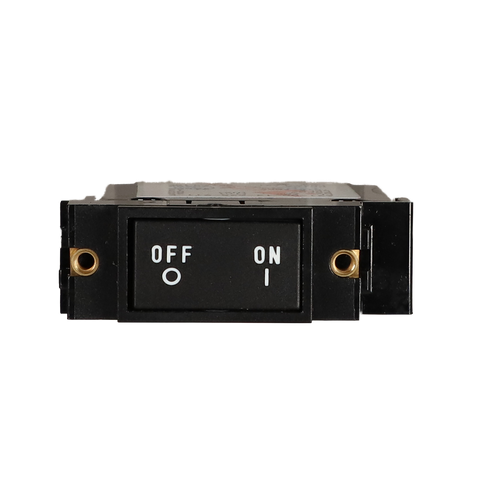

Carling 50A A-Series Flat Circuit Breaker

Compact Hydraulic-Magnetic Overcurrent Protection with Flush Rocker Actuator

The Carling A Series Flat Circuit Breaker is engineered to deliver precise overcurrent protection and dependable circuit control in space-constrained electrical panels. Combining a manual switching mechanism with trip-free protection in a single compact unit, this breaker streamlines installation while maintaining high operational standards across marine, recreational vehicle, off-grid, and industrial power distribution systems.

Why Choose Hydraulic-Magnetic Technology?

Unlike standard thermal circuit breakers that rely on a heat-sensitive bimetallic strip to trigger a trip, the Carling A Series utilises an advanced hydraulic-magnetic mechanism. Standard thermal devices often suffer from nuisance tripping in hot engine bays, enclosed battery boxes, or direct sunlight, as elevated ambient temperatures lower their trip threshold. Conversely, in cold environments, thermal breakers may take longer to trip during an overload, increasing the risk of cable or equipment damage.

A hydraulic-magnetic circuit breaker operates solely on the magnetic force generated by the electrical current passing through a solenoid coil, regulated by a hermetically sealed hydraulic fluid damper. This ensures the breaker holds 100% of its rated current continuously and trips only when an actual overcurrent or short-circuit condition occurs, completely independent of ambient temperature fluctuations. This makes it an ideal solution for harsh Australian climates and demanding mobile applications.

Ergonomic Flat Rocker Design for High-Traffic Panels

Designed specifically for applications where safety and panel aesthetics are paramount, this model features a flush-mounted flat rocker actuator. In narrow boat companionways, caravan walkthroughs, or tight equipment enclosures, protruding toggle switches are vulnerable to accidental bumping, snagging on clothing, or physical shearing. The flat rocker profile sits flush when in the energised position, preventing inadvertent actuation while still allowing immediate manual disconnection when required.

• Hydraulic-Magnetic Operation: Delivers consistent, temperature-stable trip performance without the need for thermal de-rating in hot enclosures.
• Flush-Mount Rocker Actuator: Protects against accidental switching in high-traffic areas while offering smooth, tactile operation.
• High-Contrast Status Indicators: Clear white ON and OFF markings on the black actuator provide immediate visual confirmation of circuit status at a glance.
• Secure Front-Panel Mounting: Equipped with integrated threaded brass inserts to ensure a rigid, vibration-resistant installation in mobile and marine switchboards.
• Dual-Function Efficiency: Eliminates the need for separate switches and fuse holders, reducing wiring complexity, installation time, and panel footprint.

Application Considerations and Selection

The Carling A Series is suitable for both general-purpose branch circuit distribution and full amp-load switching applications. Because the A Series encompasses a variety of current ratings, voltage limits, and pole configurations, please verify the specific electrical ratings stamped on the breaker housing or within the confirmed model specifications for your chosen variant before integrating it into your circuit design.

Upgrade Your Electrical Distribution System

Ensure your critical electrical circuits are protected against overloads and short circuits without the frustration of heat-induced nuisance tripping. Select the Carling A Series Flat Circuit Breaker for your switchboard or custom panel build today.
