Carling 40A A-Series Flat Circuit Breaker

Precision Hydraulic-Magnetic Protection for Demanding Electrical Panels

Compact Flush-Mount Design Engineered for Marine, RV, and Industrial Systems

The Carling A-Series FLAT circuit breaker delivers dependable overcurrent protection in a compact, low-profile format. Combining circuit switching and overcurrent interruption into a single unit, this component is widely trusted across marine, off-grid, telecommunications, and industrial control panels. The specialised flat rocker actuator is designed to sit flush when in the ON position, providing a clean, professional aesthetic while significantly reducing the risk of accidental actuation or snagging in tight quarters.

Why Choose Hydraulic-Magnetic Technology?

Unlike standard thermal circuit breakers that rely on heat-sensitive bimetallic strips, the Carling A-Series utilises an advanced hydraulic-magnetic mechanism. Standard thermal alternatives are often prone to nuisance tripping when installed in hot engine bays, enclosed power distribution cabinets, or harsh Australian summer conditions. Because hydraulic-magnetic breakers respond solely to current variations rather than ambient temperature, they maintain a stable trip point and support full amp load capability across a wide operating temperature range.

Furthermore, hydraulic-magnetic breakers do not require a cool-down period after an overload event. Once the fault is safely cleared, the panel mount circuit breaker can be reset immediately, minimising system downtime in critical power setups.

Engineered for Durability and Clear Status Indication

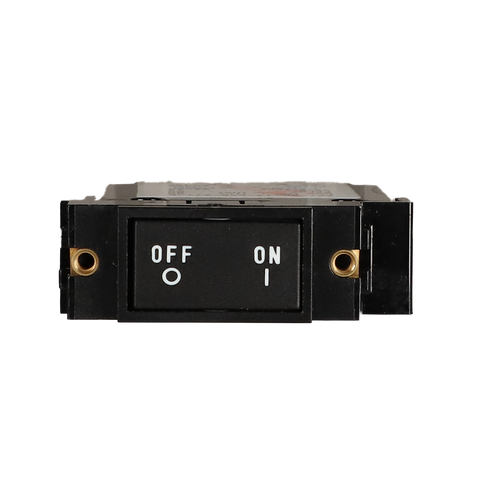

Built to meet rigorous industry standards, this breaker features durable metal mounting inserts that ensure secure, long-lasting fastening to your control panel or switchboard. The actuator displays high-contrast white ON/OFF and international I/O markings, offering immediate visual confirmation of circuit status during routine operation or emergency troubleshooting.

• Hydraulic-Magnetic Operation: Provides consistent, temperature-stable overcurrent protection without derating in high-heat environments.
• Flush Rocker Actuator: The flat front profile prevents inadvertent switching and integrates seamlessly into modern dash panels and enclosures.
• Dual-Function Design: Combines heavy-duty manual switching and reliable automatic circuit interruption into one space-saving component.
• Clear Visual Indicators: Marked with distinct white ON/OFF and I/O labels for rapid status checks in low-light conditions.
• Secure Panel Mounting: Equipped with robust threaded metal inserts to withstand vibration in mobile, 4WD, and marine vessels.

Versatile Applications Across Custom Electrical Setups

Whether you are designing a custom switchboard for a commercial vessel, upgrading an off-grid caravan power management system, or building industrial equipment, the Carling A-Series circuit breaker offers the reliability required to protect sensitive electronics and wiring harnesses. It is ideally suited for:

• Marine dashboards, boat distribution panels, and bilge pump circuits
• Caravan, camper trailer, and motorhome electrical distribution systems
• Industrial machinery, generator control panels, and heavy equipment
• Telecommunications racks and uninterruptible power supplies (UPS)

Note: The available product details do not specify this model’s exact current or voltage rating in the general description, though the CT-A1F-40 SKU typically indicates a 40A rating within this product family. Please verify the specific amperage and voltage requirements for your intended application before ordering.

Upgrade Your Circuit Protection

Ensure your electrical distribution panel is protected against overloads without the frustration of heat-related nuisance tripping. Integrate the Carling A-Series FLAT circuit breaker into your next marine, mobile, or industrial build for dependable, professional-grade circuit management.
