Carling 30A A-Series Flat Circuit Breaker

Precision Hydraulic-Magnetic Circuit Protection for Demanding Environments

The Carling A Series FLAT Circuit Breaker delivers dependable, precision electrical protection in a compact, space-saving format. Engineered for both general-purpose and full-amp-load applications, this breaker integrates switching and overcurrent protection into a single panel-mount unit. Whether you are building a custom marine switchboard, upgrading a transport electrical system, or assembling an off-grid power distribution panel, the Carling A-Series provides the reliability required for critical electrical infrastructure.

Please note that model-specific electrical ratings are not provided in the general summary, so ensure the specific variant aligns with your system requirements prior to installation.

Why Choose Hydraulic-Magnetic Technology?

Unlike standard thermal circuit breakers that rely on heat-sensitive bimetallic strips, the Carling A-Series utilises advanced hydraulic-magnetic technology. Standard thermal breakers can suffer from nuisance tripping in hot engine bays or delayed tripping in freezing conditions because ambient temperature affects their internal mechanism. By contrast, a hydraulic-magnetic circuit breaker responds solely to electrical current change rather than heat.

This ensures consistent trip performance across a wide range of operating temperatures, significantly reducing the risk of unexpected power loss in harsh Australian climates or enclosed equipment cabinets. It is able to carry a 100% rated continuous load without premature de-rating caused by ambient thermal build-up.

Engineered for Flush Panel Integration and Safety

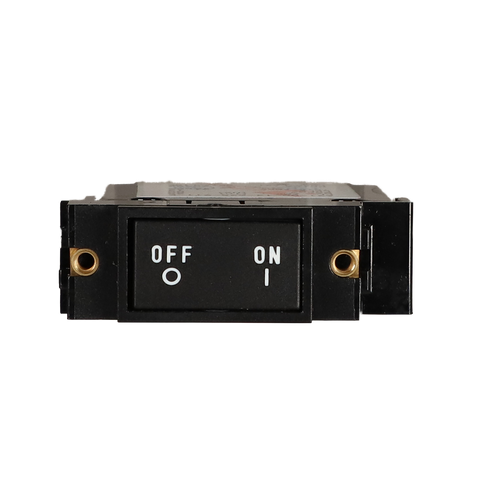

A standout feature of this model is the flat rocker actuator. In crowded helm stations, vehicle cabins, or narrow walkways within a caravan or service body, protruding switches run the risk of being accidentally knocked or snagged. The low-profile flat rocker sits flush when in the ON position, preventing inadvertent actuation while maintaining effortless manual switching when required.

• Hydraulic-Magnetic Operation: Delivers precise, temperature-independent overcurrent protection suitable for full-amp-load applications.
• Flat Rocker Actuator: Low-profile, flush-mount design prevents accidental switching in high-traffic areas and provides a clean panel finish.
• High-Contrast Status Indicators: Clear white ON and OFF markings on the black actuator allow for immediate visual circuit status identification.
• Threaded Brass Inserts: Reinforced front-panel mounting holes provide superior thread strength and vibration resistance compared to standard plastic clip-in housings.
• Compact A-Series Housing: Durable enclosure engineered to withstand the rigours of marine, transport, and industrial power systems.

Built for Marine, Transport, and Off-Grid Power Systems

Inferior circuit protection devices often fail under continuous vibration or suffer from stripped mounting threads during installation. The Carling A Series FLAT Circuit Breaker solves this by incorporating threaded brass inserts directly into the mounting bezel. This allows for secure front-panel installation that holds fast against the constant movement experienced in 4WD canopies, commercial transport vehicles, and marine vessels.

By combining the functionality of a heavy-duty power switch and a precision circuit breaker, it simplifies wiring harnesses, reduces termination points, and frees up valuable dashboard or enclosure space.

Upgrade Your Electrical Panel Protection

Equip your power distribution system with industry-recognised reliability. Select the Carling A Series FLAT Circuit Breaker for your next marine, transport, or custom electrical panel build to ensure accurate, flush-mount circuit protection.
