Carling 25A A-Series Flat Circuit Breaker

Industrial-Grade Panel Protection with Low-Profile Rocker Actuation

The Carling A Series Circuit Breaker, FLAT (SKU: CT-A1F-25) is engineered for demanding electrical distribution panels where space optimisation and reliable circuit protection are critical. Designed with a specialised low-profile rocker actuator, this breaker integrates seamlessly into flat-panel configurations. By combining circuit protection and switching into a single compact unit, it eliminates the need for separate switches and fuses, streamlining your panel architecture and simplifying wiring harnesses.

In high-traffic or confined environments such as marine helms, caravan control boards, and industrial machinery, standard protruding toggle switches can be prone to accidental snags and unintended switching. The FLAT rocker configuration directly addresses this operational risk. Its flush-mount profile sits neatly against the panel face, significantly reducing the likelihood of accidental actuation while maintaining effortless manual operation when required.

Key Features and Engineering Benefits

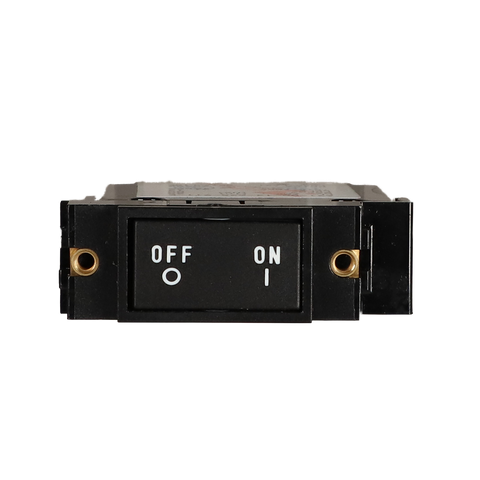

• Flush Rocker Actuator: Low-profile black rocker switch designed specifically for flat-panel mounting to prevent accidental switching in tight spaces.
• High-Visibility Status Indicators: Crisp white ON and OFF text markings on the black actuator provide immediate, unmistakable visual confirmation of power status.
• Reinforced Panel Mounting: Equipped with integrated brass threaded inserts in the mounting holes, ensuring a secure, vibration-resistant installation that will not strip over time.
• Compact A-Series Enclosure: Industrial-grade housing maximises behind-panel space, allowing for high-density installations in crowded electrical enclosures.
• Dual-Function Design: Combines dependable overcurrent protection with manual ON/OFF switching to reduce component count and installation labour.

Built for Demanding Environments

Unlike standard consumer-grade switches that rely on fragile plastic clips or thin mounting ears, the Carling A-Series is built to withstand the rigours of mobile and industrial applications. The inclusion of brass threaded inserts ensures that the breaker remains firmly anchored to the fascia, even when subjected to constant vibration in 4WD canopies, commercial vehicles, or marine vessels. The robust housing protects the internal switching mechanism from dust and physical impact, supporting long-term operational integrity.

Application and Selection Notes

This component is commonly utilised in custom switchboards, marine dashboards, off-grid power distribution systems, and heavy equipment control panels. Please note that while this unit is confirmed as the Carling A Series in the FLAT rocker configuration (Part CT-A1F-25), specific electrical ratings are not detailed in the primary listing documentation. Installers and system designers should verify the exact part number designation (CT-A1F-25) against their system schematics or replacement requirements prior to installation to ensure proper compatibility.

Upgrade Your Electrical Panel

Ensure your distribution board is equipped with durable, low-profile circuit protection. Confirm your part number requirements and add the Carling A Series FLAT Circuit Breaker to your project build today.
