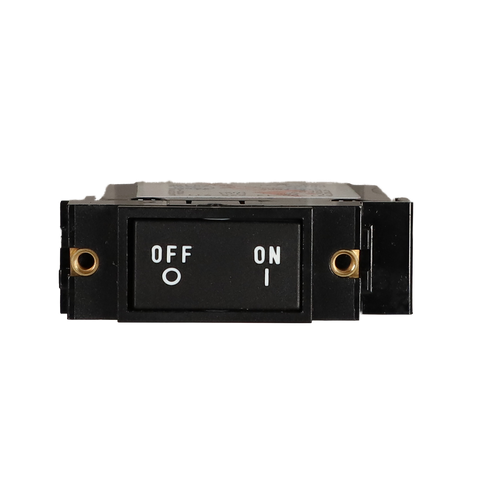

Carling 20A A-Series Flat Circuit Breaker

Precision Hydraulic-Magnetic Protection for Demanding Electrical Systems

Engineered for environments where reliability and safety are paramount, the Carling A-Series flat actuator circuit breaker delivers precise overcurrent protection in a compact, robust package. Unlike standard thermal breakers that rely on heat-sensitive bimetallic strips, this unit utilises advanced hydraulic-magnetic technology. This ensures the trip point remains consistent across fluctuating ambient temperatures, making it an exceptional choice for enclosed switchboards, marine helm stations, off-grid power canopies, and industrial control panels.

The Advantage of Hydraulic-Magnetic Technology

In many mobile and industrial installations, heat build-up inside a distribution box or engine bay can cause conventional thermal breakers to derate and trip prematurely, or worse, fail to trip at the exact rating when ambient temperatures drop. The hydraulic-magnetic mechanism inside the Carling A-Series operates strictly on current flow rather than temperature. A magnetic solenoid responds solely to the electrical current passing through the circuit, while a damped hydraulic core provides a controlled time delay for harmless temporary inrush currents (such as starting a pump or inverter) while reacting instantaneously to severe short circuits.

This design allows the breaker to carry 100% of its rated load continuously without nuisance tripping, reducing system downtime and protecting sensitive downstream equipment from catastrophic wiring faults.

Flush-Mount Ergonomics for High-Traffic Areas

A critical vulnerability in compact switch panels is the risk of accidental actuation. Protruding toggle switches can easily be snagged by clothing, gear, or shifting cargo, inadvertently shutting down vital equipment like bilge pumps, refrigeration, or navigation electronics. The flat rocker actuator on this model sits flush with the bezel when in the ON position. This streamlined profile prevents accidental switching while maintaining effortless manual operation when you intentionally need to isolate a circuit.

• Hydraulic-Magnetic Operation: Delivers consistent, temperature-independent trip performance across diverse Australian climates.
• Flush-Mounted Flat Actuator: Prevents accidental switching in tight spaces and high-traffic walkways while offering clear ON/OFF status visibility.
• Full-Amp-Load Capability: Rated to handle 100% of its continuous current load without thermal derating.
• Reinforced Panel Mounting: Features durable brass-lined mounting holes for secure, vibration-resistant front-panel installation.
• Dual-Function Design: Combines heavy-duty manual circuit switching with dependable overcurrent protection in a single compact footprint.

Built for Marine, RV, and Industrial Applications

Space is often at a premium when designing custom electrical distribution boards for 4WD canopies, caravans, commercial vessels, and telecommunications racks. By combining the roles of an isolating switch and a protective fuse into one unit, the Carling A-Series simplifies wiring looms and reduces the number of failure points in your system. The front-panel mounting system utilises brass-lined threads to resist stripping and looseness caused by constant road corrugations or wave impacts, ensuring your switchboard remains structurally sound over years of service.

Upgrade your electrical distribution panel with professional-grade circuit protection. Select the Carling A-Series flat rocker circuit breaker today to secure your critical power systems against overloads and accidental shut-offs.
