Carling 2.5A A-Series Flat Circuit Breaker

Precision Hydraulic-Magnetic Circuit Protection for Demanding Panels

Low-Profile Actuator and Compact Enclosure for High-Density Electrical Systems

The Carling A Series Flat Circuit Breaker delivers dependable, temperature-stable overcurrent protection for marine, automotive, industrial, and off-grid power distribution systems. Engineered around a proven hydraulic-magnetic trip mechanism, this breaker ensures consistent, precise operation across a wide range of ambient temperatures. Unlike standard thermal breakers that can nuisance-trip in hot engine bays or enclosed electrical cabinets, a hydraulic-magnetic design reacts only to actual current overloads and short circuits, maintaining full-amp-load capacity regardless of environmental heat.

Designed specifically for applications where panel space and physical clearance are limited, the A Series features a slim enclosure that supports high-density installation. The low-profile flat rocker switch is recessed in the ON position to prevent accidental manual actuation or snagging in high-traffic areas, making it an ideal choice for helm stations, 4WD canopies, caravan control panels, and industrial machinery.

Why Choose Hydraulic-Magnetic Over Standard Thermal Breakers?

Standard thermal circuit breakers rely on a bimetallic strip that bends as it heats up, meaning high ambient temperatures in Australian summers or tight enclosures can cause premature tripping well below the rated current. The Carling A Series overcomes this limitation by combining a magnetic solenoid with a hydraulic delay tube.

During normal operation, the breaker carries its full rated load without derating for temperature. When a minor overload occurs, the hydraulic fluid provides a controlled time delay to accommodate harmless inrush currents from motors, pumps, or inverters. In the event of a severe fault or dead short, the magnetic field bypasses the delay entirely, tripping the mechanism instantaneously to protect downstream wiring and sensitive electronics.

• Hydraulic-magnetic technology provides precise, temperature-independent trip performance without thermal derating
• Flat rocker actuator offers a low-profile interface that prevents accidental switching off in busy environments

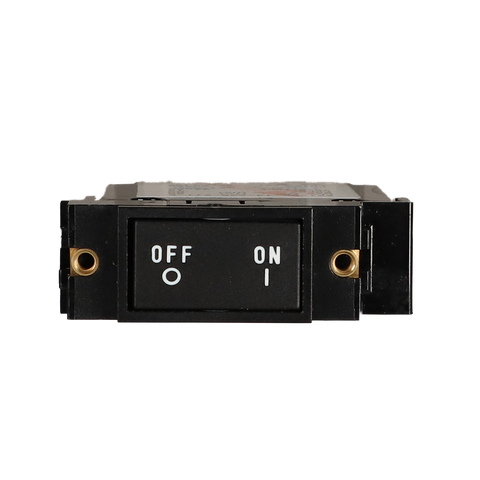

• High-contrast white ON/OFF and I/O markings on a black rocker allow immediate visual verification of circuit status
• Threaded brass mounting inserts ensure secure, vibration-resistant installation into electrical panels and switchboards
• Slim, compact housing maximises available space for high-density multi-circuit configurations

Built for Durability and Clear Status Identification

Every detail of the Carling A Series is constructed to withstand rigorous operational demands. The integrated threaded brass mounting inserts provide superior mechanical strength compared to plastic snap-in alternatives, reducing the risk of loose fittings caused by continuous vehicle or vessel vibration. Furthermore, the dual switching and circuit protection functionality eliminates the need for separate switches and fuse holders, simplifying wiring looms and reducing potential points of failure.

For system designers and installers, the high-contrast actuator markings provide clear, unmistakable circuit status at a glance. Please note that while the A Series is engineered for general-purpose and full-amp-load applications, the available product details do not state this specific model's individual current, voltage, or pole rating, so please verify your system requirements against the unit markings prior to installation.

Ideal Applications Across Mobile and Industrial Sectors

Whether you are building a custom switch panel from scratch or upgrading an existing distribution board, this circuit breaker provides professional-grade reliability for:

• Marine switchboards, helm panels, and bilge pump circuits
• Caravan, camper trailer, and motorhome 12V, 24V, or AC distribution boards
• 4WD auxiliary battery canopies and mobile service vehicles
• Telecommunications racks, power supplies, and industrial control equipment
• Off-grid solar cabinets and backup generator control panels

Upgrade Your Electrical Panel Protection

Equip your power distribution system with the precision and durability of the Carling A Series Flat Circuit Breaker. Add this compact hydraulic-magnetic breaker to your build today to ensure clean panel integration and dependable circuit protection.
