Carling 15A A-Series Flat Circuit Breaker

Precision Hydraulic-Magnetic Overcurrent Protection for Demanding Electrical Systems

The Carling A Series FLAT Circuit Breaker is an industry-recognised solution for dependable circuit protection and switching in compact power distribution panels. Engineered with advanced hydraulic-magnetic technology, this breaker offers consistent, accurate operation across a wide range of operating environments. It is specifically designed to meet the rigorous demands of marine, recreational vehicle, industrial, and off-grid power systems where space is limited and reliability is critical.

Unlike standard thermal circuit breakers that rely on heat-sensitive bimetallic strips, a hydraulic-magnetic circuit breaker operates solely on the magnetic force produced by the load current flowing through a solenoid coil. This means the trip point remains stable and unaffected by fluctuations in ambient temperature. Whether installed in a hot engine bay, an enclosed electrical cabinet, or exposed to varying Australian climates, the A-Series maintains its exact current-carrying capacity without premature nuisance tripping or delayed overcurrent response.

Key Features and Design Benefits

• Hydraulic-Magnetic Operation: Delivers temperature-stable overcurrent protection, eliminating the need for thermal derating in high-temperature enclosures.

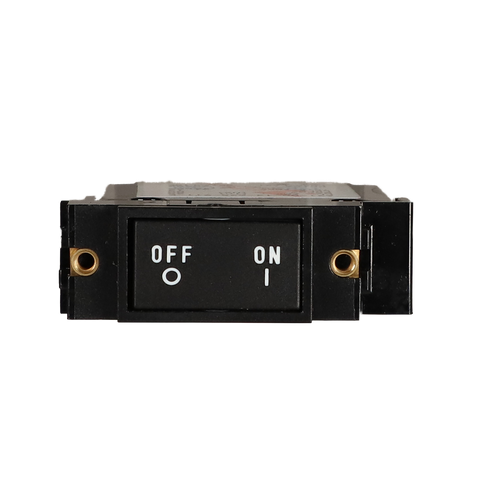

• Flush Flat Rocker Actuator: The low-profile flat rocker design prevents accidental actuation or switching if brushed against in tight walkways or crowded control panels.
• Clear Status Indication: High-contrast white ON and OFF lettering on the actuator provides immediate visual confirmation of circuit status in low-light conditions.
• Precision Brass Mounting Inserts: Equipped with durable brass threaded inserts to ensure secure, vibration-resistant front panel mounting.
• Compact A-Series Footprint: Industry-standard housing dimensions allow for high-density panel layouts and straightforward retrofitting into existing switchboards.
• Full Amp-Load Capability: Built to handle continuous full-load applications alongside general-purpose circuit switching and protection.

Engineered to Prevent Accidental Switching

In mobile and marine environments, unexpected movement can easily cause operators or gear to bump against standard protruding switches, inadvertently shutting down critical equipment. The flat rocker actuator on this Carling Technologies circuit breaker sits flush when in the active position, significantly reducing the risk of unintended circuit interruption. At the same time, the ergonomic contour allows deliberate manual switching when required, functioning seamlessly as both a heavy-duty switch and a protective breaker.

Versatile Applications and Installation

The compact format of the Carling A-Series makes it a preferred choice for OEM panel builders and electrical system installers. Its robust construction and brass mounting threads ensure longevity in high-vibration settings such as 4WDs, caravans, camper trailers, and commercial vessels. Please note that exact amperage ratings and pole configurations for specific system requirements should be verified against your panel specifications prior to installation.

Upgrade your power distribution setup with professional-grade overcurrent protection. Add the Carling A Series FLAT Circuit Breaker to your build today for reliable, temperature-independent electrical safety.
