Carling 10A A-Series Flat Circuit Breaker

Compact Hydraulic-Magnetic Circuit Protection for Demanding Environments

The Carling A Series FLAT Circuit Breaker delivers precision electrical protection in a compact, space-saving footprint. Engineered with a reliable hydraulic-magnetic trip mechanism, this circuit breaker provides consistent overcurrent interruption across a wide range of operating conditions. Unlike standard thermal circuit breakers that rely on a bimetallic strip, hydraulic-magnetic units are unaffected by ambient temperature fluctuations. This makes them an exceptional choice for enclosed switchboards, marine engine rooms, 4WD canopies, and off-grid power distribution panels.

Why Choose Hydraulic-Magnetic Technology?

In mobile, marine, and off-grid electrical setups, ambient temperatures can vary wildly. Standard thermal breakers can suffer from nuisance tripping in extreme Australian heat or delayed tripping in freezing conditions because the ambient environment alters the trip threshold. The Carling A Series solves this critical problem by using a magnetic solenoid and a hydraulic delay tube to sense actual current flow rather than heat. The breaker holds 100% of its rated load continuously regardless of the surrounding temperature, whilst responding accurately to genuine overloads and short circuits.

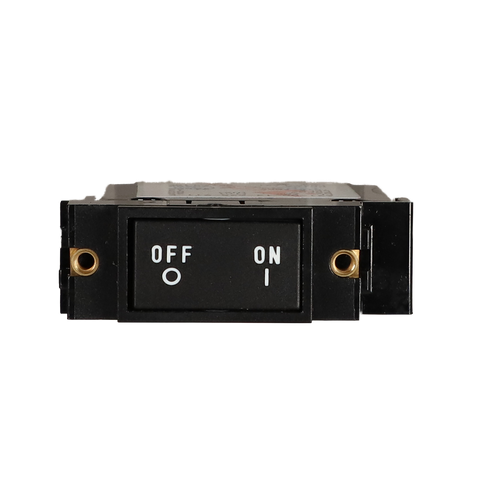

Flush-Mounted Actuator for Enhanced Safety

A standout design advantage of the FLAT actuator profile is its ability to prevent accidental switching. In tight installation spaces, such as boat helms, caravan electrical cupboards, or narrow vehicle walkways, protruding toggle switches are vulnerable to being knocked or snagged by gear and clothing. The flat rocker sits flush when in the ON position, significantly reducing the risk of inadvertent manual tripping and keeping critical electrical loads running without unexpected interruption.

Key Features and Benefits

• Hydraulic-Magnetic Operation: Provides precise, temperature-independent trip performance to eliminate heat-induced nuisance tripping.
• Flat Rocker Switch: Flush-mounted actuator profile prevents accidental turn-offs in high-traffic or confined spaces.
• Clear Visual Status: Features unmistakable ON and OFF markings on the actuator for immediate circuit status identification.
• Secure Panel Mounting: Equipped with heavy-duty brass threaded mounting inserts to ensure a vibration-resistant, reliable fit into custom distribution panels.
• Compact A-Series Housing: Industry-standard footprint allows for high-density panel layouts and straightforward integration or replacement.
• Dual Functionality: Combines dependable overcurrent protection with crisp manual switching, removing the need for separate switches and fuse holders.

Built for Custom Switchboards and OEM Applications

Whether you are building a custom marine switch panel, upgrading a caravan power distribution system, or assembling industrial control equipment, the Carling A Series offers the mechanical durability required for long-term service. The robust housing and brass mounting points resist the constant vibration and shock encountered in corrugated off-road travel and rough seas.

Equip your electrical distribution panel with the Carling A Series FLAT Circuit Breaker today to ensure safe, predictable, and snag-free circuit control across your system.
