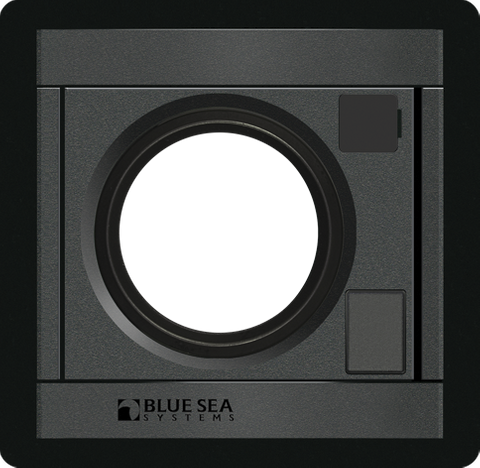

Blue Sea Panel 360 52mm Gauge Blank
Blue Sea Panel 360 52mm Gauge Blank
Heavy 3.2mm 5052 Alloy Aluminium Body & UV-Stabilised Bezel
Regular price
$118.40
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Heavy-Duty Modular Mounting for 52mm Marine and Off-Grid Instruments
Creating a clean, organised, and reliable electrical dashboard requires components built to withstand the rigours of mobile and marine environments. The Blue Sea Systems 360 Panel System is renowned for its versatility, and this 52mm gauge blank module provides a dedicated, professional-grade mounting solution for standard round instruments. Whether you are installing a battery monitor, voltmeter, tank level indicator, or engine gauge, this blank module integrates seamlessly into any 360 Panel frame to monitor critical onboard functions.
Unlike standard plastic mounts that can flex, warp, or crack under vibration and extreme temperature fluctuations, this module is engineered for long-term structural integrity. It allows system builders and marine electricians to expand or customise their control panels without needing to fabricate custom metal faceplates from scratch.
Engineered for Harsh Marine and RV Environments
At the core of this mounting module is a heavy 1/8-inch (approx. 3.2mm) 5052 alloy aluminium body. In marine and off-road applications, 5052 aluminium is highly regarded for its exceptional resistance to saltwater corrosion and high fatigue strength. This substantial thickness prevents panel flex when securing gauges and ensures that heavy instruments remain firmly seated even when pounding through rough seas or traversing corrugated outback tracks.
To complement the alloy body, the module includes a UV-stabilised thermoplastic bezel. Constant exposure to harsh Australian sunlight can quickly degrade inferior plastics, leading to chalking and brittleness. This specialised bezel resists solar degradation, maintaining a clean, uniform aesthetic across your console or cabin dashboard while concealing the mounting hardware for a neat finish.
Key Features and Benefits
- Standard 52mm Cutout: Pre-machined circular opening accommodates industry-standard 52mm (approx. 2-inch) diameter marine, automotive, and battery monitoring gauges.
- Marine-Grade Construction: Manufactured from heavy 1/8-inch (approx. 3.2mm) 5052 alloy aluminium for superior corrosion resistance and rigidity.
- UV-Stabilised Bezel: Durable thermoplastic trim ring protects against sun damage and conceals mounting screws for a streamlined appearance.
- Seamless 360 Panel Integration: Modular footprint snaps and secures directly into Blue Sea Systems 360 Panel enclosures alongside switches, breakers, and socket modules.
- Vibration Resistant: Solid metal backing reduces the risk of gauge loosening or dashboard cracking in high-vibration environments.
Versatile Applications Across Custom Electrical Systems
The modular nature of the 360 Panel range means your electrical layout can evolve alongside your power requirements. This 52mm gauge mounting module is ideal for a wide variety of installations:
- Marine Vessels: Mount critical engine gauges, rudder angle indicators, or 12V and 24V battery monitors at the helm or nav station.
- Caravans and Motorhomes: Integrate water tank gauges, shunt-based battery monitors, or temperature displays into a central control hub.
- 4WD Canopy and Service Body Setups: Build a rugged, vibration-proof power management board for auxiliary battery systems and compressor controls.
- Off-Grid Skids and Industrial Enclosures: Provide a secure, tidy readout location for system voltage, current, or pressure monitoring.
Upgrade Your Custom Control Panel
Select this Blue Sea Systems 360 Panel gauge module to secure your critical 52mm instruments within a cohesive, marine-grade enclosure built for demanding conditions.
SKU: BS-1510B
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product range | Panel 360 |
| Product type | 52mm gauge blank |
| Function | Designed for mounting gauges that provide critical functions |
| Body material | Heavy 1/8-inch 5052 alloy aluminium |
| Bezel material | UV-stabilized thermoplastic |
| SKU: | BS-1510B |
| Model #: | BS-1510B |
| MPN: | BS-1510B |
| Package weight: | 0.18 kg |
| Package length: | 0.15 m |
| Package width: | 0.15 m |
| Package height: | 0.03 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
