Blue Sea Dual 3/8 Power Post Connector Without Insulator

Stainless Steel Studs (Approx. M10) with Safety Partition & Nylon Base


Regular price $18.00
/
Availability: In Stock at Blue Sea Warehouse Allow up to 7 days before dispatch
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
Apple Pay Google Pay Mastercard PayPalShop Pay Visa
0

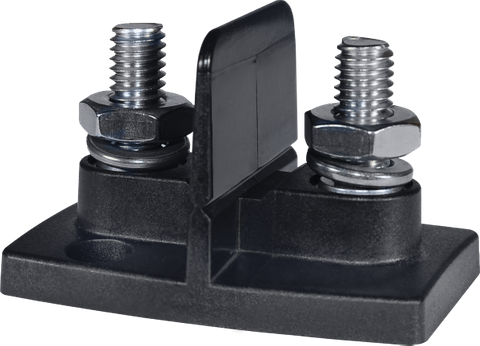

Dual 3/8 inch stainless steel power post connectors on a black glass-filled nylon base

Blue Sea Dual 3/8 Power Post Connector Without Insulator

DESCRIPTION

Heavy-Duty High-Ampere Termination for Marine and Off-Grid DC Systems

The Blue Sea Dual 3/8" (Approx. M10) Power Post Connector is engineered to provide a secure, mechanically robust termination point for high-amperage electrical conductors. Specifically designed for demanding marine, automotive, and off-grid industrial applications, this dual-stud connector excels at extending the length of outboard engine harnesses, heavy battery cables, and primary DC distribution lines. By providing a dedicated anchor point for large-gauge cabling, it eliminates the risks associated with improper splicing and high-resistance joins in critical power systems.

Engineered for High-Vibration and Harsh Environments

In marine and mobile 12V, 24V, and 48V DC electrical installations, standard terminal blocks often fail due to thermal cycling, corrosion, and constant vibration. This Blue Sea Systems power post addresses these vulnerabilities through superior material selection and mechanical design. The base is moulded from heavy-duty, glass-filled nylon, offering exceptional structural strength, electrical insulation from the mounting surface, and resistance to high temperatures.

To prevent catastrophic electrical faults, the base incorporates an integrated safety partition between the two 3/8" (Approx. M10) stainless steel studs. This physical barrier significantly reduces the risk of accidental short circuits during installation or maintenance, while keeping positive and negative (or parallel) cable lugs safely isolated.

Key Features and Benefits

  • Dual 3/8" (Approx. M10) Stainless Steel Studs: Accommodates heavy-duty ring terminals and lugs for high-current conductors, providing superior corrosion resistance and mechanical clamping force.
  • Integrated Safety Partition: Features a moulded central barrier between the posts to prevent accidental contact and short circuits between adjacent conductors.
  • Glass-Filled Nylon Base: Delivers high thermal stability, durability, and reliable surface insulation in engine bays and battery compartments.
  • Vibration-Resistant Hardware: Supplied with flanged hex nuts and lock washers to maintain consistent torque and low contact resistance in rough marine or off-road conditions.
  • Flush Surface Mounting: Recessed mounting holes allow for clean, secure installation across bulkheads, transoms, and electrical boards.
  • Supplied Without Insulator: Ideal for custom enclosures, dedicated electrical cabinets, or applications where external boot covers are already specified.

Important Note on Current Transfer and Exclusions

When installing stainless steel stud connectors, the stainless steel stud itself acts purely as the mechanical clamping mechanism. The electrical current is transferred directly through the compressed contact surfaces of the ring terminals stacked together. Always place the highest-amperage conductor at the bottom of the stack and tighten the flanged nuts to the appropriate torque specification to prevent voltage drop and heat build-up.

Note: This specific model (BS-2017100B) is supplied as the bare dual power post assembly without a protective insulating cover. Ensure the connector is installed inside a protected enclosure or fitted with appropriate cable boots if exposed conductive surfaces present a hazard in your setup.

Versatile Applications

Whether you are refitting a commercial vessel, repowering a trailer boat, or building a custom 4WD canopy power system, this dual power post provides a clean and compliant method for joining heavy cables:

  • Extending outboard motor battery harnesses in marine transoms
  • Creating accessible main positive and negative junction points in 12V, 24V, or 48V battery banks
  • Linking high-output alternators, inverters, or bow thrusters to primary distribution busbars
  • Consolidating heavy-gauge winch or auxiliary power leads in automotive and recreational vehicles

Upgrade Your High-Current Connections

Ensure your primary power cabling is terminated safely and securely. Add the Blue Sea Dual 3/8" (Approx. M10) Power Post Connector to your system today for a dependable, marine-grade electrical junction.


SKU: BS-2017100B

SPECIFICATIONS

SpecificationValue
Connector typePower post
ConfigurationDual 3/8
InsulatorNone

SKU: BS-2017100B
Model #: BS-2017100B
MPN: BS-2017100B
HS code: 8536904000
Country of origin: MX
Package weight: 0.12 kg
Package length: 0.09 m
Package width: 0.05 m
Package height: 0.05 m

WARRANTY

Blue Sea Warranty Policy

Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.

The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.

Blue Sea Systems may offer longer manufacturer support on some products at their discretion

Warranty Lengths by Product Range

Blue Sea Product Range Warranty Length Application / Notes
Most Blue Sea Systems Products 5 years Applies to most Blue Sea Systems products found to be defective in materials or manufacture.
P12 Battery Chargers 5 years Warranty period starts from the original date of purchase.
P12 Remote Displays 5 years Warranty period starts from the original date of purchase.
Digital Meters 3 years Warranty period starts from the original date of purchase.
Vessel System Monitors 3 years Warranty period starts from the original date of purchase.

Warranty Assessment and Remedy

If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.

Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.

Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.

Making a Warranty Claim

To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.

The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.

What This Warranty Does Not Cover

This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.

  • Incorrect installation or wiring
  • Incorrect product selection or application
  • Misuse, abuse or neglect
  • Physical or accidental damage
  • Water ingress or environmental damage outside the product's intended use
  • Unauthorised modification or repair
  • Normal wear and tear
  • Labour costs for removal, replacement, reinstallation or diagnosis
  • Freight, travel or call-out costs unless otherwise required by law
  • Products not returned for assessment when reasonably required

Manufacturer Support

Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.

Australian Consumer Law

This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
