Blue Sea DPST OFF-(ON) Contura Panel Mount Switch, Grey
Blue Sea DPST OFF-(ON) Contura Panel Mount Switch, Grey
Momentary Marine Rocker Switch - UL1500 Ignition Protected & Weather
Regular price
$27.80
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Heavy-Duty Momentary Marine Rocker Switch for Dual-Circuit Control
Engineered specifically for harsh marine and off-road environments, the Blue Sea Systems Contura Switch delivers dependable circuit control when conditions are at their worst. Featuring a Double Pole Single Throw (DPST) configuration and a momentary OFF-(ON) action, this switch allows operators to simultaneously energise two separate circuits or isolate both positive and negative leads with a single press. Once pressure is released, the spring-loaded actuator returns to the off position, making it the preferred choice for intermittent applications where continuous activation could damage equipment.
Engineered for Harsh Marine and Off-Road Conditions

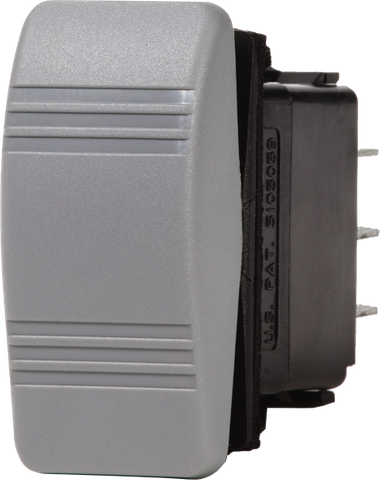

Standard automotive switches often succumb to corrosion, water ingress, and mechanical failure when exposed to coastal environments or heavy corrugations. The Contura series solves this problem through rigorous environmental sealing and robust internal construction. Built to withstand extreme vibration, physical shock, thermoshock, moisture, and relentless salt spray, this switch maintains reliable electrical contact over prolonged service life. Its grey rocker actuator and black panel-mount housing integrate seamlessly into Blue Sea Systems water-resistant panels and custom dashboard cutouts alike.
Certified Ignition Protection for Maximum Safety
Electrical arcing inside an unsealed switch can be catastrophic in enclosed spaces where volatile fumes accumulate. This Contura rocker switch meets strict UL1500 and ISO8846 ignition protection requirements. It is thoroughly tested and safe for installation aboard petrol-powered boats, inside marine engine rooms, or near fuel storage compartments in specialised vehicles, significantly reducing the risk of vapour ignition during operation.
Key Features and Benefits
- Momentary OFF-(ON) Action: Spring-return mechanism remains active only while depressed, preventing accidental continuous operation of temporary loads.
- DPST Pole Configuration: Controls two independent circuits simultaneously or switches both active and neutral/ground lines for complete isolation.
- Certified Ignition Protected: Complies with UL1500 and ISO8846 standards for safe installation aboard petrol-powered vessels.
- Environmental Resilience: Specifically engineered to resist salt spray, moisture, thermoshock, and heavy vibration in exposed helm stations.
- Modular Integration: Designed to snap directly into Blue Sea Systems Contura water-resistant panels and standard rectangular mounting apertures.
Versatile Applications for Momentary Dual-Pole Switching
The combination of a momentary action and dual-pole architecture makes this switch highly versatile across marine, caravan, and commercial vehicle electrical systems. Common installations include:
- Dual-trumpet marine horns or auxiliary warning sirens
- Windlass anchor controls and thruster activation circuits
- Engine starter solenoids and pre-heat glow plug systems
- Momentary bilge pump overrides or ballast transfer pumps
- Simultaneous windscreen washer and wiper pulse circuits
Upgrade Your Control Panel with Confidence
Ensure your vessel or off-grid vehicle's electrical system remains responsive and safe in challenging environments. Select the Blue Sea Systems DPST OFF-(ON) Contura Switch for your next panel build or switch replacement.
SKU: BS-8219B
SPECIFICATIONS
| Specification | Value |
|---|---|
| Product type | Switch |
| Pole configuration | DPST |
| Switching function | OFF-(ON) |
| Color | Grey |
| Mounting / form factor | Panel mount |
| Ignition protection | Ignition protected |
| Resistance | Vibration, shock, thermoshock, moisture and salt spray resistant |
| Standards / compliance | UL1500; ISO8846 ignition protection requirements |
| Intended installation | Safe for installation aboard gasoline-powered boats |
| SKU: | BS-8219B |
| Model #: | BS-8219B |
| MPN: | BS-8219B |
| Package weight: | 0.048 kg |
| Package length: | 0.15 m |
| Package width: | 0.1 m |
| Package height: | 0.06 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
