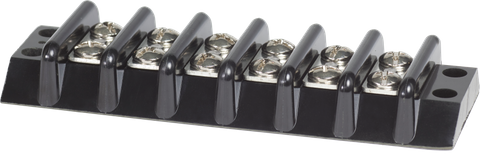

Blue Sea 65A 6 Circuit Terminal Block
Blue Sea 65A 6 Circuit Terminal Block
Closed-Back Insulated Base with Isolated Screw Pairs & Safety Barriers
Regular price
$35.01
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Reliable Multi-Circuit Power Distribution for Marine, Automotive, and Off-Grid Systems
Organising complex electrical wiring requires components that prioritise both structural integrity and electrical safety. The Blue Sea 65A 6 Circuit Terminal Block is engineered for demanding power distribution environments, providing a structured, secure point of connection for multiple wire runs. Whether you are outfitting a marine vessel, building a custom 12V or 24V touring canopy, or assembling an off-grid control panel, this heavy-duty terminal block ensures your wiring remains accessible, tidy, and logically separated.
Engineered for Electrical Safety and Surface Isolation
A critical vulnerability in mobile and marine electrical setups is the risk of accidental short circuits against conductive mounting surfaces, such as aluminium boat hulls, steel vehicle chassis, or metal enclosures. Unlike open-back alternatives that require separate insulating spacers, this terminal block features a fully integrated closed-back design. The insulating base completely isolates live electrical pathways from the mounting surface, eliminating the risk of power leakage or ground faults when securing the block directly to metal panels.
Additionally, the housing incorporates deep, moulded isolation barriers between each terminal pair. These physical dividers prevent frayed wire strands or shifting ring terminals from making accidental contact with adjacent circuits, significantly reducing the risk of arcing in high-vibration environments like 4WD tracks or choppy waters.
Key Features and Benefits
- Isolated Circuit Architecture: Each parallel screw pair forms a completely independent circuit, allowing you to consolidate positive feeds, negative returns, or signal wires on a single block without cross-interference.
- Closed-Back Insulating Base: Safely mount the unit directly onto conductive metal surfaces without the risk of shorting out your electrical system.
- High-Conductivity Screw Terminals: Equipped with 12 corrosion-resistant terminal screws designed to maintain clamping force and ensure low-resistance connections in damp or coastal climates.
- Flexible Jumper Compatibility: Easily convert adjacent isolated pairs into common distribution buses using compatible terminal block jumpers (sold separately) to adapt to changing wiring schematics.
- High Current Capacity: Rated for a maximum continuous current of 65A per circuit, making it suitable for substantial auxiliary loads and sub-panel distribution.
- Integrated Mounting Holes: Dedicated recessed fastening points at each end allow for straightforward, secure surface installation.
Why Upgrade from Standard Grade Terminal Blocks?
Inferior terminal blocks often utilise brittle plastics that crack under installation torque or degrade when exposed to ambient engine bay heat and UV light. They also frequently rely on plated steel hardware that corrodes rapidly in marine environments, leading to high resistance, voltage drop, and dangerous heat build-up. Blue Sea Systems designs components specifically for harsh marine and mobile applications. By selecting a purpose-built 65A terminal block, you mitigate the risks of melted housings, loose connections, and intermittent electrical faults that plague substandard wiring hardware.
Versatile Applications Across 12V, 24V, and AC/DC Setups
The modular nature of this six-circuit block makes it a staple for professional auto electricians, marine technicians, and DIY builders. Because each screw pair is isolated, you can simultaneously manage different voltages or polarities on the same block, or link them together for unified distribution. Typical applications include:
- Marine Switchboards and Consoles: Consolidating navigation lights, bilge pumps, and helm electronics in saltwater and freshwater vessels.
- Caravan and RV Power Systems: Creating neat, serviceable junction points for internal lighting, water pumps, and 12V appliances.
- 4WD Canopy and Dual Battery Setups: Organising accessory wiring for compressors, work lights, and inverter remote triggers.
- Industrial Control Panels: Providing clear termination points for sensors, relays, and low-voltage automation circuits.
Streamline Your Electrical Installation
Build a safer, cleaner, and more serviceable wiring harness for your next project. Add the Blue Sea 65A 6 Circuit Terminal Block to your toolkit today and ensure your marine, RV, or automotive electrical connections are built to last.
SKU: BS-2606B
SPECIFICATIONS
| Specification | Value |
|---|---|
| Product type | Terminal block |
| Maximum current | 65A |
| Number of circuits | 6 |
| Design | Closed back; insulates power from the mounting surface |
| Circuit arrangement | Each screw pair is one isolated circuit |
| Jumpers | Allow creation of common circuits |
| SKU: | BS-2606B |
| Model #: | BS-2606B |
| MPN: | BS-2606B |
| Package weight: | 0.108 kg |
| Package length: | 0.15 m |
| Package width: | 0.05 m |
| Package height: | 0.04 m |
