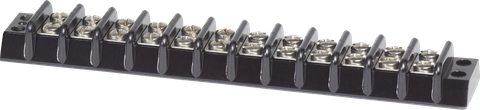

Blue Sea 30A 12-Circuit Terminal Block
Blue Sea 30A 12-Circuit Terminal Block
Closed-Back Phenolic Base with Isolated #6-32 Screw Pairs
Regular price
$21.62
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Reliable Multi-Circuit Power Distribution for Marine and Off-Grid Wiring
Engineered for Safe, Isolated Electrical Terminations in Demanding Environments
Organising complex electrical systems in marine vessels, caravans, and custom 4WD canopies requires components that prioritise both structural integrity and electrical safety. This 30A 12-circuit terminal block is engineered to simplify wiring layouts by providing twelve distinct, isolated electrical paths within a single, compact footprint. Each screw pair forms one dedicated circuit, allowing installers and auto-electricians to consolidate point-to-point connections, sensor wiring, and low-amperage accessory feeds into one accessible location.
In mobile and marine applications, constant vibration and moisture exposure can quickly degrade inferior wiring junctions, leading to intermittent faults, high resistance, or hazardous short circuits. By utilising a professional-grade electrical terminal block, you eliminate the mess of inline splices and tape, creating a clean, serviceable, and systematic electrical architecture suitable for 12V, 24V, and AC/DC control systems.
Closed-Back Insulation and Phenolic Construction
A critical risk in vehicle and boat wiring is unintentional grounding against conductive mounting surfaces such as aluminium hulls, steel vehicle chassis, or metallic electrical enclosures. This unit features a solid closed-back design that completely insulates the conductive brass busbars from the mounting surface. This allows for direct installation onto metal bulkheads or panels without requiring secondary insulating backing boards.
The base and protective barriers are constructed from heavy-duty moulded black phenolic material. Unlike standard plastics that can warp or melt under thermal load, phenolic resin offers exceptional mechanical strength, heat resistance, and dielectric properties. The tall physical barriers between each #6-32 (Approx. M3.5) screw terminal pair prevent frayed wire strands or rotating ring terminals from bridging adjacent circuits, substantially reducing the risk of accidental short circuits during installation or maintenance.
Key Features and Benefits
- 12 Isolated Circuits: Features twelve independent screw pairs rated up to 30A maximum current, ideal for managing multiple switched feeds, grounds, or signal wires.
- Closed-Back Base: Fully insulates live electrical connections from metal mounting panels, chassis, and hulls for enhanced system safety.
- Moulded Phenolic Barriers: High-strength, heat-resistant dividers physically separate each terminal pair to prevent electrical arcing and short circuits.
- Corrosion-Resistant Hardware: Equipped with nickel-plated #6-32 (Approx. M3.5) brass screws to ensure reliable clamping force and low-resistance conductivity in humid or coastal environments.
- Flexible Circuit Configuration: Compatible with terminal block jumpers (available separately) to easily bridge adjacent terminals and create common power or ground distribution buses where required.
- Secure Surface Attachment: Integrated mounting holes at either end allow for straightforward, vibration-resistant fastener installation.
Versatile Applications Across Marine, RV, and Industrial Setups
Whether you are building a custom switchboard for a boat helm, wiring a dual-battery canopy setup, or assembling an industrial control cabinet, this 12-way barrier strip adapts to your schematic requirements. Because each pair is isolated out of the box, you can safely run different voltages, polarities, or signal types adjacent to one another on the same block. When your layout requires shared connections, adding compatible jumpers transforms individual pairs into a common busbar, offering the best of both worlds without needing multiple components.
- Marine Electrical Systems: Ideal for helm wiring, navigation light distribution, bilge pump switches, and instrument panel terminations.
- Caravans and Motorhomes: Consolidate 12V lighting circuits, water pump feeds, and tank level sensor wiring neatly behind control panels.
- 4WD and Service Bodies: Create a central junction point for auxiliary lighting, central locking canopies, and compressor trigger wires.
- Off-Grid and Industrial Control: Organise relay triggers, monitoring shunts, and low-voltage automation wiring inside power enclosures.
Upgrade Your Wiring Architecture Today
Streamline your next electrical installation with a component built for long-term reliability and safety. Add the Blue Sea 30A 12-Circuit Terminal Block to your toolkit today to achieve a clean, professional, and easily serviceable wiring layout in your vessel, vehicle, or off-grid system.
SKU: BS-2512B
SPECIFICATIONS
| Specification | Details |
|---|---|
| Maximum current | 30A |
| Number of circuits | 12 |
| Design | Closed back; insulates power from the mounting surface |
| Circuit configuration | Each screw pair is one isolated circuit |
| Jumpers | Allow creation of common circuits |
| SKU: | BS-2512B |
| Model #: | BS-2512B |
| MPN: | BS-2512B |
| Package weight: | 0.216 kg |
| Package length: | 0.22 m |
| Package width: | 0.05 m |
| Package height: | 0.04 m |
