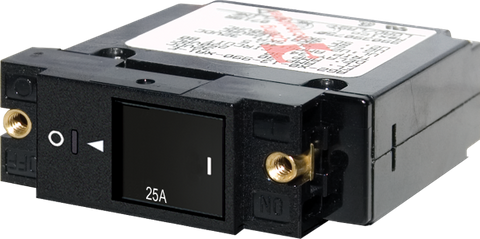

Blue Sea 25A A-Series Single Pole Restricted Off Flat Rocker Circuit Breaker
Blue Sea 25A A-Series Single Pole Restricted Off Flat Rocker Circuit Breaker
Flush-Mount ON Actuator & Trip-Free Protection for 24-Hour Circuits
Regular price
$42.21
Availability:
In Stock at Blue Sea Warehouse
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Reliable Overcurrent Protection for Essential 24-Hour Circuits
In demanding marine, automotive, and off-grid electrical systems, certain appliances and circuits must remain powered continuously. The Blue Sea Systems A-Series 25A Restricted-Off Flat Rocker Circuit Breaker is specifically engineered to combine circuit switching and reliable overcurrent protection in a single, compact device, while actively mitigating the risk of accidental shut-offs.
Unlike standard toggle or protruding rocker switches that can be easily bumped by passing crew, shifting cargo, or movement inside a cramped caravan, this flat rocker variant sits completely flush with the mounting bezel when in the ON position. By eliminating the protruding edge during normal operation, it safeguards critical 24-hour circuits such as bilge pumps, security systems, battery chargers, and refrigeration units from unintentional disconnection.
Key Features and Design Benefits
- Flush-Mount ON Position: The actuator sits level with the frame when engaged, preventing unintended switching caused by physical knocks or brushes against the control panel.
- Trip-Free Safety Mechanism: Engineered with an internal trip-free design, the circuit breaker cannot be manually held in the ON position during an active fault current condition, protecting wiring and connected equipment from thermal damage.
- High-Visibility Status Indication: Features a brightly coloured actuator surface that is only exposed when the breaker is switched or tripped to the OFF position, allowing for immediate visual diagnostics in low-light environments.
- Versatile Panel Integration: Marked with international ON (I) and OFF (O) symbols rather than directional text, supporting seamless aesthetics in both vertical and horizontal panel mounting orientations.
- Durable Mounting Hardware: Incorporates robust brass threaded mounting inserts to ensure secure, vibration-resistant installation into custom switchboards and distribution panels.
Engineered for Harsh Marine and Mobile Environments
When building a 12V, 24V, or AC electrical distribution panel, choosing high-calibre circuit protection is essential to reduce the risk of electrical fires and equipment failure. Standard consumer-grade switches often lack the mechanical durability required to withstand the constant vibration of corrugations or heavy seas. The Blue Sea A-Series is widely recognised across the marine and recreational vehicle industries for its precise magnetic-hydraulic trip characteristics and long-term mechanical reliability.
Because it combines switching and circuit protection into a single unit, this 25A breaker simplifies your wiring harness and saves valuable dashboard or switchboard real estate. The clear 25A amperage rating is printed directly on the actuator face, making circuit capacity identification straightforward for system installers and end-users alike.
Ideal Applications
This single-pole, restricted-off circuit breaker is suited for any electrical branch where uninterrupted power is a priority, yet manual isolation is occasionally required for maintenance:
- Marine Vessels: Automatic bilge pump circuits, navigation electronics, VHF radios, and cabin monitoring systems.
- Caravans, RVs, and 4WDs: 12V/24V upright fridges, dual-battery management systems, inverters, and security alarms.
- Off-Grid and Industrial Setups: Telemetry equipment, solar charge controller isolation, and continuous monitoring arrays.
Upgrade Your Electrical Panel Safety
Ensure your critical circuits stay online when you need them most and disconnect safely during an overload. Add the Blue Sea A-Series 25A Restricted-Off Flat Rocker Circuit Breaker to your system build for clean panel integration and dependable circuit protection.
SKU: BS-7430B
SPECIFICATIONS
| Specification | Value |
|---|---|
| Component subtype | Circuit breaker |
| Switching function | On-off |
| SKU: | BS-7430B |
| Model #: | BS-7430B |
| MPN: | BS-7430B |
| HS code: | 8536200040 |
| Country of origin: | MX |
| Package weight: | 0.096 kg |
| Package length: | 0.09 m |
| Package width: | 0.05 m |
| Package height: | 0.11 m |
