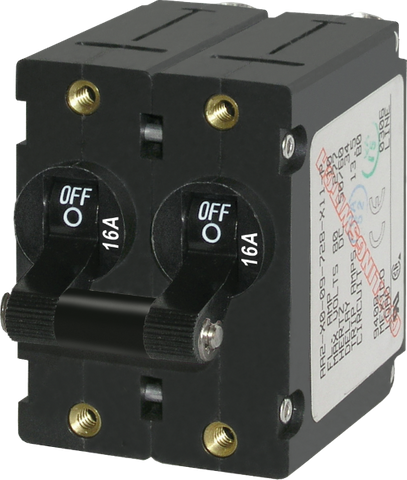

Blue Sea 16A A-Series Double Pole Toggle Circuit Breaker Black
Blue Sea 16A A-Series Double Pole Toggle Circuit Breaker Black
Magnetic-Hydraulic AC Main Protection - Trip-Free - ABYC & UL
Regular price
$77.22
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Reliable AC Main Circuit Protection and Switching
The Blue Sea A-Series 16A Double-Pole Toggle Circuit Breaker (BS-7348B) is engineered to provide uncompromising protection and manual switching for AC main electrical panels. In marine, caravan, and off-grid power architectures, isolating both the active (hot) and neutral conductors simultaneously is critical for system safety. By combining reliable manual switching with precision overcurrent protection in a single compact unit, this double-pole breaker streamlines panel layouts while reducing the need for separate isolation switches and fuse holders.
Advanced Magnetic-Hydraulic Operation
Unlike standard thermal circuit breakers that rely on heat-sensitive bimetallic strips, this A-Series model utilises a sophisticated magnetic-hydraulic mechanism. Standard thermal units can suffer from nuisance tripping in hot engine bays, enclosed electrical cabinets, or high-temperature Australian climates because ambient heat affects their trip threshold. A magnetic-hydraulic breaker senses only the actual electrical current flowing through the coil, ensuring consistent 16A overcurrent protection regardless of ambient temperature fluctuations.
Engineered for Safety: Trip-Free and Mechanically Linked
When managing AC shore power, inverter outputs, or onboard generator feeds, complete isolation during a fault is essential. The double-pole body features mechanically linked toggles, ensuring that if an overload or short circuit occurs on either line, both poles trip simultaneously. This prevents dangerous scenarios where a neutral fault leaves the active line energised, or where reverse polarity from an external AC source creates a shock hazard.
Additionally, the internal mechanism features a trip-free design. In the event of a fault-current condition, the breaker will trip open and cannot be manually held in the ON position. This vital safety feature protects wiring, downstream appliances, and operators by preventing the circuit from being forced live while an unresolved electrical fault persists.
Key Features & Benefits
- Simultaneous Double-Pole Isolation: Mechanically linked switches disconnect both conductors at once, making it the industry standard for AC main circuit protection.
- Magnetic-Hydraulic Reliability: Combines manual switching and overcurrent protection into one device that is unaffected by high ambient temperatures.
- Trip-Free Safety Mechanism: Cannot be physically held in the ON position during a fault condition, mitigating fire and equipment damage risks.
- Panel-Ready Construction: Features integrated threaded inserts for secure front-panel mounting and a high-visibility 16A rating clearly marked on each black toggle face.
- Global Compliance & Certification: Meets strict ABYC marine standards and is UL 1077 recognised, TUV certified, CE marked, and CSA certified for international electrical compliance.
Built for Demanding Marine and Mobile Environments
Blue Sea Systems is globally recognised as the benchmark for marine and mobile electrical distribution components. Whether you are building a custom switchboard for an ocean-going vessel, upgrading an off-grid motorhome inverter distribution panel, or fitting out a specialized commercial vehicle, the A-Series 16A double-pole breaker delivers dependable, long-term performance.
Upgrade your AC electrical distribution panel with the Blue Sea A-Series 16A Double-Pole Toggle Circuit Breaker today for professional-grade main circuit isolation and overcurrent protection.
SKU: BS-7348B
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product type | Circuit breaker |
| Pole configuration | Double pole |
| Number of poles | 2 |
| Typical application | AC main circuit protection |
| Standards / compliance | ABYC; UL 1077; TUV; CE; CSA |
| SKU: | BS-7348B |
| Model #: | BS-7348B |
| MPN: | BS-7348B |
| Package weight: | 0.36 kg |
| Package length: | 0.12 m |
| Package width: | 0.09 m |
| Package height: | 0.09 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
