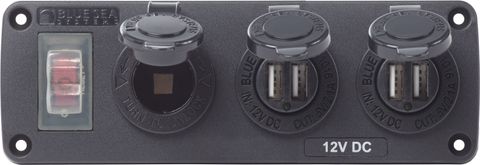

Blue Sea 12V 15A Below-Deck Accessory Switch Panel with 1 SOC Feature and 2 USB Ports
Blue Sea 12V 15A Below-Deck Accessory Switch Panel with 1 SOC Feature and 2 USB Ports
Pre-Wired Harness - UV-Stabilised Face - Prevents Parasitic Draw
Regular price
$126.64
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Centralised 12V DC Power Distribution and Device Charging
Managing multiple onboard electronics and charging interfaces in a marine, caravan, or off-grid vehicle setup requires a clean, dependable power hub. The Blue Sea Systems 4365B Below-Deck Accessory Switch Panel consolidates 12V DC power delivery and device charging into a single, low-profile unit. Engineered specifically for 12V DC electrical architectures, this panel provides a dedicated control point for your auxiliary accessories while eliminating the clutter of individual inline fuses and loose wiring.
Eliminate Parasitic Battery Drain
One of the most common risks in mobile and marine 12V systems is parasitic current draw. Dedicated USB chargers and backlit sockets continuously consume small amounts of power even when no devices are connected, which can flatten a house or starter battery over time. This accessory panel resolves this issue by integrating an illuminated 15A circuit breaker switch directly into the faceplate. With a single flick of the switch, you can completely isolate the charging ports and socket when the vessel or vehicle is in storage, preserving your battery bank without needing to disconnect main battery terminals.
Engineered for Harsh Marine and Off-Grid Environments
Standard automotive switch panels often fail prematurely when exposed to coastal air, high humidity, or constant vibration. Constructed with a heavy-duty polycarbonate and ABS faceplate, the Blue Sea 4365B is fully UV-stabilised, flame-retardant, and impervious to corrosion. Whether installed in a boat cabin, a camper trailer kitchenette, or a 4WD canopy, it delivers reliable long-term performance.
- Integrated 15A Circuit Breaker: Combines switching and overcurrent protection into one illuminated rocker switch, removing the need for separate fuse blocks.
- Versatile Charging Layout: Features one 12V DC socket and two dual USB charger modules, allowing you to power 12V appliances and charge up to four USB devices simultaneously.
- Pre-Wired Harness Included: Supplied fully pre-wired from the factory to reduce installation time, minimise wiring errors, and ensure secure electrical terminations.
- Ingress Protection: Equipped with a silicone breaker boot, protective socket dust caps, and a rear mounting gasket to guard internal connections against dust and moisture ingress.
- Customisable Configuration: The modular design allows the 12V charging and monitoring ports to be swapped or upgraded in the future as your system requirements evolve.
Streamlined Installation and System Integration
Designed for straightforward below-deck or cabin mounting, this panel simplifies custom dashboards and electrical cabinetry. Because the rear harness is pre-assembled with marine-grade tinned wire, connecting the panel to your primary 12V DC positive bus and negative ground is fast and tidy. Please note that while the front face includes a sealing gasket and protective boots, this below-deck series is intended for sheltered cabin areas, consoles, or interior vehicle panels rather than direct, unprotected exposure to heavy deck washdowns.
Upgrade Your Onboard Power Control
Equip your vessel, caravan, or touring vehicle with a professional-grade charging and switching station. Add the Blue Sea 12V 15A Below-Deck Accessory Switch Panel to your setup today for safe, centralised power management.
SKU: BS-4365B
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product type | Below-deck accessory switch panel |
| Voltage | 12V DC |
| Switch count | 1 |
| Switch type | Illuminated circuit breaker switch |
| Switch current rating | 15A |
| SOC feature | 1 |
| USB ports | 2 |
| Panel face material | Polycarbonate/ABS |
| Panel face properties | UV-stabilized, flame-retardant and will not corrode |
| Included | Pre-wired harness |
| Protection | Breaker boots and gasket protect against water ingress |
| Charging and monitoring | Customizable 12V charging and monitoring options |
| SKU: | BS-4365B |
| Model #: | BS-4365B |
| MPN: | BS-4365B |
| Package weight: | 0.42 kg |
| Package length: | 0.17 m |
| Package width: | 0.12 m |
| Package height: | 0.1 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
