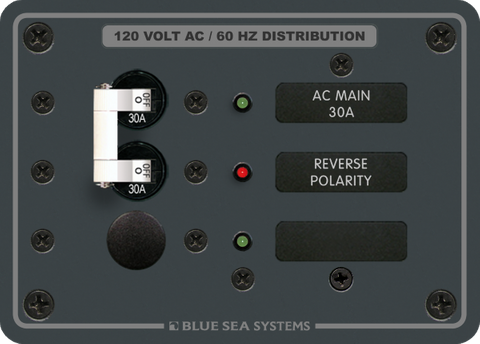

Blue Sea 120VAC 30A Main Distribution Panel with 1 Position
Blue Sea 120VAC 30A Main Distribution Panel with 1 Position
Pre-Wired with Buses, Reverse Polarity LED & Backlit Label
Regular price
$288.29
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Reliable 120VAC Primary Circuit Control for Marine and Mobile Applications
Managing alternating current safely in demanding marine and off-grid environments requires dependable distribution hardware. The Blue Sea Systems 8029B is a traditional metal AC main distribution panel designed to provide secure control and overcurrent protection for 120VAC electrical systems. Engineered with a double-pole 30A main circuit breaker, this single-position panel isolates both the hot and neutral lines simultaneously. This critical safety feature reduces the risk of electrical shock and protects downstream equipment from unexpected power surges or wiring faults when connecting to shore power, generators, or 120VAC inverters.
Pre-Wired Architecture for Streamlined Installation
Installing AC distribution components in tight spaces like boat cabins, RV electrical bays, or custom utility vehicles can be complex and time-consuming. To simplify the fit-out process and reduce the risk of wiring errors, this panel comes fully pre-wired from the factory. The hot, neutral, and safety-ground buses are already installed and terminated, allowing electricians and system builders to integrate the unit directly into the primary AC feed with minimal preparation. Unlike standard consumer-grade switchboards that can suffer from vibration-induced loosening or rapid corrosion, this marine-grade panel utilizes a robust, powder-coated aluminium faceplate built to endure high-moisture and high-vibration conditions.
Integrated Diagnostics and Low-Light Visibility
Monitoring the health and status of your AC power input is vital, particularly when plugging into unfamiliar shore power pedestals where faulty dock wiring may exist. This distribution panel incorporates clear visual indicators to keep operators informed at a glance:
- Double-Pole 30A Main Breaker: Provides simultaneous switching and overcurrent protection for both hot and neutral conductors.
- Reverse Polarity Warning LED: A dedicated red LED illuminates immediately if hot and neutral lines are reversed, alerting you to potentially dangerous wiring conditions before they damage onboard appliances.
- Active Circuit Status Indicator: A green "ON" indicating LED confirms when the AC main circuit is live and actively supplying power.
- Integrated Backlit Labelling: The circuit identification label is fully backlit for effortless readability during night passages or in dimly lit electrical lockers, requiring no additional upgrade kits.
- Pre-Installed Busbars: Fully equipped with hot, neutral, and safety-ground buses for tidy, compliant, and secure cable terminations.
Technical Considerations for 120VAC Systems
While standard mainland Australian shore power operates at 230VAC/240VAC, a 120VAC distribution panel is essential for imported North American vessels, specialized industrial mobile setups, or isolated 120VAC inverter circuits running specific appliances. By utilizing a dedicated, purpose-built 30A main panel, you ensure that your 120VAC sub-systems are managed with the same level of professional circuit protection expected in commercial marine installations.
Upgrade Your AC Power Management
Equip your vessel or mobile workspace with professional-grade circuit protection and clear operational diagnostics. Add this pre-wired Blue Sea 120VAC main distribution panel to your system configuration today for a cleaner, safer electrical installation.
SKU: BS-8029B
SPECIFICATIONS
| Specification | Value |
|---|---|
| Product type | AC distribution panel |
| Maximum AC voltage | 120VAC |
| Main rating | 30A |
| Maximum current | 30A |
| Maximum AC current | 30A |
| Number of positions | 1 |
| Included features | Red reverse-polarity indicating LED; hot, neutral and safety-ground buses installed; fully pre-wired; circuit label positions backlit on standard panels, with no kit required; “ON” indicating LEDs in all circuit positions. |
| SKU: | BS-8029B |
| Model #: | BS-8029B |
| MPN: | BS-8029B |
| Package weight: | 0.9 kg |
| Package length: | 0.15 m |
| Package width: | 0.15 m |
| Package height: | 0.12 m |
