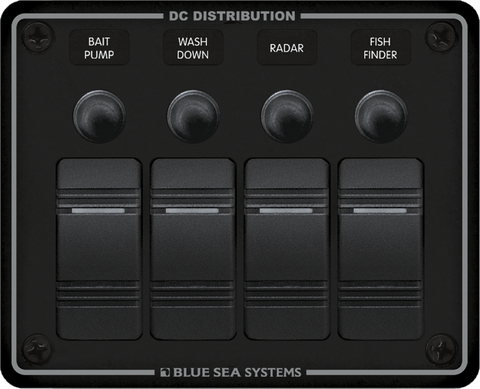

Blue Sea 12/24VDC 4 Position Circuit Breaker Switch Panel, Black
Blue Sea 12/24VDC 4 Position Circuit Breaker Switch Panel, Black
IP66 Weatherproof Front, LED Contura Switches & Ignition Protected
Regular price
$308.88
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Weatherproof DC Distribution Panel for Marine and Off-Road Applications
Engineered for Flybridge, Open-Cockpit, and Exposed Control Consoles
Managing electrical loads in exposed marine environments requires hardware built to withstand constant moisture, salt spray, and vibration. The Blue Sea Systems 8372B is a rugged 4-position DC switch panel engineered specifically for open-cockpit boats, flybridges, and exposed 4WD or camper trailer consoles. Operating seamlessly across both 12V and 24V DC systems, this panel integrates heavy-duty switching and resettable circuit protection into a single weatherproof unit.
Standard automotive or unsealed switch panels quickly corrode and fail when subjected to washdowns or driving rain, creating electrical hazards and potential system downtime. The 8372B solves this problem by utilising an IP66-rated front panel that shields internal components against powerful water jets from any direction. Combined with an included watertight mounting gasket, it forms a reliable barrier that keeps water out of your behind-dash wiring and sensitive electronics.
Integrated Switching and Resettable Circuit Protection
Rather than wiring separate fuse blocks and switch banks, this consolidated distribution panel simplifies installation and reduces potential points of failure behind the helm. Each of the four circuits features a dedicated ON-OFF Contura rocker switch paired with a push-button reset-only circuit breaker. If an overload occurs on a connected device, the breaker trips to protect the wiring and can be rapidly reset once the fault is cleared, eliminating the need to fumble with replacement fuses at sea or in the dark.
- IP66 Weatherproof Front: Built to endure heavy seas, washdowns, and powerful water jets without compromising electrical integrity.
- Ignition Protected: Safe for installation aboard petrol-powered vessels, reducing the risk of igniting surrounding flammable fumes in enclosed bilges or consoles.
- Contura Rocker Switches: Ergonomic switches feature embedded LEDs that clearly illuminate when a circuit is active for instant visual confirmation during night navigation.
- Waterproof Breaker Boots: Heavy-duty silicone boots seal the push-button circuit breakers against moisture, salt encrustation, and dust ingress.
- Watertight Mounting Gasket: Ensures a tight, reliable seal against the console or bulkhead surface to protect rear wiring connections.
- Customisable Labelling: Interchangeable label recesses allow for clear, organised identification of critical loads such as bilge pumps, navigation lights, and marine electronics.
Built for Safety in Harsh Environments
Safety is paramount in marine electrical systems, especially on vessels running outboard or inboard petrol engines. Because standard switches can create a microscopic arc when toggled, they pose a significant hazard if fuel vapours are present. The Blue Sea 8372B is fully ignition protected, meaning its components are sealed and designed so they will not ignite surrounding flammable gases. This makes it a dependable choice for ski boats, centre consoles, rigid inflatable boats (RIBs), and runabouts.
Beyond marine vessels, this panel is equally capable in extreme off-road and industrial applications. Whether you are wiring auxiliary work lights on a service body, controlling water pumps on a rural firefighting unit, or fitting out an open-air buggy, the UV-stabilised, corrosion-resistant construction ensures long-term durability under harsh Australian conditions.
Upgrade Your Electrical Control System
Eliminate the risk of water ingress and unreliable fuse holders in your exposed dash or console. Equip your vessel or off-grid vehicle with the Blue Sea 4-Position Circuit Breaker Switch Panel for dependable, weather-sealed 12V and 24V power distribution.
SKU: BS-8372B
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product type | Switch panel |
| Positions | 4 |
| Voltage rating | 12/24VDC |
| Colour | Black |
| Switches | ON-OFF Contura switches |
| Indicators | ON-indicating LEDs embedded in switches |
| Circuit breakers | Push-button reset-only circuit breakers with waterproof boots |
| Panel front rating | IP66; protected against powerful water jets |
| Protection | Ignition protected; safe for installation aboard gasoline-powered boats |
| Mounting | Watertight mounting gasket |
| Designed for | Flybridge and open cockpit applications |
| SKU: | BS-8372B |
| Model #: | BS-8372B |
| MPN: | BS-8372B |
| Package weight: | 1.08 kg |
| Package length: | 0.2 m |
| Package width: | 0.18 m |
| Package height: | 0.12 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
