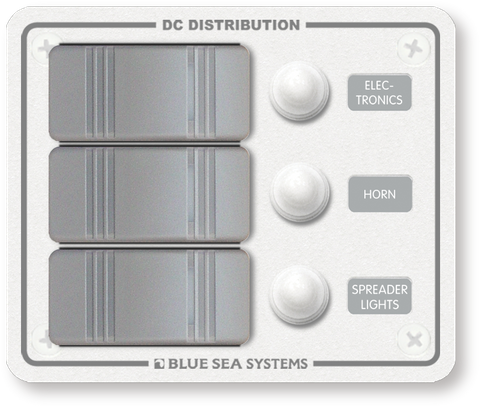

Blue Sea 12/24VDC 3-Position Circuit Breaker Switch Panel, White
Blue Sea 12/24VDC 3-Position Circuit Breaker Switch Panel, White
IP66 Front Rating - Ignition Protected - LED Contura Switches
Regular price
$256.37
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
Reliable Marine Circuit Control for Exposed Helm and Cockpit Environments
Engineered specifically for harsh marine environments, the Blue Sea Systems 3-position water-resistant circuit breaker switch panel delivers dependable DC power distribution and circuit protection. Designed to withstand the rigours of open cockpits, flybridges, and exposed centre consoles, this panel combines heavy-duty switching with integrated overcurrent protection. Compatible with both 12V and 24V DC electrical systems, it provides boat builders and marine electricians with a streamlined, pre-wired solution that simplifies helm installations while maintaining rigorous safety standards.
Engineered for Harsh Marine Conditions
Standard automotive or unsealed switch panels quickly succumb to salt spray, high humidity, and washdowns, leading to corroded terminals and intermittent electrical failures. This Blue Sea panel addresses those risks with an IP66-rated front faceplate, offering robust protection against powerful water jets and heavy seas. A continuous watertight mounting gasket creates a secure seal against the console surface, preventing moisture ingress into the behind-panel wiring cavity. Furthermore, the integrated push-button reset-only circuit breakers are fitted with heavy-duty silicone waterproof boots, ensuring the overcurrent protection mechanisms remain shielded from salt crust and water intrusion.
Safety and Operational Clarity at the Helm
Safety is paramount in marine electrical design, particularly on vessels powered by petrol engines. Both the Contura rocker switches and the thermal circuit breakers are fully ignition protected, eliminating the risk of an internal electrical arc igniting Explosive fumes in the bilge or console area. For night navigation and low-light operation, each grey ON-OFF Contura switch features an embedded LED indicator to clearly show active circuits at a glance, paired with backlit label positions for effortless identification of electronics, lighting, or pumps.
Key Features and Benefits
- IP66 Front Panel Rating: Protects critical switching components from high-pressure washdowns, heavy rain, and relentless salt spray.
- Ignition Protected Components: Safe for installation aboard petrol-powered vessels, reducing the risk of vapour ignition in enclosed spaces.
- Integrated Circuit Protection: Features three push-button reset-only circuit breakers with waterproof silicone boots, eliminating the need for a separate fuse block.
- Visual Status Indicators: Heavy-duty Contura switches include embedded ON-indicating LEDs and backlit labels for clear visibility during night passages.
- Dual Voltage Compatibility: Ready for integration into standard 12VDC recreational boats or 24VDC commercial and larger cruising vessels.
- Clean Helm Aesthetics: Durable white faceplate with recessed corner mounting holes blends seamlessly into modern fibreglass consoles and flybridges.
Ideal Marine and Off-Grid Applications
While purpose-built for marine vessels, the rugged construction of this distribution panel makes it suitable for a wide range of exposed 12V and 24V applications:
- Open cockpit fishing boats,RIBs, and centre consoles exposed to constant spray
- Flybridge helm stations on cruisers and sportfishing yachts
- Petrol-powered ski boats, tenders, and runabouts requiring ignition-protected switchgear
- Exterior utility panels on specialised off-grid expeditions vehicles or service trucks
Upgrade Your Helm Electrical System
Equip your vessel with marine-grade circuit protection built to handle exposed conditions. Order the Blue Sea 3-position switch panel today to ensure safe, reliable control over your essential onboard electronics and accessories.
SKU: BS-8274B
SPECIFICATIONS
| Specification | Details |
|---|---|
| Switch count | 3 |
| Voltage rating | 12/24VDC |
| Colour | White |
| Panel front rating | IP66 |
| Switches | ON-OFF Contura switches |
| Indicator | ON-indicating LEDs embedded in switch |
| Circuit breakers | Push-button reset-only circuit breakers with waterproof boots |
| Mounting | Watertight mounting gasket |
| Ignition protection | Ignition protected; safe for installation aboard gasoline-powered boats |
| Designed applications | Flybridge and open cockpit applications |
| SKU: | BS-8274B |
| Model #: | BS-8274B |
| MPN: | BS-8274B |
| Package weight: | 0.6 kg |
| Package length: | 0.2 m |
| Package width: | 0.17 m |
| Package height: | 0.12 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
