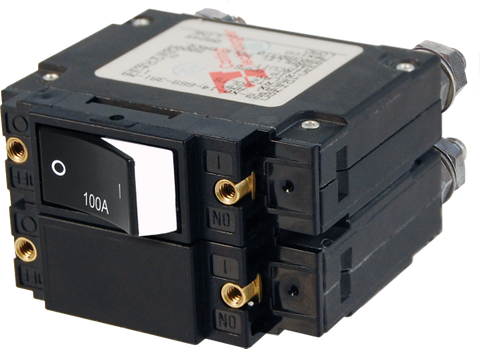

Blue Sea 100A C-Series AC Double-Pole Raised Rocker Circuit Breaker
Blue Sea 100A C-Series AC Double-Pole Raised Rocker Circuit Breaker
Simultaneous 2-Pole Isolation, Trip-Free Safety & Heavy-Duty Studs
Regular price
$128.70
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
High-Amperage AC Main Circuit Protection and Switching
Managing high-current alternating current (AC) power in marine, off-grid, and commercial vehicle environments requires robust, dependable overcurrent protection. The Blue Sea C-Series 100A AC Double-Pole Raised Rocker Circuit Breaker combines high-capacity switching and critical circuit protection into a single, streamlined device. Engineered specifically for demanding electrical panels, this breaker serves as a reliable AC main disconnect, safeguarding your wiring and appliances against dangerous overloads and short circuits.
By integrating switching and overcurrent protection into one unit, you eliminate the need for separate switches and fuse holders. This reduces connection points, simplifies panel layouts, and minimises potential points of failure in high-vibration environments such as boats, caravans, and mobile workspaces.
Simultaneous Double-Pole Disconnection
When managing 230V or 240V AC shore power, generator inputs, or large inverter outputs, isolating only the active conductor is insufficient for complete safety. In systems where polarity may be reversed or where neutral-to-ground voltage exists, disconnecting both the active (line) and neutral conductors is essential. This double-pole circuit breaker features an internal mechanical linkage that ensures both poles trip simultaneously if an overcurrent fault occurs on either line. This linked disconnection capability significantly reduces the risk of electrical shock during maintenance and protects sensitive downstream equipment from partial-fault damage.
Fail-Safe Trip-Free Engineering
Standard grade switches or inferior breakers can sometimes be forced to stay on during an electrical fault, leading to severe overheating and potential electrical fires. The Blue Sea C-Series incorporates a trip-free mechanism, meaning the internal contacts cannot be held closed manually if a fault current is present. Even if the raised rocker actuator is physically held in the ON position, the internal mechanism will override the switch and trip open, ensuring uncompromising safety for your electrical distribution system.
Built for Demanding Installations
Designed for professional electrical switchboards and custom power distribution panels, this 100A breaker features heavy-duty rear stud terminals to accommodate large-gauge cabling securely, preventing high-resistance hot spots under heavy loads. Integrated brass threaded mounting inserts allow for clean, secure front-panel installation that resists loosening over time.
- Dual Functionality: Combines heavy-duty 100A switching and precise overcurrent circuit protection into a single panel-mounted device.
- Linked Multi-Pole Tripping: Automatically disconnects both poles simultaneously if a fault is detected on either conductor, ideal for AC main active and neutral isolation.
- Trip-Free Design: Internal safety mechanism disconnects the circuit during a fault condition even if the rocker switch is manually held in the ON position.
- Ergonomic Raised Rocker: Provides clear visual status indication and positive tactile control for manual circuit switching.
- Heavy-Duty Terminations: Rear-mounted stud terminals and integrated brass mounting inserts ensure secure mechanical and electrical connections in high-vibration applications.
Why Upgrade to Blue Sea C-Series Protection?
Inferior circuit protection devices often suffer from nuisance tripping in warm enclosures or fail to isolate circuits cleanly under heavy inductive loads. Choosing a purpose-built Blue Sea C-Series breaker mitigates the risk of thermal runaway and terminal degradation. Whether you are building a custom marine AC distribution board, installing a high-output off-grid inverter system, or upgrading a commercial vehicle's shore power inlet, this 100A double-pole breaker provides the mechanical durability and electrical reliability required for compliant, safe power management.
Secure Your AC Power Distribution
Ensure your high-current AC circuits are protected against overloads and faults. Add the Blue Sea C-Series 100A Double-Pole Circuit Breaker to your system build for dependable, professional-grade main circuit isolation.
SKU: BS-7584B
SPECIFICATIONS
| Specification | Value |
|---|---|
| Product type | AC raised rocker circuit breaker |
| SKU: | BS-7584B |
| Model #: | BS-7584B |
| MPN: | BS-7584B |
| Package weight: | 0.36 kg |
| Package length: | 0.11 m |
| Package width: | 0.09 m |
| Package height: | 0.08 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
