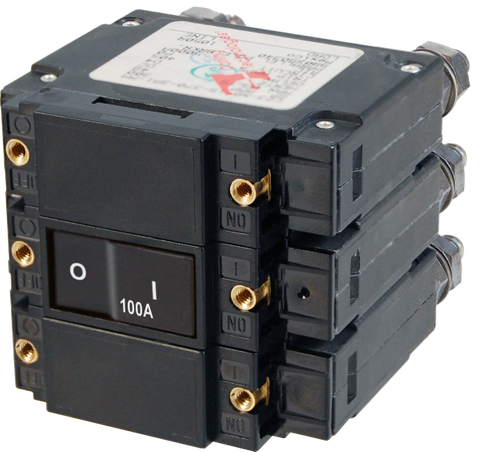

Blue Sea 100A AC C-Series Triple-Pole Flat Rocker Circuit Breaker
Blue Sea 100A AC C-Series Triple-Pole Flat Rocker Circuit Breaker
Trip-Free Overcurrent Protection & Flush Switch - 5/16" (8mm) Studs
Regular price
$223.43
Availability:
Special Order
View all products from Blue Sea
Guaranteed Safe and Secure Checkout
0
DESCRIPTION
High-Amperage Circuit Protection and Manual Switching
Managing high-current loads in marine, caravan, and off-grid electrical systems requires dependable overcurrent protection and straightforward isolation. The Blue Sea C-Series 100A AC Triple-Pole Flat Rocker Circuit Breaker integrates both functions into a single, robust unit. By combining manual on-off switching with precision overcurrent protection, it simplifies panel layouts and eliminates the need to wire separate switches and fuse holders.
This compact triple-pole enclosure is specifically engineered to handle demanding applications. It is widely used for protecting heavy-duty circuits serving large inverters, bow thrusters, and windlasses, where reliable disconnection and fault protection are critical to system safety.
Engineered for Safety: Trip-Free and Flush Rocker Design
In mobile and marine environments, accidental switching can disrupt critical power supplies or engage heavy equipment unexpectedly. This C-Series breaker features a specially contoured flat rocker actuator that sits completely flush when in the ON position. This low-profile geometry significantly reduces the risk of accidental actuation when brushing past control panels in tight quarters. Furthermore, the colour-coded actuator clearly reveals the OFF position for immediate visual confirmation of circuit status during maintenance or emergencies.
Safety during fault conditions is managed by an internal trip-free mechanism. If an overload or short circuit occurs, the breaker trips internally and cannot be held closed manually. Unlike standard switches or inferior protection devices that might allow an operator to force a circuit live during a fault, this trip-free design ensures the circuit remains isolated until the underlying electrical issue is resolved, reducing the risk of cable overheating and equipment damage.
Key Features and Benefits
- Dual Functionality: Combines heavy-duty manual on-off switching with reliable 100A overcurrent protection in one compact housing.
- Flush ON Actuator: Flat rocker sits flush in the ON position to prevent accidental switching, with clear colour indication when switched OFF.
- Trip-Free Mechanism: Internal design ensures the contacts cannot be held closed during an overcurrent fault condition.
- Heavy-Duty Connections: Paralleled poles feature a robust 5/16" (Approx. 8mm / M8) rear stud terminal on the bus to accommodate high-current cable lugs securely.
- Secure Installation: Equipped with threaded brass inserts for straightforward, durable front-panel mounting.
- High-Load Application: Purpose-built to protect circuits supplying high-draw equipment such as inverters, windlasses, and bow thrusters.
Built for Demanding Electrical Installations
High-amperage connections require solid mechanical termination to prevent voltage drop and dangerous heat build-up at the distribution panel. The rear of this triple-pole housing features paralleled poles with heavy-duty 5/16" (Approx. 8mm / M8) stud terminals on the bus, providing ample contact area for thick battery and inverter cables. Integrated threaded brass mounting inserts allow for secure attachment to custom dashboards, marine switchboards, or off-grid power distribution enclosures without risking stripped threads from vibration.
Upgrade Your Electrical Panel Protection
Equip your vessel, off-grid cabin, or recreational vehicle with professional-grade circuit management. Select this 100A C-Series flat rocker circuit breaker to ensure safe, compliant switching and overcurrent protection for your high-demand electrical circuits.
SKU: BS-7568B
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product type | Flat rocker circuit breaker |
| Switching function | On-off |
| Actuator | Flush in the ON position; color actuator indicates OFF |
| Terminal | Paralleled poles have 5/16" stud on bus |
| Protection | Overcurrent protection for inverters, bow thrusters, and windlasses |
| Trip-free function | Cannot be held closed after trip |
| SKU: | BS-7568B |
| Model #: | BS-7568B |
| MPN: | BS-7568B |
| Package weight: | 0.36 kg |
| Package length: | 0.1 m |
| Package width: | 0.08 m |
| Package height: | 0.05 m |
WARRANTY
Blue Sea Warranty Policy
Blue Sea Systems products sold by us are supplied with a warranty against defects for the warranty period shown below, subject to the product type, application and the terms of this warranty policy.
The express warranty provided by us is limited to a maximum of 5 years from the original date of purchase, unless otherwise required under Australian Consumer Law.
Blue Sea Systems may offer longer manufacturer support on some products at their discretion
Warranty Lengths by Product Range
| Blue Sea Product Range | Warranty Length | Application / Notes |
|---|---|---|
| Most Blue Sea Systems Products | 5 years | Applies to most Blue Sea Systems products found to be defective in materials or manufacture. |
| P12 Battery Chargers | 5 years | Warranty period starts from the original date of purchase. |
| P12 Remote Displays | 5 years | Warranty period starts from the original date of purchase. |
| Digital Meters | 3 years | Warranty period starts from the original date of purchase. |
| Vessel System Monitors | 3 years | Warranty period starts from the original date of purchase. |
Warranty Assessment and Remedy
If a Blue Sea Systems product is found to be defective in materials or manufacture within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit or refund, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase and a clear description of the fault.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
To make a warranty claim, please contact us with your dated proof of purchase, product details and a description of the fault.
The product may need to be returned for inspection before the claim can be assessed. If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy.
What This Warranty Does Not Cover
This warranty does not cover faults or damage caused by incorrect installation, incorrect application, misuse, abuse, neglect, unauthorised modification, accidental damage, normal wear and tear, environmental damage, or failure to use the product in accordance with the manufacturer's instructions.
- Incorrect installation or wiring
- Incorrect product selection or application
- Misuse, abuse or neglect
- Physical or accidental damage
- Water ingress or environmental damage outside the product's intended use
- Unauthorised modification or repair
- Normal wear and tear
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel or call-out costs unless otherwise required by law
- Products not returned for assessment when reasonably required
Manufacturer Support
Blue Sea Systems may provide additional manufacturer support on some products beyond the warranty period listed above. Where available, we may assist customers in contacting the manufacturer, but any manufacturer support beyond the express warranty period is subject to the manufacturer's own terms and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
