Victron Zigbee to USB converter

Wireless link up to 1600 m range, industrial metal enclosure


Regular price $166.32
$184.80
/
Availability: In Stock at Victron Warehouse Allow up to 5 days before dispatch
View all products from Victron
Guaranteed Safe and Secure Checkout
Apple Pay Google Pay MastercardPayPalShop Pay Visa

0

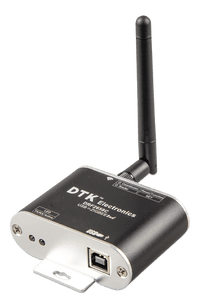

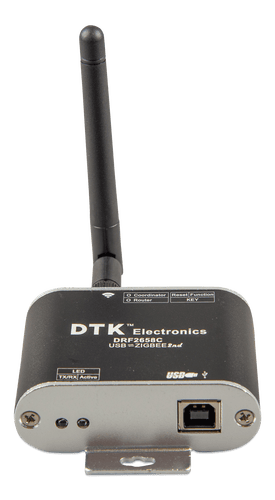

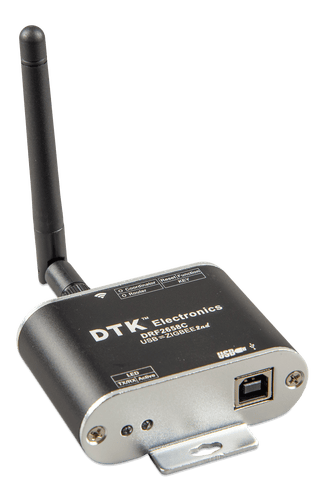

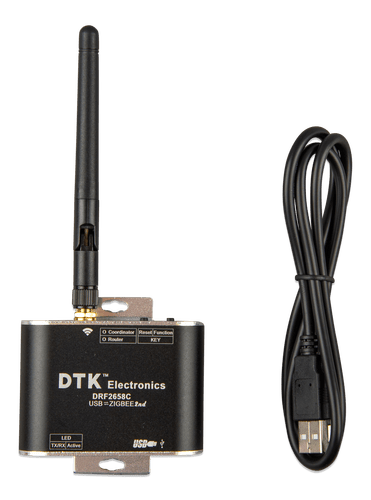

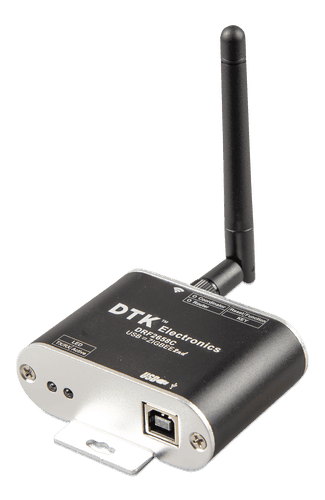

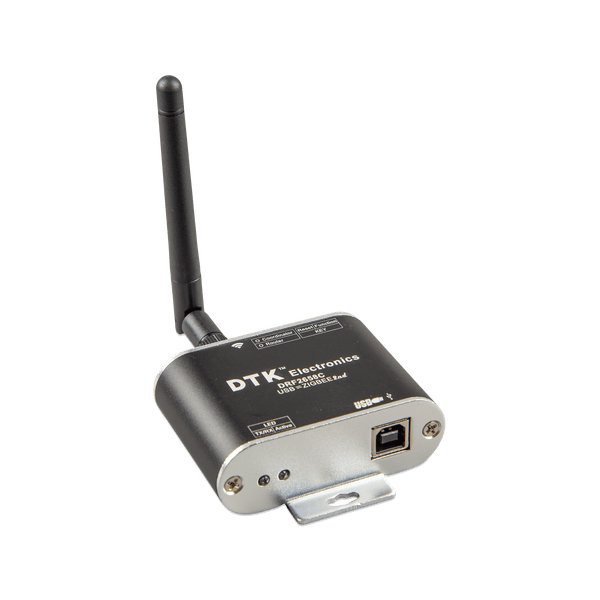

Zigbee to USB converter with an external antenna and mounting flange

Victron Zigbee to USB converter

DESCRIPTION

Victron Zigbee to USB Converter Kit: Wireless Energy Monitoring for GX Devices

Reliable Wireless Connectivity for Victron Energy Systems

The Victron Zigbee to USB converter kit provides a robust wireless link between a Victron Energy Meter and a GX device, eliminating the need for RS485 cabling in installations where running wires is impractical. This pair of converters uses the Zigbee 2007 protocol to deliver stable, long-range communication, making it an effective solution for remote energy monitoring in caravans, marine vessels, and off-grid power systems.

Engineered for professional use, the kit includes a Zigbee to USB converter (DRF2658C) that connects directly to the GX device’s USB port, and a Zigbee to RS485 converter (DRF2659C) that interfaces with the Energy Meter. Together, they form a transparent wireless bridge, maintaining the data integrity required for accurate system monitoring and control.

Designed for Demanding Environments

Built with a durable metal enclosure and an external high-gain antenna, these converters are suited to industrial and mobile applications. The wide operating temperature range of -40 °C to 85 °C ensures reliable performance in extreme conditions, from freezing cold to intense heat. The integrated mounting flanges allow secure installation on walls or panels, reducing the risk of damage from vibration or movement.

  • Long transmission range — up to 1600 m in open line-of-sight, reducing the need for repeaters in large installations
  • Industrial-grade durability — metal housing and wide temperature tolerance for harsh environments
  • Simple setup — pre-configured as a router with default PAN ID and channel for quick pairing

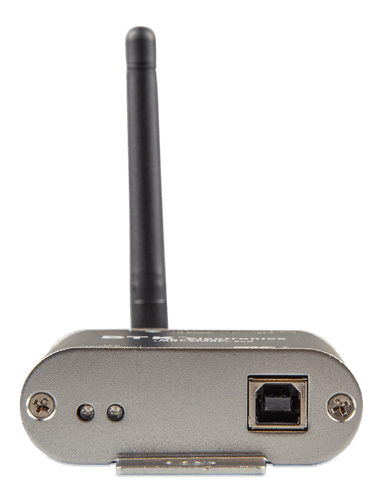

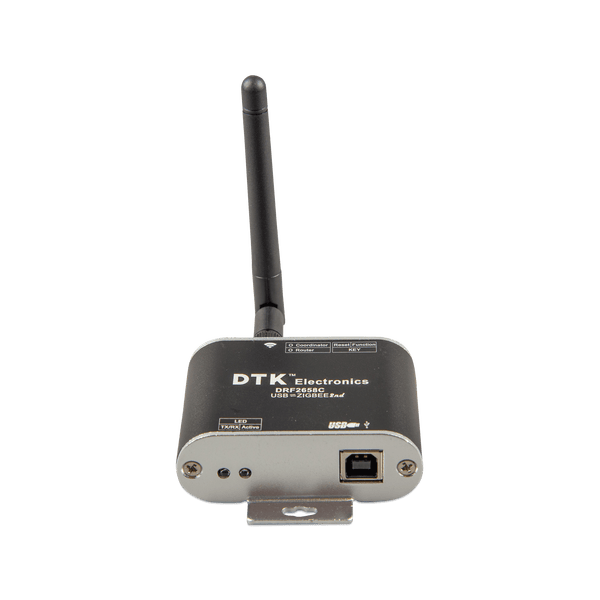

  • Status LEDs — visual indicators for transmission, reception, and active status simplify troubleshooting
  • Low standby current — 40 mA (max) minimises power draw on the USB port

Seamless Integration with Victron GX Devices

This converter kit is purpose-built for Victron’s ecosystem, ensuring compatibility with Color Control GX, Venus GX, Cerbo GX, and other GX devices. By replacing a wired RS485 connection with a Zigbee wireless link, installers can place the Energy Meter up to 1600 m away without signal degradation, simplifying system layout and reducing cable costs. The USB interface is powered directly from the GX device’s 5 V port, so no external power supply is needed.

The Zigbee 2007 protocol operates in the 2.4 GHz band, with a default frequency of 2460 MHz (Channel 22), which can be adjusted to avoid interference from other wireless equipment. The UART baud rate is configurable from 9600 bps to 115200 bps, with a default of 38400 bps, providing flexibility for different data throughput requirements.

Applications in Off-Grid and Mobile Energy Systems

This wireless solution is particularly valuable in installations where running RS485 cable is difficult or costly, such as:

  • Caravans and motorhomes with distributed battery and metering components
  • Marine vessels where cable routing through bulkheads is restricted
  • Remote off-grid sheds or cabins with separate power monitoring points
  • Industrial sites requiring flexible sensor placement

By enabling wireless energy monitoring, the kit helps maintain full visibility of power consumption and generation without compromising on data accuracy or system reliability.

Enhance Your Victron System with Wireless Monitoring

Add the Victron Zigbee to USB converter kit to your installation today and simplify your energy monitoring setup. Whether you’re upgrading an existing system or designing a new off-grid solution, this wireless bridge delivers the dependable connectivity needed for informed energy management.

SPECIFICATIONS

Specifications

Victron Part NumberASS300420200
ModelDRF2658C
PowerUSB Port 5 V
Temperature Range-40 °C to 85 °C
UART Baud Rate38400 bps (Default), 9600 bps, 19200 bps, 38400 bps, 57600 bps, 115200 bps
Radio Frequency2460 MHz (Default), 2405 MHz - 2480 MHz, Step: 5 MHz
ProtocolZigbee2007
Transmission DistanceVisible, open transmission distance: 1600 m
Operating Current (Send)120 mA (Max)
Operating Current (Receive)45 mA (Max)
Standby Current40 mA (Max)
Receiver Sensitivity-110 dBm
ChipCC2530F256, 256K FLASH
Configured NodeCoordinator, Router
DefaultRouter, PAN ID=0x199B, Channel=22 (2460 MHz)
Size70 × 50 × 24 mm
Mounting Hole DiameterØ 4.3 mm

SKU: VIC-ASS300420200
Barcode: 8719076048275
Model #: ASS300420200
MPN: ASS300420200

WARRANTY

Victron Energy Limited Warranty Policy

Direct Customers

Victron Energy provides the following warranty to any direct customer (OEM, distributor or dealer) in relation to any products that Victron Energy has directly sold to the direct customer. This warranty is not an end-user warranty between Victron Energy and an end-user, and end-users shall not have any rights or remedies under this limited warranty towards Victron Energy directly. The direct customer shall, in turn, ensure that the end-user is provided with a warranty identical to this warranty, subject to applicable local mandatory law.

End-Users

Victron Energy may also provide a warranty directly to end-users, in which case the below warranty conditions equally apply to such warranty. In that case, end-users shall claim their warranty at their place of purchase or through the original direct customer of Victron, which can be found through the support section on Victron’s website https://www.victronenergy.com/support. Hence, the direct customer shall on behalf of Victron Energy deal with any warranty claims made under any warranty that Victron Energy may provide directly to end-users. This support section on Victron’s website https://www.victronenergy.com/support will provide further guidance on the procedure for end-users to make a claim under this limited warranty.

If the end-user is a consumer – a natural person who is acting for purposes which are outside that person's trade, business, craft or profession – the following applies. The rights and remedies granted to the consumer under this limited warranty are without prejudice to the consumer’s statutory rights. Furthermore, the consumer is entitled by law to remedies from the seller free of charge in the event of a lack of conformity of the goods (such as repair, replacement, price reduction or rescission), which remedies are not affected by this limited warranty.

Warranty

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries: 2 years from date of purchase by the original end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries: 3 years from date of purchase by the original end-user, with a maximum of 42 months from the Victron Energy invoice date. In addition to this, proof of correct battery usage is required when making a battery warranty claim.

For a 10% surcharge on the current net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased by Victron’s direct customers, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before the expiration of the original term. Victron may ask proof that the product was still functional at the time of purchase of the extended warranty.

During the warranty period, Victron Energy will, at its discretion, repair, replace or (partly) credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation.

This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:

  • Reversed battery polarity.
  • Inadequate connection.
  • Mechanical shock or deformation.
  • Contact with liquid or oxidation by condensation.
  • Use in an inappropriate environment (dust, corrosive vapour, humidity, high temperature, biological infestation, etc.).
  • Breakage or damage due to lightning.
  • Connection terminals and screws destroyed or other damages, like overheating, due to insufficient tightening.
  • For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone other than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.

This warranty and our warranty obligations thereunder (repair, replacement or credit) are the direct customer’s and, if applicable, the end-user’s sole rights and remedies and our sole obligations with respect to any defective and/or non-conforming product or breach of warranty and is subject to and without prejudice to the limitations of liability in this warranty.

Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be made with the merchant, or if he is either unable or not allowed to provide service, direct contact should be made with Victron Energy through the support section on Victron’s website.

In case Victron Energy replaces a product, it will own the replaced product. Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products.

If Victron Energy repairs or replaces a part of a product, its warranty term is not extended: the warranty will apply for the remaining term of the original warranty term. For example, if Victron Energy replaces a product with a 5-year warranty after 3 years, the warranty of this product will apply for another 2 years, with a minimum of 6 months.

All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages.

The foregoing limited warranty provided by Victron Energy is in lieu of any other warranties, express or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, of any kind whatsoever including, without limitation, warranties of merchantability or fitness for a particular purpose, with respect to any product. The above is without prejudice to the arrangement for consumers detailed above.

Life Support Policy

As a general policy, Victron Energy does not recommend the use of any of its products in life support applications where failure or malfunction of Victron Energy's product can be reasonably expected to cause the failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the liability of Victron Energy is adequately protected under the circumstances.

Warranty on repairs for products outside their warranty period

The warranty period on products that are outside their warranty period and have been repaired by Victron Energy or one of the Victron Energy Repair centres is six (6) months from delivery. The same applies to spare parts and circuit boards that have been supplied or repaired by Victron Energy.

Transport

It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability

If a part of the terms and conditions of this warranty is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions of this warranty.

Applicable law

This warranty is exclusively governed by the laws of the Netherlands, to the exclusion of the UN Convention on Contracts for the International Sale of Goods.

Contact details

Victron Energy B.V. | De Paal 35, 1351 JG Almere, The Netherlands | https://www.victronenergy.com/support
