Votronic Tank Level Display S - Grey Water
Votronic Tank Level Display S - Grey Water
Continuous 10-Stage LED Bar, 12V/24V, 18mm Mounting Depth

DESCRIPTION
Precision Grey Water Monitoring for Mobile and Marine Applications
Engineered in Germany for Reliable Tank Level Indication
The Votronic Tank Level Display S for Grey Water delivers continuous, accurate monitoring of your wastewater tank, helping you manage capacity and avoid overflows. Designed and manufactured in Germany, this panel integrates seamlessly into 12V and 24V DC electrical systems, making it an excellent choice for caravans, motorhomes, camper trailers, and marine vessels.

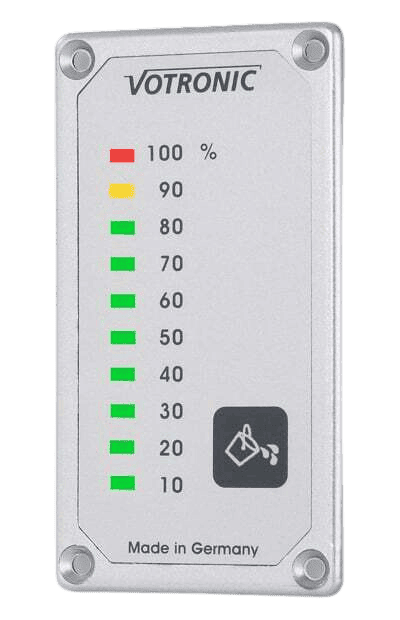

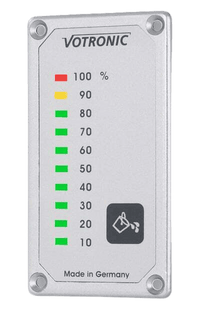

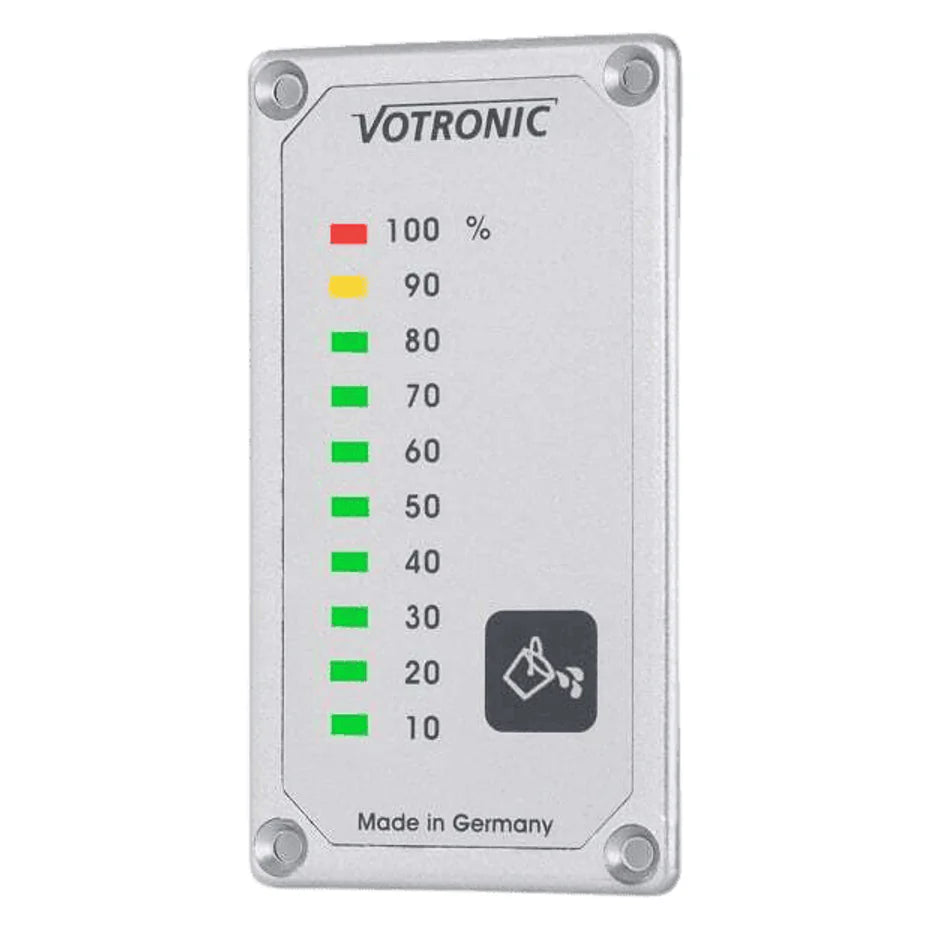

Unlike basic float switches or generic LED indicators, the Votronic display uses a 10-stage LED bar with three distinct colours to provide an instant, at-a-glance reading of your grey water level. The variable brightness of the LEDs reflects real-time changes during filling or emptying, so you always know exactly how much capacity remains.
Continuous Measurement for Complete Control
Conventional tank monitors often sample intermittently, leaving you guessing between readings. The Votronic system operates continuously, updating the LED bar as the level changes. This means you can watch the tank fill or drain in real time, giving you full control over the process and reducing the risk of unexpected overflows or pump running dry.
The display is activated at the touch of a button and automatically switches off after approximately 10 minutes to conserve power, drawing less than 1 mA in standby. This low current consumption is critical for off-grid setups where every milliamp counts.
Compact Design for Flexible Installation
With a front panel measuring just 85 x 47 mm and a mounting depth of only 18 mm, the Votronic Tank Level Display S fits into tight spaces where other monitors cannot. The shallow depth allows you to utilise storage compartments behind the panel without obstruction. The unit is designed for flush mounting with a simple 63 x 29 mm cut-out, and the recessed corner holes accept standard screws for a clean, professional finish.
Key Features
- 10-stage LED bar with green, yellow, and red indicators for quick level assessment
- Continuous real-time monitoring with variable brightness for instant trend recognition
- Ultra-low standby current (1 mA) and automatic 10-minute switch-off to preserve battery life
- Wide 10V to 32V DC input range compatible with both 12V and 24V systems
- Compact 85 x 47 x 20 mm dimensions with 18 mm mounting depth for installation in confined areas
- Made in Germany with robust construction for long-term reliability in mobile environments
- Clear grey water bucket symbol on the front panel for easy identification
Compatible Sensor Options for Any Tank
The Votronic Tank Level Display S works with a range of Votronic tank electrodes and sensors, allowing you to tailor the system to your specific tank material and size. Whether you have a small 15-litre grey water tank or a larger 110-litre capacity, there is a compatible sensor to ensure precise measurement. The display requires one sensor per tank, and the recommended cable cross-section of 0.5 to 1.5 mm² ensures a reliable signal even over longer wiring runs.
Built for Australian Conditions
Votronic products are known for their durability and consistent performance in demanding mobile applications. The Tank Level Display S is no exception, with a design that withstands vibration, temperature fluctuations, and the rigours of travel. The front panel is clearly marked with a grey water icon, preventing confusion in multi-tank installations where fresh, grey, and black water displays may be mounted side by side.
Reduce Risk and Improve Wastewater Management
Overfilling a grey water tank can lead to messy spills, unpleasant odours, and potential damage to your vehicle or vessel. By providing accurate, real-time level data, the Votronic display helps you avoid these issues and maintain a clean, hygienic living space. It also allows you to plan waste disposal stops more effectively, so you are never caught off guard.
For installers and DIY enthusiasts, the straightforward wiring and standardised modular format simplify integration with other Votronic components, such as battery monitors and solar controllers, creating a cohesive energy and resource management system.
Upgrade Your Tank Monitoring Today
Equip your caravan, motorhome, or boat with the precision of German engineering. Order the Votronic Tank Level Display S for Grey Water and take the guesswork out of wastewater management.
SKU: Vot-5313
SPECIFICATIONS
Specifications
| Article number | 5313 |
|---|---|
| Product designation | Abwasser-Tankanzeige S |
| Operating voltage | 12 V and 24 V DC on-board supply (10 V-32 V) |
| Current consumption | 1 mA (OFF) - max. 30 mA (display 100 %) |
| Display | Light bar with 10 LEDs, 3 colours |
| Automatic switch-off | 10 minutes after the last operation |
| Required tank sensor | 1 piece per tank |
| Compatible tank sensors | Tankelektrode 12-24 K; Tankelektrode 15-50 K; Tankelektrode 20 K-WC; Tankelektrode 30-110 K-FL; Tank-Sensor FL |
| Switching output "5" Tank + | 10 V-32 V, max. 120 mA internally electronically protected |
| Recommended cable cross-section | 0.5 - 1.5 mm² |
| Weight | 28 g |
| Dimensions | 85 x 47 x 20 mm |
| Installation cut-out / installation depth | 63 x 29 mm / 18 mm |
| Terminal tightening torque | 0.5 Nm |
| SKU: | Vot-5313 |
| Barcode: | 4250683602633 |
| Model #: | Vot-5313 |
| MPN: | Vot-5313 |
WARRANTY
VOTRONIC Warranty Policy
This warranty policy applies to VOTRONIC products supplied by us in Australia. VOTRONIC products supplied by us are covered by a 60 month warranty against defects in materials or manufacture, subject to the product being used, installed and operated correctly and in accordance with the manufacturer's instructions.
This warranty applies to the original end-user purchaser of the product, as evidenced by a valid proof of purchase, and is not transferable unless otherwise agreed in writing.
The benefits given by this warranty are in addition to other rights and remedies available under law.
Warranty Coverage and Periods
This warranty covers VOTRONIC products supplied by us, including charging devices, inverters, converters, monitoring devices, display devices and related accessories. The warranty periods for each product range are set out below.
| VOTRONIC Product Model Range | Warranty Length | Application / Notes |
|---|---|---|
| VOTRONIC Charging Devices | 60 months | Applies to VOTRONIC chargers, charging converters, solar charging controllers and related charging equipment where used as intended and within the product's rated specifications. |
| VOTRONIC Inverters and Power Devices | 60 months | Applies to VOTRONIC inverters, converters and related power electronics where correctly installed and operated within the product's technical ratings. |
| VOTRONIC Measuring and Display Devices | 60 months | Applies to VOTRONIC battery monitors, displays, tank level displays, computers and related monitoring devices where installed and used in accordance with the manufacturer's instructions. |
| VOTRONIC Accessories and Peripheral Devices | 60 months | Applies to VOTRONIC accessories and peripheral devices supplied by us and covered by the applicable manufacturer warranty. |
The warranty period begins on the date of purchase by the original end-user, as shown on the valid proof of purchase. A valid proof of purchase is required for all warranty claims.
Installer Responsibilities and System Design
VOTRONIC products are commonly installed, connected, configured or integrated into a broader electrical system, vehicle, vessel, caravan, motorhome or other operating environment. Once installed, the product may form only one component of a larger system.
We do not provide installation services unless expressly stated in writing, and we do not supervise or control installation practices carried out by dealers, installers, contractors or end-users. The installer, system designer, integrator, dealer or end-user is responsible for ensuring that the product is suitable for the intended application and is installed correctly.
Issues or damage arising from incorrect installation, poor system design, incorrect configuration, incompatible equipment, inadequate protection, unsuitable mounting, unsuitable environmental conditions or failure to follow the manufacturer's instructions are not product defects and are not covered by this warranty.
Appropriate Installation
All VOTRONIC products must be installed in accordance with the product manual, the manufacturer's installation instructions, applicable Australian Standards, relevant electrical, automotive, marine or industry standards, and recognised industry best practice.
The installer must ensure that the product is used in an appropriate environment and within its specified ratings. Improper, unsafe, unlicensed, sub-standard or non-compliant installation may void or limit warranty coverage.
System Compatibility
The installer or integrator is responsible for selecting and using compatible components. This includes ensuring compatibility with batteries, chargers, solar panels, regulators, alternators, inverters, wiring, fuses, circuit breakers, sensors, shunts, displays, power supplies, controllers and any other connected equipment.
Damage or underperformance caused by incompatible, incorrectly configured, undersized, oversized, unsuitable or improperly installed equipment is not covered by this warranty.
System-Wide Performance
Overall system performance depends on design, installation, configuration, usage, maintenance and environmental factors beyond the VOTRONIC product itself. This warranty covers the quality of the individual VOTRONIC product supplied by us only. It does not guarantee the performance of the broader electrical system into which the product is installed or integrated.
Issues such as insufficient charging, incorrect battery management, poor solar performance, nuisance faults, overheating, voltage drop, instability, intermittent operation, inaccurate readings or operational shortfalls caused by system design, installation or configuration are outside the scope of this warranty.
Installation Location and Environmental Suitability
The installer must ensure that VOTRONIC products are mounted, located, supported, ventilated and protected in a manner suitable for the installation environment.
Where relevant, the installer must allow for heat dissipation, ventilation, moisture exposure, dust, vibration, corrosion risk, aggressive battery gases, electrical clearance, mechanical loading, access for inspection and service, and protection from unsuitable environmental conditions.
Damage caused by unsuitable mounting, inadequate ventilation, moisture, dust, corrosion, aggressive battery gases, excessive heat, vibration, insufficient clearance, unsuitable substrate selection or other installation environment issues is not a manufacturing defect and is not covered by this warranty.
System Protection and Fault Isolation
The installer must incorporate suitable protective devices and design measures appropriate to the product and installation type. This may include correctly rated fuses, circuit breakers, isolators, over-current protection, over-voltage protection, low-voltage protection, reverse polarity protection, surge protection, correct cable sizing and other protective devices required by standards or best practice.
The installer is responsible for ensuring that a fault or failure in one component does not cause cascading damage to other components. Damage to VOTRONIC products caused by inadequate system protection, poor fault isolation, incorrect protection settings or missing safety devices is not covered by this warranty.
Service Accessibility Requirement
Products must be installed in a manner that allows reasonable access for inspection, testing, servicing, removal and replacement. We are not responsible for additional labour, structural modification, access equipment, removal of fixtures, cabinetry, panels, flooring, trim, sealants, adhesives or other costs arising from installation methods that restrict reasonable access to the product.
Installation Documentation
We may require documentation of the installation when assessing a warranty claim. This may include photos of the product in its installed location, wiring diagrams, system layout, serial numbers, details of connected equipment, installer details, commissioning records, service history, fault logs, operating settings and maintenance records.
Failure to provide reasonable installation evidence may limit our ability to assess the claim.
Independence of Dealers and Installers
Dealers, resellers, installers and contractors act independently and are not agents, employees or representatives of VOTRONIC or us unless expressly agreed in writing. We are not responsible for the acts, omissions, workmanship, advice, representations, installation practices or system design decisions of independent dealers, resellers, installers, contractors or third parties.
What This Warranty Does Not Cover
This warranty covers manufacturing defects or failures of the product arising from normal use in accordance with the manufacturer's instructions. It does not cover any failure, damage, performance issue, deterioration or loss caused wholly or partly by external factors, misuse, incorrect installation or circumstances outside the manufacturer's control.
- Incorrect installation or wiring
- Incorrect product selection or application
- Use outside the product's intended purpose
- Operation outside the product's rated technical specifications
- Incorrect voltage, current, load, charging profile or configuration
- Improper operation, misuse, abuse or neglect
- Physical impact, accidental damage or mechanical damage
- Unauthorised modification, tampering, disassembly or repair
- Service work carried out by a third party not authorised by the manufacturer
- Use with incompatible, incorrectly rated or improperly configured third-party components
- Damage caused by inadequate fusing, circuit protection, isolation or system protection
- Damage caused by moisture, dust, corrosion, aggressive battery gases or unsuitable installation environments
- Damage caused by excessive heat, inadequate ventilation or installation in an unsuitable location
- Damage caused by vibration, movement, poor mounting or inadequate support
- Normal wear and tear, cosmetic deterioration or gradual degradation consistent with normal use
- Failure to carry out reasonable inspection, cleaning, maintenance or servicing where required
- Products with removed, altered, damaged or illegible serial numbers, rating labels or identification markings
- Products purchased second-hand, from unauthorised channels, auction sites, liquidation sales or grey-market sources
- Labour costs for removal, replacement, reinstallation or diagnosis
- Freight, travel, call-out costs or access costs unless otherwise required by law
- Products not returned for assessment when reasonably required
- Consequential or incidental loss, including damage to other equipment, downtime, loss of use, loss of revenue or economic loss, to the extent permitted by law
Warranty Assessment and Remedy
If a VOTRONIC product supplied by us is found to be defective within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit, refund or another appropriate remedy, depending on the nature of the fault and the requirements of Australian Consumer Law.
Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase, product details, serial number if available, installation information and a clear description of the fault.
If the product is required to be returned to VOTRONIC or another nominated assessment location for inspection or repair, a return authorisation process may be required before the product is sent. Products sent without the required return authorisation or documentation may not be processed.
Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.
Making a Warranty Claim
If you suspect a fault with a VOTRONIC product supplied by us, do not immediately remove or uninstall the product unless it is unsafe to leave it in place or unless authorised as part of the warranty process. Premature removal may cause further damage or make it difficult to determine the original cause of the issue.
- Contact us: Contact us with your dated proof of purchase, product model, serial number if available, and a description of the fault.
- Provide product and installation information: We may request installation photos, wiring details, connected equipment details, operating settings, fault codes, measurements or service history to assist with assessment.
- Assessment and troubleshooting: We may ask for safe checks, photos, testing information or other details to determine whether the issue appears to be a product fault or is caused by installation, configuration, connected equipment, environment or misuse.
- Return for inspection if required: If the fault cannot be confirmed remotely, the product may need to be returned for inspection, testing, repair or replacement assessment. Return instructions will be provided where required.
- Outcome: If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy. If the product is found not to be faulty, or the issue is caused by an excluded factor, the claim may be rejected.
Remedies Under Warranty
If a defect covered by this warranty is confirmed, we may provide one or more of the following remedies, subject to the circumstances of the claim and the requirements of Australian Consumer Law:
- repair of the product;
- replacement of the product;
- store credit;
- refund;
- supply of replacement parts; or
- another appropriate remedy required by law.
Repair or replacement under this warranty does not restart or extend the original warranty period. The warranty continues from the original purchase date.
Manufacturer Support
VOTRONIC may provide repair or assessment services through its own service process. Where available, we may assist customers in contacting the manufacturer or arranging assessment, but any manufacturer service is subject to VOTRONIC's own process, requirements and continued availability.
Australian Consumer Law
This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
