Votronic Tank Level Display S - Faeces Toilet Black Water

10-LED Bar with 3-Colour Indication, 12 V/24 V, 18 mm Mounting Depth


Regular price $79.00
/
Availability: In Stock
View all products from Votronic
Guaranteed Safe and Secure Checkout
Apple Pay Google Pay MastercardPayPalShop Pay Visa

29

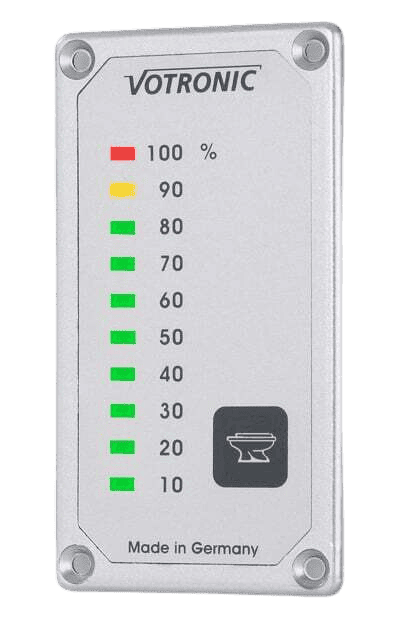

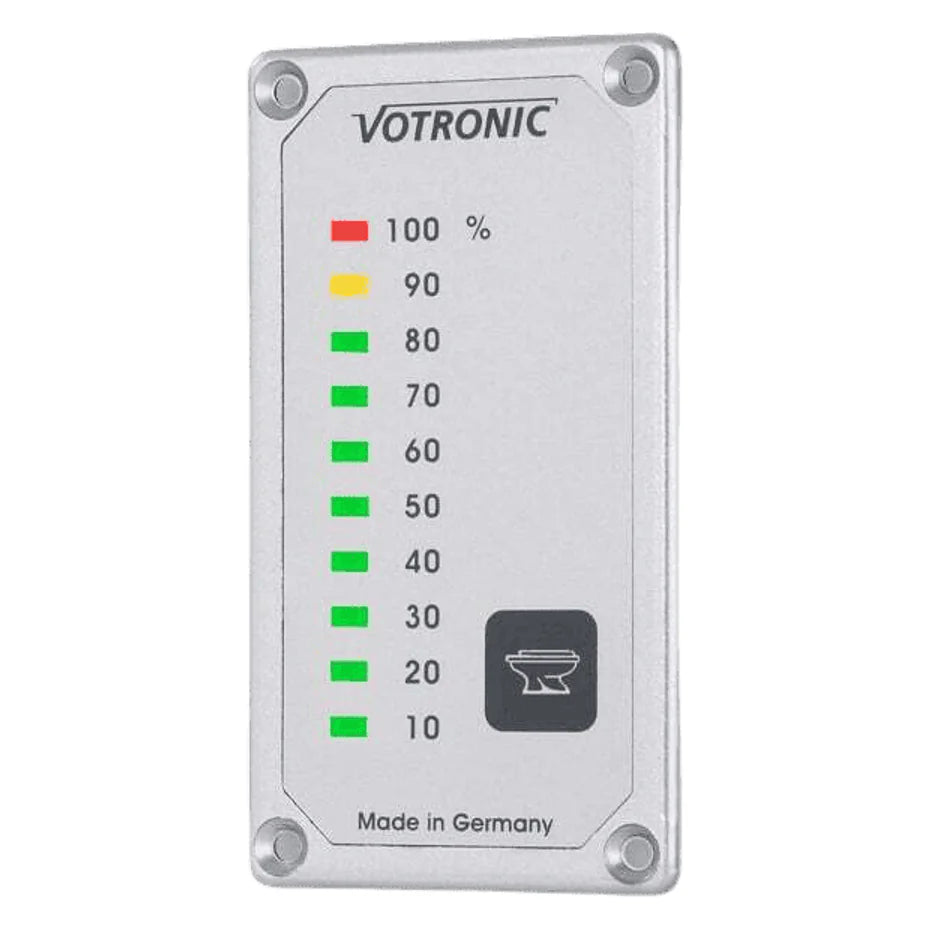

Vertical Votronic black water tank level display featuring 10 LED indicator segments from 10 to 100 percent

Votronic Tank Level Display S - Faeces Toilet Black Water

DESCRIPTION

Precision Black Water Tank Monitoring for Mobile and Marine Applications

Reliable Level Sensing for Faeces and Toilet Waste Tanks

The Votronic Tank Level Display S for black water delivers accurate, real-time monitoring of faeces and toilet waste tanks in caravans, motorhomes, and marine vessels. Engineered in Germany, this display works with Votronic tank sensors to provide continuous level measurement, eliminating guesswork and preventing overfill incidents. Its clear 10-segment LED bar with three-colour indication allows instant visual assessment of tank capacity from 10% to 100%, even in low-light conditions.

Unlike basic float switches or generic indicators, the Votronic system uses advanced electrode-based sensing suitable for any tank material and size. This ensures consistent readings regardless of tank geometry or waste composition, reducing the risk of sensor fouling common in black water applications. The display’s continuous operation means you see real-time changes during filling and emptying, giving complete control over waste management.

Designed for Demanding Mobile Environments

With a mounting depth of only 18 mm and compact front panel dimensions of 85 x 47 mm, this display fits almost anywhere without sacrificing valuable storage space behind the panel. It integrates seamlessly into the Votronic modular system, matching other displays in height and style for a cohesive dashboard appearance. The unit operates across a wide voltage range of 10 V to 32 V, making it suitable for both 12 V and 24 V DC systems commonly found in recreational vehicles and boats.

Installation is straightforward with corner mounting holes and screw terminals rated for 0.5 Nm torque. The display can be switched on or off manually, or it will automatically power down after approximately 10 minutes to conserve battery power. A switching output provides up to 120 mA for controlling external devices like pumps or alarms, adding functional versatility.

  • 10-segment LED bar with green, yellow, and red zones for at-a-glance level reading
  • Continuous measurement with variable brightness shows filling and emptying trends
  • Wide 10 V to 32 V operating range compatible with 12 V and 24 V systems
  • Ultra-slim 18 mm mounting depth fits tight spaces behind panels
  • Automatic 10-minute shutoff conserves battery when not in use
  • Switching output (max 120 mA) for external pump or alarm control
  • Made in Germany with robust construction for long service life

Why Choose Votronic for Black Water Monitoring?

Black water tanks present unique challenges: corrosive waste, sludge buildup, and unreliable sensor readings. The Votronic system addresses these with electrode sensors that resist fouling and provide accurate data regardless of tank material—plastic, metal, or fibreglass. This reduces the risk of unexpected overflows or false empty readings that can lead to unsanitary conditions and costly cleanup.

For caravan and motorhome owners, knowing the exact toilet tank level means better trip planning and fewer stops at dump points. Marine users benefit from compliance with environmental regulations by preventing accidental discharge. The display’s clear toilet tank icon and percentage scale eliminate confusion, ensuring that even in multi-tank setups, the black water status is unmistakable.

Seamless Integration with Votronic Modular System

This display is part of the Votronic S series, designed to work with matching fresh water and grey water displays for a complete tank monitoring solution. All units share the same 85 mm height and panel-mount design, allowing a uniform dashboard layout. Retrofitting a single display is simple, and the system can be expanded as needs grow. The low current consumption (1 to 30 mA) minimises impact on battery banks, a critical factor for off-grid setups.

Take Control of Your Waste Management

Upgrade your mobile or marine sanitation system with the Votronic Tank Level Display S for black water. Order today to gain precise, reliable monitoring that helps you avoid overfills and maintain a clean, safe environment on the road or water.


SKU: Vot-5315

SPECIFICATIONS

Specifications

Official designationFäkal-Tankanzeige S
Part number5315
Battery voltage12 V and 24 V
Operating voltage range10 V-32 V
Current consumption1...30 mA
DisplayLight bar with 10 LEDs, 3 colours
Switching output "5" Tank +10 V-32 V, max. 120 mA
Weight28 g
Dimensions85 x 47 x 20 mm
Installation dimensions / installation depth63 x 29 mm / 18 mm
Terminal tightening torque0.5 Nm

SKU: Vot-5315
Barcode: 4250683602640
Model #: Vot-5315
MPN: Vot-5315

WARRANTY

VOTRONIC Warranty Policy

This warranty policy applies to VOTRONIC products supplied by us in Australia. VOTRONIC products supplied by us are covered by a 60 month warranty against defects in materials or manufacture, subject to the product being used, installed and operated correctly and in accordance with the manufacturer's instructions.

This warranty applies to the original end-user purchaser of the product, as evidenced by a valid proof of purchase, and is not transferable unless otherwise agreed in writing.

The benefits given by this warranty are in addition to other rights and remedies available under law.

Warranty Coverage and Periods

This warranty covers VOTRONIC products supplied by us, including charging devices, inverters, converters, monitoring devices, display devices and related accessories. The warranty periods for each product range are set out below.

VOTRONIC Product Model Range Warranty Length Application / Notes
VOTRONIC Charging Devices 60 months Applies to VOTRONIC chargers, charging converters, solar charging controllers and related charging equipment where used as intended and within the product's rated specifications.
VOTRONIC Inverters and Power Devices 60 months Applies to VOTRONIC inverters, converters and related power electronics where correctly installed and operated within the product's technical ratings.
VOTRONIC Measuring and Display Devices 60 months Applies to VOTRONIC battery monitors, displays, tank level displays, computers and related monitoring devices where installed and used in accordance with the manufacturer's instructions.
VOTRONIC Accessories and Peripheral Devices 60 months Applies to VOTRONIC accessories and peripheral devices supplied by us and covered by the applicable manufacturer warranty.

The warranty period begins on the date of purchase by the original end-user, as shown on the valid proof of purchase. A valid proof of purchase is required for all warranty claims.

Installer Responsibilities and System Design

VOTRONIC products are commonly installed, connected, configured or integrated into a broader electrical system, vehicle, vessel, caravan, motorhome or other operating environment. Once installed, the product may form only one component of a larger system.

We do not provide installation services unless expressly stated in writing, and we do not supervise or control installation practices carried out by dealers, installers, contractors or end-users. The installer, system designer, integrator, dealer or end-user is responsible for ensuring that the product is suitable for the intended application and is installed correctly.

Issues or damage arising from incorrect installation, poor system design, incorrect configuration, incompatible equipment, inadequate protection, unsuitable mounting, unsuitable environmental conditions or failure to follow the manufacturer's instructions are not product defects and are not covered by this warranty.

Appropriate Installation

All VOTRONIC products must be installed in accordance with the product manual, the manufacturer's installation instructions, applicable Australian Standards, relevant electrical, automotive, marine or industry standards, and recognised industry best practice.

The installer must ensure that the product is used in an appropriate environment and within its specified ratings. Improper, unsafe, unlicensed, sub-standard or non-compliant installation may void or limit warranty coverage.

System Compatibility

The installer or integrator is responsible for selecting and using compatible components. This includes ensuring compatibility with batteries, chargers, solar panels, regulators, alternators, inverters, wiring, fuses, circuit breakers, sensors, shunts, displays, power supplies, controllers and any other connected equipment.

Damage or underperformance caused by incompatible, incorrectly configured, undersized, oversized, unsuitable or improperly installed equipment is not covered by this warranty.

System-Wide Performance

Overall system performance depends on design, installation, configuration, usage, maintenance and environmental factors beyond the VOTRONIC product itself. This warranty covers the quality of the individual VOTRONIC product supplied by us only. It does not guarantee the performance of the broader electrical system into which the product is installed or integrated.

Issues such as insufficient charging, incorrect battery management, poor solar performance, nuisance faults, overheating, voltage drop, instability, intermittent operation, inaccurate readings or operational shortfalls caused by system design, installation or configuration are outside the scope of this warranty.

Installation Location and Environmental Suitability

The installer must ensure that VOTRONIC products are mounted, located, supported, ventilated and protected in a manner suitable for the installation environment.

Where relevant, the installer must allow for heat dissipation, ventilation, moisture exposure, dust, vibration, corrosion risk, aggressive battery gases, electrical clearance, mechanical loading, access for inspection and service, and protection from unsuitable environmental conditions.

Damage caused by unsuitable mounting, inadequate ventilation, moisture, dust, corrosion, aggressive battery gases, excessive heat, vibration, insufficient clearance, unsuitable substrate selection or other installation environment issues is not a manufacturing defect and is not covered by this warranty.

System Protection and Fault Isolation

The installer must incorporate suitable protective devices and design measures appropriate to the product and installation type. This may include correctly rated fuses, circuit breakers, isolators, over-current protection, over-voltage protection, low-voltage protection, reverse polarity protection, surge protection, correct cable sizing and other protective devices required by standards or best practice.

The installer is responsible for ensuring that a fault or failure in one component does not cause cascading damage to other components. Damage to VOTRONIC products caused by inadequate system protection, poor fault isolation, incorrect protection settings or missing safety devices is not covered by this warranty.

Service Accessibility Requirement

Products must be installed in a manner that allows reasonable access for inspection, testing, servicing, removal and replacement. We are not responsible for additional labour, structural modification, access equipment, removal of fixtures, cabinetry, panels, flooring, trim, sealants, adhesives or other costs arising from installation methods that restrict reasonable access to the product.

Installation Documentation

We may require documentation of the installation when assessing a warranty claim. This may include photos of the product in its installed location, wiring diagrams, system layout, serial numbers, details of connected equipment, installer details, commissioning records, service history, fault logs, operating settings and maintenance records.

Failure to provide reasonable installation evidence may limit our ability to assess the claim.

Independence of Dealers and Installers

Dealers, resellers, installers and contractors act independently and are not agents, employees or representatives of VOTRONIC or us unless expressly agreed in writing. We are not responsible for the acts, omissions, workmanship, advice, representations, installation practices or system design decisions of independent dealers, resellers, installers, contractors or third parties.

What This Warranty Does Not Cover

This warranty covers manufacturing defects or failures of the product arising from normal use in accordance with the manufacturer's instructions. It does not cover any failure, damage, performance issue, deterioration or loss caused wholly or partly by external factors, misuse, incorrect installation or circumstances outside the manufacturer's control.

  • Incorrect installation or wiring
  • Incorrect product selection or application
  • Use outside the product's intended purpose
  • Operation outside the product's rated technical specifications
  • Incorrect voltage, current, load, charging profile or configuration
  • Improper operation, misuse, abuse or neglect
  • Physical impact, accidental damage or mechanical damage
  • Unauthorised modification, tampering, disassembly or repair
  • Service work carried out by a third party not authorised by the manufacturer
  • Use with incompatible, incorrectly rated or improperly configured third-party components
  • Damage caused by inadequate fusing, circuit protection, isolation or system protection
  • Damage caused by moisture, dust, corrosion, aggressive battery gases or unsuitable installation environments
  • Damage caused by excessive heat, inadequate ventilation or installation in an unsuitable location
  • Damage caused by vibration, movement, poor mounting or inadequate support
  • Normal wear and tear, cosmetic deterioration or gradual degradation consistent with normal use
  • Failure to carry out reasonable inspection, cleaning, maintenance or servicing where required
  • Products with removed, altered, damaged or illegible serial numbers, rating labels or identification markings
  • Products purchased second-hand, from unauthorised channels, auction sites, liquidation sales or grey-market sources
  • Labour costs for removal, replacement, reinstallation or diagnosis
  • Freight, travel, call-out costs or access costs unless otherwise required by law
  • Products not returned for assessment when reasonably required
  • Consequential or incidental loss, including damage to other equipment, downtime, loss of use, loss of revenue or economic loss, to the extent permitted by law

Warranty Assessment and Remedy

If a VOTRONIC product supplied by us is found to be defective within the applicable warranty period, we will, at our discretion, arrange a repair, replacement, store credit, refund or another appropriate remedy, depending on the nature of the fault and the requirements of Australian Consumer Law.

Products may need to be returned for assessment before a warranty claim can be approved. Where required, the product must be returned with dated proof of purchase, product details, serial number if available, installation information and a clear description of the fault.

If the product is required to be returned to VOTRONIC or another nominated assessment location for inspection or repair, a return authorisation process may be required before the product is sent. Products sent without the required return authorisation or documentation may not be processed.

Labour costs for removing, replacing, reinstalling or diagnosing a product are not covered by this express warranty unless otherwise required under Australian Consumer Law.

Making a Warranty Claim

If you suspect a fault with a VOTRONIC product supplied by us, do not immediately remove or uninstall the product unless it is unsafe to leave it in place or unless authorised as part of the warranty process. Premature removal may cause further damage or make it difficult to determine the original cause of the issue.

  1. Contact us: Contact us with your dated proof of purchase, product model, serial number if available, and a description of the fault.
  2. Provide product and installation information: We may request installation photos, wiring details, connected equipment details, operating settings, fault codes, measurements or service history to assist with assessment.
  3. Assessment and troubleshooting: We may ask for safe checks, photos, testing information or other details to determine whether the issue appears to be a product fault or is caused by installation, configuration, connected equipment, environment or misuse.
  4. Return for inspection if required: If the fault cannot be confirmed remotely, the product may need to be returned for inspection, testing, repair or replacement assessment. Return instructions will be provided where required.
  5. Outcome: If the product is confirmed to be faulty and covered by this warranty, we will advise the available remedy. If the product is found not to be faulty, or the issue is caused by an excluded factor, the claim may be rejected.

Remedies Under Warranty

If a defect covered by this warranty is confirmed, we may provide one or more of the following remedies, subject to the circumstances of the claim and the requirements of Australian Consumer Law:

  • repair of the product;
  • replacement of the product;
  • store credit;
  • refund;
  • supply of replacement parts; or
  • another appropriate remedy required by law.

Repair or replacement under this warranty does not restart or extend the original warranty period. The warranty continues from the original purchase date.

Manufacturer Support

VOTRONIC may provide repair or assessment services through its own service process. Where available, we may assist customers in contacting the manufacturer or arranging assessment, but any manufacturer service is subject to VOTRONIC's own process, requirements and continued availability.

Australian Consumer Law

This warranty is in addition to other rights and remedies available at law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
