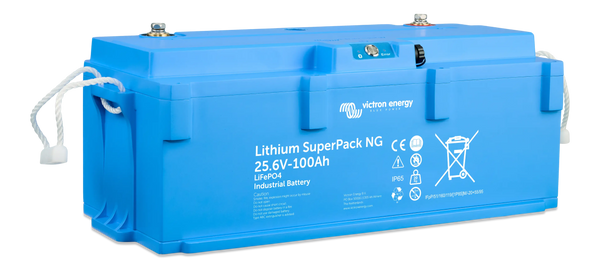

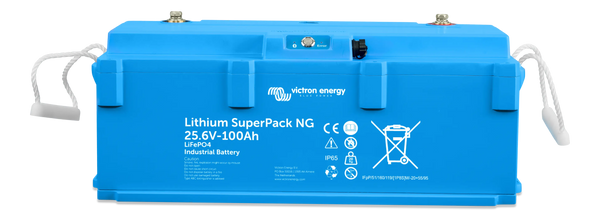

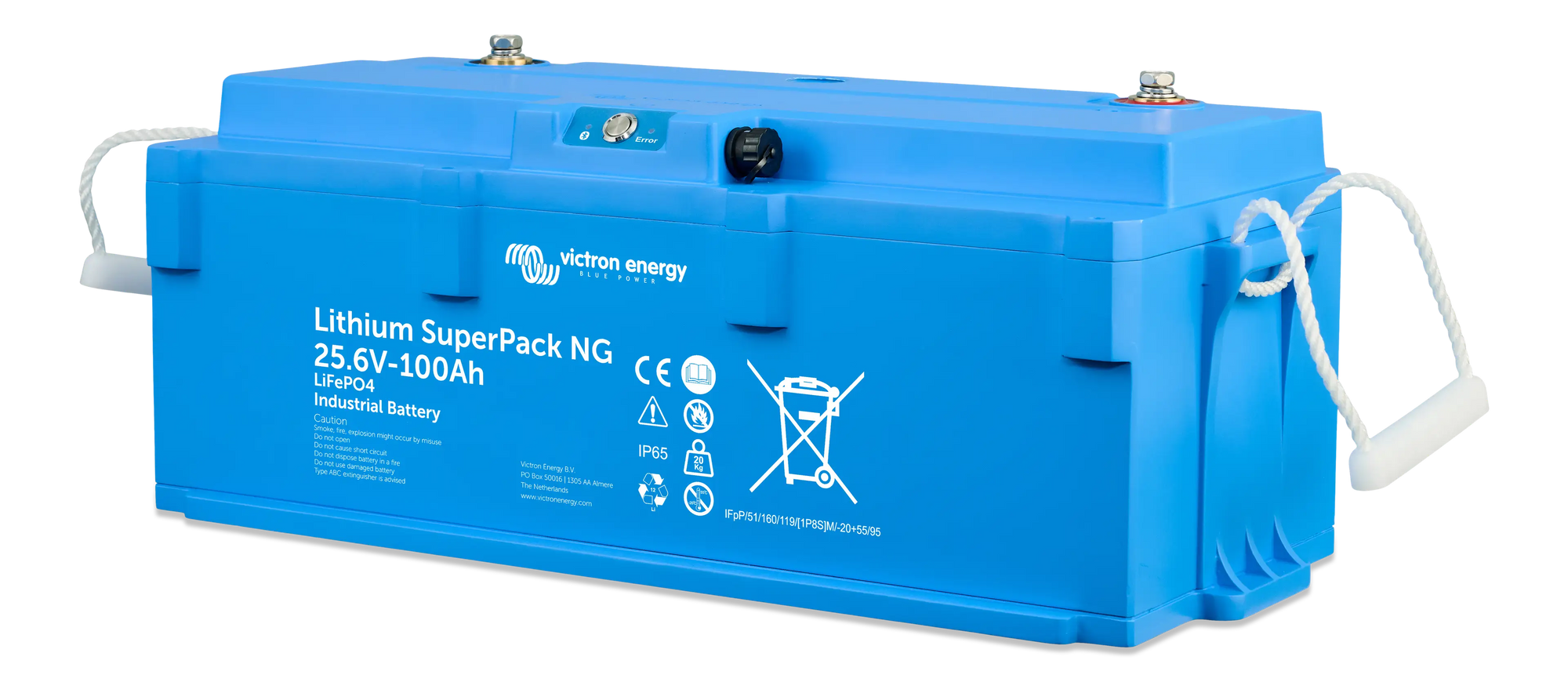

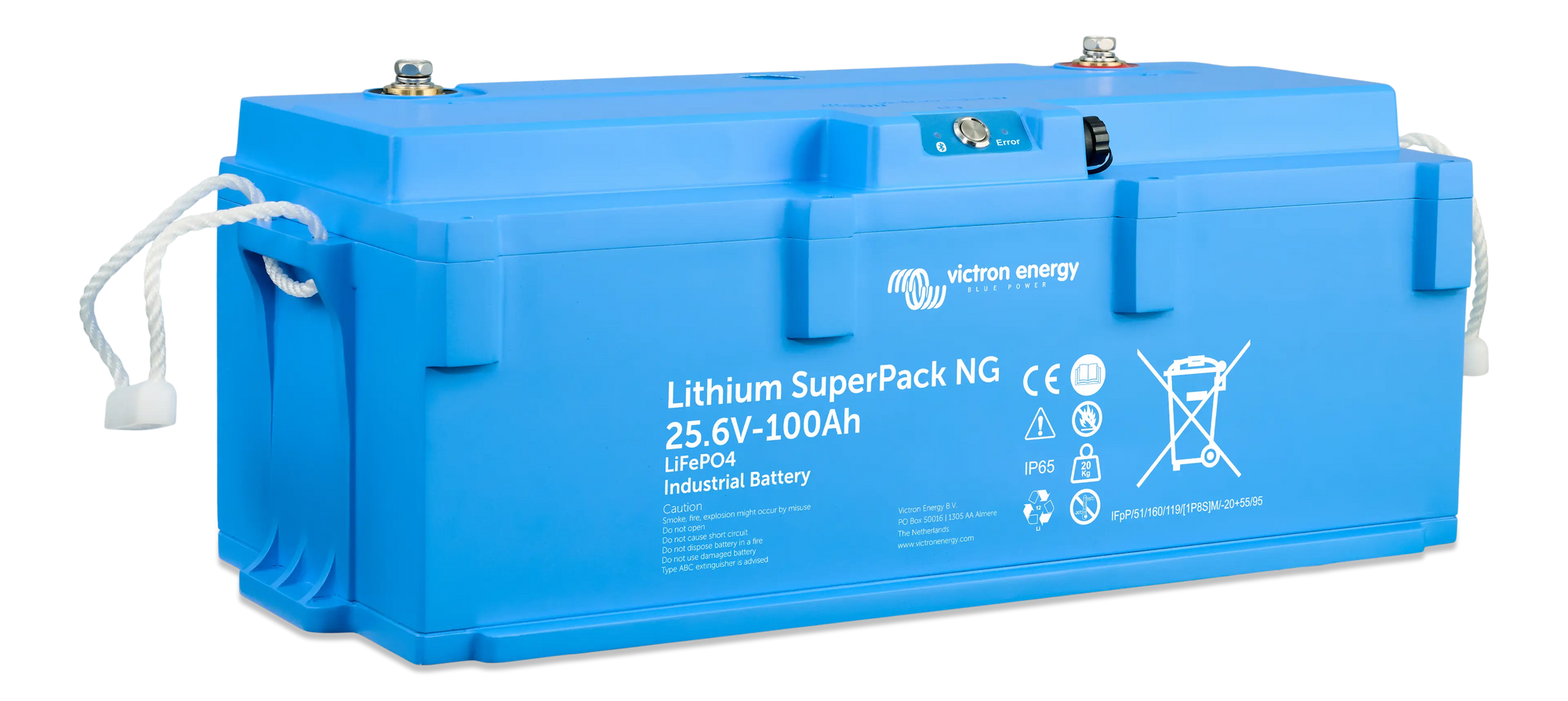

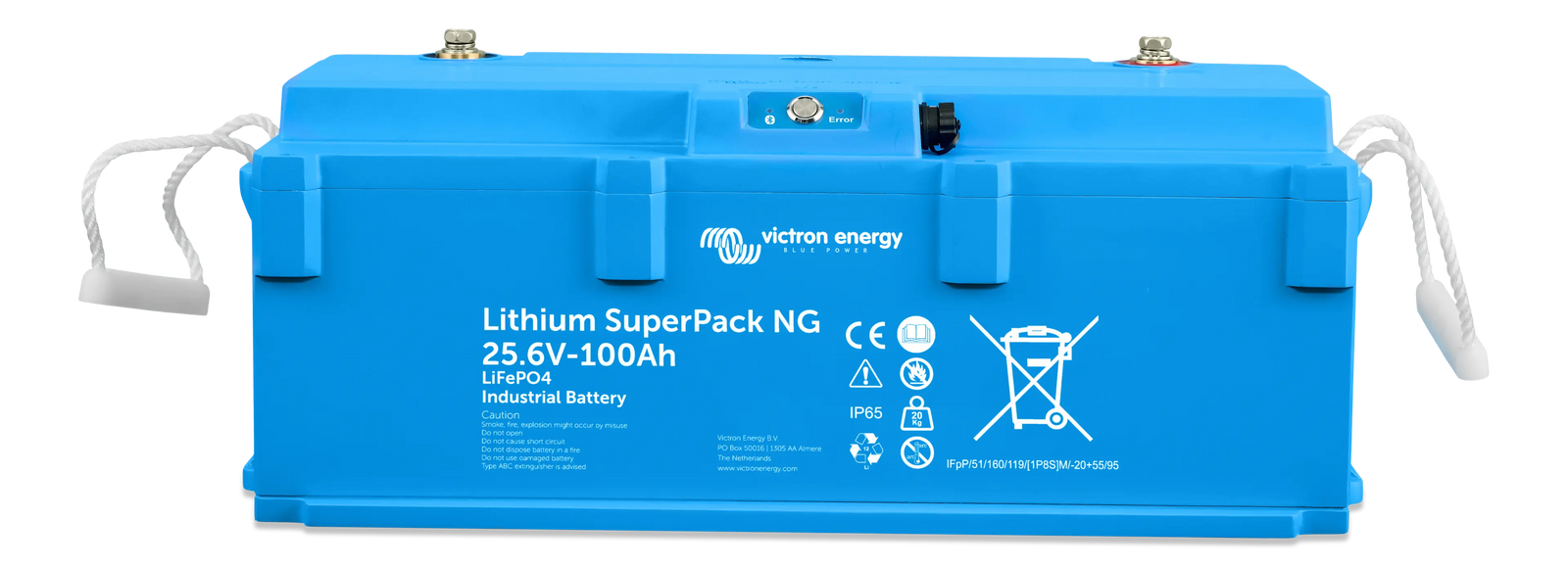

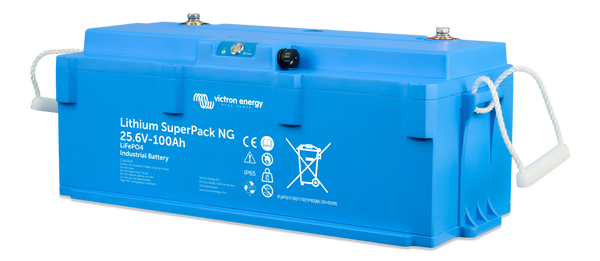

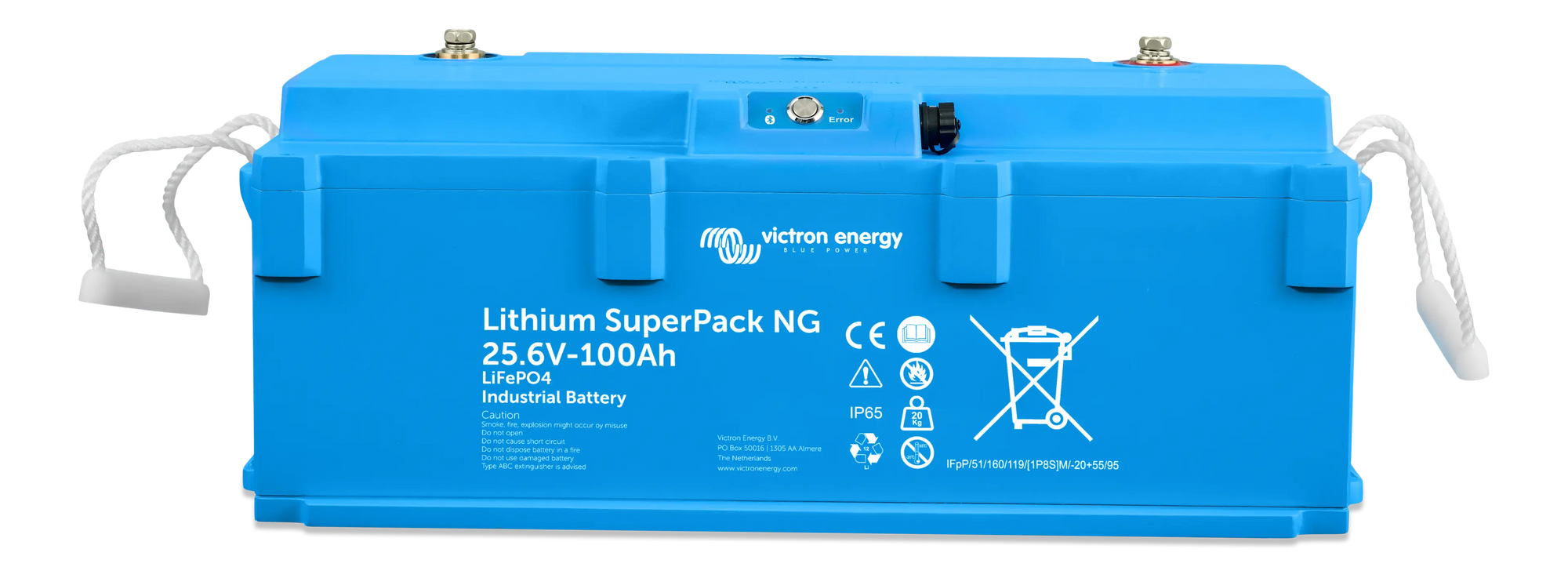

Victron 24V 100Ah SuperPack NG Lithium Battery
Victron 24V 100Ah SuperPack NG Lithium Battery
Next Generation Lithium
Highlights:M8 Terminals: Robust M8 female threaded inserts for secure high-current cable connections,Control Interface: Integrated on/off push button with Bluetooth and error status LED indicators,EFS Connection: External Feedback Signal port for advanced system communication and safety,Rope Handles: Heavy-duty rope handles designed for safe lifting and transport of the 23kg unit,LiFePO4 Chemistry: High-performance Lithium Iron Phosphate technology for industrial-grade reliability.

Key features: Up to 5000 cycles at 50% Depth of Discharge for longevity, Integrated Bluetooth for remote monitoring via the VictronConnect app, Parallel energy expansion support for flexible system scaling, Wide operating temperature range from -30°C to +60°C, IP65 rated enclosure for protection against dust and water ingress.

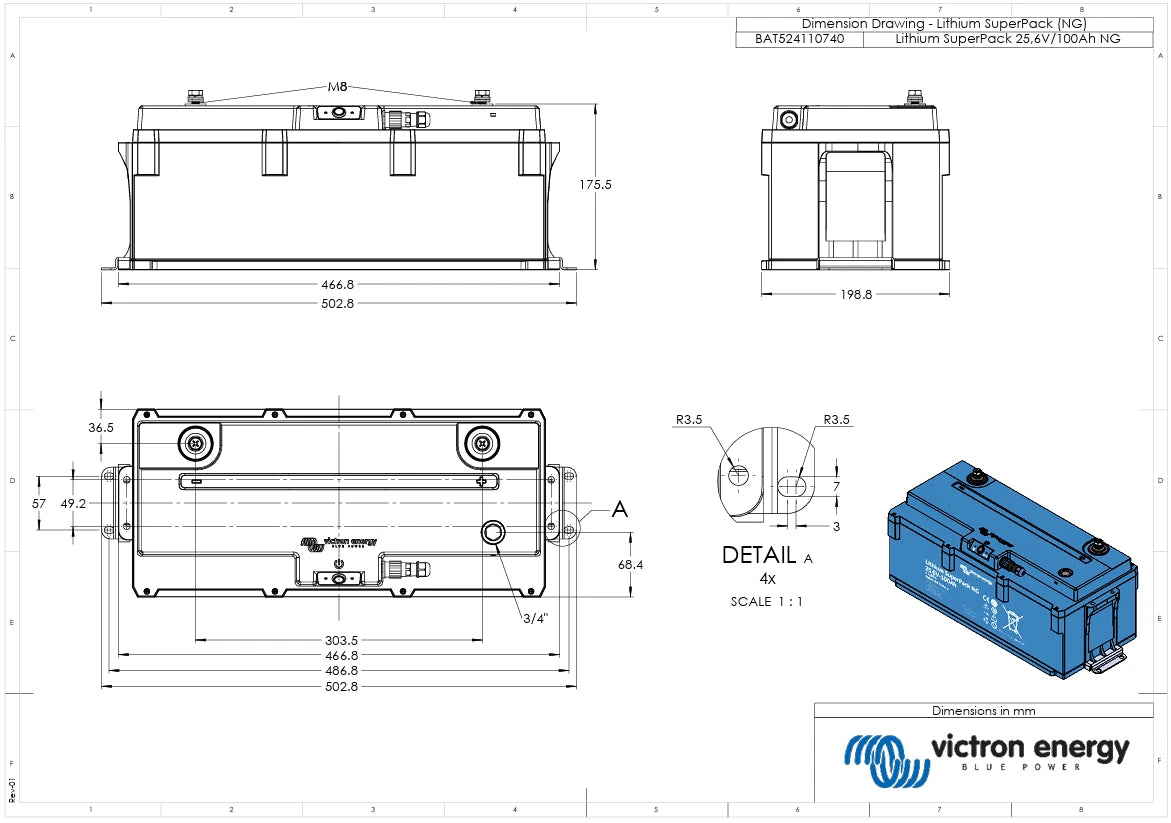

Technical engineering drawing providing exact measurements: 466.8mm length, 198.8mm width, and 175.5mm height, including M8 terminal locations and base footprint details.
DESCRIPTION
Victron Lithium SuperPack 25.6V 100Ah
Efficient Lithium Iron Phosphate (LiFePO₄) Energy Storage
The Victron Lithium SuperPack 25,6V/100Ah is a high-performance LiFePO₄ battery engineered for mobile, off-grid, and industrial energy applications. With a nominal voltage of 25,6V and a capacity of 100Ah, it delivers 2560Wh of energy while maintaining a 93% round-trip efficiency. Its form factor ensures easy installation in RVs, commercial vehicles, marine setups, and industrial systems, offering a compact and reliable alternative to traditional lead-acid batteries.
Advanced Battery Management System (BMS) & Safety
Safety and durability are integral to the Victron Lithium SuperPack:
- Integrated BMS with overvoltage, undervoltage, overcurrent, and temperature protection
- Self-restoring safeguards for short circuits and overcurrent events
- Configurable discharge floor to protect battery life while preserving reserve energy
- External Feedback Signal (EFS) output for system monitoring or triggering alarms and external devices.
These protections make it ideal for high-demand applications in off-grid solar, industrial equipment, and mobile power solutions.
Smart Bluetooth Monitoring & Control
The VictronConnect app allows full control and monitoring:
- Instant readout of voltage, current, state of charge (SoC), battery temperature, and amp-hours consumed
- Push-button On/Off control to safely enable storage mode, minimizing self-discharge to under 3% per month
- LED indicators for Bluetooth connectivity, warnings, alarms, and firmware updates
- EFS connectivity for triggering audible or visible alarms during low SoC or protection events.
This intelligent interface ensures users can monitor battery performance remotely and in real time.
High Performance & Flexible Installation
Designed for demanding systems, the Victron Lithium SuperPack 25,6V/100Ah supports:
- Continuous discharge currents up to 2C (200A peak) and maximum charge currents of 1C (100A)
- Parallel connections for unlimited energy expansion, with total system current limited to safe operation
- Operation in temperatures ranging from -30°C to 60°C, including self-heating for cold-climate charging
- IP65-rated enclosure for dust and water protection, suitable for mobile, off-grid, and industrial environments.
Applications
Ideal for:
- RVs, caravans, and mobile off-grid energy systems
- Marine and boating applications
- Industrial backup power and remote monitoring systems
- Off-grid solar energy storage
- Tiny homes and mobile living setups
Upgrade to the Victron Lithium SuperPack 25.6V 100Ah today for advanced battery management, high-efficiency energy storage, and reliable off-grid power
SKU: VIC-BAT524110740
Visit Victron's Official Victron 24V 100Ah SuperPack NG Lithium Battery Webpage Here

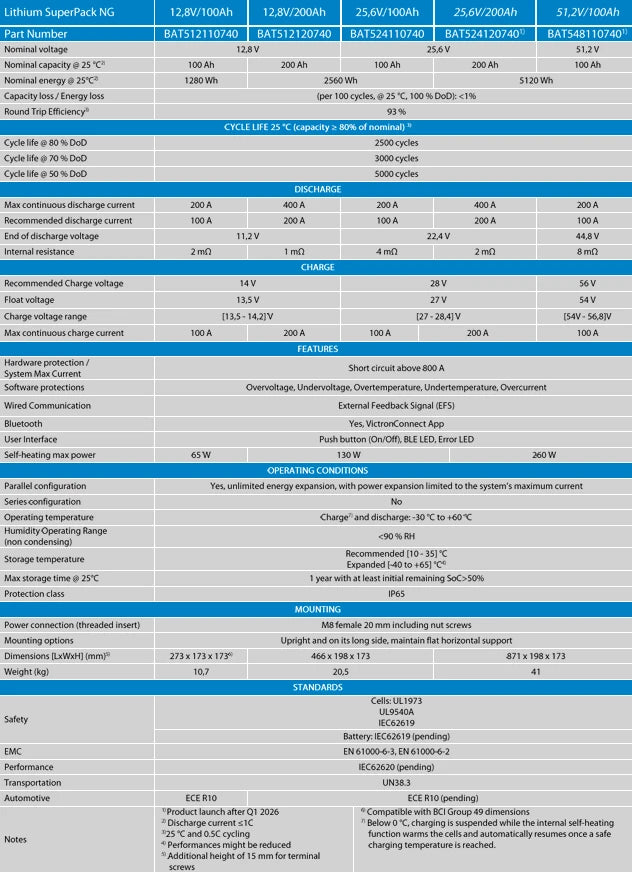

SPECIFICATIONS
Specifications
| Battery Model | SuperPack 25.6V/100Ah NG |
|---|---|
| Part Number | BAT524110740 |
| Nominal Voltage | 25.6 V |
| Nominal Capacity @ 25°C | 100 Ah |
| Nominal Energy @ 25°C | 2560 Wh |
| Capacity Loss | <1% |
| Energy Loss | <1% |
| Round Trip Efficiency | 93% |
| Discharge Current ≤1C | Yes |
| CYCLE LIFE | |
| 80% DoD | 2500 cycles |
| 70% DoD | 3000 cycles |
| 50% DoD | 5000 cycles |
| DISCHARGE | |
| Max Continuous Discharge | 200 A |
| Recommended Discharge Current | 100 A |
| End of Discharge Voltage | 22.4 V |
| Internal Resistance | 4 mΩ |
| CHARGE | |
| Recommended Charge Voltage | 28 V |
| Float Voltage | 27 V |
| Charge Voltage Range | 27 – 28.4 V |
| Max Continuous Charge | 100 A |
| FEATURES | |
| Hardware Protection | Short circuit protection (>800 A) |
| Software Protections | Overvoltage, Undervoltage, Overtemperature, Undertemperature, Overcurrent |
| Wired Communication | External Feedback Signal (EFS) |
| Bluetooth | Yes, via VictronConnect |
| User Interface | Push button (On/Off), BLE LED, Error LED |
| Self-heating Max Power | 65 W |
| OPERATING CONDITIONS | |
| Parallel Configuration | Yes (unlimited energy expansion, system current limits apply) |
| Series Configuration | No |
| Operating Temperature | Charge & Discharge: -30°C to +60°C |
| Humidity (non-condensing) | <90% RH |
| Storage Temperature | Recommended 10°C – 35°C (Expanded -40°C to +65°C) |
| Max Storage Time @ 25°C | 1 year (with SoC >50%) |
| Protection Class | IP65 |
| MOUNTING | |
| Power Connection | M8 threaded inserts |
| Mounting Options | Upright or on its long side (flat horizontal support required) |
| Dimensions (L x W x H) mm | 345 x 173 x 240 |
| Weight | 23 kg |
| STANDARDS | |
| Safety | Cells: UL1973, UL9540A, IEC62619 (pending) |
| EMC | EN 61000-6-3, EN 61000-6-2 |
| Performance | IEC62620 (pending) |
| Transportation | UN38.3 |
| Automotive | ECE R10 (pending) |
| SKU: | VIC-BAT524110740 |
| Barcode: | 8719076073765 |
| Model #: | BAT524110740 |
| MPN: | BAT524110740 |
