Victron 12/24/48V 60A SmartSolar MPPT 150/60-Tr Bluetooth Solar Charge Controller

Smart programmable high efficiency ultra-fast MPPT


Front view of Victron SmartSolar MPPT 150/60-Tr charge controller with status LEDs and terminal coverHighlights:Display Option Port: Removable cover for the optional SmartSolar Control plug-in display,MPPT 150/60: 150V maximum solar input and 60A maximum charge current rating,Status Indicators: LEDs indicating Bulk, Absorption, and Float charging stages,Terminal Cover: Protective cover for solar and battery screw terminals,Control Interfaces: Connection points for remote on/off and programmable relay,Mounting Bracket: Heavy-duty black mounting bracket with multiple securing points.Angled view of SmartSolar MPPT 150/60-Tr showing cooling fins and connection portsKey features: Integrated Bluetooth Smart for wireless monitoring and setup, Passive cooling with large external aluminium heat sink fins, Internal protection against over-temperature and short circuits, High-efficiency MPPT tracking with 98% maximum efficiency, Suitable for 12V, 24V, and 48V battery systems.Front-left angle of the Victron MPPT charge controller showing the VE.Direct portClose-up of the SmartSolar MPPT 150/60-Tr connection area and terminal blocksRobust 35mm² screw terminals provide secure connections for PV and battery wiring on the Tr model solar controller.Bottom view focusing on the aluminium heat sink of the solar charge controllerThe large aluminium heat sink allows for full rated 60A output in ambient temperatures up to 40°C through natural convection.Smartphone displaying the VictronConnect app with real-time solar and battery statusTechnical specification sheet for SmartSolar MPPT 150/60 and 150/70 modelsDimensional technical drawing of the SmartSolar MPPT 150/60-Tr in millimetres

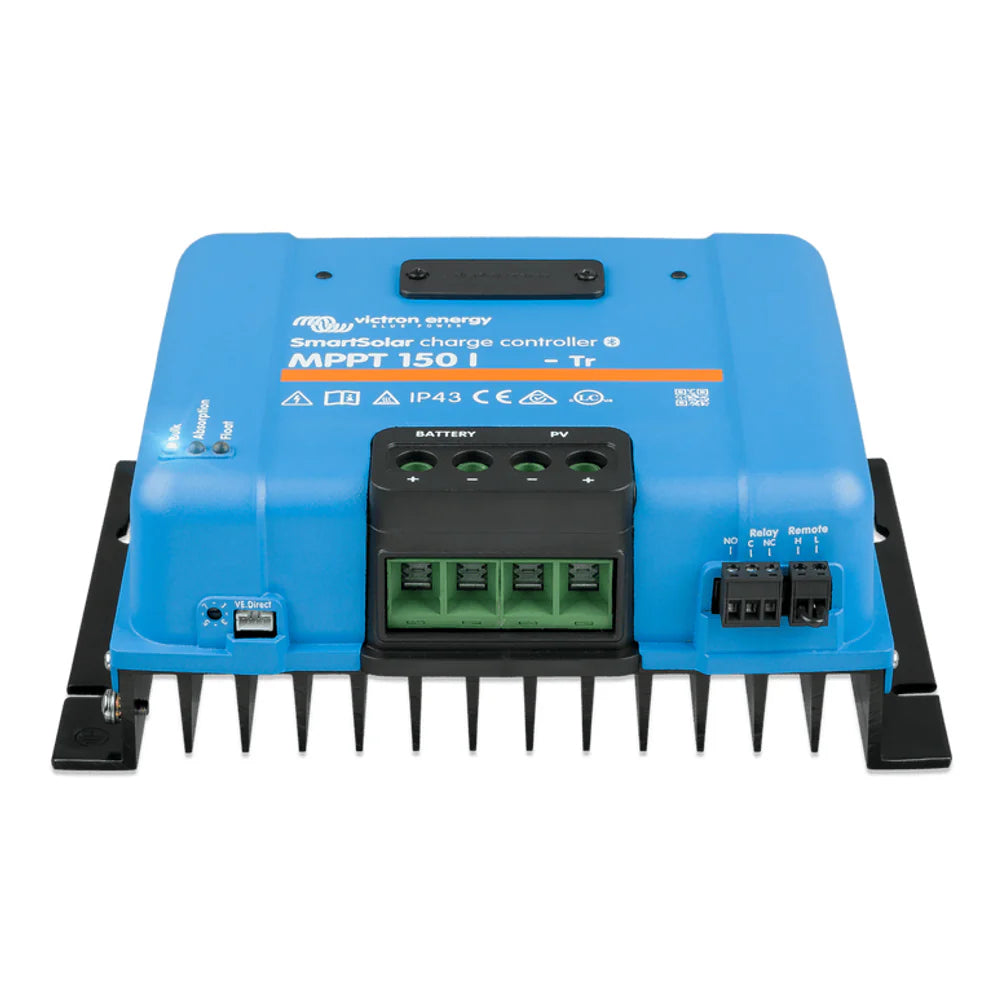

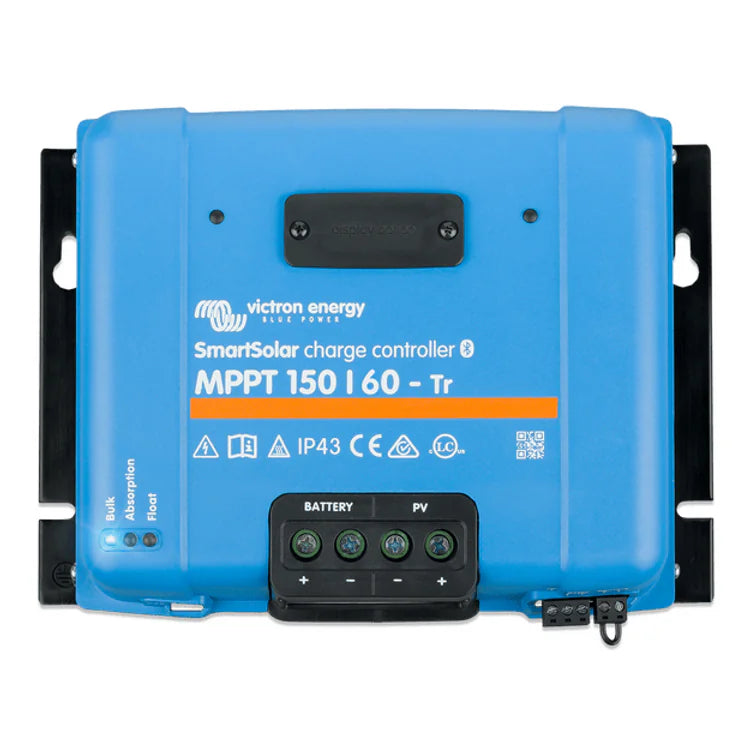

Front view of Victron SmartSolar MPPT 150/60-Tr charge controller with status LEDs and terminal cover

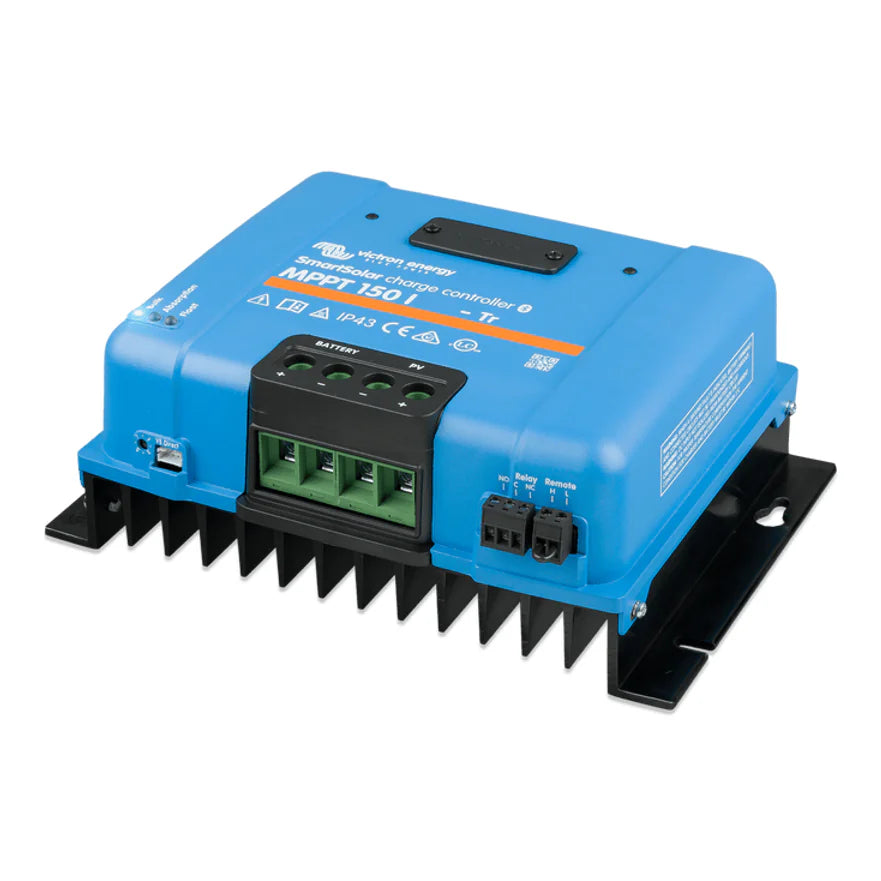

Angled view of SmartSolar MPPT 150/60-Tr showing cooling fins and connection ports

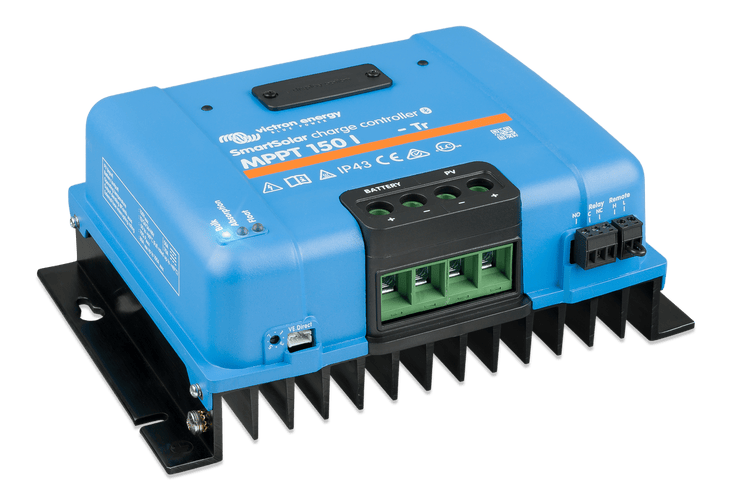

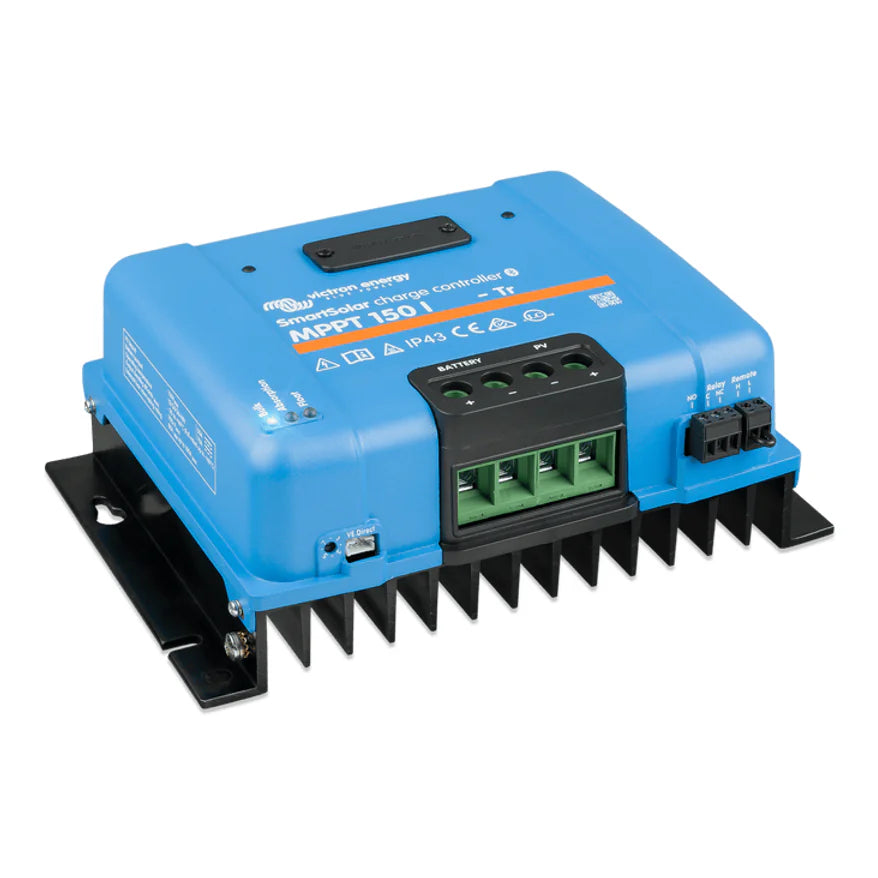

Front-left angle of the Victron MPPT charge controller showing the VE.Direct port
Close-up of the SmartSolar MPPT 150/60-Tr connection area and terminal blocks

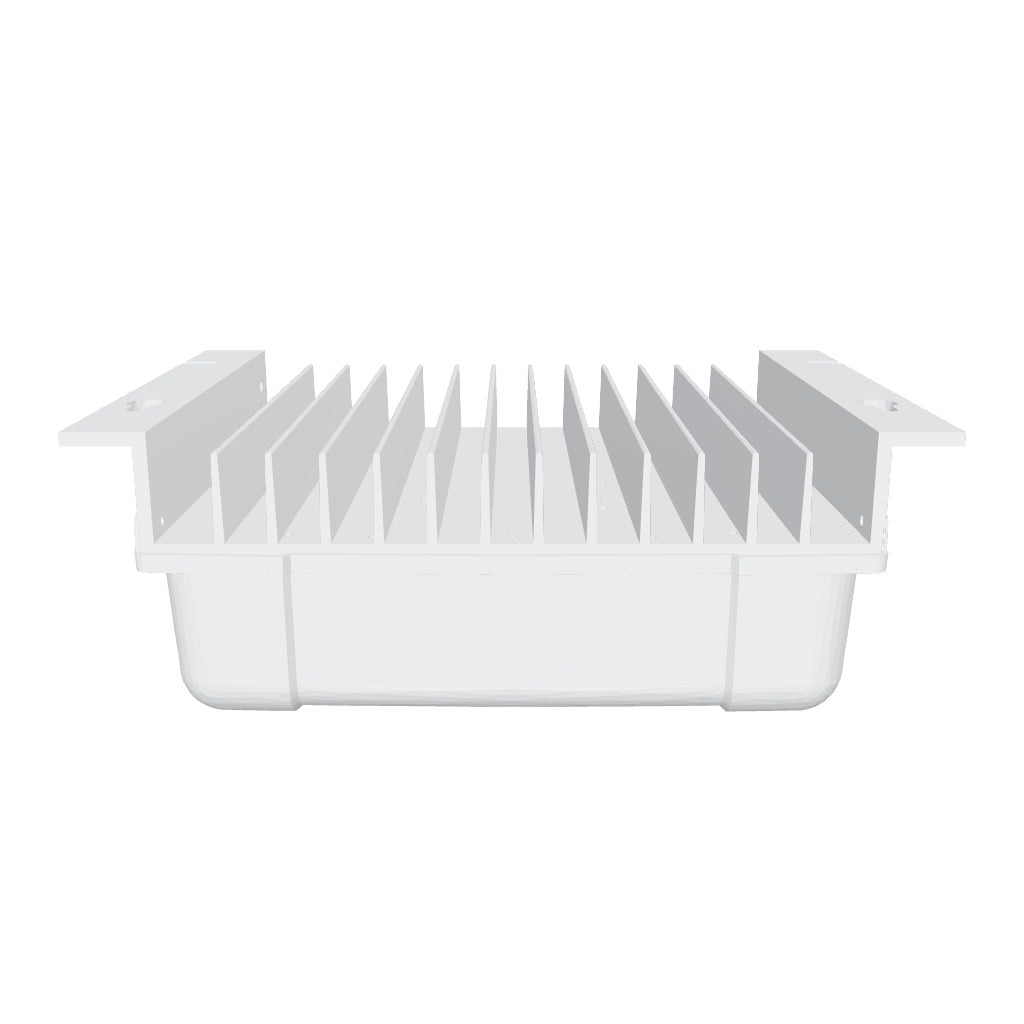

Bottom view focusing on the aluminium heat sink of the solar charge controller

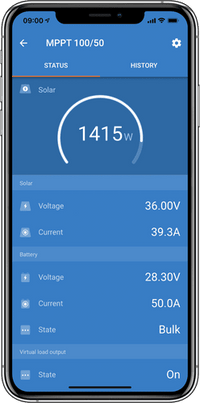

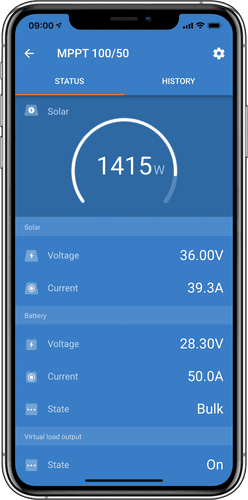

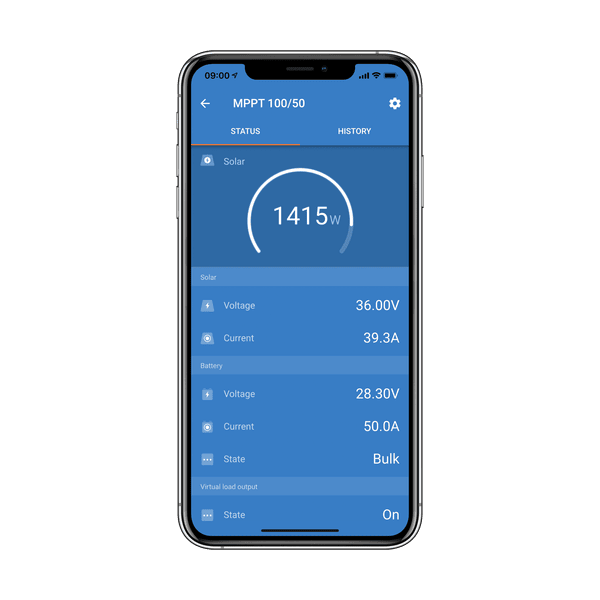

Smartphone displaying the VictronConnect app with real-time solar and battery status
Technical specification sheet for SmartSolar MPPT 150/60 and 150/70 models

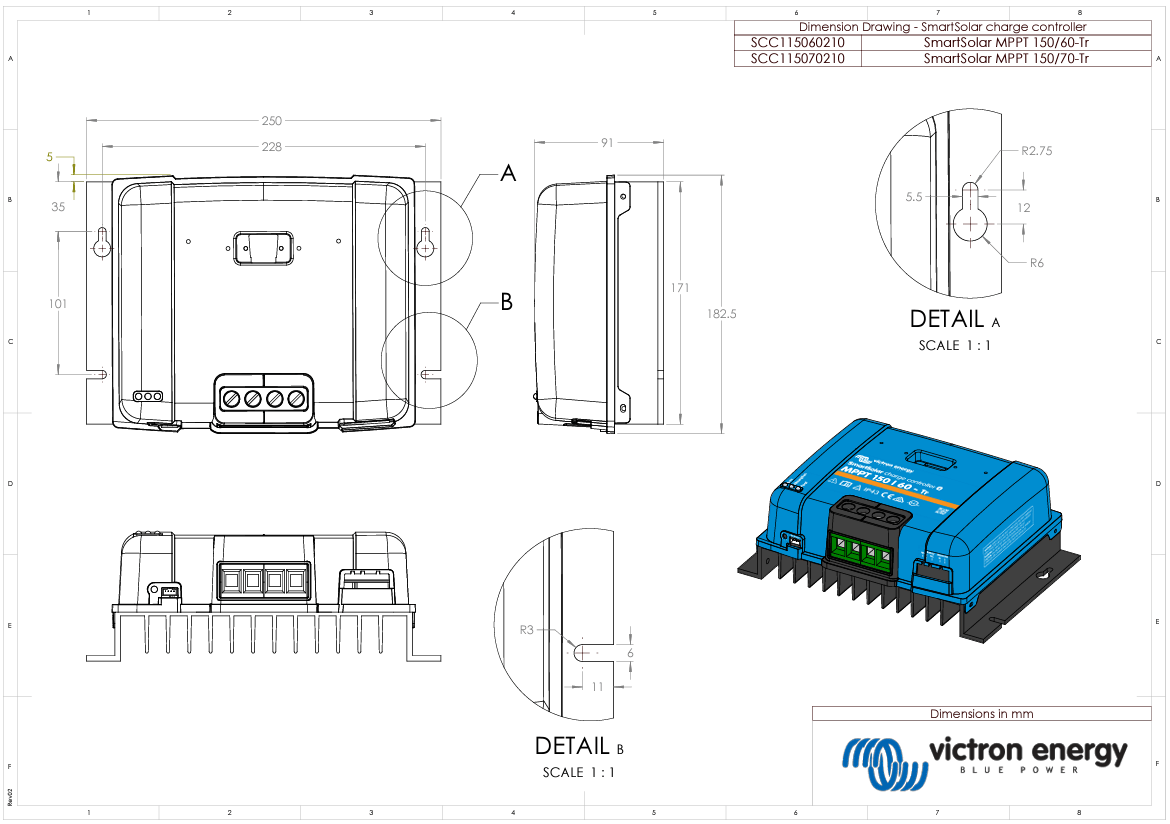

Dimensional technical drawing of the SmartSolar MPPT 150/60-Tr in millimetres
Regular price $503.86
$662.20
/
Availability: In Stock
View all products from Victron
Guaranteed Safe and Secure Checkout
American Express Apple Pay Google Pay MastercardPayPalShop Pay Union PayVisa

4
Front view of Victron SmartSolar MPPT 150/60-Tr charge controller with status LEDs and terminal cover

Victron 12/24/48V 60A SmartSolar MPPT 150/60-Tr Bluetooth Solar Charge Controller

DESCRIPTION

Optimize Your Solar System with Victron SmartSolar MPPT 150/60-Tr (12/24/48V-70A) Bluetooth Solar Charge Controller

Elevate your solar energy efficiency with the Victron SmartSolar MPPT 150/60-Tr Bluetooth Solar Charge Controller. Engineered for peak performance, this controller is equipped with standard terminal connections, allowing for flexible and straightforward solar panel integration. This design ensures your batteries are charged efficiently, safely, and swiftly. Perfect for a wide range of applications, the SmartSolar MPPT maximizes solar energy harvesting, driving intelligent energy management to achieve full charge in the shortest possible time while maintaining battery health and extending its lifespan.

Key Features:

  • Bluetooth Smart Integration: Wirelessly set up, monitor, update, and synchronize your SmartSolar Charge Controllers, ensuring your system is always running at its best.
  • Ultra-Fast Maximum Power Point Tracking (MPPT): With the capability to improve energy harvest by up to 30% compared to PWM charge controllers and by 10% over slower MPPT controllers, the SmartSolar controller adapts quickly to changing light conditions, maximizing energy collection.
  • Advanced MPP Detection in Partial Shading: Unlike conventional MPPTs that may settle for a less optimal MPP, the SmartSolar's innovative algorithm ensures the maximum energy harvest by locking onto the best MPP, even in partially shaded conditions.
  • Exceptional Conversion Efficiency: Operate more efficiently with no need for a cooling fan. Enjoy maximum efficiency that exceeds 98%, reducing energy waste.
  • Flexible Charging Algorithm: Tailor charging to your needs with a fully programmable charge algorithm available on our website, or choose from eight pre-programmed algorithms via a rotary switch.
  • Comprehensive Electronic Protection: Benefit from over-temperature protection, PV short circuit, PV reverse polarity, and PV reverse current protection, safeguarding your system.
  • Internal Temperature Sensor: Automatically adjusts charge voltage based on temperature, ensuring optimal charging and protecting battery health.

Ideal Applications:

The Victron SmartSolar MPPT is expertly designed for a variety of applications where its features and capabilities are most beneficial:

  • RVs and Caravans: Keep your adventures powered with efficient solar charging. This charge controller is perfect for ensuring your vehicle's batteries are fully charged, allowing you to enjoy the comforts of home while on the move.
  • Marine Vessels: Sail the seas with confidence knowing your batteries are efficiently managed. Ideal for boats and yachts, this controller withstands the marine environment and ensures your navigation and communication systems stay powered.
  • Agricultural Projects: Automate and power remote irrigation systems, farm lighting, and essential agricultural operations with sustainable solar energy. This controller helps reduce operational costs and supports eco-friendly farming practices.
  • Off-Grid Living: For cabins, remote homes, or any off-grid setup, the SmartSolar MPPT controller maximizes solar energy harvest, ensuring reliable power where traditional electricity is unavailable. It's essential for maintaining energy independence in remote locations.

Recovery and Connectivity:

  • Recovery of Fully Discharged Batteries: Capable of initiating charging with zero-volt batteries and reconnecting to fully discharged Li-ion batteries with an integrated disconnect function.
  • Synchronized Charging: Connect up to 10 units via Bluetooth for synchronized parallel charging, suitable for larger or expanding systems.
  • VE.Direct & Remote Options: Wired connectivity to Victron devices and remote on-off capabilities enhance system flexibility and control.

Enhancements:

  • Programmable Relay: Customizable for alarms or specific events, adding an extra layer of system management.
  • Optional LCD Display: For detailed real-time monitoring and adjustments, enhancing user interaction and control.
  • Optional External Sensing: Enhance accuracy with optional external battery voltage, temperature, and current sensing via Bluetooth, compatible with Smart Battery Sense, BMV-712 Smart Battery Monitor, or a SmartShunt.

Transform your solar energy system with the Victron SmartSolar MPPT 150/60-Tr. Its advanced technology and versatile applications make it a superior choice for optimizing solar energy harvesting and management.

SPECIFICATIONS

Specifications

SmartSolar Charge Controller 150/60
Battery voltage 12 / 24 / 48 V Auto Select (software tool needed to select 36 V)
Rated charge current 60 A
Nominal PV power, 12 V 1a,b) 860 W
Nominal PV power, 24 V 1a,b) 1720 W
Nominal PV power, 36 V 1a,b) 2580 W
Nominal PV power, 48 V 1a,b) 3440 W
Max. PV short circuit current 2) 50 A (max 30 A per MC4 conn.)
Maximum PV open circuit voltage 150 V absolute maximum coldest conditions 145 V start-up and operating maximum
Maximum efficiency 98 %
Self-consumption Less than 35mA @ 12 V / 20mA @ 48 V
Charge voltage 'absorption' Default setting: 14.4 / 28.8 / 43.2 / 57.6 V (adjustable with: rotary switch, display, VE.Direct or Bluetooth)
Charge voltage 'float' Default setting: 13.8 / 27.6 / 41.4 / 55.2 V (adjustable: rotary switch, display, VE.Direct or Bluetooth)
Charge voltage 'equalization' Default setting: 16.2 V / 32.4 V / 48.6 V / 64.8 V (adjustable)
Charge algorithm Multi-stage adaptive (eight pre-programmed algorithms) or user defined algorithm
Temperature compensation -16 mV / -32 mV / -64 mV / °C
Protection PV reverse polarity / Output short circuit / Over temperature
Operating temperature -30 to +60 °C (full rated output up to 40 °C)
Humidity 95 %, non-condensing
Maximum altitude 5000m (full rated output up to 2000m)
Environmental condition Indoor, unconditioned
Pollution degree PD3
Data communication port VE.Direct or Bluetooth
Remote on/off Yes (2 pole connector)
Programmable relay DPST AC rating: 240 VAC / 4 A DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC
Parallel operation Yes: up to 10 units can be synchronized with Bluetooth
ENCLOSURE
Colour Blue (RAL 5012)
PV terminals 3) 35 mm² / AWG2 (Tr models) Two pairs of MC4 connectors (MC4 models)
Battery terminals 35 mm² / AWG2
Protection category IP43 (electronic components), IP22 (connection area)
Weight 3 kg
Dimensions (h x w x d) Tr models: 185 x 250 x 95 mm MC4 models: 215 x 250 x 95 mm
STANDARDS
Safety EN/IEC 62109-1, UL 1741, CSA C22.2
STORED TRENDS
Data stored Battery voltage, current and temperature, as well as load output current, PV voltage and PV current.
Number of days trends data is stored 46

1a) If more PV power is connected, the controller will limit input power. 1b) The PV voltage must exceed Vbat + 5 V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1 V. 2) A PV array with a higher short circuit current may damage the controller. 3) MC4 models: several splitter pairs may be needed to parallel the strings of solar panels Maximum current per MC4 connector: 30 A (the MC4 connectors are parallel connected to one MPPT tracker)


SKU: VIC-SCC115060211
Barcode: 8719076051381
Model #: SCC115060211
MPN: SCC115060211

WARRANTY

Victron Energy Limited Warranty Policy

Direct Customers

Victron Energy provides the following warranty to any direct customer (OEM, distributor or dealer) in relation to any products that Victron Energy has directly sold to the direct customer. This warranty is not an end-user warranty between Victron Energy and an end-user, and end-users shall not have any rights or remedies under this limited warranty towards Victron Energy directly. The direct customer shall, in turn, ensure that the end-user is provided with a warranty identical to this warranty, subject to applicable local mandatory law.

End-Users

Victron Energy may also provide a warranty directly to end-users, in which case the below warranty conditions equally apply to such warranty. In that case, end-users shall claim their warranty at their place of purchase or through the original direct customer of Victron, which can be found through the support section on Victron’s website https://www.victronenergy.com/support. Hence, the direct customer shall on behalf of Victron Energy deal with any warranty claims made under any warranty that Victron Energy may provide directly to end-users. This support section on Victron’s website https://www.victronenergy.com/support will provide further guidance on the procedure for end-users to make a claim under this limited warranty.

If the end-user is a consumer – a natural person who is acting for purposes which are outside that person's trade, business, craft or profession – the following applies. The rights and remedies granted to the consumer under this limited warranty are without prejudice to the consumer’s statutory rights. Furthermore, the consumer is entitled by law to remedies from the seller free of charge in the event of a lack of conformity of the goods (such as repair, replacement, price reduction or rescission), which remedies are not affected by this limited warranty.

Warranty

Victron Energy warrants its products to be free from defects in workmanship and materials for a period of 5 years from the date of purchase by the original end-user, with a maximum of 66 months from the Victron Energy invoice date. Exceptions on this are: lead-acid batteries: 2 years from date of purchase by the original end-user, with a maximum of 30 months from the Victron Energy invoice date, Lithium batteries: 3 years from date of purchase by the original end-user, with a maximum of 42 months from the Victron Energy invoice date. In addition to this, proof of correct battery usage is required when making a battery warranty claim.

For a 10% surcharge on the current net price for products that came with a 5-year warranty, an additional 5 years of warranty can be purchased by Victron’s direct customers, bringing the total warranty to 10 years. Warranty extensions need to be applied for ultimately one year before the expiration of the original term. Victron may ask proof that the product was still functional at the time of purchase of the extended warranty.

During the warranty period, Victron Energy will, at its discretion, repair, replace or (partly) credit the defective product free of charge. The warranty does not include performing or reimbursing de‐installation, transportation, and re‐installation.

This warranty will be considered void if the unit has suffered any physical damage or alteration, either internally or externally, and does not cover damages arising from improper use like:

  • Reversed battery polarity.
  • Inadequate connection.
  • Mechanical shock or deformation.
  • Contact with liquid or oxidation by condensation.
  • Use in an inappropriate environment (dust, corrosive vapour, humidity, high temperature, biological infestation, etc.).
  • Breakage or damage due to lightning.
  • Connection terminals and screws destroyed or other damages, like overheating, due to insufficient tightening.
  • For any electronic breakage except due to lightning (reverse polarity, over‐voltage due to external cause), the state of the internal control diode and/or the input/output X and Y capacitors determine the warranty.

This warranty will not apply where the product has been misused, neglected, improperly installed, or repaired by anyone other than Victron Energy or one of its authorized Repair Centres. In order to qualify for the warranty, the product must not be disassembled or modified.

This warranty and our warranty obligations thereunder (repair, replacement or credit) are the direct customer’s and, if applicable, the end-user’s sole rights and remedies and our sole obligations with respect to any defective and/or non-conforming product or breach of warranty and is subject to and without prejudice to the limitations of liability in this warranty.

Victron Energy shall not be liable for damages, whether direct, incidental, special, or consequential, even caused by negligence or fault.

As a product requires service, it must be brought back to the place of purchase. In case no contact can be made with the merchant, or if he is either unable or not allowed to provide service, direct contact should be made with Victron Energy through the support section on Victron’s website.

In case Victron Energy replaces a product, it will own the replaced product. Victron Energy owns all parts removed from repaired products. Victron Energy uses new or reconditioned parts made by various manufacturers when performing warranty repairs or building replacement products.

If Victron Energy repairs or replaces a part of a product, its warranty term is not extended: the warranty will apply for the remaining term of the original warranty term. For example, if Victron Energy replaces a product with a 5-year warranty after 3 years, the warranty of this product will apply for another 2 years, with a minimum of 6 months.

All remedies and the measure for damages are limited to the above. Victron Energy shall in no event be liable for consequential, incidental, contingent or special damages, even if having been advised of the probability of such damages.

The foregoing limited warranty provided by Victron Energy is in lieu of any other warranties, express or implied arising by law, course of dealing, course of performance, usage of trade or otherwise, of any kind whatsoever including, without limitation, warranties of merchantability or fitness for a particular purpose, with respect to any product. The above is without prejudice to the arrangement for consumers detailed above.

Life Support Policy

As a general policy, Victron Energy does not recommend the use of any of its products in life support applications where failure or malfunction of Victron Energy's product can be reasonably expected to cause the failure of the life support device or to significantly affect its safety or effectiveness. Victron Energy does not recommend the use of any of its products in direct patient care. Victron Energy will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to Victron Energy that the risks of injury or damage have been minimized, the customer assumes all such risks, and the liability of Victron Energy is adequately protected under the circumstances.

Warranty on repairs for products outside their warranty period

The warranty period on products that are outside their warranty period and have been repaired by Victron Energy or one of the Victron Energy Repair centres is six (6) months from delivery. The same applies to spare parts and circuit boards that have been supplied or repaired by Victron Energy.

Transport

It is the responsibility of the sender to sufficiently package these products. The transport must be organized in a way to avoid any damage, especially when a single unit or heavy unit is sent.

Severability

If a part of the terms and conditions of this warranty is held invalid, void or unenforceable due to any particular national or international legislation, it shall not affect other parts of the terms and conditions of this warranty.

Applicable law

This warranty is exclusively governed by the laws of the Netherlands, to the exclusion of the UN Convention on Contracts for the International Sale of Goods.

Contact details

Victron Energy B.V. | De Paal 35, 1351 JG Almere, The Netherlands | https://www.victronenergy.com/support
