Victron 12/24/48V 45A SmartSolar MPPT 150/45-Tr Bluetooth Solar Charge Controller
Victron 12/24/48V 45A SmartSolar MPPT 150/45-Tr Bluetooth Solar Charge Controller
Smart programmable high efficiency ultra-fast MPPT

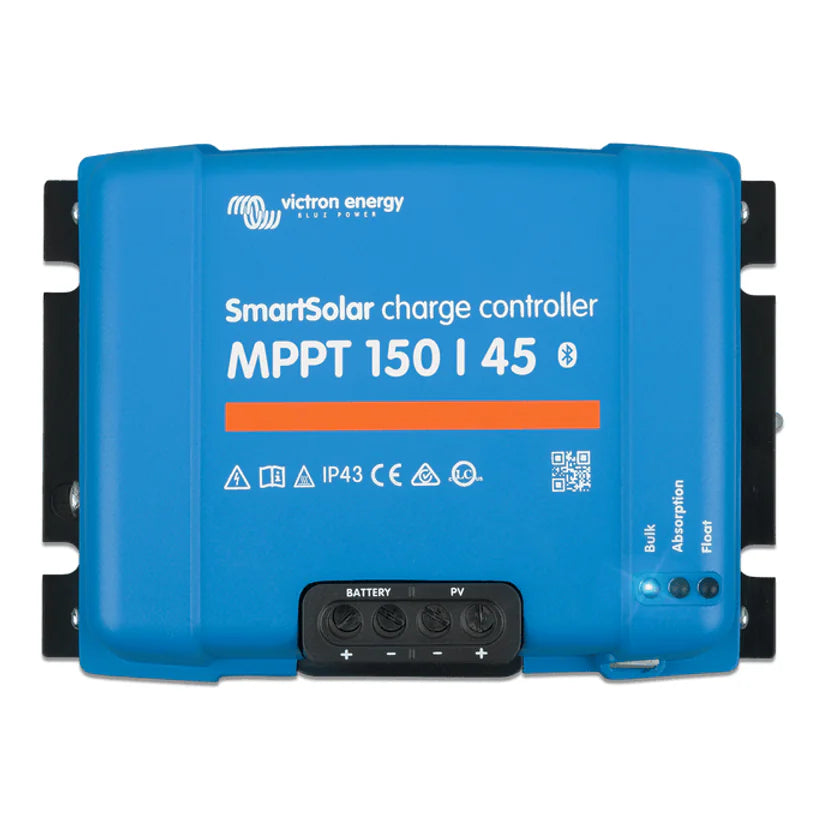

Highlights:Integrated Bluetooth: Allows for wireless configuration and monitoring via the VictronConnect app,Status Indicators: LEDs indicating Bulk, Absorption, and Float charging states,Screw Terminals: Secure connection points for battery and PV inputs,QR Code: Quick link to product manuals and software downloads,Brand Identification: Genuine Victron Energy SmartSolar product branding.

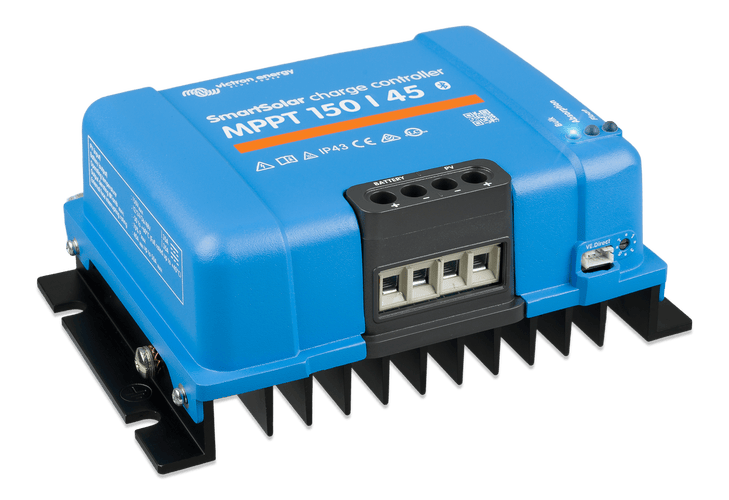

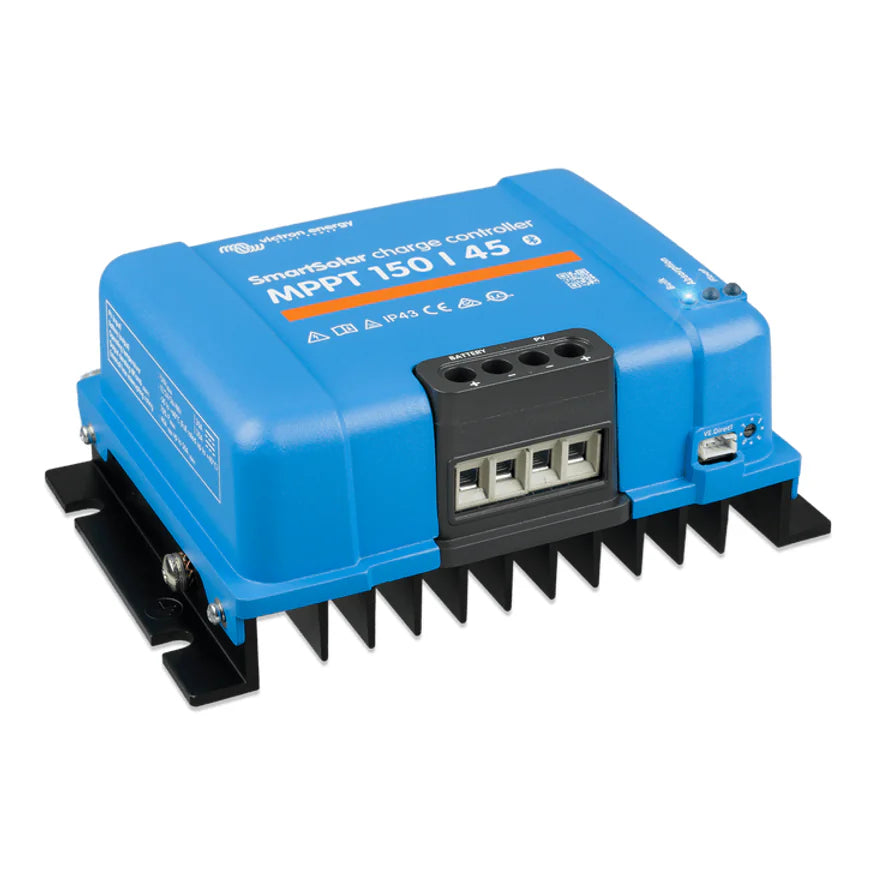

Key features: Ultra-fast Maximum Power Point Tracking (MPPT), Robust integrated aluminium heatsink for efficient cooling, IP43 protection for electronic components, Fully programmable battery charge algorithm.

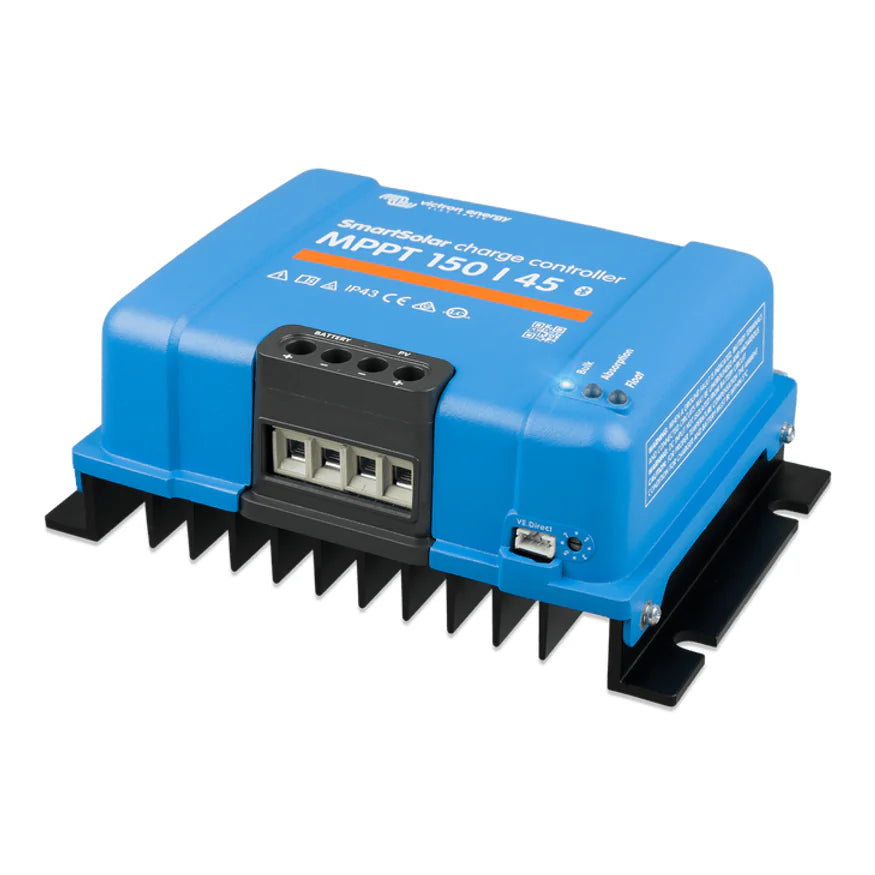

The bottom panel provides easy access to high-capacity screw terminals for solar and battery wiring, alongside a VE.Direct port for professional system monitoring.


DESCRIPTION
Victron SmartSolar MPPT 150/45 Bluetooth Solar Charge Controller: Optimize Your Solar Energy Harvesting
Maximize Solar Efficiency with Bluetooth-Enabled SmartSolar Technology
Discover the cutting-edge Victron SmartSolar MPPT 150/45 (12/24/48V-45A) Solar Charge Controller, designed to significantly enhance your solar panel's energy conversion. With Bluetooth Smart technology built-in, this advanced controller offers a seamless, wireless solution to configure, monitor, update, and synchronize your SmartSolar Charge Controllers effortlessly.
VE.Direct Connection: Wired Data Integration
For those who prefer a direct connection, the VE.Direct port allows for a reliable wired data connection to a Color Control GX, other GX devices, PCs, or compatible devices, ensuring your solar system's performance data is always at your fingertips.
Ultrafast MPPT for Superior Energy Harvest
Experience up to 30% more energy harvest with our ultrafast Maximum Power Point Tracking (MPPT) technology, especially under rapidly changing light conditions. Unlike PWM charge controllers, our MPPT technology adapts quickly, ensuring maximum efficiency and performance from your solar array.
Advanced MPPT for Partial Shading Conditions
The Victron SmartSolar controller excels in environments with partial shading. Traditional MPPTs may settle for less efficient power points; our SmartSolar controller utilizes an innovative algorithm to identify and lock onto the optimal power point, ensuring maximum energy harvest even in challenging conditions.
Exceptional Conversion Efficiency Without the Need for Cooling Fans
Achieve outstanding conversion efficiency exceeding 98%, with the full output current available up to 40°C (104°F) without the need for cooling fans. This not only enhances performance but also ensures silent operation.
Customizable and Flexible Charging Algorithms
Tailor your charging strategy with our fully programmable charge algorithm (accessible via our software page) or select from eight pre-programmed algorithms via a rotary switch. Adapt your solar charging to meet specific battery requirements, optimizing for longevity and performance.
Comprehensive Electronic Protection
Our SmartSolar controller comes equipped with extensive electronic protections, including over-temperature protection, power derating, PV short circuit, PV reverse polarity, and PV reverse current protections, safeguarding your investment.
Temperature-Compensated Charging
An internal temperature sensor adjusts charging voltages for temperature, ensuring optimal charge regardless of environmental conditions. For enhanced accuracy, connect a Smart Battery Sense or a BMV-712 Smart Battery Monitor (purchased separately) via Bluetooth to relay precise battery voltage and temperature readings.
Versatile Applications of the Victron SmartSolar MPPT Charge Controller
The Victron SmartSolar MPPT 150/35 Charge Controller is not only advanced in technology but also incredibly versatile, making it the perfect choice for a wide range of applications:
- Caravan and RVs: Ensure your adventures are powered sustainably with efficient solar charging, keeping your batteries charged and ready for your next destination.
- Marine: Ideal for sailing and boating enthusiasts, this charge controller withstands harsh marine environments, providing reliable solar charging for your vessel's batteries.
- Off-Grid Living: For cabins, remote homes, or any off-grid setup, the SmartSolar MPPT controller maximizes solar energy harvest, ensuring reliable power where grid electricity is unavailable.
- Agricultural Projects: Power remote irrigation systems, farm lighting, and more with solar energy, reducing operational costs and promoting sustainability.
- Remote Telecommunications: Keep communication lines up and running in isolated locations with dependable solar charging for off-grid telecom equipment.
- Outdoor and Emergency Power Systems: Essential for powering remote monitoring stations, emergency medical clinics, and critical outdoor equipment in areas without conventional power sources.
Optimize Your Solar Setup with Victron SmartSolar
Elevate your solar energy system with the Victron SmartSolar MPPT 150/45 Bluetooth Solar Charge Controller. Its advanced features, efficiency, and smart connectivity options make it the ideal choice for maximizing your solar investment.
SPECIFICATIONS
Specifications
| SmartSolar Charge Controller | MPPT 150/45 |
| Battery voltage | 12 / 24 / 48 V Auto Select (software tool needed to select 36 V) |
| Rated charge current | 45 A |
| Nominal PV power 1a, b) | 12 V: 650 W / 24 V: 1300 W / 36 V: 1950 W / 48 V: 2600 W |
| Max. PV short circuit current 2) | 50 A |
| Maximum PV open circuit voltage | 150 V absolute maximum coldest conditions 145 V start-up and operating maximum |
| Maximum efficiency | 98 % |
| Self-consumption | 12 V: 20 mA 24 V: 15 mA 48 V: 10 mA |
| Charge voltage 'absorption' | Default setting: 14.4 / 28.8 / 43.2 / 57.6 V (adjustable) |
| Charge voltage 'float' | Default setting: 13.8 / 27.6 / 41.4 / 55.2 V (adjustable) |
| Charge algorithm | multi-stage adaptive (eight pre-programmed algorithms) |
| Temperature compensation | -16 mV / -32 mV / -64 mV / °C |
| Protection | PV reverse polarity / output short circuit / over-temperature |
| Operating temperature | -30 to +60°C (full rated output up to 40°C) |
| Humidity | 95 %, non-condensing |
| Data communication port | VE.Direct See the data communication white paper on our website |
| ENCLOSURE | |
| Colour | Blue (RAL 5012) |
| Power terminals | 16 mm² / AWG6 |
| Protection category | IP43 (electronic components), IP22 (connection area) |
| Weight | 1.25 kg |

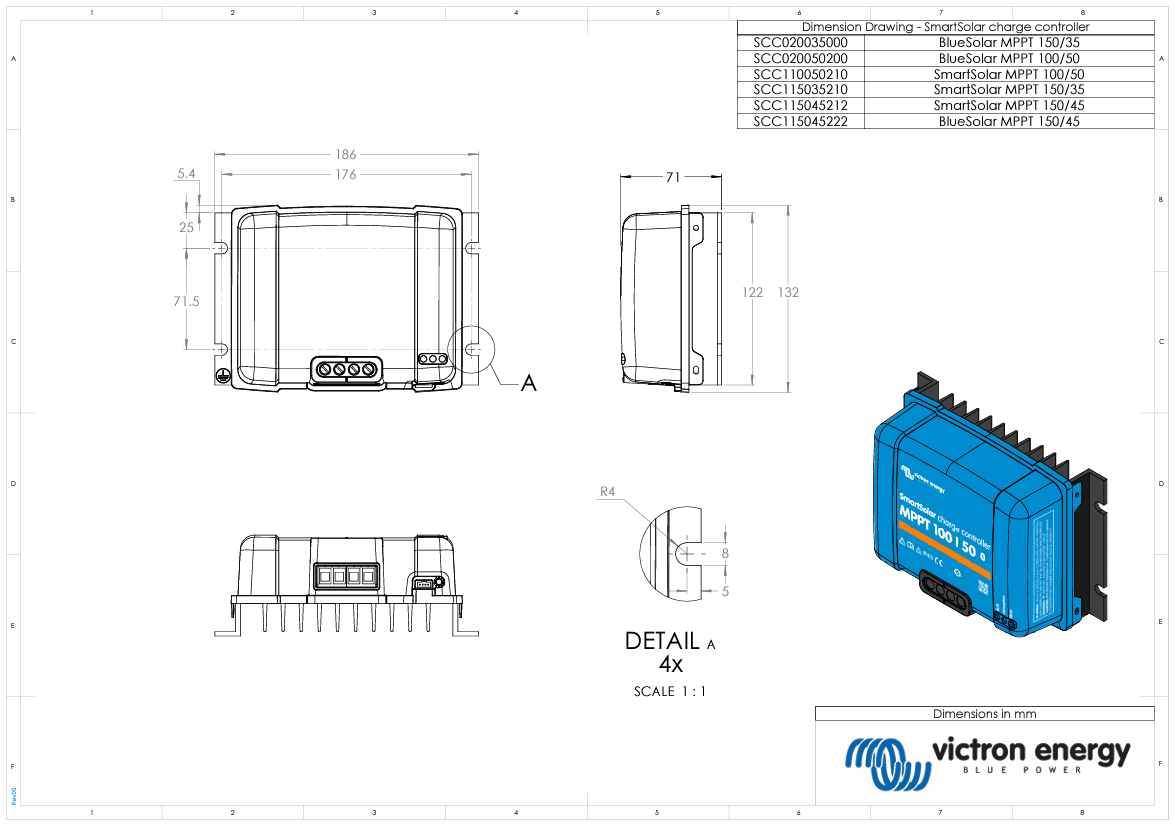

| Dimensions (h x w x d) | 130 x 186 x 70 mm |
| STANDARDS | |
| Safety | EN/IEC 62109-1, UL 1741, CSA C22.2 |
| STORED TRENDS | |
| Data stored | Battery voltage,current and temperature, as well as load output current, PV voltage and PV current. |
| Number of days trends data is stored | 46 |
1a) If more PV power is connected, the controller will limit input power. 1b) The PV voltage must exceed Vbat + 5 V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1 V. 2) A PV array with a higher short circuit current may damage the controller.
| SKU: | VIC-SCC115045212 |
| Barcode: | 8719076053026 |
| Model #: | SCC115045212 |
| MPN: | SCC115045212 |
