Victron Smart BMS 12/200
Victron Smart BMS 12/200
200A System+ Port, Alternator Protection, Bluetooth Monitoring
DESCRIPTION
Victron Smart BMS 12/200: Intelligent Battery Management for Victron LiFePO4 Systems
Advanced Protection and Control for 12.8V Lithium Battery Banks
The Victron Smart BMS 12/200 is a sophisticated battery management system engineered to safeguard and optimise Victron LiFePO4 (LFP) batteries in 12V setups. Designed for demanding mobile and off-grid applications, it integrates alternator charging, load disconnect, and system monitoring into a single compact unit. By actively preventing cell damage from over-voltage, under-voltage, and over-temperature, this smart BMS extends battery lifespan and ensures reliable performance in caravans, marine vessels, and remote power systems.
Unlike generic BMS solutions, the Victron Smart BMS 12/200 offers seamless communication with Victron batteries via built-in Bluetooth, enabling real-time monitoring and configuration through the VictronConnect app. Its MOSFET-based switching eliminates mechanical relays, providing spark-free operation and enhanced durability—critical for installations in ignition-protected environments.
Key Features
- Alternator and Starter Battery Protection: Limits input current to approximately 90% of the fuse rating (e.g., a 100A fuse restricts current to ~90A), safeguarding both the alternator and LFP battery from overload. Prevents reverse current flow from the LFP battery to the starter battery, avoiding deep discharge damage.
- System+ Port (200A Continuous): A bidirectional power port supporting up to 200A charge/discharge, ideal for inverters, chargers, or direct DC loads. Features short-circuit protection with a 400A peak discharge capability.
- Load and Charge Disconnect Outputs: Automatically disconnects loads on cell under-voltage (adjustable 2.6–2.8V/cell) and stops charging on cell over-voltage or over-temperature, preventing irreversible cell damage.
- Pre-Alarm Warning: Provides an early alert (adjustable 2.85–3.15V/cell) before load disconnect, allowing time to reduce consumption or start a generator. Can drive a relay, LED, or buzzer (max 1A).
- Remote On/Off Control: Enables system shutdown via a switch or relay, with configurable behaviour through VictronConnect—either disabling only alternator charging or the entire BMS.
- Ignition-Proof Design: MOSFET switches eliminate sparks, making it safe for use in engine rooms and fuel-carrying vessels.
- IP65 Protection: Sealed electronics withstand dust, moisture, and harsh environments, ensuring reliability in marine and outdoor installations.
Why Choose the Victron Smart BMS 12/200?
Managing a lithium battery bank without a dedicated BMS risks cell imbalance, premature capacity loss, and potential safety hazards. The Victron Smart BMS 12/200 addresses these challenges by providing precise, real-time control over charging and discharging processes. Its ability to parallel up to 20 batteries (84kWh in a 12V system) makes it scalable for larger energy storage needs, while the integrated alternator protection prevents costly alternator burnout—a common issue when charging high-capacity lithium banks from standard vehicle alternators.

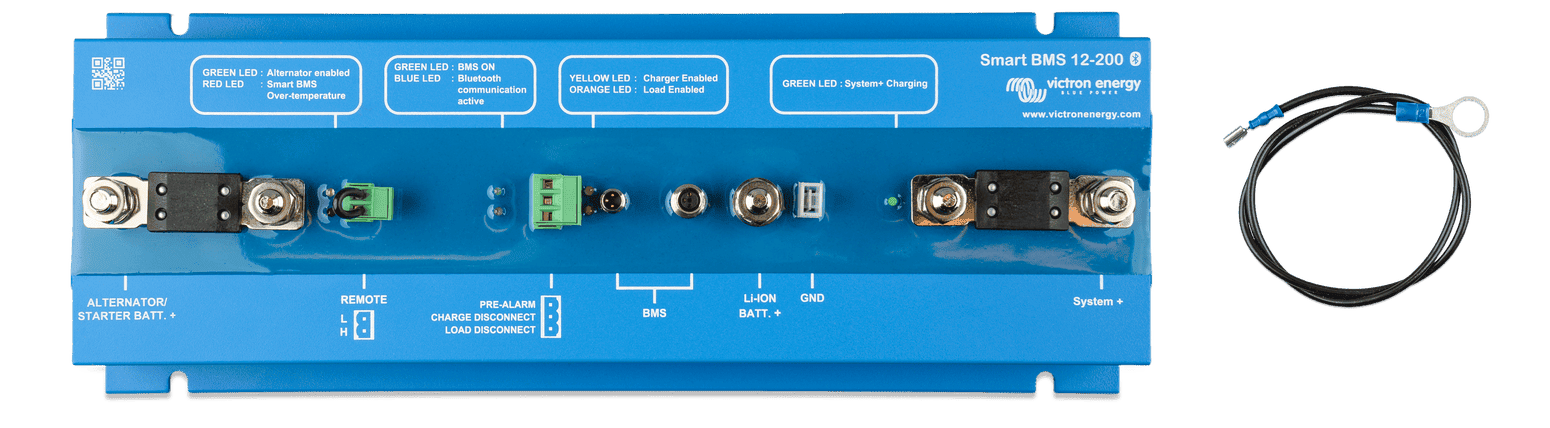

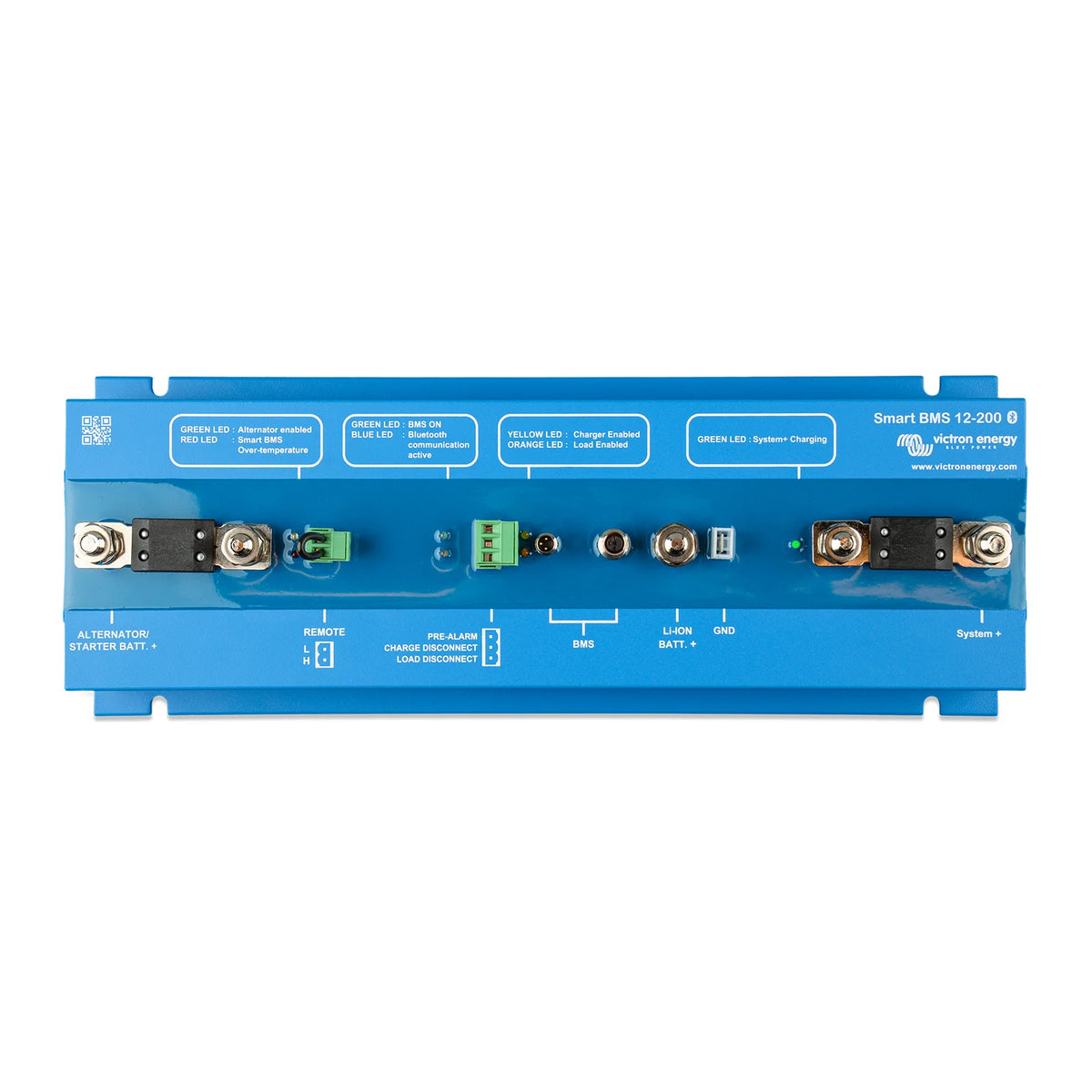

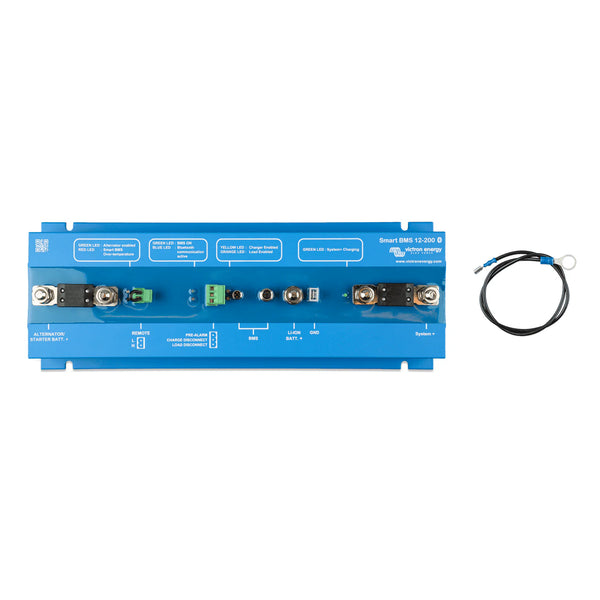

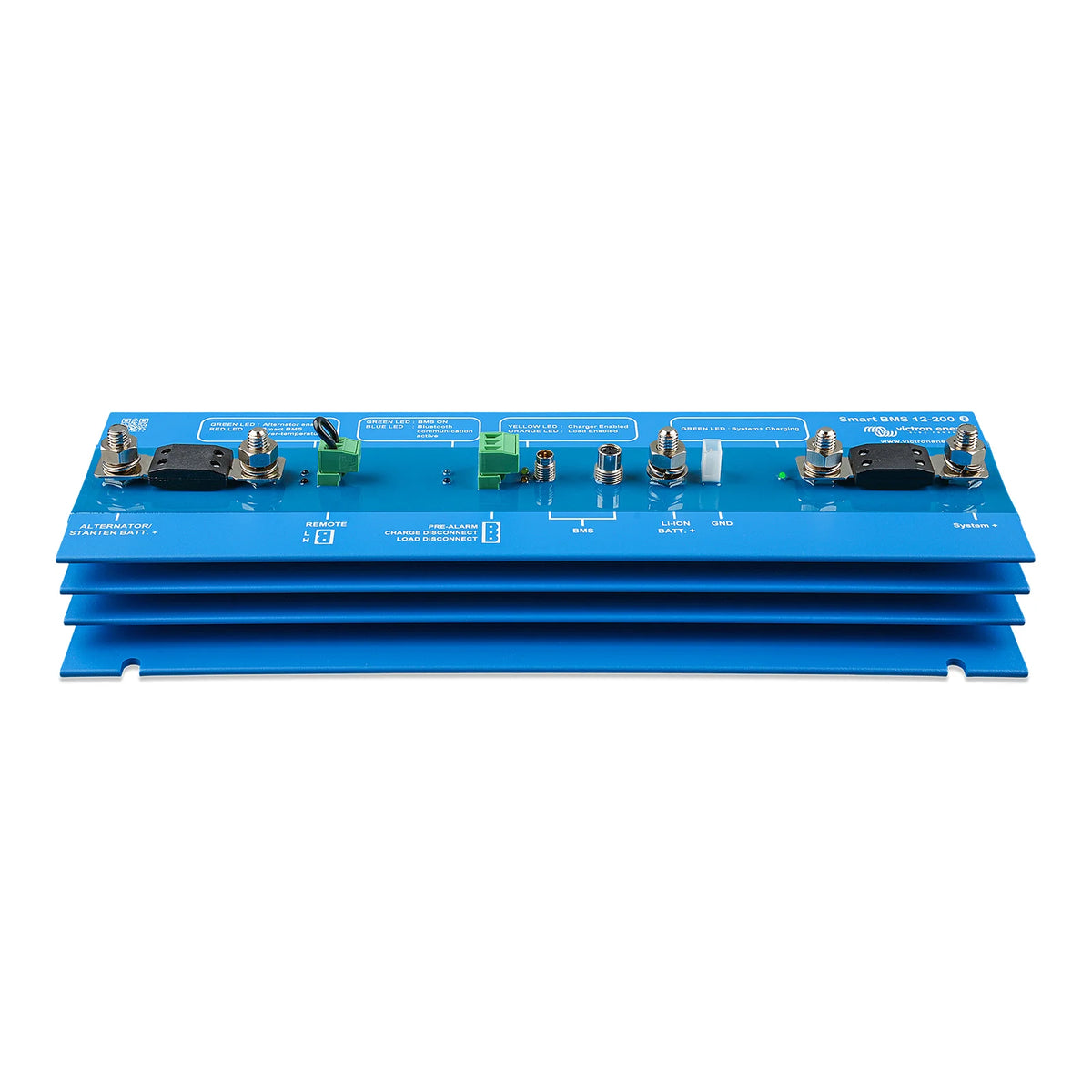

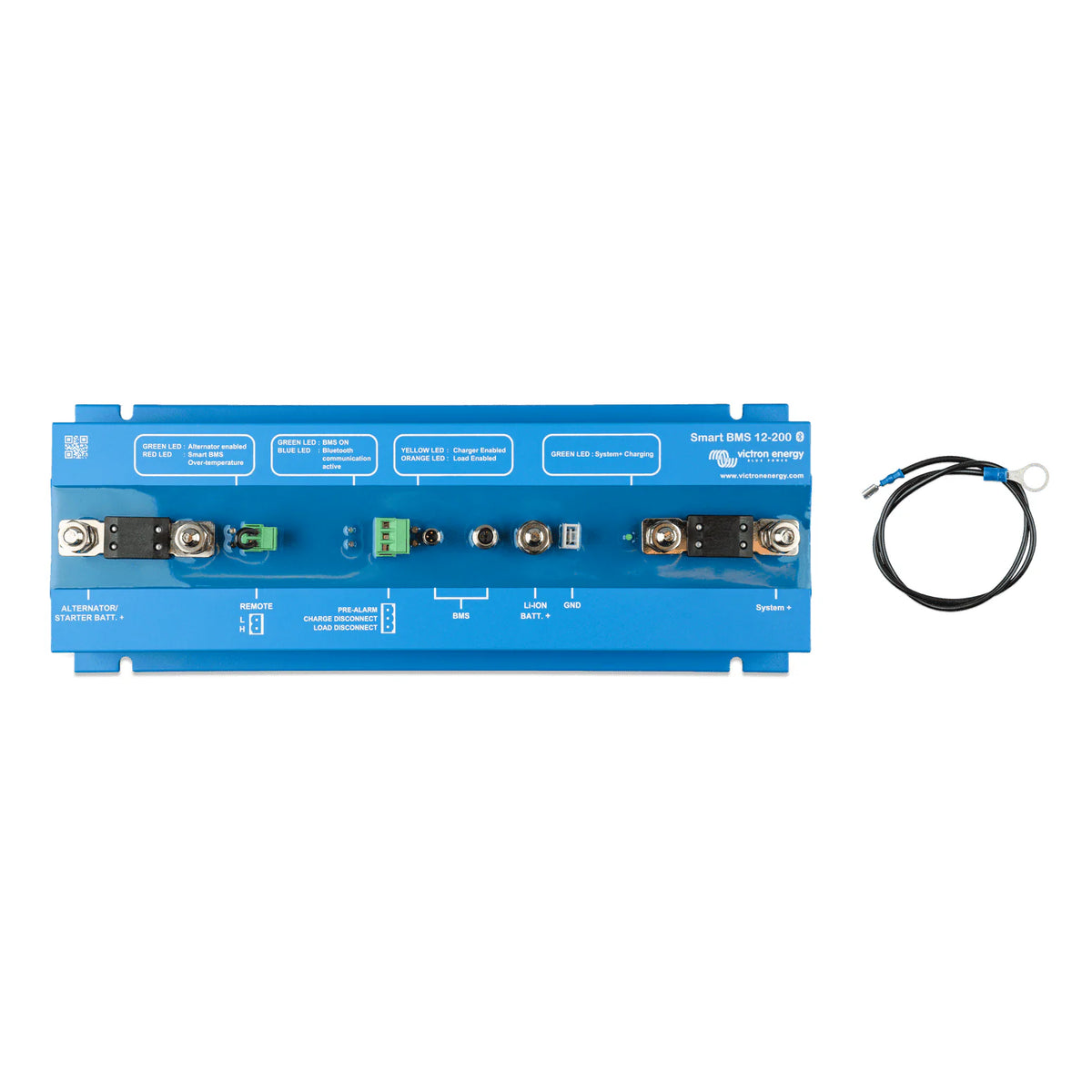

For installers and DIY enthusiasts, the unit simplifies wiring with clearly labelled M8 stud terminals (approx. 5/16"-18) and a dedicated Faston connector for the battery negative. The VictronConnect app offers intuitive configuration of voltage thresholds, alarm settings, and system status, reducing setup time and minimising errors.
Applications
- Caravans and Motorhomes: Manage alternator charging while protecting starter and house batteries during extended off-grid stays.
- Marine Systems: Ignition-proof and IP65-rated, ideal for yachts and boats where safety and corrosion resistance are paramount.
- Off-Grid Cabins: Integrate with solar chargers and inverters via the System+ port for reliable energy storage.
- Commercial Vehicles: Protect dual-battery setups in trucks, ambulances, and service vehicles.
Note: The alternator port’s maximum charge current is 100A with a 125A fuse. Typical de-rating factors apply based on ambient temperature and installation conditions.
Take Control of Your Lithium Power System
Upgrade your energy management with the Victron Smart BMS 12/200—engineered to deliver precise protection and effortless monitoring for Victron LiFePO4 batteries. Whether you’re powering a weekend escape or a full-time off-grid setup, this smart BMS ensures your batteries perform safely and efficiently. Order now to experience the confidence of a professionally managed lithium system.
SPECIFICATIONS
Specifications
| Maximum Number Of Batteries In One System | 20 |
|---|---|
| Maximum Energy Storage | 84 kWh in a 12 V system |
| Alternator Port - Max Charge Current | 100 A (with 125 A fuse) |
| System+ Port - Max Charge And Discharge Current | 200 A |
| Peak Discharge Current | 400 A |
| Input Voltage To Start Charging | > 13 V |
| Current Consumption, Remote On | 17.5 mA (excluding Load output and Charge output current) |
| Current Consumption, Remote Off | 6.5 mA (BMS functionality still active); 4.5 mA (BMS functionality disabled) |
| Load Disconnect Output | Normally High (Vbat - 0.1 V); Source current limit: 10 mA (short circuit protected); Sink current: 0 A (output free floating) |
| Charge Disconnect Output | Normally High (Vbat - 0.1 V); Source current limit: 10 mA (short circuit protected); Sink current: 0 A (output free floating) |
| Pre-Alarm Output | Normally Free Floating; High (Vbat) in case of alarm, max. 1 A (not short circuit proof) |
| Remote (or System) On/Off | Remote L and Remote H; Use modes: 1. ON when the L and H terminal are interconnected; 2. ON when the L terminal is pulled to battery minus (V < 5 V); 3. ON when the H terminal is high (V > 3 V); 4. OFF in all other conditions |
| Operating Temperature Range | -40 °C to +60 °C |
| Humidity, Maximum / Average | 100 % / 95 % |
| Protection, Electronics | IP65 |
| DC Power Connection | M8 |
| Mounting Torque | 10 Nm |

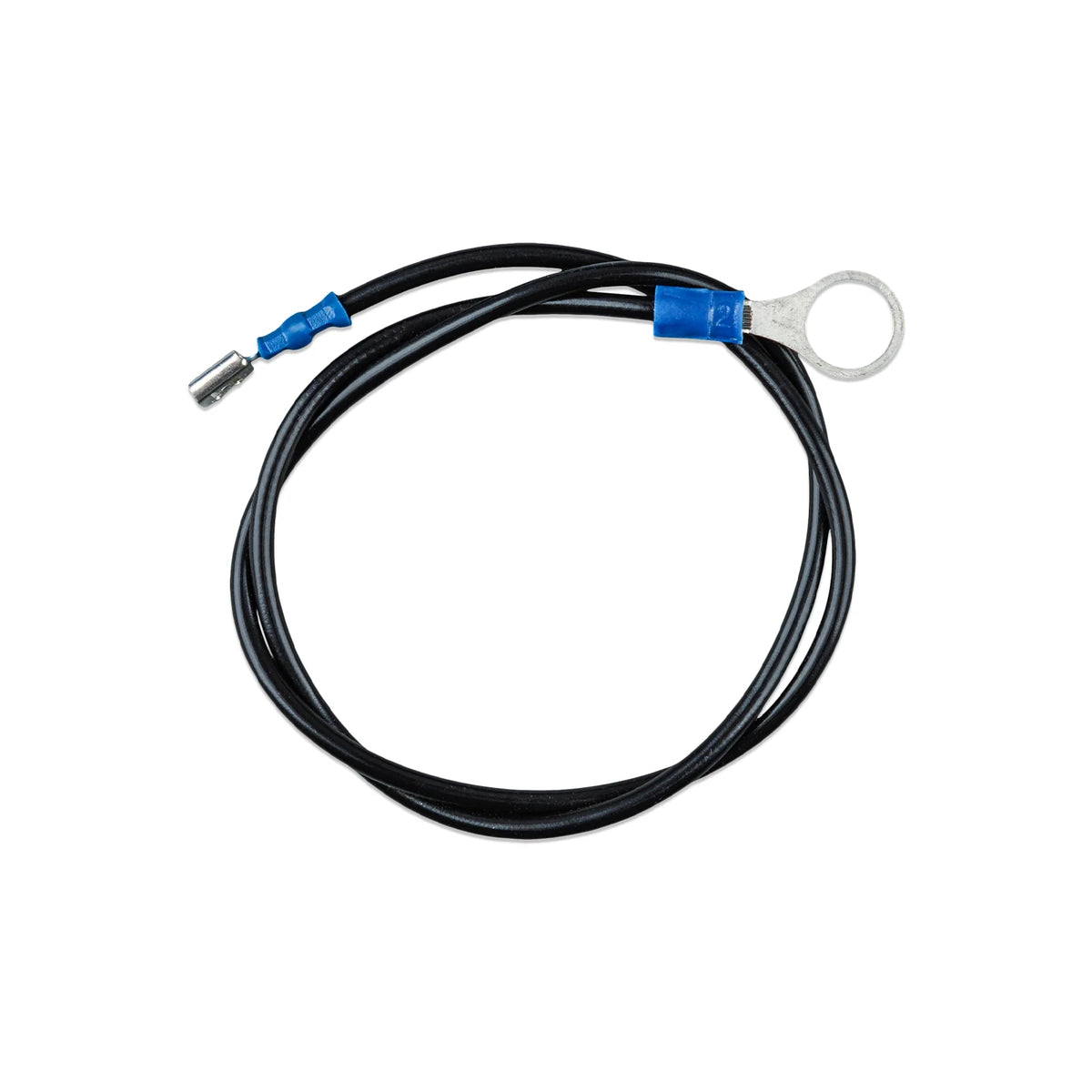

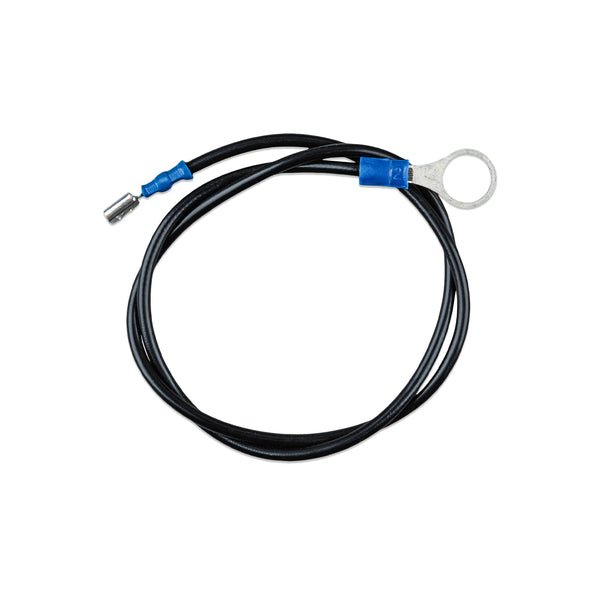

| DC Connector Battery Minus | Faston female, 6.3 mm |
| Weight | 2 kg |
| Dimensions (HxWxD) | 65 x 120 x 340 mm |
| Emission | EN 61000-6-3, EN 55014-1 |
| Immunity | EN 61000-6-2, EN 61000-6-1, EN 55014-2 |
| Automotive EMC Directive | ECE R10-5 |
| SKU: | VIC-BMS210055000 |
| Barcode: | 8719076052883 |
| Model #: | BMS210055000 |
| MPN: | BMS210055000 |
