Victron 12V 70A Skylla-IP65 12/70(1+1) 120-240V Battery Charger

IP65 12V 70A Sealed Charger with Main and Starter Battery Outputs and CAN-bus Integration


Regular price $1,287.98
$1,291.40
/
Availability: Special Order
View all products from Victron
Guaranteed Safe and Secure Checkout
Apple Pay Google Pay MastercardPayPalShop Pay Visa

0

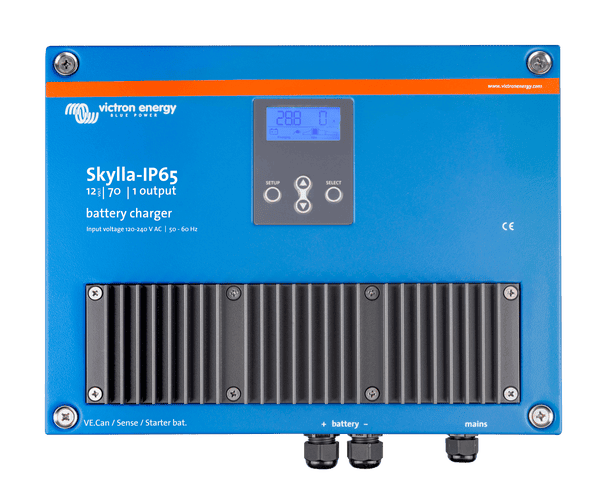

Front view of Skylla-IP65 battery charger featuring LCD, navigation buttons and large cooling fins

Victron 12V 70A Skylla-IP65 12/70(1+1) 120-240V Battery Charger

DESCRIPTION

Victron Skylla-IP65 12/70(1+1): Professional-Grade Battery Charger for Demanding Environments

Engineered for Reliability in Harsh Conditions

The Victron Skylla-IP65 12/70(1+1) is a robust, fully sealed battery charger designed to deliver 70A of dependable power in the toughest environments. Its IP65-rated steel enclosure, finished in a durable epoxy powder coat, provides complete protection against dust and water ingress, making it ideal for marine, industrial, and off-grid applications where exposure to moisture, salt air, and extreme temperatures is a constant challenge. Internal circuit boards receive an additional acrylic conformal coating, offering superior corrosion resistance and ensuring long-term reliability even in high-humidity settings.

Unlike standard chargers that can fail prematurely under thermal stress, the Skylla-IP65 employs active forced-air cooling and integrated temperature sensors. These sensors continuously monitor critical power components, automatically reducing output current if necessary to prevent overheating and maintain operation within safe limits, even at ambient temperatures up to 60°C. This intelligent thermal management significantly reduces the risk of charger failure and extends service life. A built-in LCD display provides real-time status monitoring and allows for easy adaptation of the charge algorithm to your specific installation.

Dual Outputs and Adaptive 7-Stage Charging for Maximum Battery Life

This (1+1) model features two isolated outputs: a full-power 70A main output and a secondary 3A output specifically designed to top up and maintain a starter battery. At the core of the Skylla-IP65 12/70(1+1) is an advanced 7-stage adaptive charge algorithm, meticulously optimised for lead-acid batteries. This intelligent system dynamically adjusts the absorption phase duration based on the depth of the previous discharge—shortening it after shallow cycles to prevent overcharging, and extending it after deep discharges to ensure a full, complete recharge. This precision charging minimises battery wear and maximises lifespan.

For sealed batteries, the BatterySafe mode actively prevents excessive gassing by limiting the rate of voltage increase once the gassing threshold is reached, protecting the battery from damage. When the battery remains idle for 24 hours, the Storage mode automatically engages, reducing float voltage to 13.2V to minimise positive plate corrosion and electrolyte stratification. A weekly refresh charge further prevents sulphation, a leading cause of premature battery failure. The included battery temperature sensor provides automatic voltage compensation, adjusting charge parameters based on ambient temperature—a critical feature for sealed batteries and installations subject to wide temperature swings.

Precision Charging with Voltage Sense and Power Supply Mode

Voltage drop across long cable runs can compromise charging accuracy. The Skylla-IP65 features a dedicated voltage sense input that measures the actual battery terminal voltage, automatically compensating for cable losses to ensure the battery receives the precise charge voltage required. This is particularly valuable in large installations where the charger may be located some distance from the battery bank.

Thanks to its exceptionally stable output regulation, the Skylla-IP65 can also function as a high-quality DC power supply when batteries or large buffer capacitors are not available, providing clean, regulated power for sensitive equipment.

Advanced Connectivity and System Integration

Built for modern energy systems, the Skylla-IP65 includes a dual RJ45 CAN-bus interface supporting the NMEA2000 protocol. This allows seamless integration with Victron's GX monitoring devices, such as the Color Control GX, and enables synchronised parallel operation of multiple chargers. Simply interconnecting chargers with standard UTP cables ensures coordinated charging, balanced load sharing, and simplified system expansion.

For lithium-ion (LiFePO4) battery banks, the charger offers flexible control options. A remote on-off port accepts a signal from a battery management system (BMS) for simple charge enable/disable control, while the CAN-bus port allows complete, real-time control of charge voltage and current for fully integrated lithium systems.

Key Features

  • IP65-rated steel enclosure with epoxy powder coat and acrylic-coated circuit boards for maximum corrosion resistance
  • Dual isolated outputs: 70A main output and a dedicated 3A starter battery output
  • Built-in LCD display for monitoring and easy parameter adjustment
  • 7-stage adaptive charge algorithm with variable absorption time, BatterySafe mode, and Storage mode
  • Included battery temperature sensor for automatic voltage compensation
  • Voltage sense input to compensate for cable losses
  • CAN-bus (NMEA2000) interface for system integration and synchronised parallel operation
  • Remote on-off port for BMS integration with lithium batteries
  • Functions as a stabilised DC power supply when batteries are not connected
  • Wide universal AC input range: 90-265V, 45-65Hz
  • Forced internal air circulation with thermal protection for full output up to 40°C ambient

Built to Solve Real-World Charging Challenges

In marine, mining, and remote off-grid installations, charger failure is not an option. The Skylla-IP65 12/70(1+1) addresses the common failure points of generic chargers—corrosion, overheating, and inaccurate charging—with a design that prioritises protection and precision. Its sealed construction eliminates the risk of salt-laden air corroding internal electronics, while the adaptive charging logic prevents the chronic overcharging or undercharging that silently destroys batteries. By maintaining optimal charge parameters under all conditions, it reduces the total cost of ownership through extended battery life and reduced maintenance interventions.

Whether you are maintaining a critical engine start battery, a house bank on a cruising yacht, or a backup power system in a remote telecommunications shelter, the Skylla-IP65 delivers the reliability and performance required for mission-critical applications.

Power Your System with Confidence

Equip your installation with a charger engineered for the long haul. Order the Victron Skylla-IP65 12/70(1+1) today and ensure your batteries receive the precise, protected charging they need to perform when it matters most.

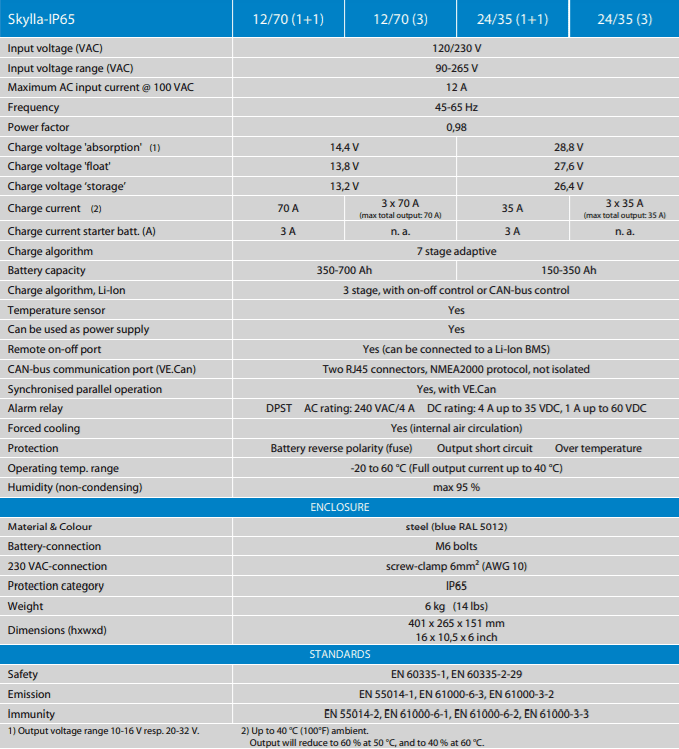

SPECIFICATIONS

Specifications

ModelSkylla-IP65 12/70(1+1) 120-240V
Part NumberSKY012070000
Input Voltage Range (VAC)90-265 V
Maximum AC Input Current @ 100 VAC12 A
Frequency (Hz)45-65
Power Factor0.98
Charge Voltage 'Absorption' (VDC)14.4 V
Charge Voltage 'Float' (VDC)13.8 V
Charge Voltage 'Storage' (VDC)13.2 V
Charge Current Main Batt. (A)70
Charge Current Starter Batt. (A)3
Charge Algorithm7 Stage Adaptive
Recommended Battery Capacity (Ah)350-700
Charge Algorithm, Li-Ion3 Stage, With On-Off Control Or CAN-Bus Control
Temperature SensorYes
CAN-Bus Communication Port (VE.Can)Two RJ45 Connectors, NMEA2000 Protocol, Not Isolated
Synchronised Parallel OperationYes, With VE.Can
Forced CoolingYes (Internal Air Circulation)
Operating Temp. Range-20 to 60 °C (Full Output Current up to 40 °C)
Humidity (Non-Condensing)Max 95 %
Material & ColourSteel (Blue RAL 5012)
Battery-ConnectionM6 Bolts
230 VAC-ConnectionScrew-Clamp 6 mm² (AWG 10)
Protection CategoryIP65
Weight6 kg (14 lbs)

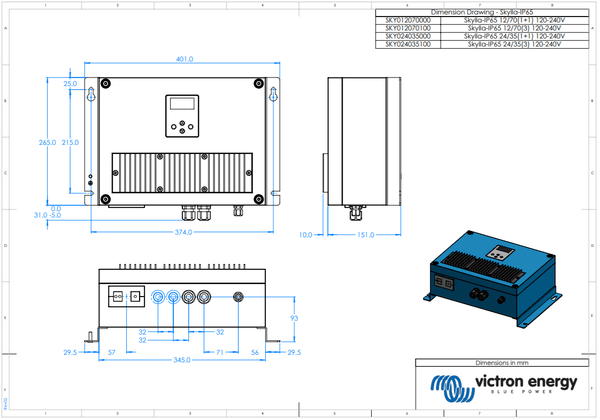

Dimensions (H x W x D)401 x 265 x 151 mm (16 x 10.5 x 6 in)
SafetyEN 60335-1, EN 60335-2-29
EmissionEN 55014-1, EN 61000-6-3, EN 61000-3-2
ImmunityEN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3

SKU: VIC-SKY012070000
Barcode: 8719076051961
Model #: SKY012070000
MPN: SKY012070000
