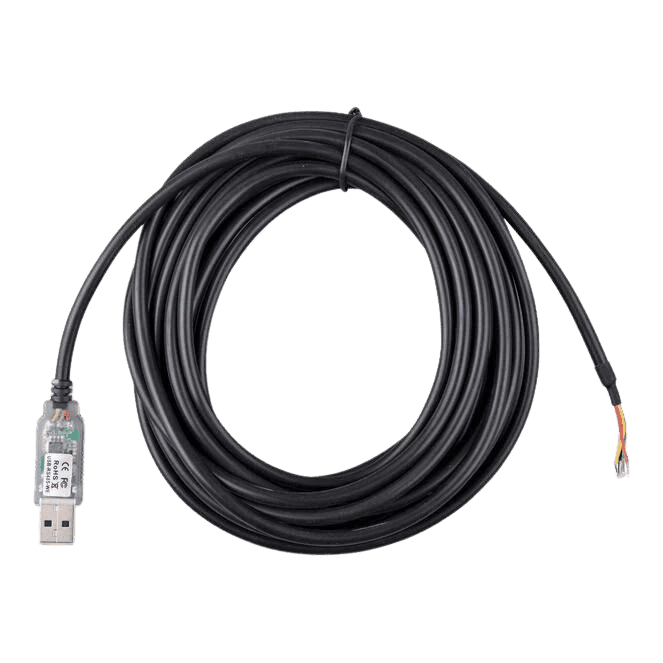

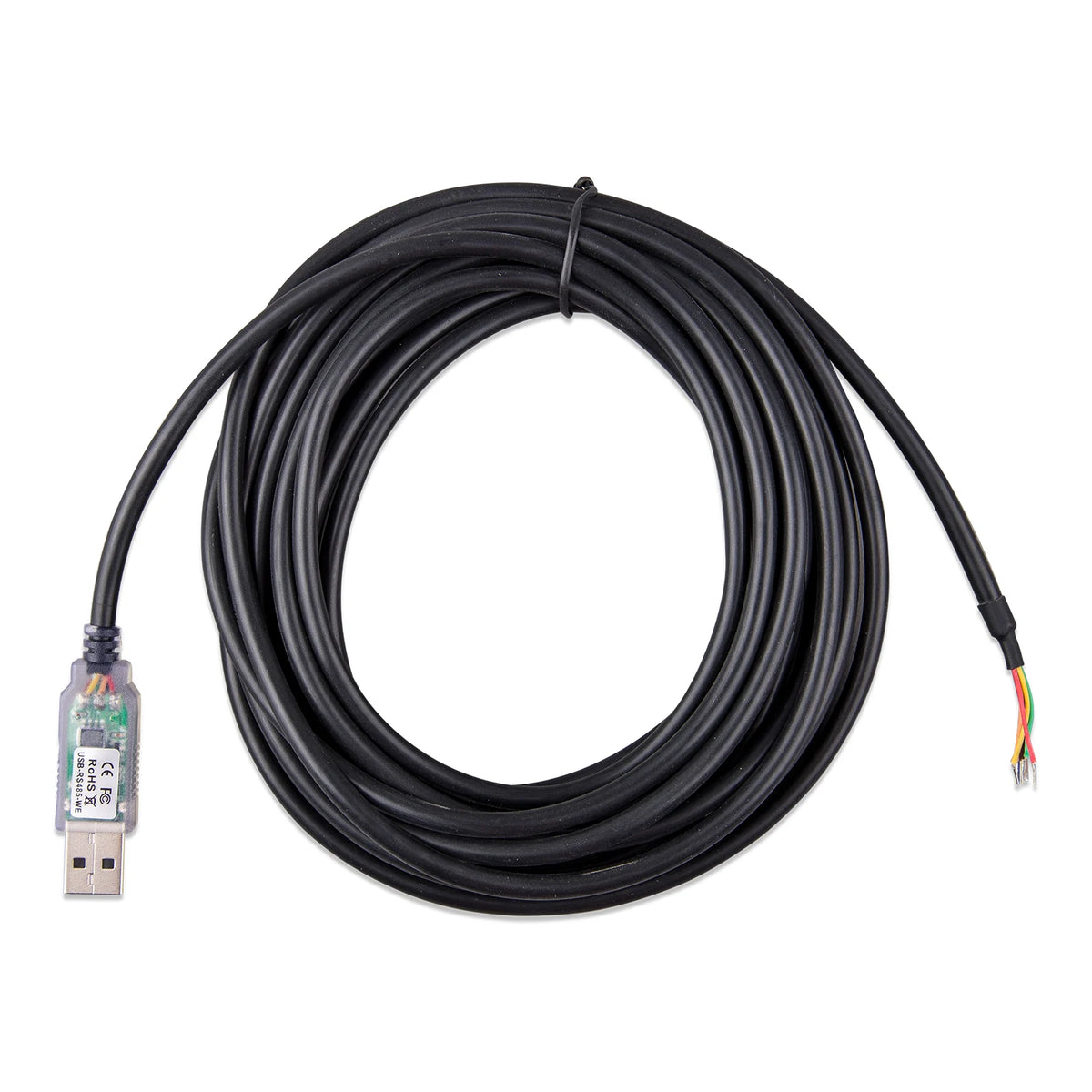

Victron RS485 to USB interface 5m Cable
Victron RS485 to USB interface 5m Cable
5m Cable with Integrated Converter for Victron Energy Meters & GX Devices

DESCRIPTION
Victron RS485 to USB Interface Cable: Reliable Data Communication for Energy Monitoring
Seamless Integration Between Victron Energy Meters and GX Devices
The Victron RS485 to USB interface 5m cable provides a robust, plug-and-play solution for connecting Victron energy meters to GX monitoring devices. Engineered for precision data transfer, this cable ensures accurate, real-time energy readings across your system, enabling smarter energy management and optimised performance.
Designed specifically for the Victron ecosystem, this RS485 to USB interface eliminates the complexity of custom wiring and signal conversion. The integrated USB-A connector houses the RS485 converter circuitry, delivering a clean, reliable connection without additional adapters or configuration. Whether you're monitoring a single-phase or three-phase installation, this cable simplifies commissioning and reduces potential points of failure.
Purpose-Built for Victron Energy Meter Installations
This cable is the official interface for linking Victron EM24 energy meters and other compatible RS485 meters to Cerbo GX, Color Control GX, or Venus OS devices. It transmits critical data including voltage, current, power, and energy consumption, allowing your GX device to display and log comprehensive system insights.
With a 5-metre cable length, it offers generous reach for tidy installations, routing from meter enclosures to control panels without straining connections. The cable can be extended up to 100 metres using appropriate RS485 wiring practices, making it suitable for larger commercial or off-grid setups where equipment is distributed across a site.
Clear, Colour-Coded Conductors for Fast Termination

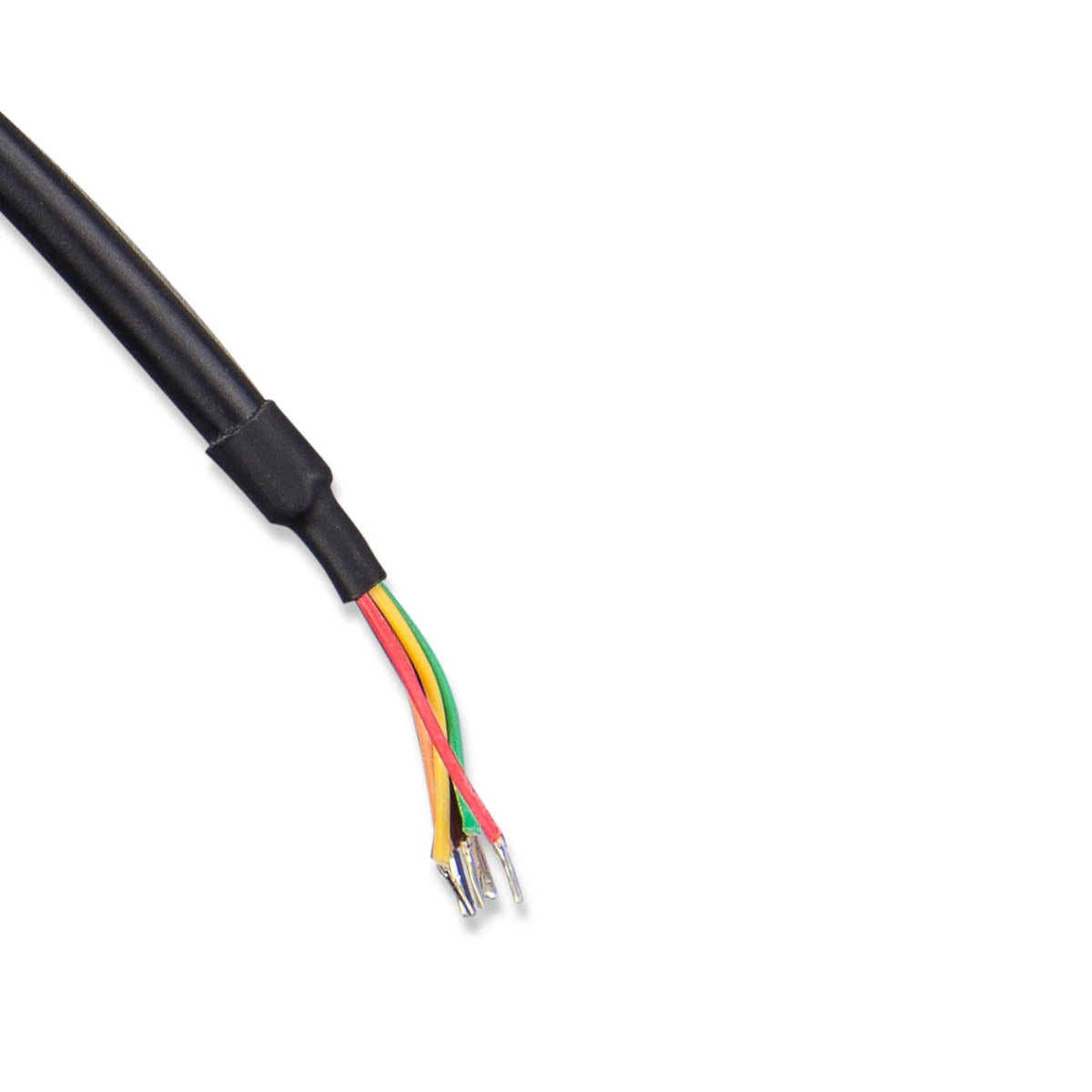

The cable features pre-stripped and tinned wire ends, ready for secure connection to RS485 terminals. Colour coding follows the Victron standard:
- Orange – Data + (A)
- Yellow – Data – (B)
- Black – GND (common reference)
Unused conductors (red, green, brown) are isolated, preventing confusion during installation. This thoughtful design reduces wiring errors and speeds up commissioning, particularly valuable for professional installers managing multiple sites.
Key Features at a Glance
- Direct RS485 to USB interface for Victron energy meters and GX devices
- 5-metre cable length with option to extend up to 100 metres

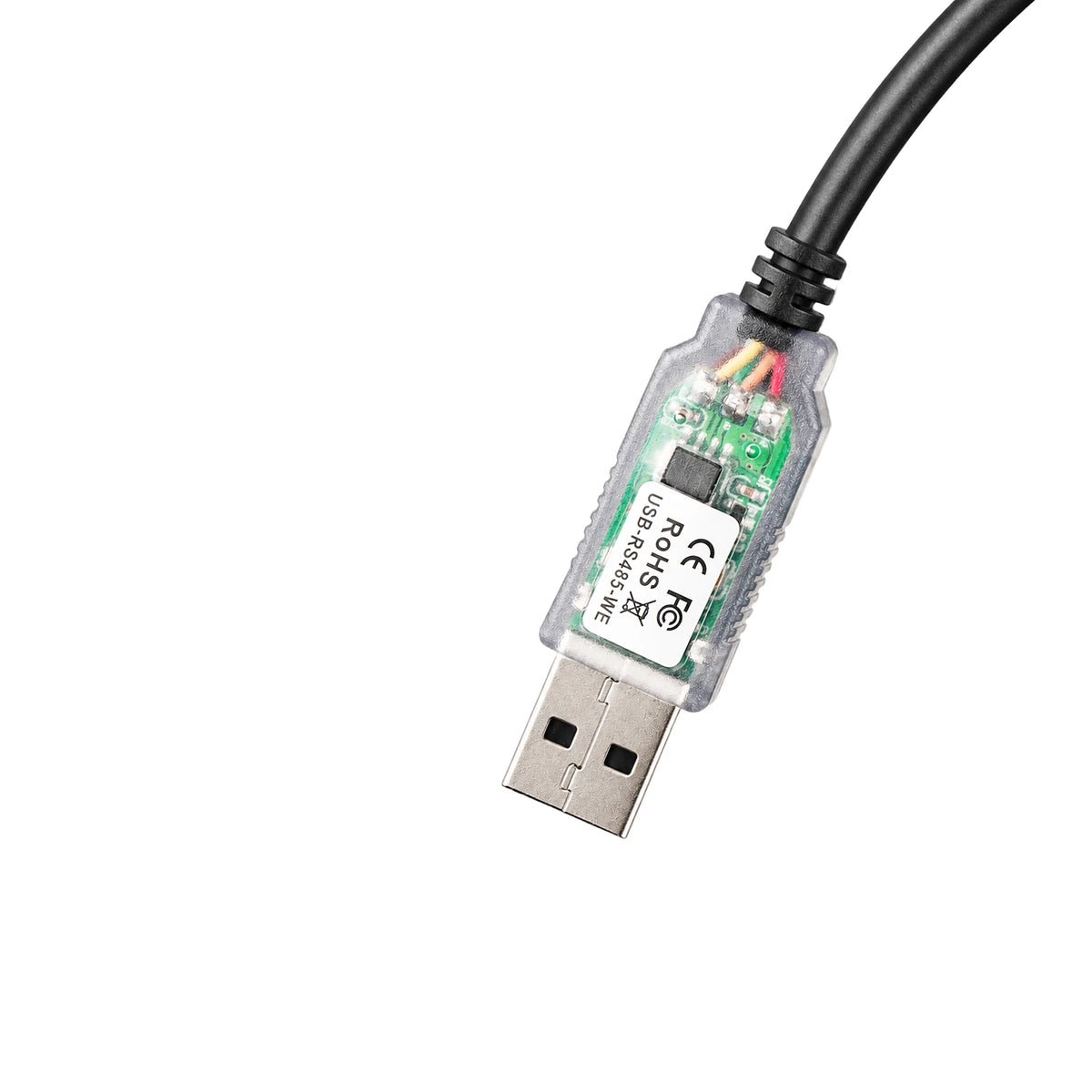

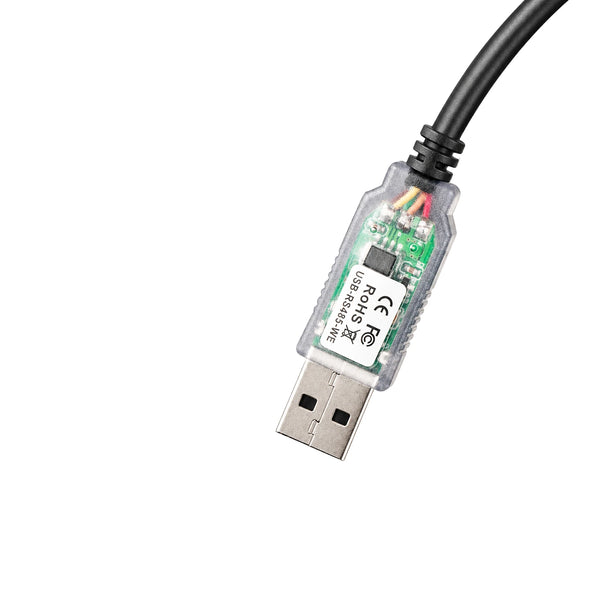

- Integrated USB-A connector with built-in RS485 converter – no external adapters needed
- Colour-coded, tinned conductors for straightforward, error-free termination
- Compatible with Victron EM24, ET112, ET340, and other RS485-enabled meters
- Supports stable data transmission for accurate energy monitoring and system control
Engineered for Consistent Performance in Demanding Environments
Victron's attention to detail extends to the cable's construction. The high-quality insulation resists abrasion and environmental stress, maintaining signal integrity even in engine rooms, switchboards, or outdoor enclosures. The USB-A connector is moulded for strain relief, protecting the internal converter from mechanical damage.
Unlike generic RS485 to USB adapters, this cable is tested and validated for use with Victron's communication protocols. This ensures compatibility out of the box and reduces the risk of data dropouts or configuration issues that can plague third-party solutions.
Ideal Applications
- Connecting a Victron EM24 energy meter to a Cerbo GX for comprehensive energy monitoring
- Integrating multiple meters in three-phase or hybrid inverter systems
- Retrofitting energy metering into existing Victron installations
- Professional marine, RV, and off-grid power systems requiring precise energy data
- Commercial solar and storage projects where long cable runs are necessary
Simplify Your Energy Monitoring Setup
Upgrade your Victron system with the official RS485 to USB interface cable and gain full visibility of your energy flows. Whether you're fine-tuning self-consumption or managing a complex off-grid installation, this cable delivers the reliable data link you need.
Add the Victron RS485 to USB interface 5m cable to your order today and ensure your energy meter communicates seamlessly with your GX device.
SKU: VIC-ASS030572050
SPECIFICATIONS
Specifications
| Part Number | ASS030572050 |
|---|---|
| Product Type | RS485 to USB interface |
| Cable Length | 5 m |
| Application | Connect an energy meter to a GX device |
| Extendable Cable Length | Up to 100 m |
| Data + Wire Colour | Orange |
| Data - Wire Colour | Yellow |
| GND Wire Colour | Black |
| Unused Wires | Red, Green and Brown |
| SKU: | VIC-ASS030572050 |
| Barcode: | 8719076040088 |
| Model #: | ASS030572050 |
| MPN: | ASS030572050 |
