Victron Phoenix Inverter Control (Phoenix VE.Bus)
Victron Phoenix Inverter Control (Phoenix VE.Bus)
Manual On/Off Control with Status LEDs for VE.Bus Inverters

DESCRIPTION

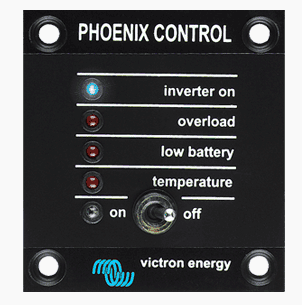

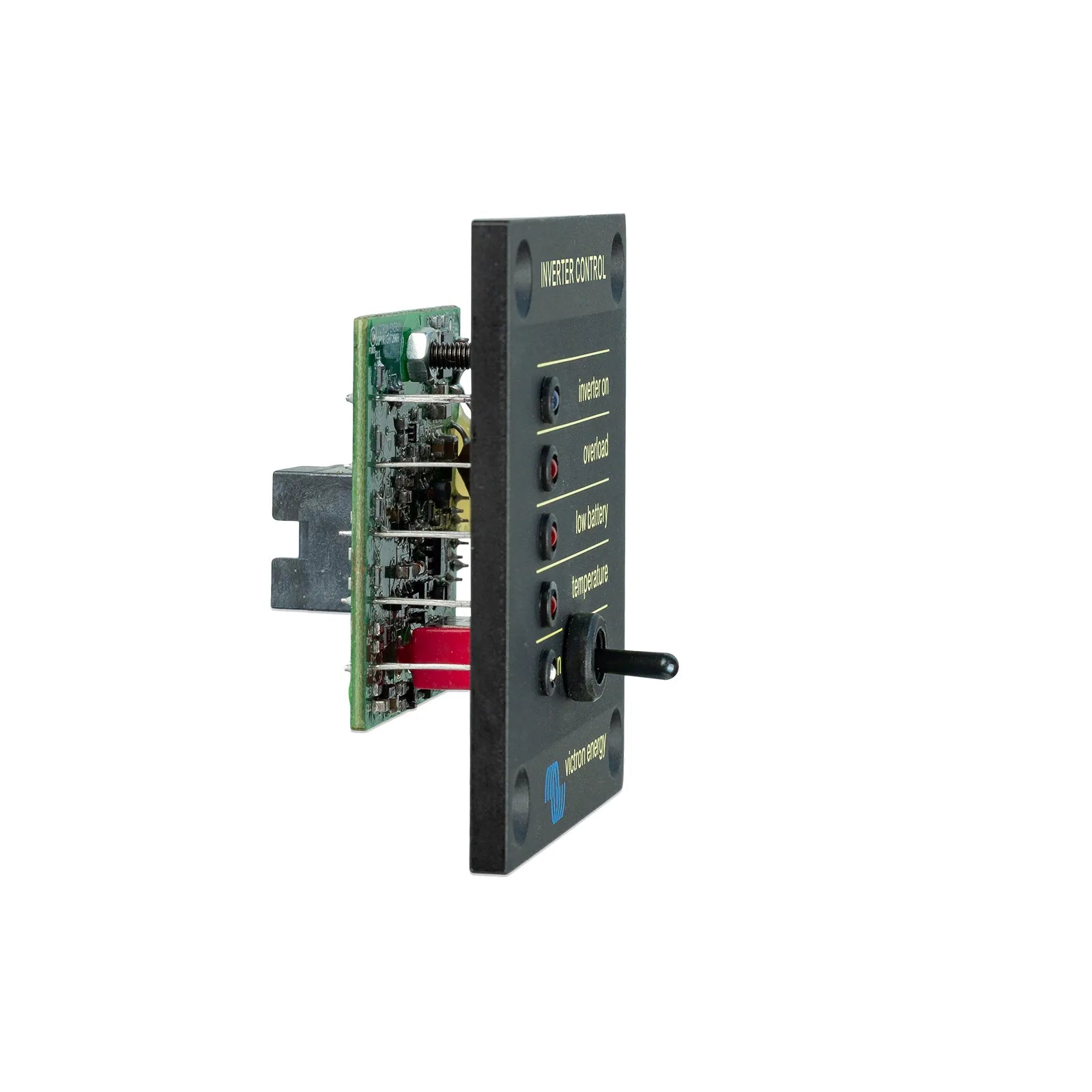

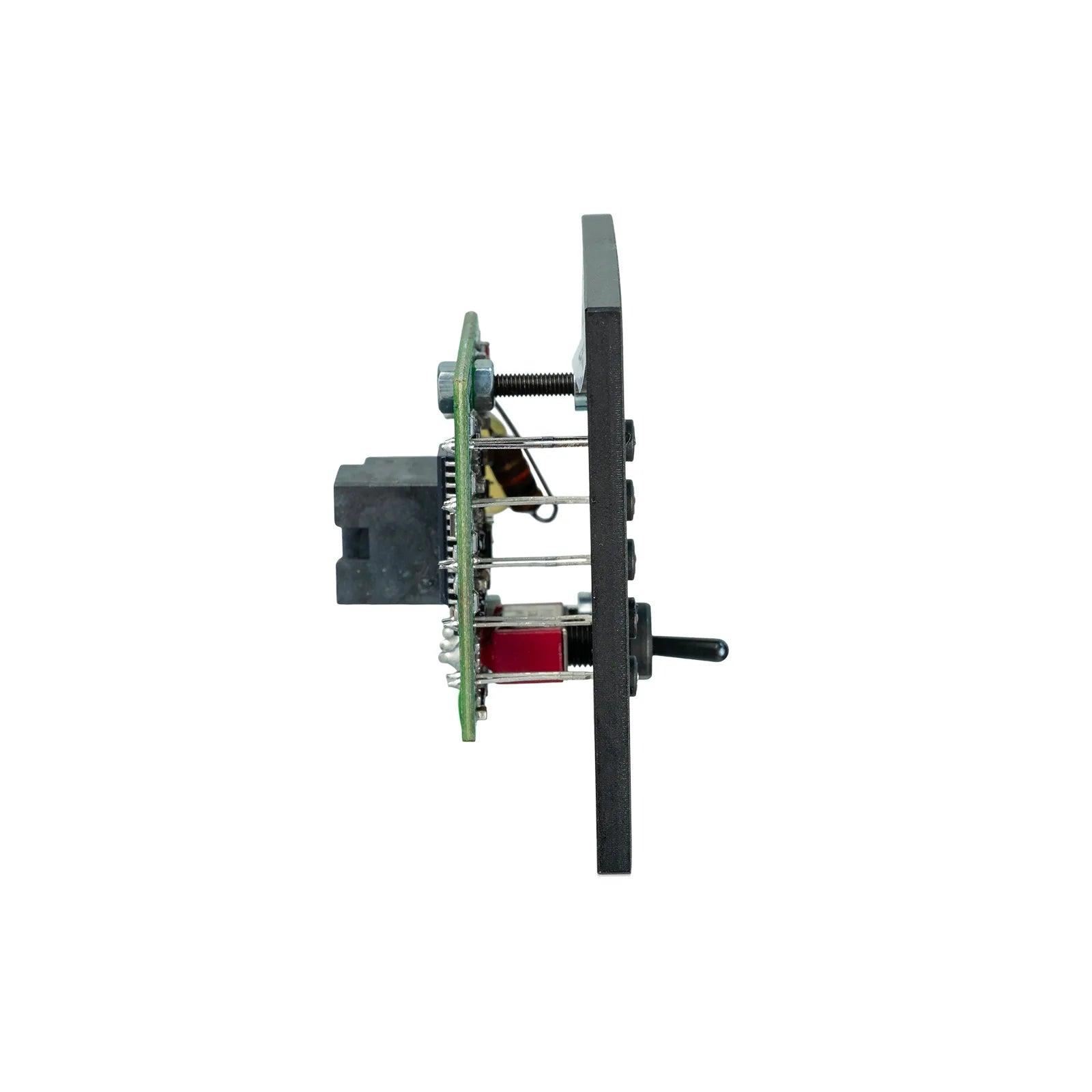

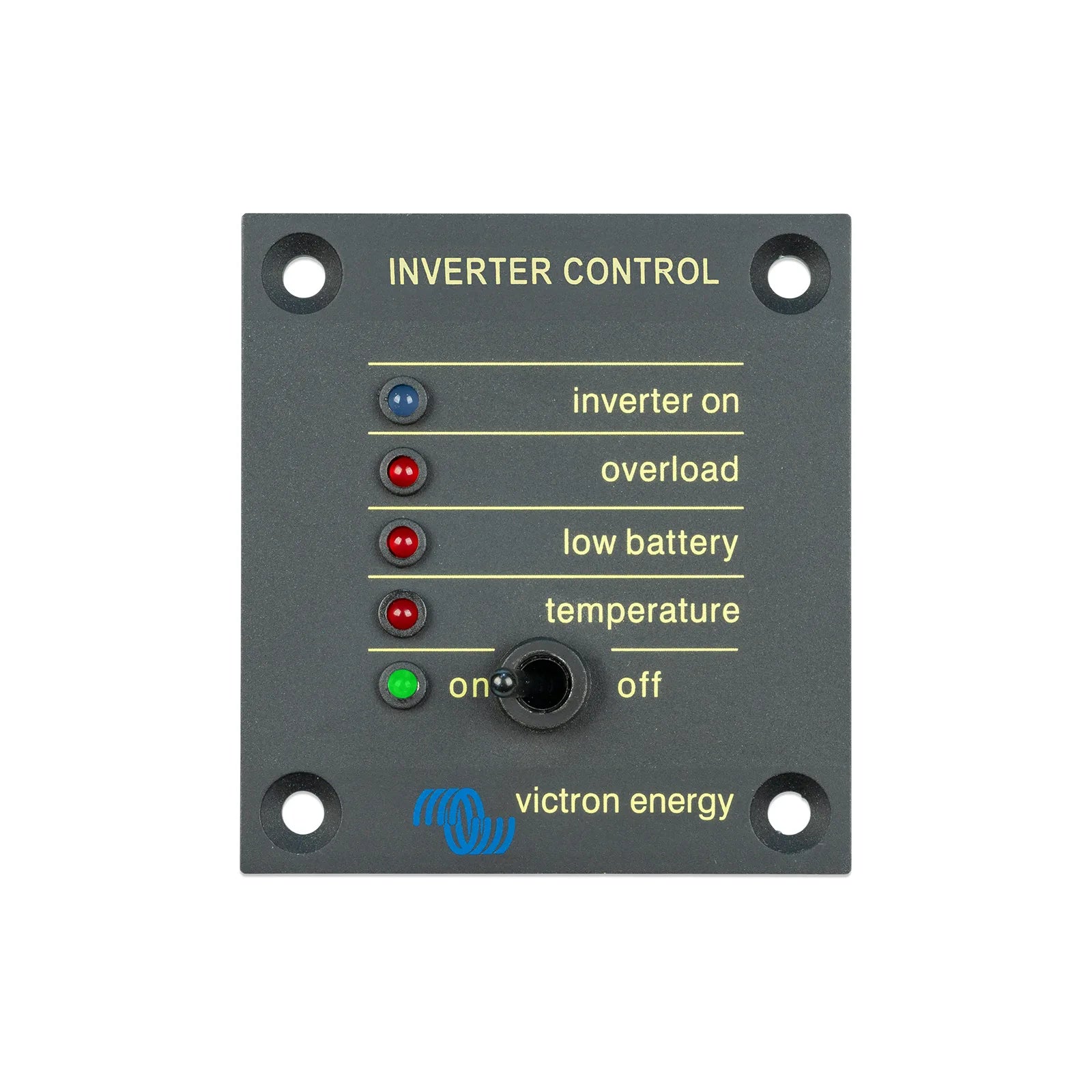

Victron Phoenix Inverter Control Panel for VE.Bus Inverters
Precision Remote Monitoring and Control for Your Off-Grid Power System
The Victron Phoenix Inverter Control panel provides a straightforward, hardwired interface for managing compatible VE.Bus Phoenix Inverters. Designed for installations where a physical control point is preferred, this panel allows you to switch the inverter on or off and monitor critical operating status at a glance, without needing a smartphone or additional digital gateway.
Engineered for use in 12V, 24V, and 48V systems, it is an ideal accessory for caravans, motorhomes, marine vessels, and off-grid cabins where reliable inverter control is essential. The panel connects via a standard UTP cable to the inverter's remote socket, enabling a clean, integrated dashboard or wall-mounted installation.
Clear Status Indication, Day or Night
Four dedicated LEDs provide immediate visual feedback on inverter status: Inverter On, Overload, Low Battery, and Temperature. This allows you to quickly identify operational issues before they escalate, reducing the risk of unexpected shutdowns. The LED brightness automatically dims in low-light conditions, preventing distraction in sleeping quarters or at night while remaining legible.
Key Features
- Manual on/off toggle switch for direct inverter control
- Four status LEDs: On, Overload, Low Battery, Temperature
- Automatic LED dimming for night-time use
- Connects via UTP cable to VE.Bus remote socket
- Compact 60 x 65 mm panel for flush mounting
- Compatible with MultiPlus inverter/charger in inverter-only mode
Compatibility and Installation
This control panel is specifically designed for Victron Phoenix VE.Bus inverters equipped with a UTP remote monitoring and control socket. It is not compatible with VE.Direct Phoenix or Phoenix Smart inverters. The panel can also be used with a MultiPlus Inverter/Charger when an automatic transfer switch is required but the charger function is not needed, offering flexibility in system design.
Supported models include: 12/1200, 12/1600, 12/2000, 12/3000, 12/5000, 24/1200, 24/1600, 24/2000, 24/3000, 24/5000, 48/3000, and 48/5000. The panel’s compact dimensions (60 mm wide by 65 mm high) and recessed mounting holes allow for a neat, professional installation on dashboards, control cabinets, or bulkheads.
Why Choose a Dedicated Control Panel?
In mobile and remote power systems, having a physical control interface reduces reliance on wireless connections or complex digital setups. The Victron Phoenix Inverter Control panel offers a reliable, low-latency method to manage your inverter, particularly valuable in environments where Bluetooth or Wi-Fi signals may be inconsistent. It also serves as a backup control method if digital interfaces are unavailable.
Take Control of Your Power System
Add the Victron Phoenix Inverter Control to your installation for dependable, at-a-glance inverter management. Whether you're upgrading an existing setup or building a new off-grid system, this panel delivers the simplicity and reliability expected from Victron Energy.
SKU: VIC-REC030001210
Visit Victron's Official Victron Phoenix Inverter Control (Phoenix VE.Bus) Webpage Here
SPECIFICATIONS
Specifications
| Part Number | REC030001210 |
|---|---|
| Intended For | This panel is intended for Inverters equipped with a UTP remote monitoring and control socket. |
| MultiPlus Use | It can also be used on a MultiPlus Inverter/Charger when an automatic transfer switch but no charger function is desired. |
| LED Brightness | The brightness of the LEDs is automatically reduced during night time. |
| Only For Models | 12/1200, 12/1600, 12/2000, 12/3000, 12/5000, 24/1200, 24/1600, 24/2000, 24/3000, 24/5000, 48/3000 and 48/5000. |
| Panel Width | 60.0 mm |
| Panel Height | 65.0 mm |
| SKU: | VIC-REC030001210 |
| Barcode: | 8719076024378 |
| Model #: | REC030001210 |
| MPN: | REC030001210 |
